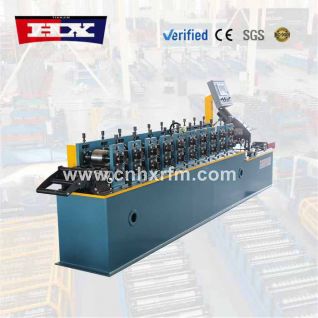

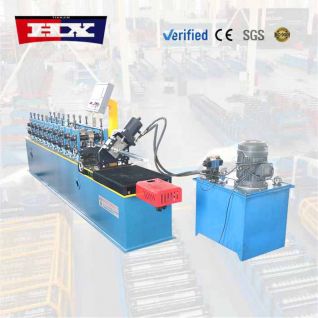

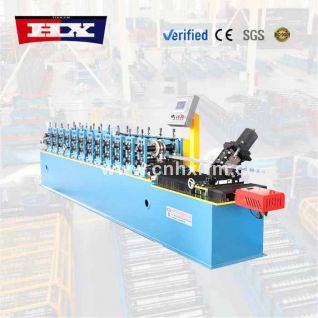

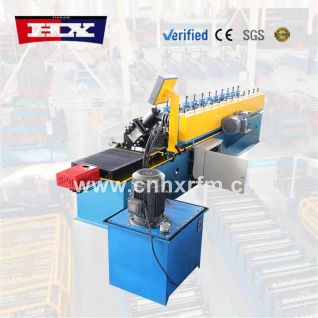

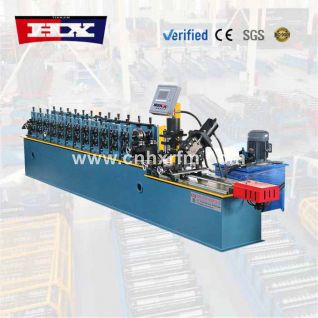

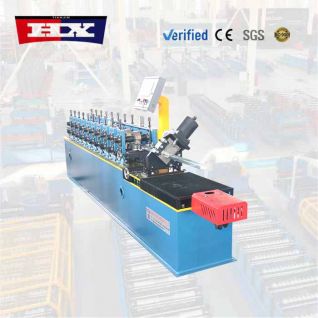

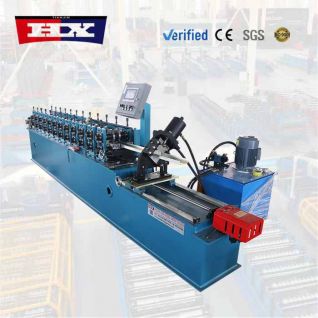

HX U Channel Roll Forming Machine – Precision Engineering for Versatile Structural Profiles
The U channel is one of the most fundamental and widely used profiles in construction, manufacturing, and infrastructure. HX Machinery offers a specialized U channel roll forming machine designed to produce high-quality U-shaped channels with exceptional accuracy, efficiency, and material economy. Our systems are engineered for B2B clients, including steel service centers, construction material suppliers, and industrial manufacturers, who require reliable, high-volume production of this versatile profile.
Durable Construction for Demanding Production Environments
The U channel roll forming process demands robust equipment capable of maintaining tight tolerances over extended runs. Our machine features a heavy-duty welded steel frame, stress-relieved to prevent deformation and ensure long-term alignment. The forming rollers are crafted from premium alloy steel, hardened to optimal specifications and precision-ground, with a hard chrome-plated surface for exceptional wear resistance. This meticulous construction ensures consistent profile dimensions and minimizes maintenance requirements.
Versatility in Profile Production
Our U channel roll forming machine is designed to accommodate a wide range of specifications, processing various materials including:
· Mild steel, galvanized steel, and pre-painted steel
· Aluminum and stainless steel (with appropriate tooling)
· Material thicknesses typically from 0.3mm to 2.0mm
· Coil widths and channel sizes according to customer requirements
The machine can produce standard U channels for framing and structural applications, as well as custom depths, flange widths, and leg heights to meet specific project needs.
Efficient Production and Automation
The machine is equipped with a PLC control system featuring an intuitive touchscreen interface, enabling operators to precisely set cut lengths, manage production counts, and store multiple profile programs for quick changeovers. Real-time monitoring and diagnostic capabilities help prevent errors and reduce downtime, ensuring smooth, continuous operation.
Integrated Cutting and Punching Options
To provide finished components directly from the coil, our production line includes high-performance hydraulic shears for clean, burr-free cuts. Optional inline punching or notching systems can be integrated to create holes, slots, or other features, eliminating secondary operations and improving production efficiency.
Complete Turnkey Solutions
Beyond the roll former itself, we offer a comprehensive range of auxiliary equipment to create a seamless production line:
· Heavy-duty decoilers (manual or motorized) for smooth coil feeding
· Precision leveling and feeding units for material conditioning
· Automatic stacking and bundling systems for finished channels
This integrated approach optimizes material flow, reduces labor costs, and enhances workplace safety.
Custom Engineering and Global Support
Understanding that each application is unique, HX Machinery provides tailored engineering solutions. We customize roller profiles to match your samples or technical drawings, design compact layouts for limited floor space, and offer speed adjustments to meet output targets. Our experienced team provides worldwide installation guidance, commissioning, and comprehensive operator training. With a responsive after-sales network and readily available spare parts, we ensure your production continuity.
A Trusted Partner Worldwide
With thousands of roll forming lines exported to over 80 countries, HX Machinery has earned a strong reputation for quality, reliability, and customer satisfaction. We are a preferred partner for steel processors and manufacturers seeking durable, high-value forming equipment.
