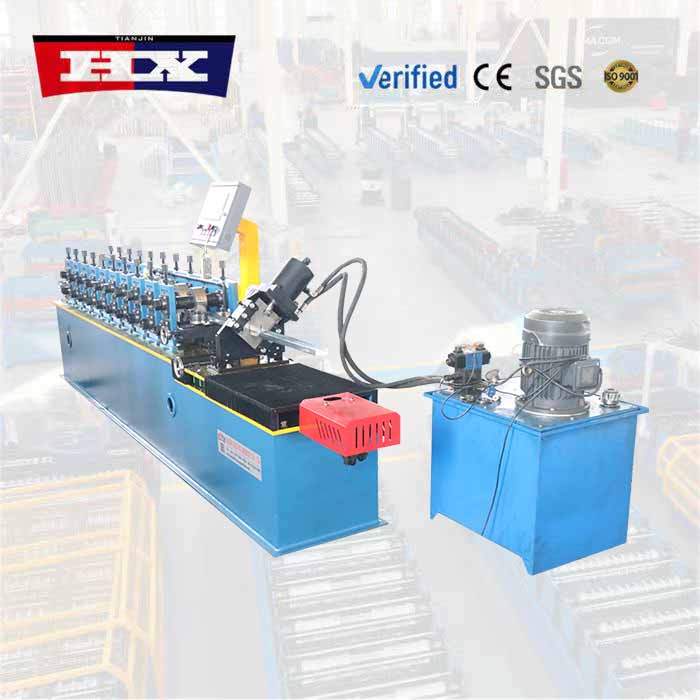

Model: HX-track roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

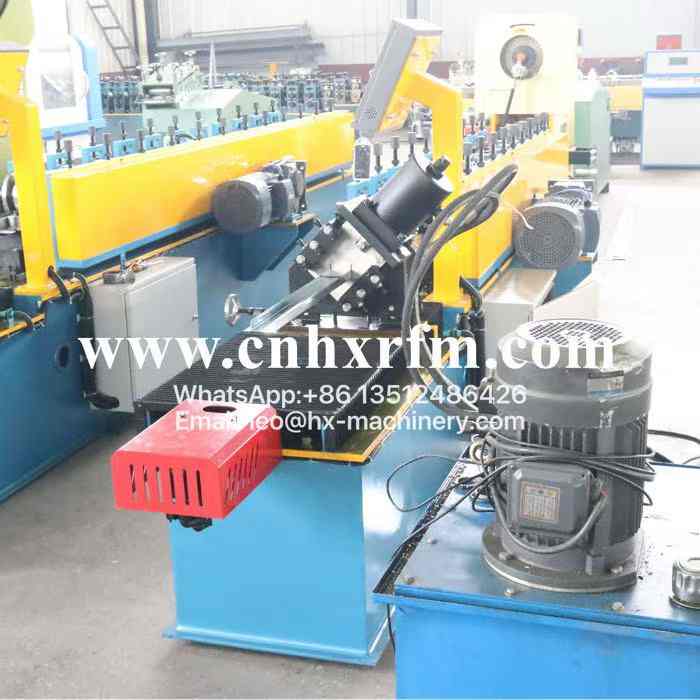

Tracks may not get the spotlight in steel framing, but they carry the load—literally. They hold studs in place, align walls, and provide the foundation for stable assemblies. When a track doesn't fit right, the whole system suffers. That's why we designed our track roll forming machine to produce tracks that are straight, true, and consistent.

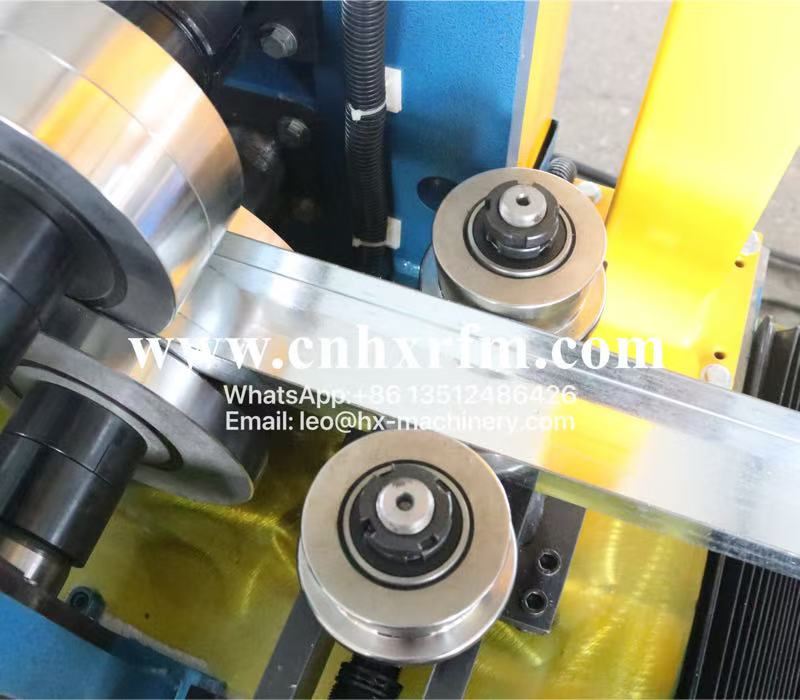

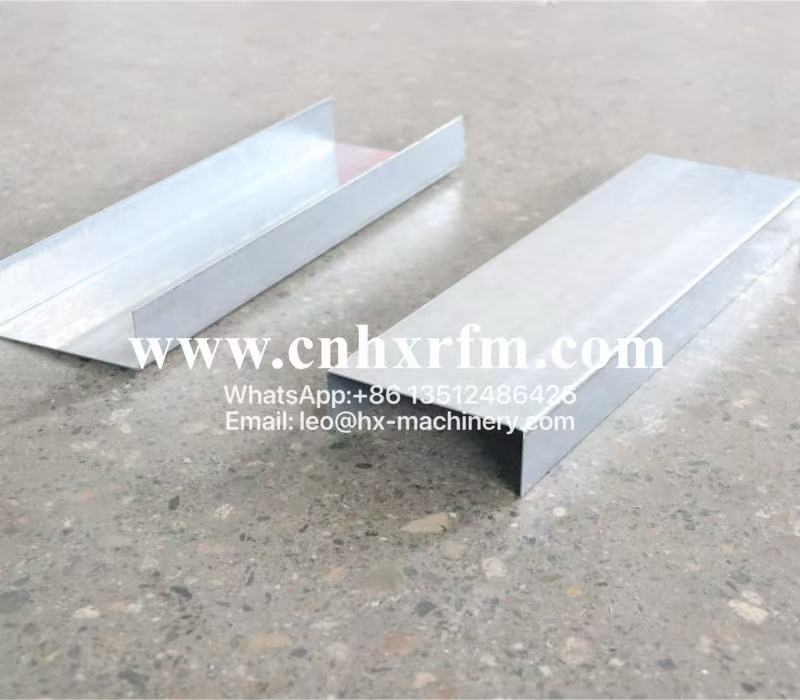

Our track roll forming machine forms clean web sections with consistent leg heights and angles, so tracks align perfectly with studs during assembly. The machine includes integrated punching for service holes and knockouts, positioned exactly where framers need them. With quick adjustment capabilities, it handles various material gauges and profile depths without lengthy downtime, allowing you to respond to changing job requirements efficiently.
What makes our track roll forming machine a practical choice is its steady performance. The frame stays stable under load, the rollers are built for long-term use, and the controls are straightforward. Routine maintenance is simple, and when support is needed, our team responds with clear guidance and fast parts availability. With our track roll forming machine, you get consistent quality and reliable output, helping you keep framing projects on schedule and within specification. It's a machine that quietly does its job, and does it well.
Machine parameters
| No. |
Track roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

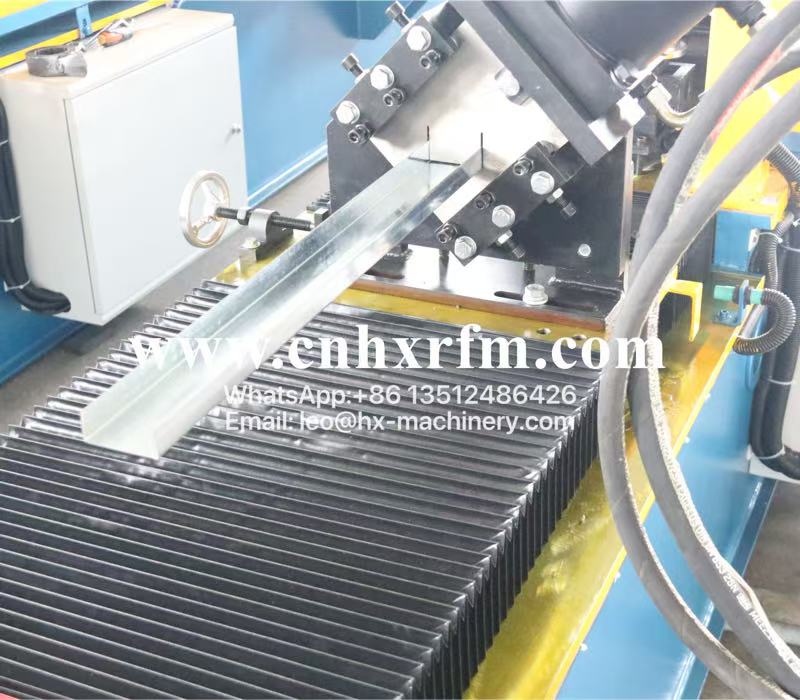

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

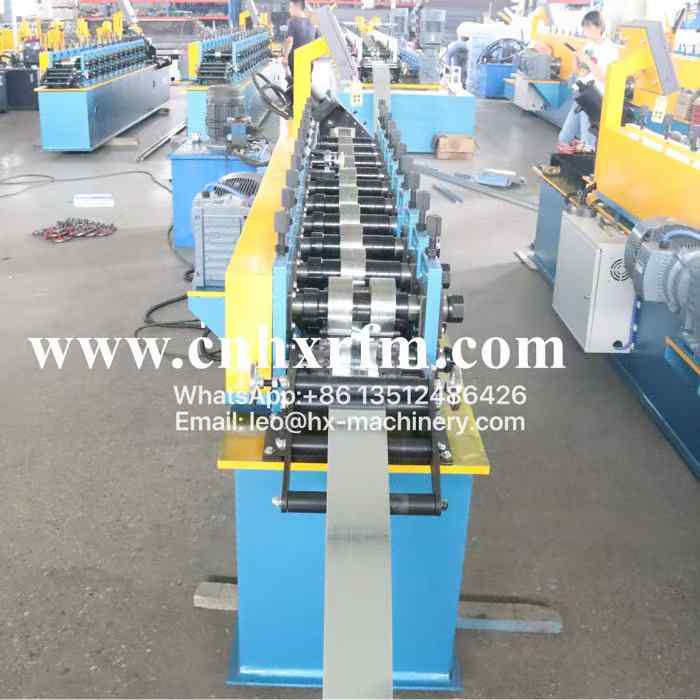

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

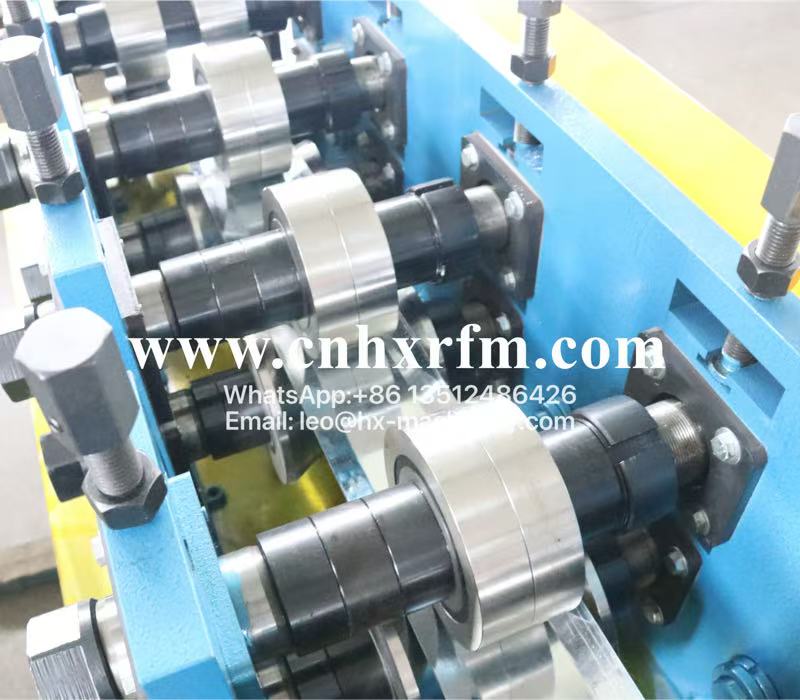

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
