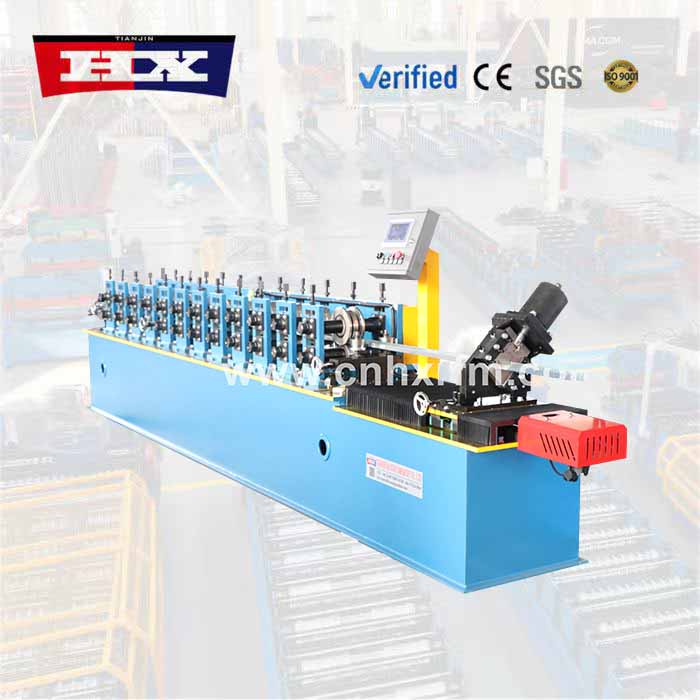

Model: HX-keel u manufacturing
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

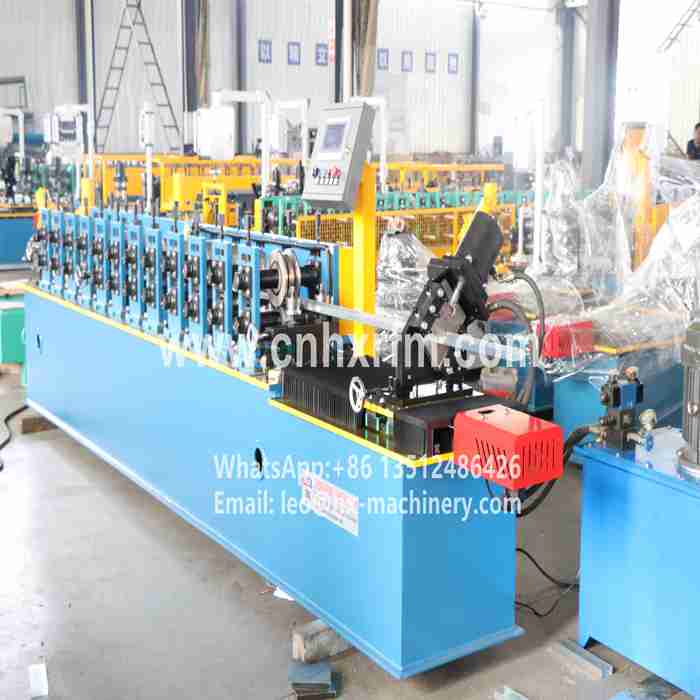

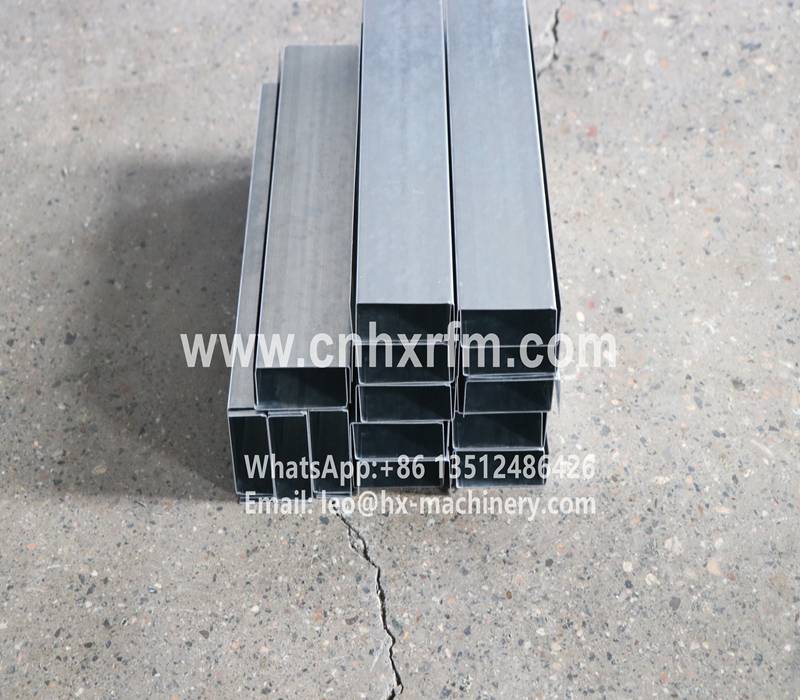

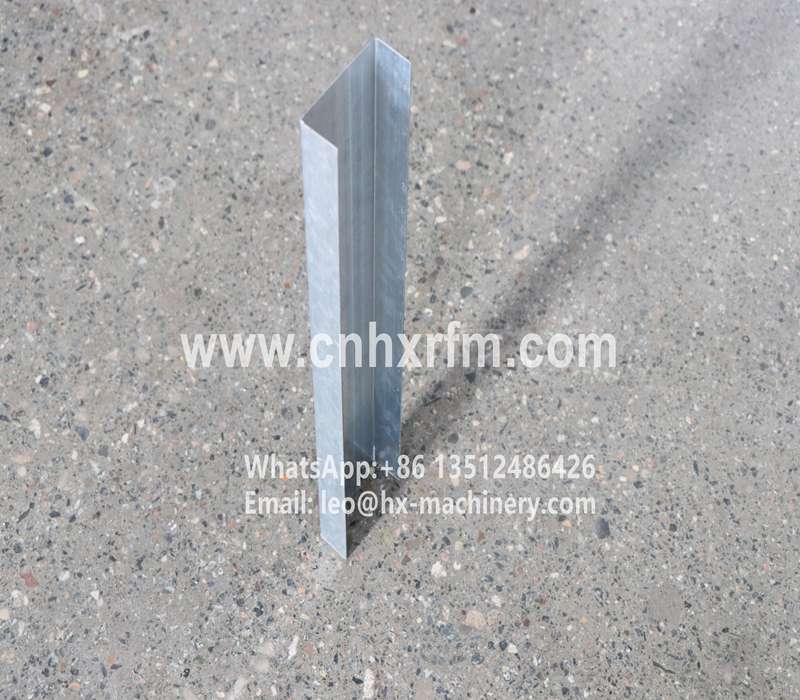

In ceiling and drywall framing, the U-shaped keel profile is essential for creating stable, level support structures. While it may appear straightforward, manufacturing this channel with consistent leg height, clean edges, and accurate hole placement requires specialized equipment. Our keel u manufacturing machine is built precisely for that purpose.

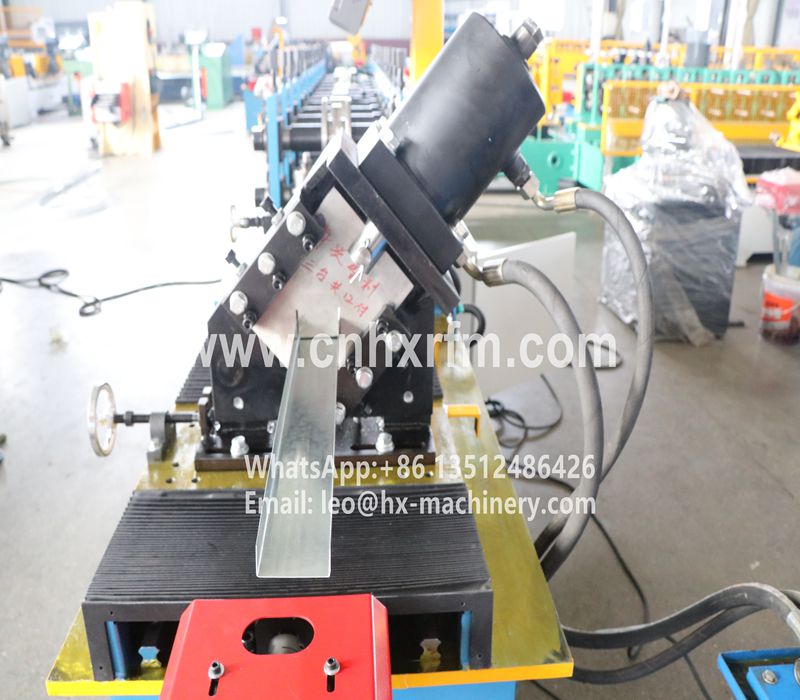

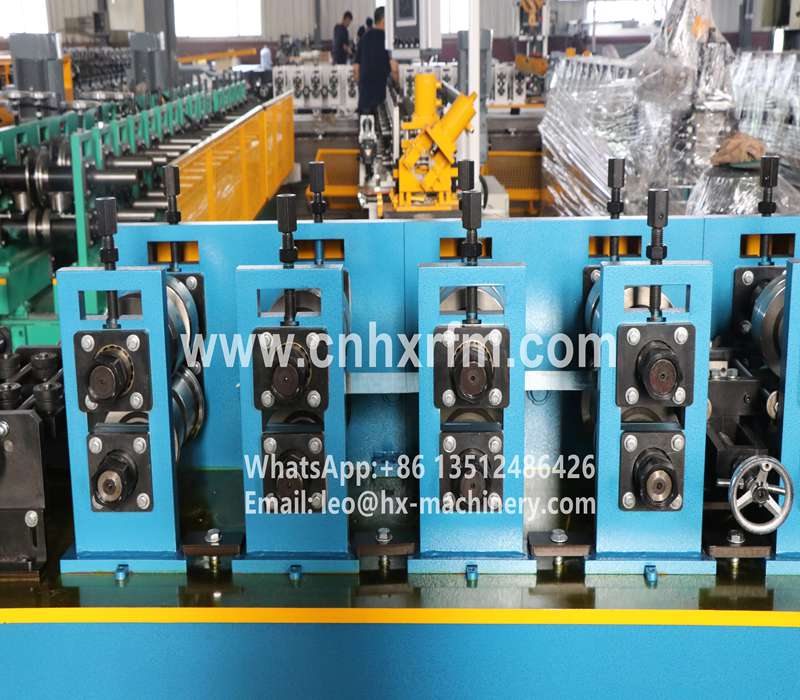

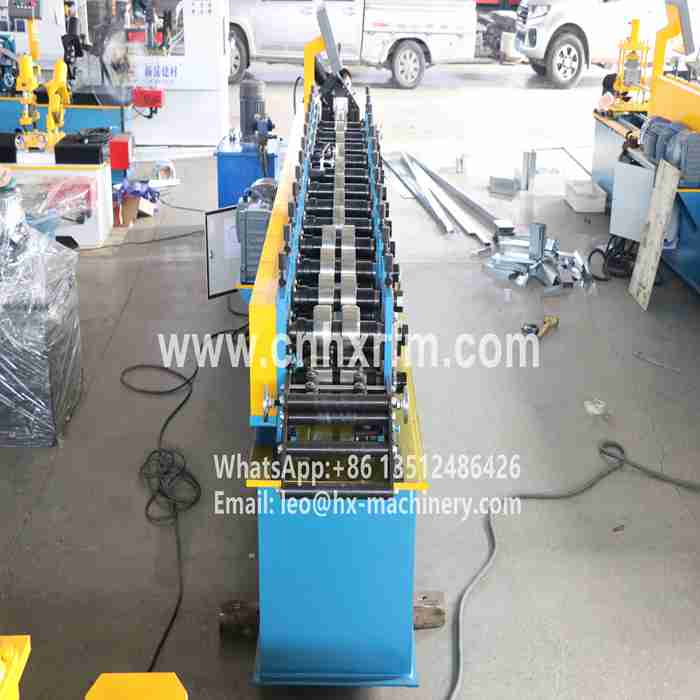

Our keel u manufacturing machine employs a progressive roll forming system that shapes the material gradually, preventing stress points and maintaining uniform leg alignment across the entire profile length. It handles various gauges and widths, offering the flexibility needed for different ceiling or wall system specifications. An integrated punching unit positions holes exactly where required, and the synchronized cutting system produces precise, distortion-free ends—ready for installation on-site.
What makes our keel u manufacturing machine stand out in daily operation is its straightforward, reliable performance. The machine holds its settings well, reducing the need for frequent recalibration, and its control interface is clear enough for operators to manage with minimal training. Routine maintenance is practical and accessible, so production stays on track. And when support is needed, our team responds quickly with practical advice and prompt parts availability. With our keel u manufacturing machine, you get dependable output that helps you meet project deadlines without unnecessary complications—a solid solution for producing the U-channel profiles that keep modern interiors together.
Machine parameters
| No. |
Keel u manufacturing machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|

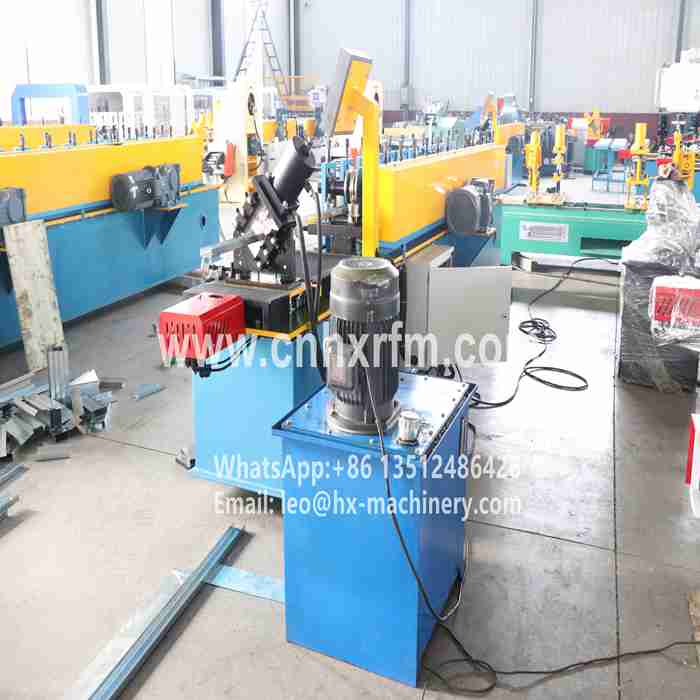

Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

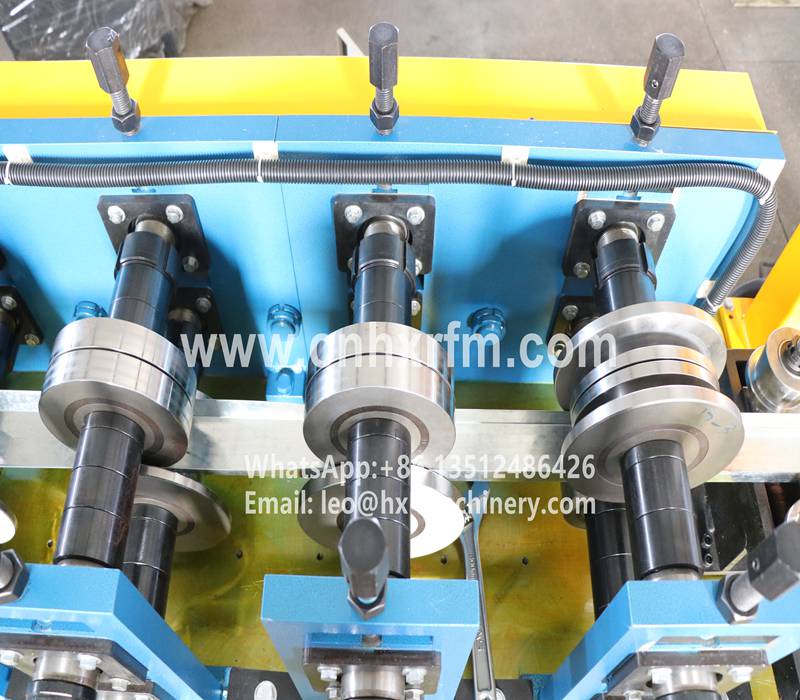

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
