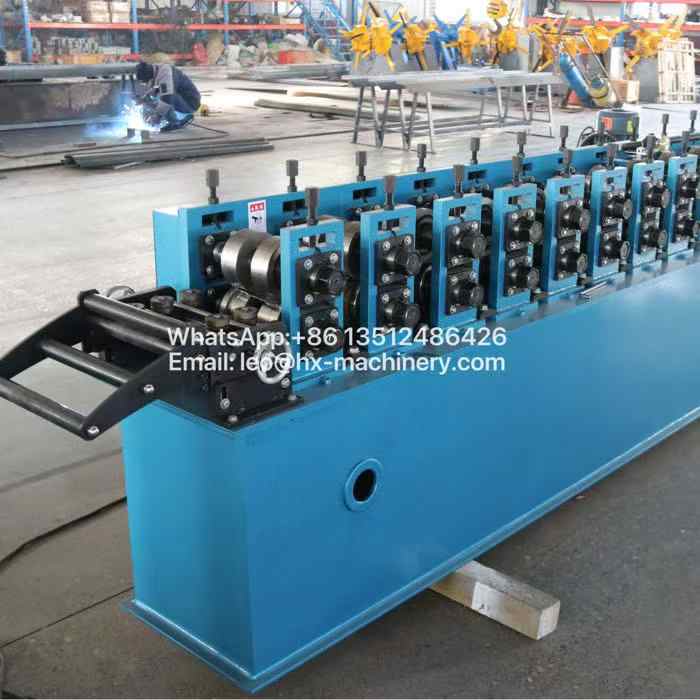

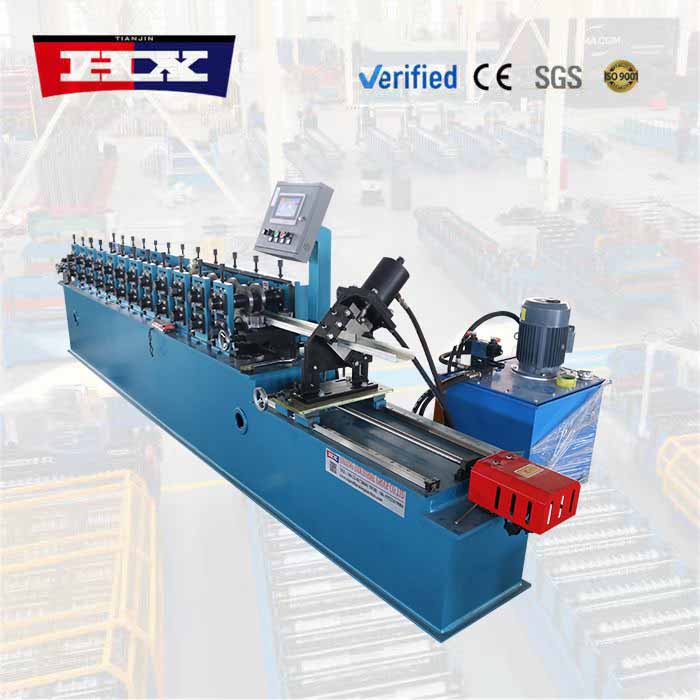

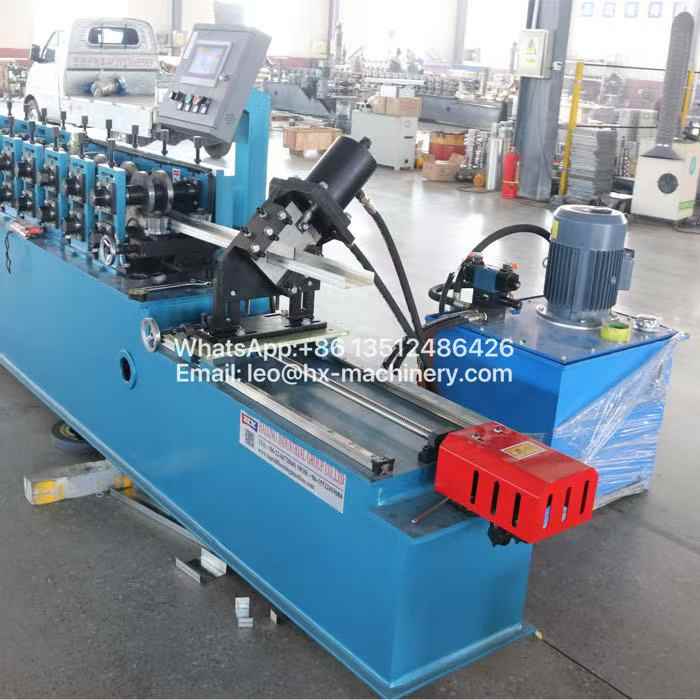

Model: HX-u channel roll forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

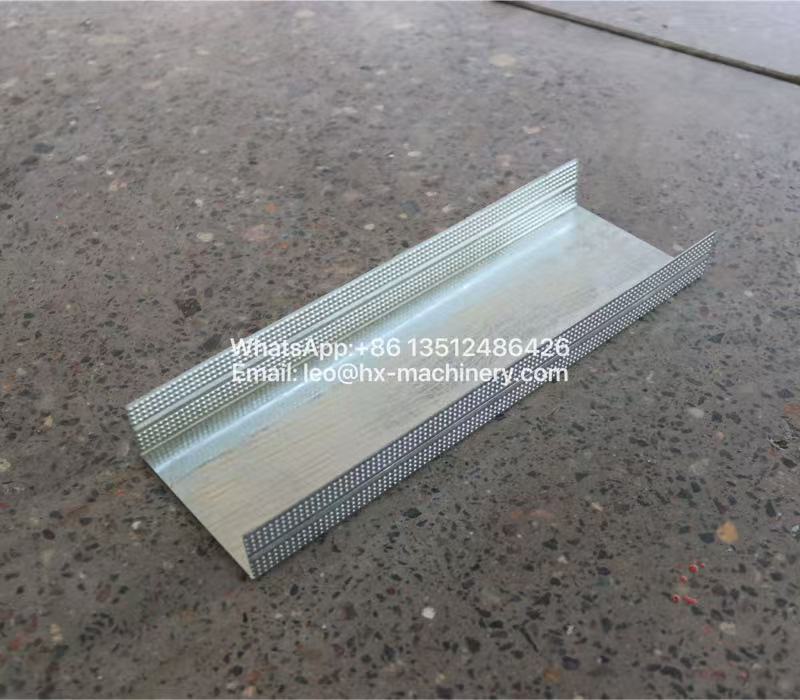

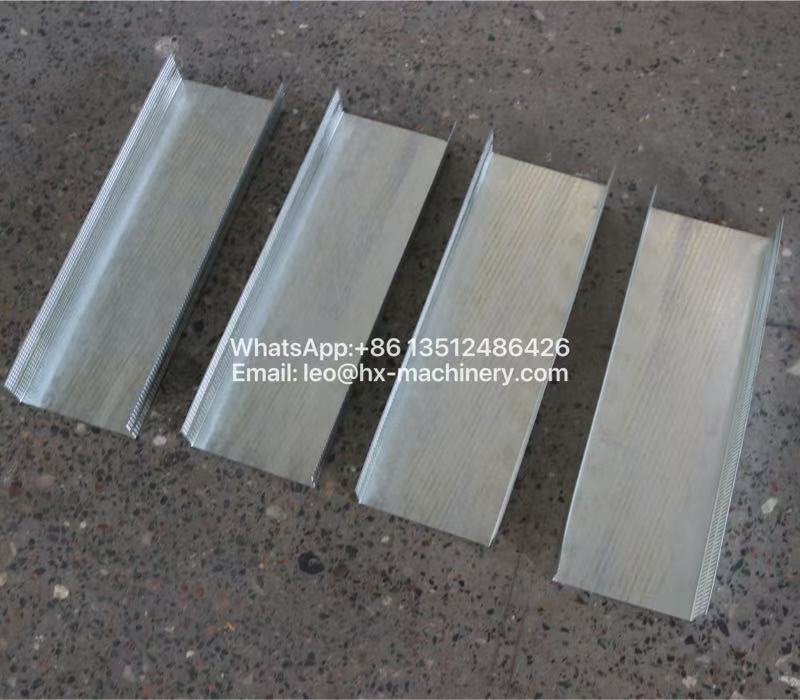

At Haixing Industrial Group Co., Ltd. , we know that U-channel profiles are the backbone of countless structural applications—from framing and racking to conveyors and solar mounting systems. That’s why our u channel roll forming machine is built to deliver consistent, high-quality channels that meet exacting standards, shift after shift.

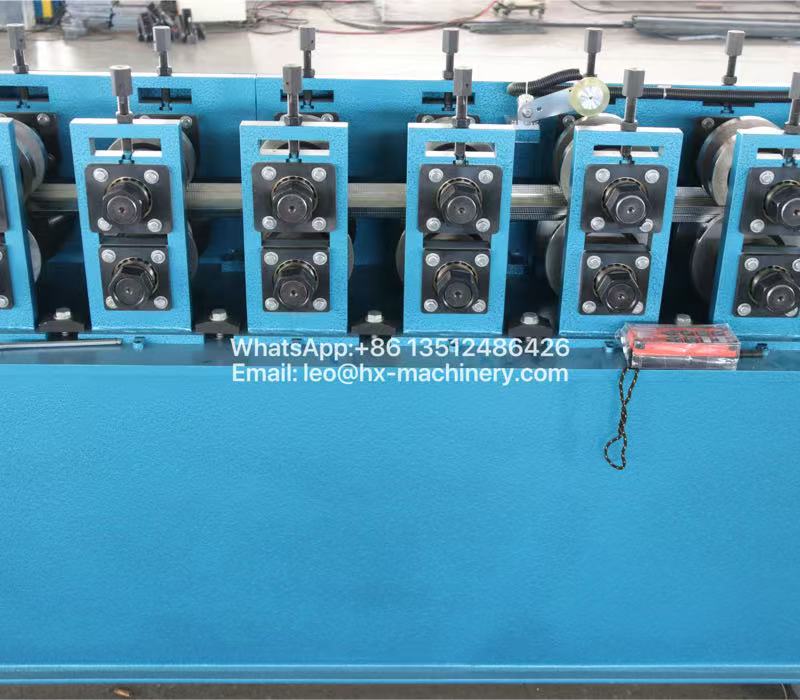

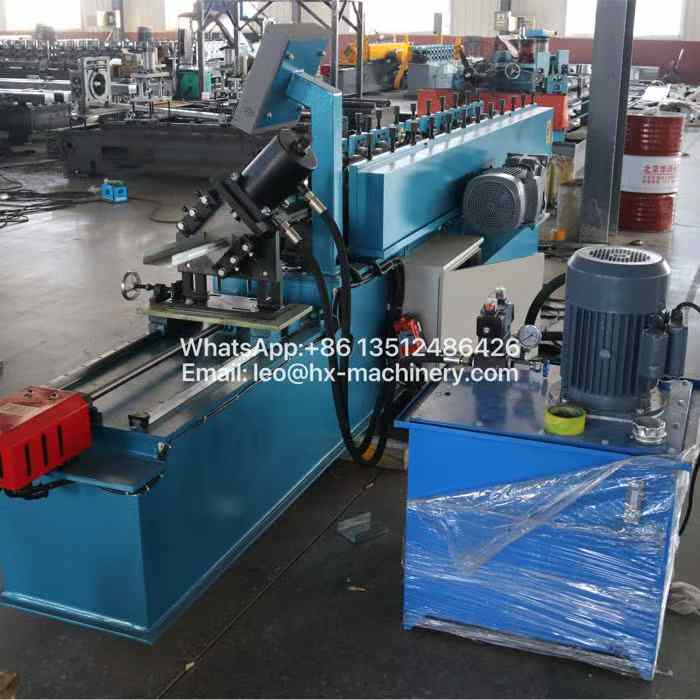

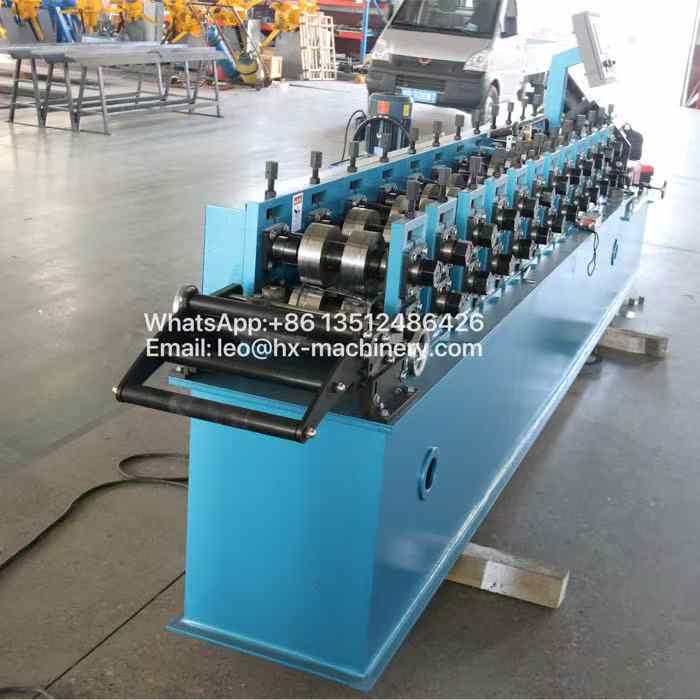

Our u channel roll forming machine features a rugged frame, precision-ground rollers, and a synchronized hydraulic cutting system that ensures clean, accurate cuts every time. It handles a broad spectrum of material grades and thicknesses, with adjustable web widths, flange heights, and punching configurations to match your specific design requirements. Changeovers are quick and straightforward, allowing you to respond to varied orders without sacrificing productivity.
What customers consistently value about our u channel roll forming machine is its long-term dependability—fewer breakdowns, stable output, and low maintenance costs over years of operation. Whether you're supplying components for warehouse racking, automotive tracks, or building support systems, our u channel roll forming machine gives you the confidence to take on challenging projects with consistent results. And behind every machine stands our global support network, ready with technical advice, spare parts, and commissioning assistance whenever you need it.
Machine parameters
| No. |
U channel roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

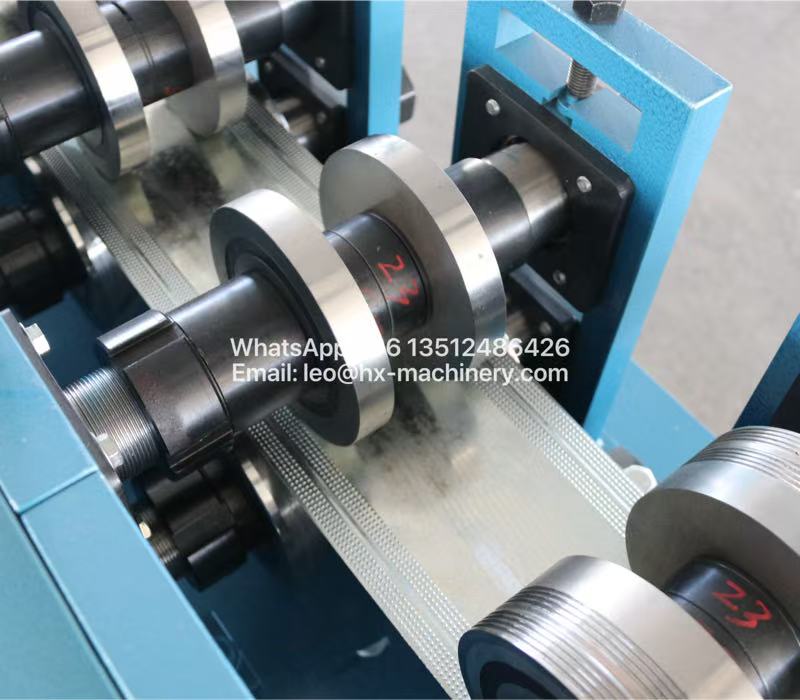

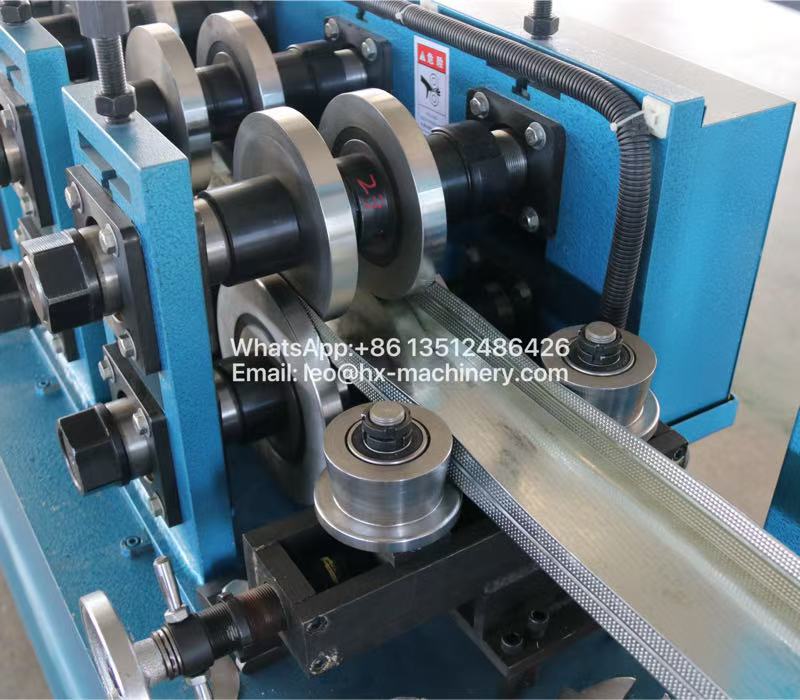

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
