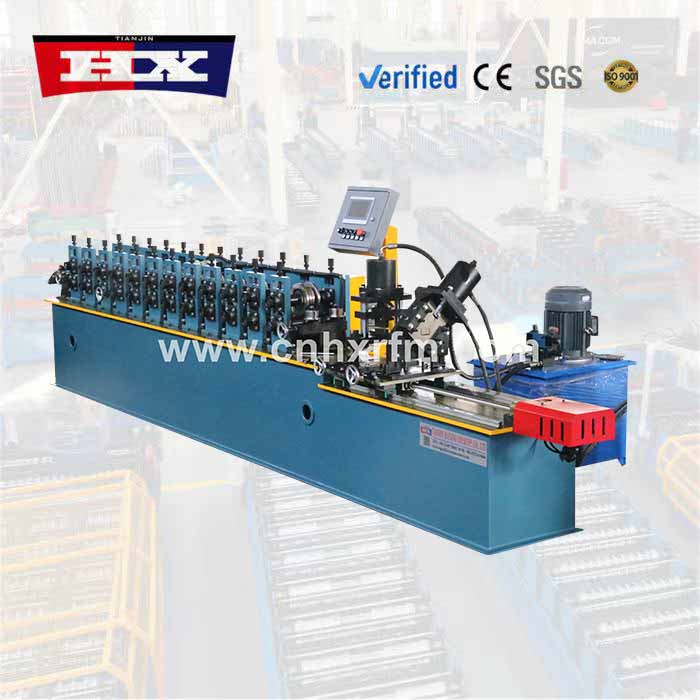

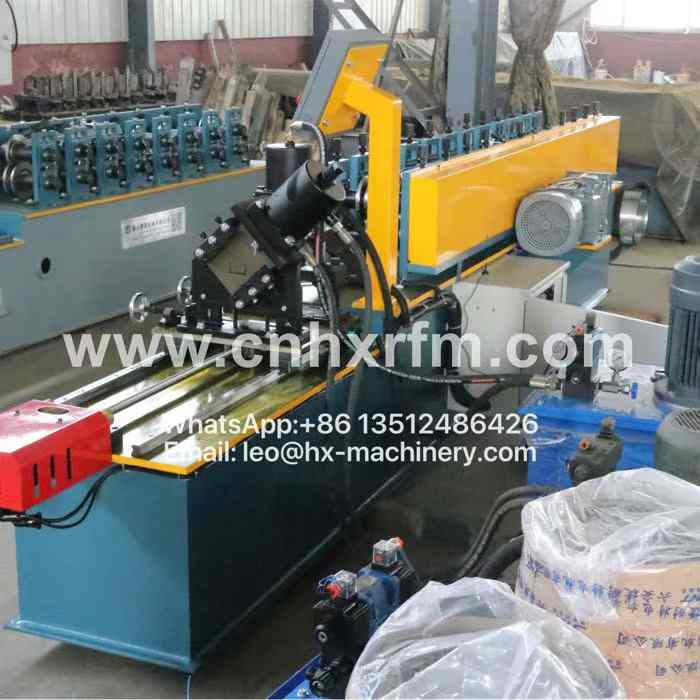

Model: HX-u channel forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

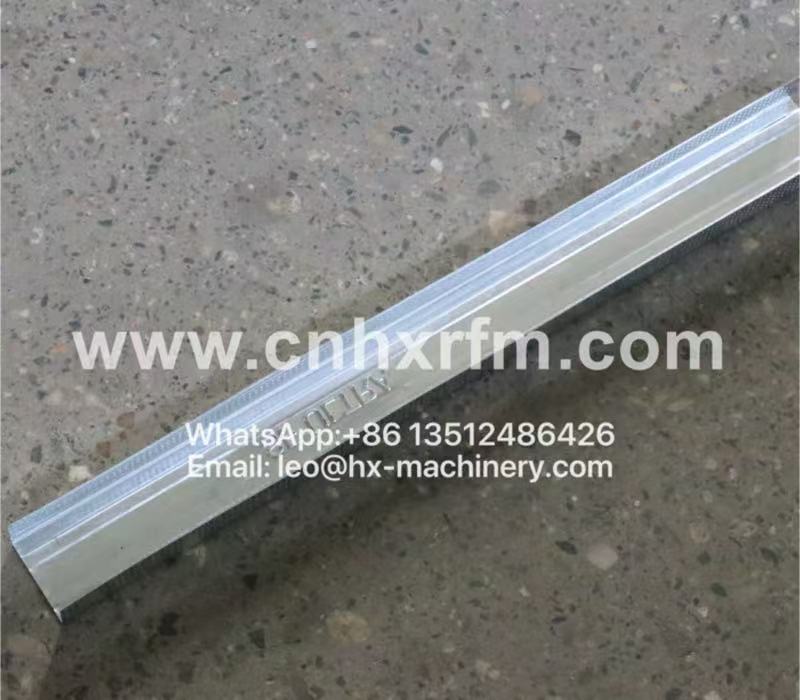

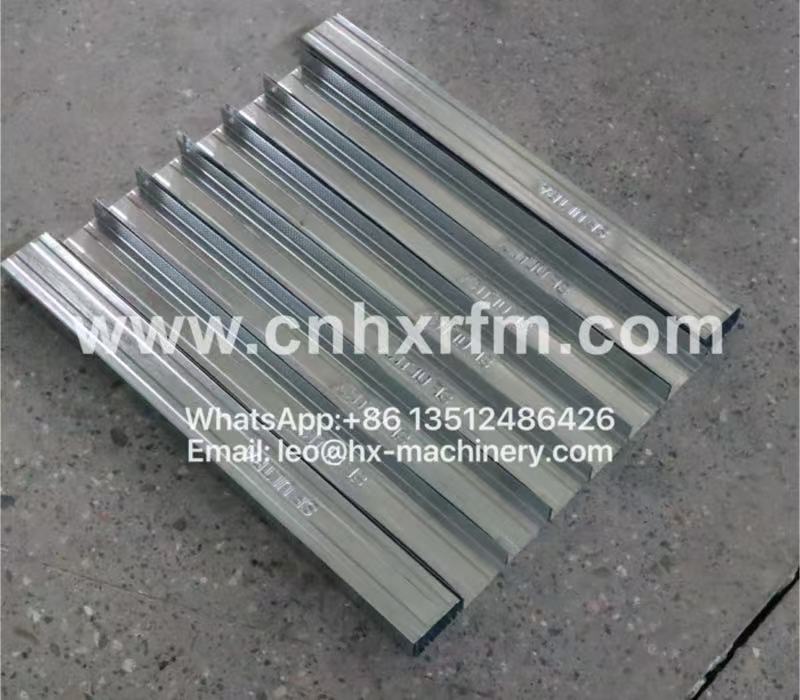

Not every channel is meant for heavy structural work—some are built for guides, trims, or light framing. But whatever the application, the forming process must be precise. That’s the philosophy behind our u channel forming machine—built to produce clean, consistent U-shaped profiles that meet your specifications without deviation.

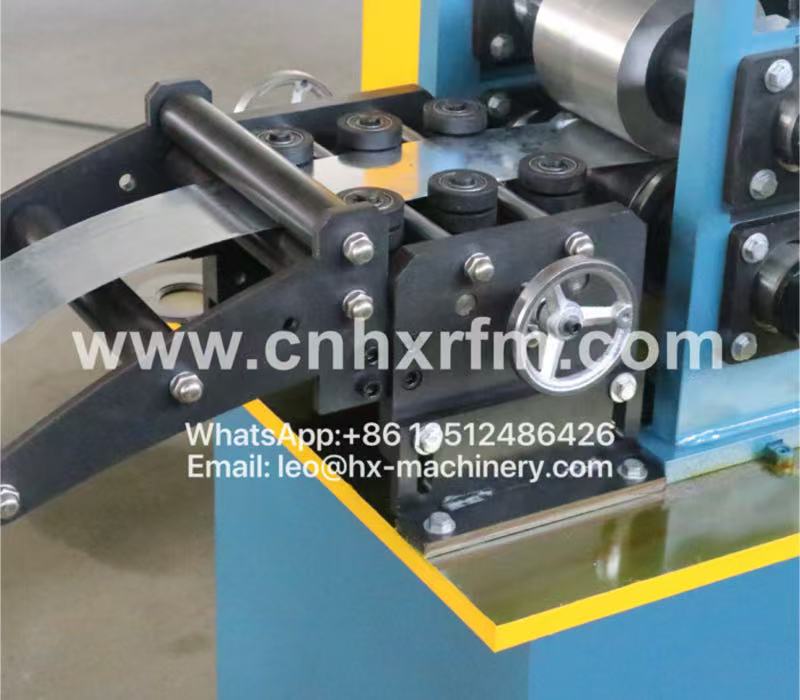

Our u channel forming machine features a progressive roll forming sequence that shapes the material evenly, avoiding stress points or twisting. The cutting system is synchronized to produce square, burr-free ends, and the adjustable guide rails allow you to switch between different channel widths and depths with minimal downtime. Whether you're producing channels for shelving, sliding doors, or industrial supports, this u channel forming machine adapts to your requirements without compromising on output speed or accuracy.
One of the most appreciated aspects of our u channel forming machine is its straightforward operation. The control panel is intuitive, the tooling changes are simple, and the maintenance routine is clearly laid out. Customers also benefit from our responsive support, which includes clear manuals, quick spare parts access, and remote troubleshooting assistance. With a u channel forming machine from our workshop, you get a reliable partner that helps you meet production targets while keeping quality consistently high.
Machine parameters
| No. |
U channel forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

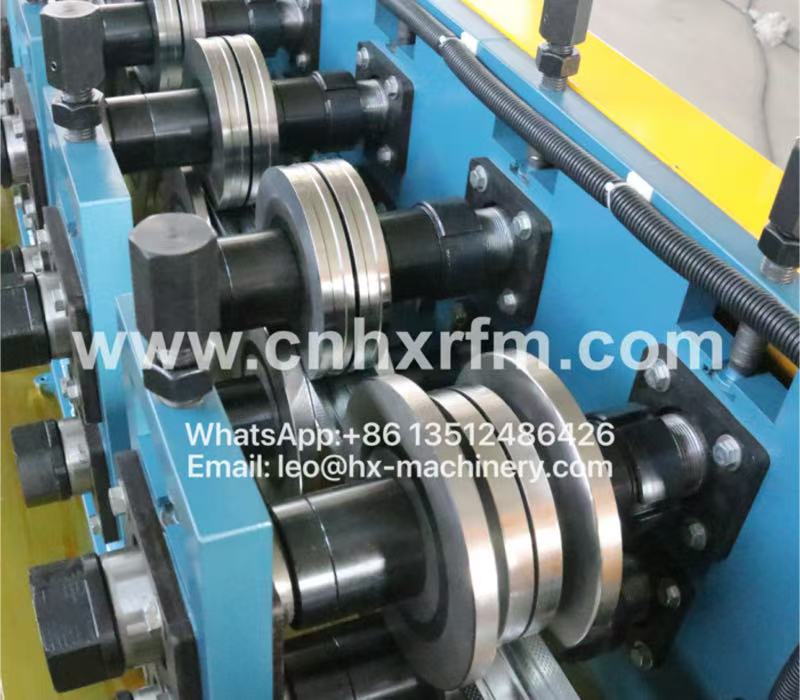

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
