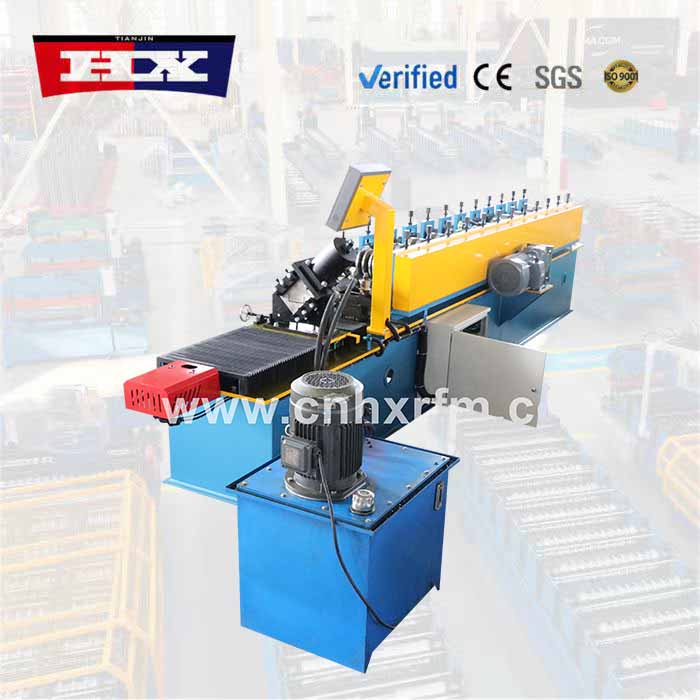

Model: HX-u channel rolling
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

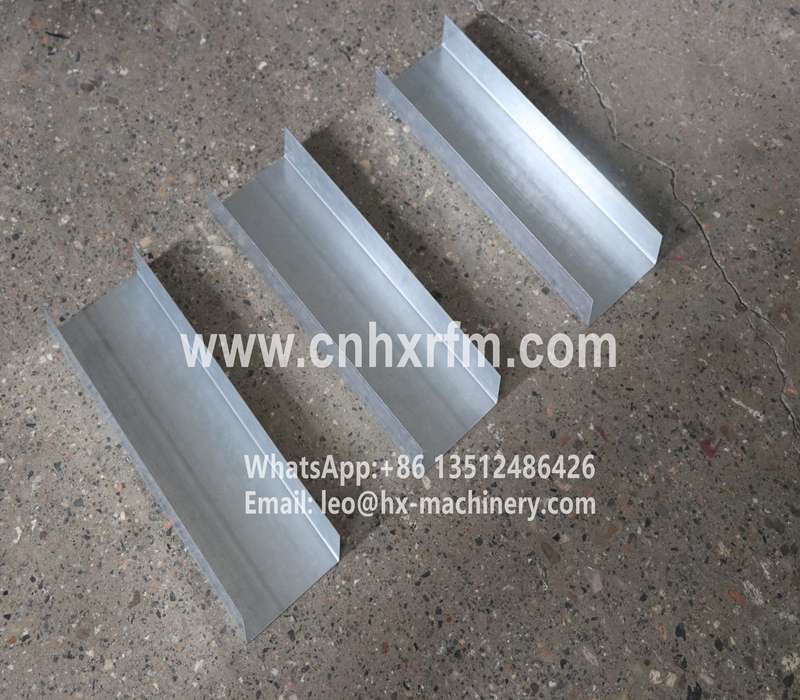

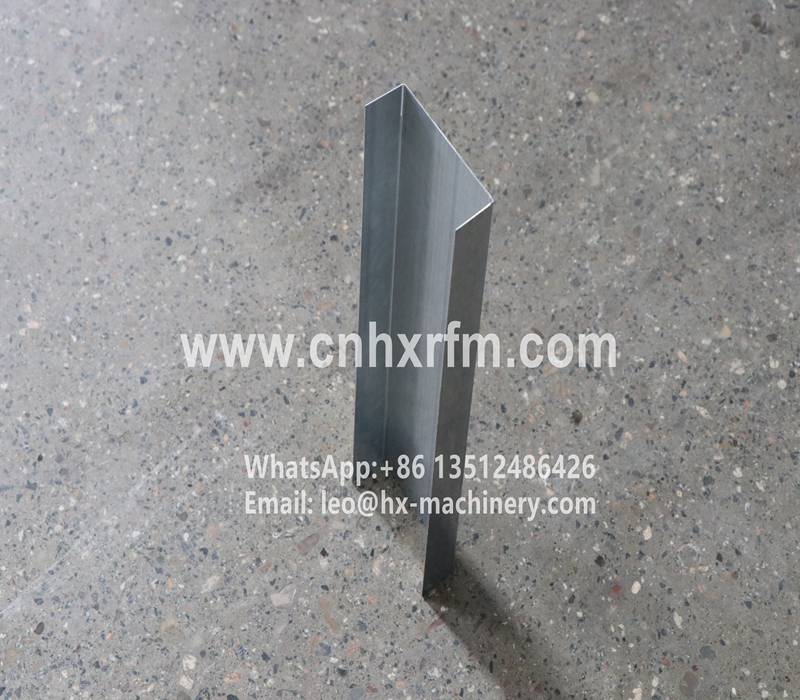

The U channel is a profile that shows up in more places than you might expect—wall framing, ceiling grids, conveyor systems, and structural supports. Its simple shape makes it versatile, but producing it consistently requires a machine that delivers accurate dimensions, clean edges, and stable output over long production runs. That’s exactly what our u channel rolling machine provides.

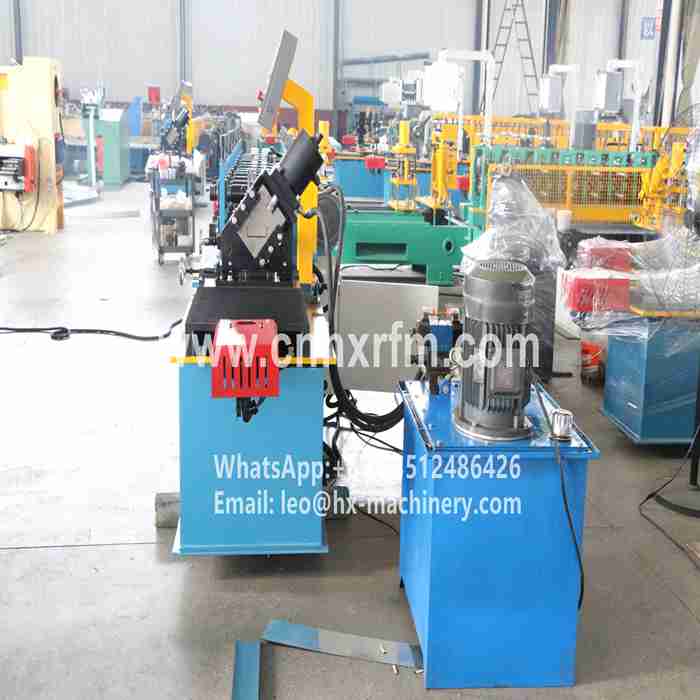

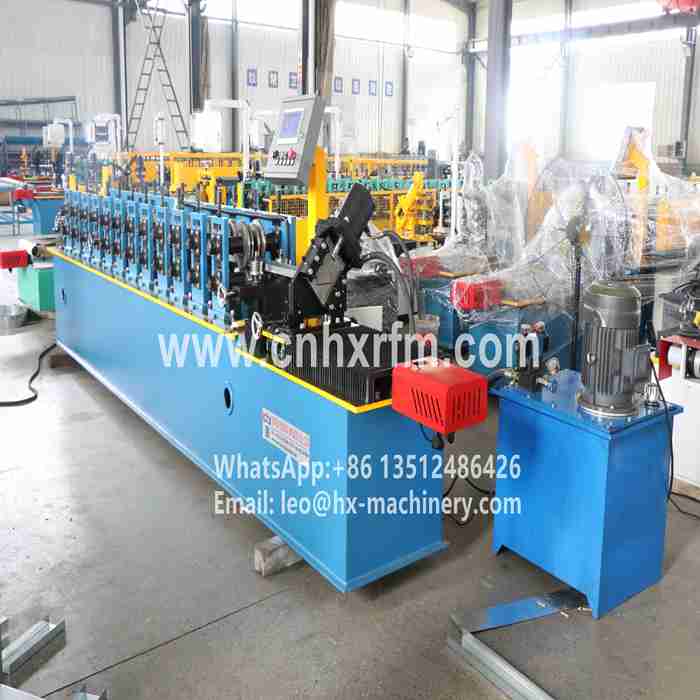

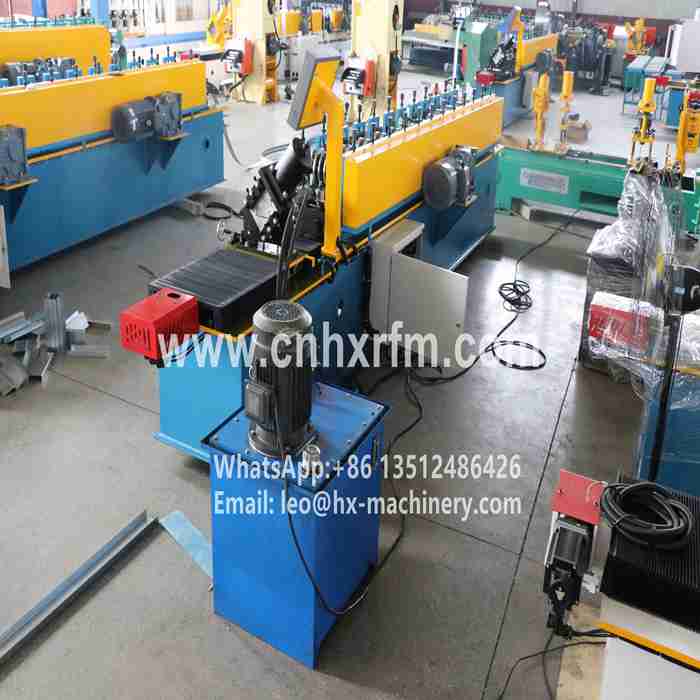

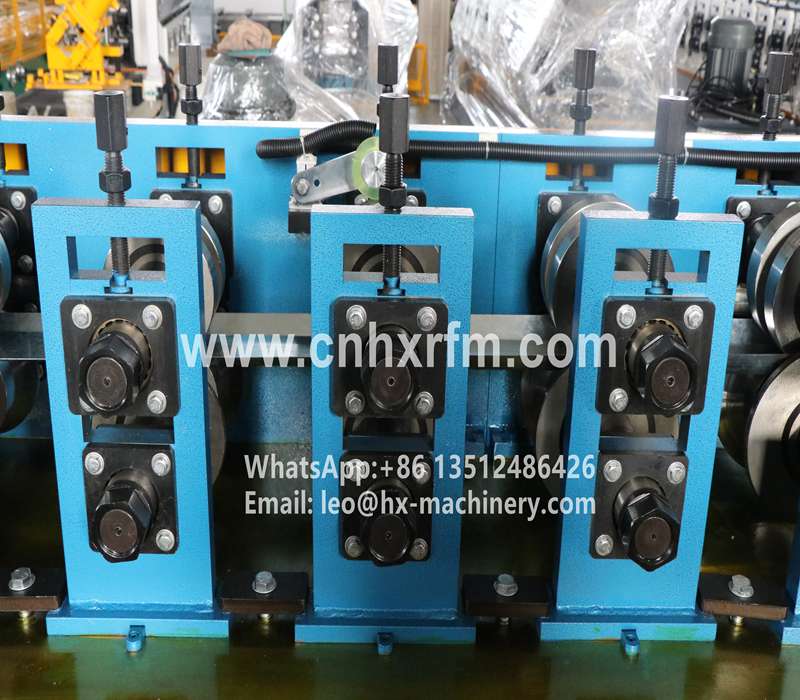

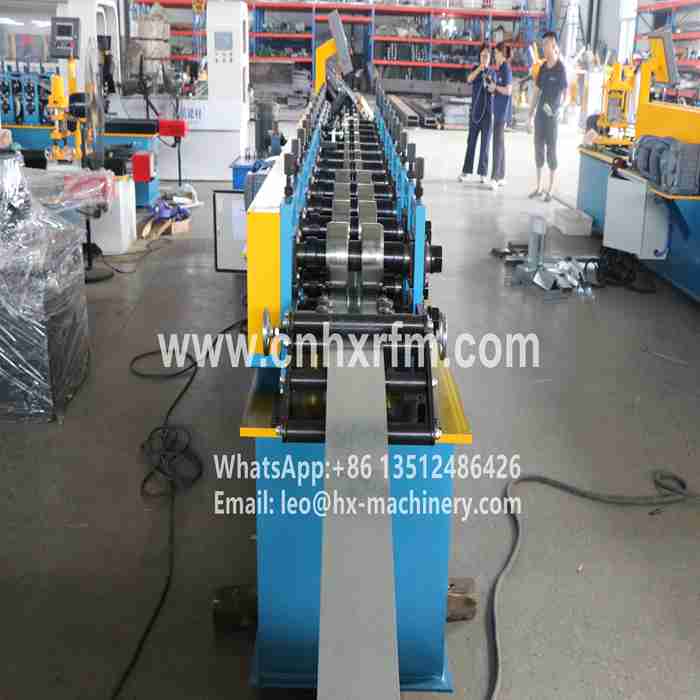

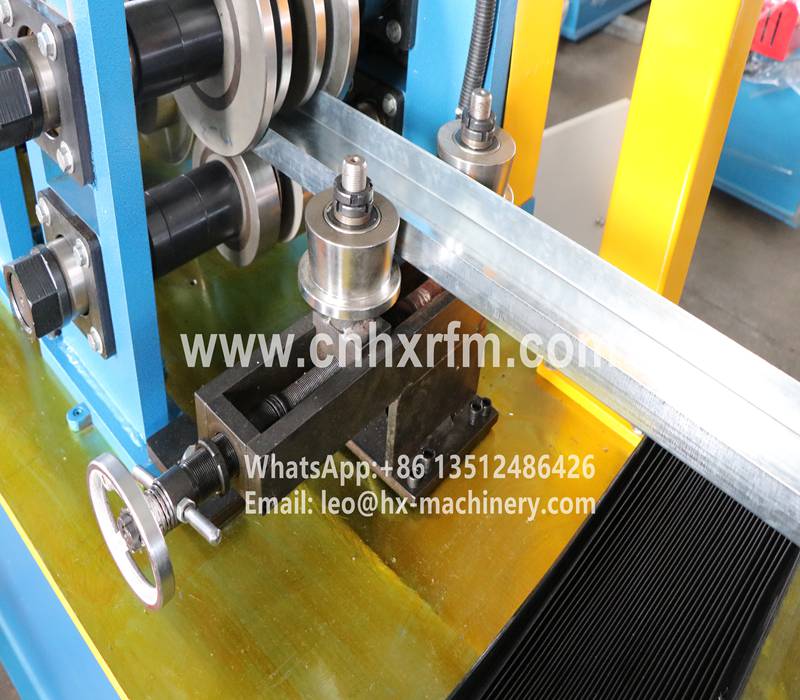

Our u channel rolling machine uses a staged roll forming process that shapes the material progressively, avoiding stress points and ensuring uniform leg heights across the entire profile. The machine handles various material thicknesses and channel widths, with adjustment points that make switching between different sizes straightforward and repeatable. An integrated cutting unit produces clean, square ends, and optional punching stations can add holes or slots exactly where needed.
What makes our u channel rolling machine a practical choice for fabrication shops is its build quality and operational simplicity. The frame is designed to resist deflection, the rollers are hardened for long service life, and the controls are intuitive enough for operators to master quickly. Routine maintenance is manageable, and when support is needed, our team provides practical guidance and fast parts availability. With our u channel rolling machine, you get consistent profiles, low material waste, and a machine that fits smoothly into your existing production workflow—delivering reliable results, order after order.
Machine parameters
| No. |
U channel rolling machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |

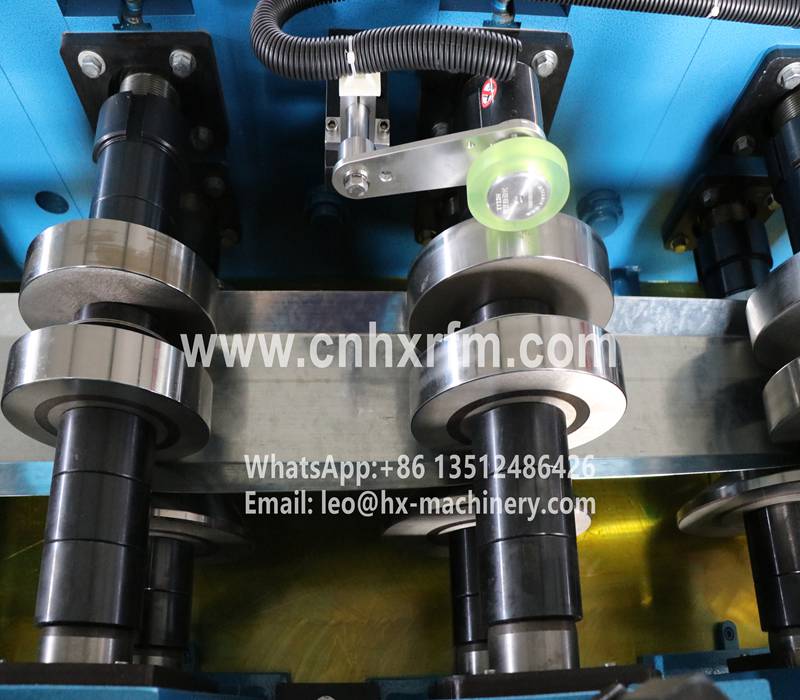

Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
