Model: HX-z purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

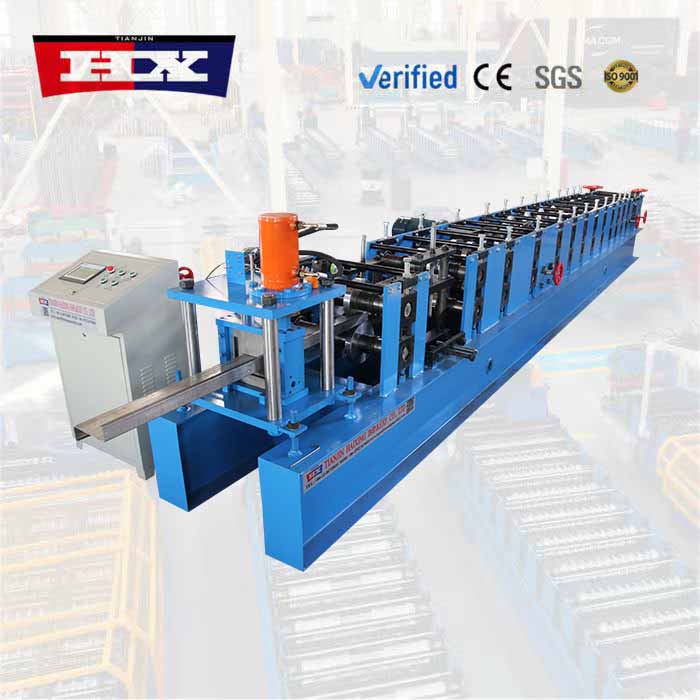

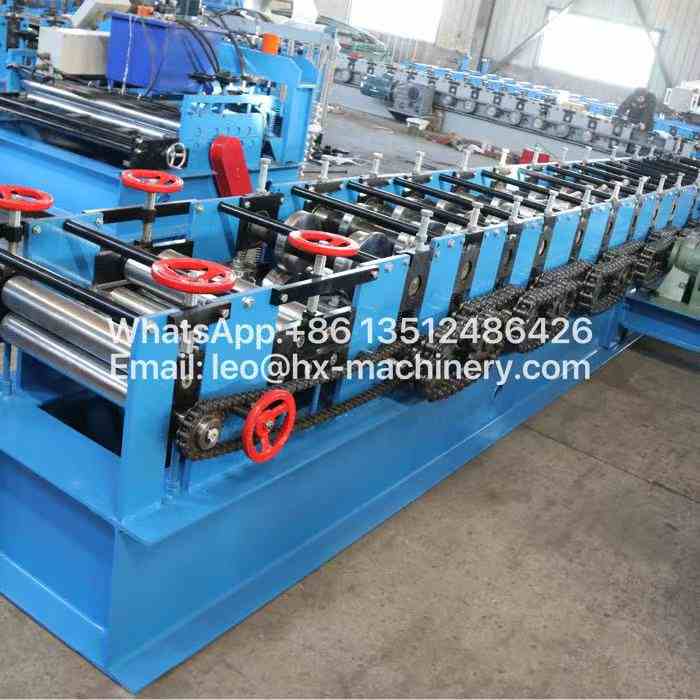

Haixing Industrial Group Co., Ltd. brings over two decades of hands-on expertise to the design and manufacture of the z purlin roll forming machine—a workhorse that has proven itself on job sites across the globe.
Built for versatility and precision, this z purlin roll forming machine delivers consistent Z-shaped profiles with accurate hole punching and clean cutoff points. Every unit can be tailored to specific gauge ranges, flange widths, and web heights, ensuring a perfect fit for each customer's structural applications.
The real advantage of choosing this z purlin roll forming machine lies in its heavy-duty gearbox, quick-change spacer system, and intuitive touchscreen interface—features that translate into less downtime, lower labor costs, and faster project turnaround. It has become a top choice for contractors and steel service centers in North America, Europe, and Central Asia, who rely on it for both small-batch custom jobs and large-scale continuous production runs.

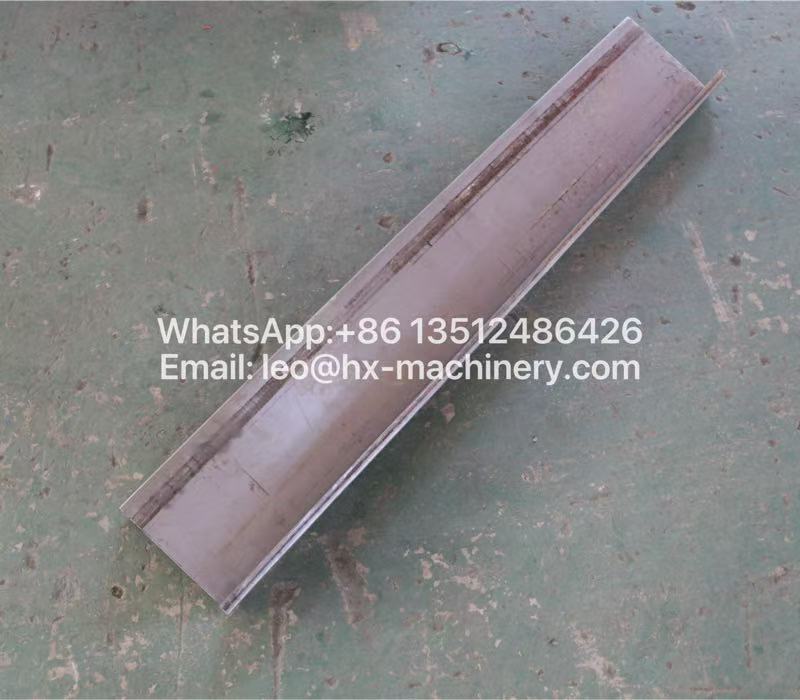

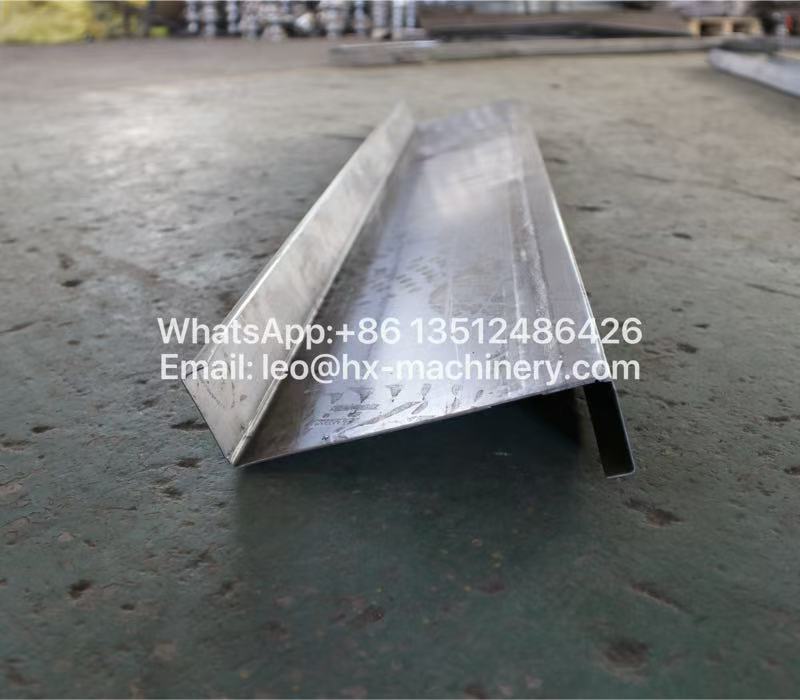

For reference, we have included the full specifications of this z purlin roll forming machine and the purlin profiles it can produce.
Machine parameters
| No. |
Z purlin roll forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

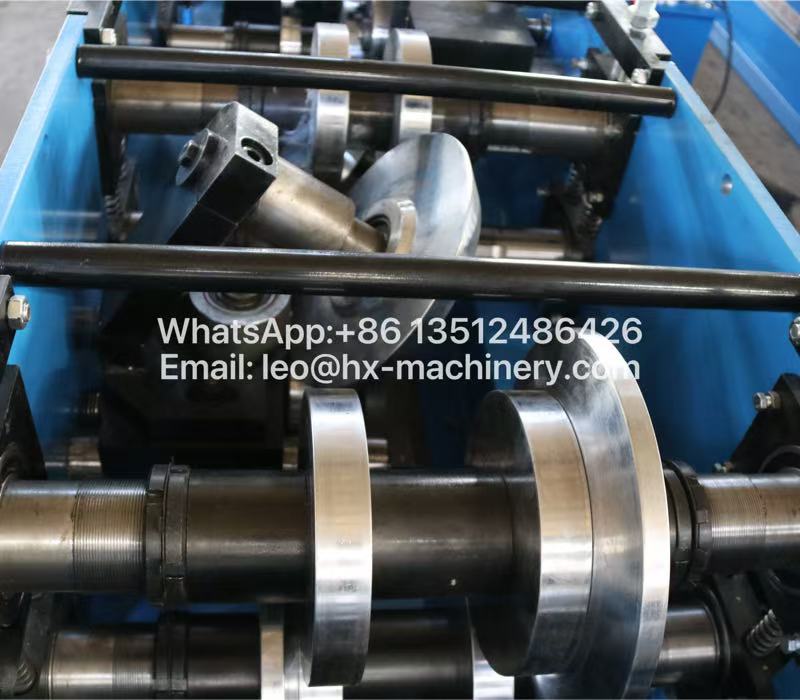

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

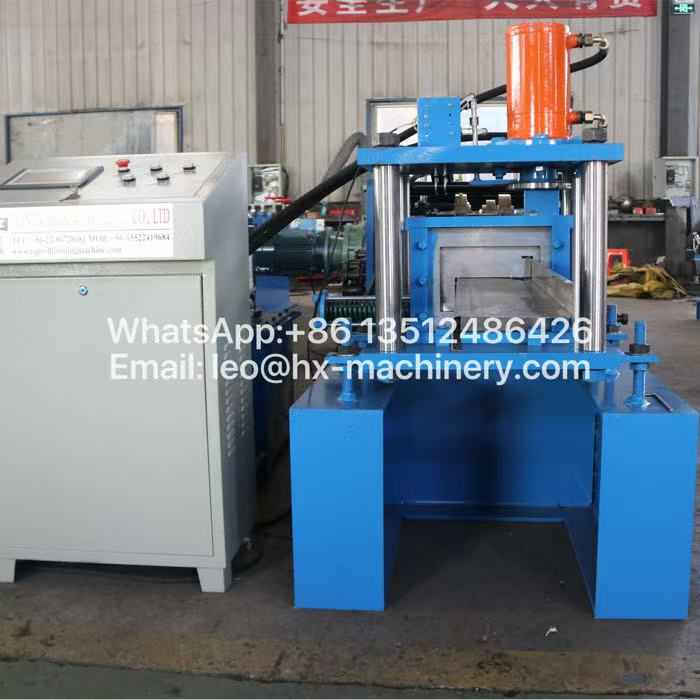

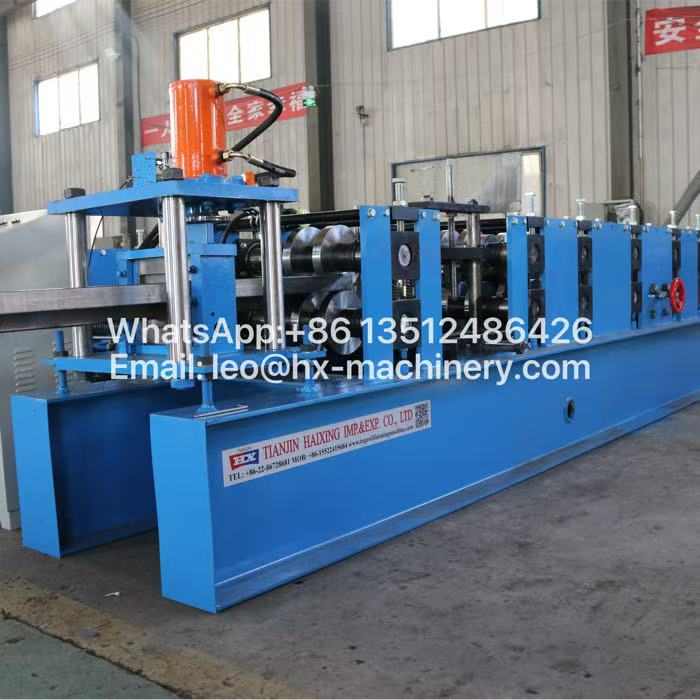

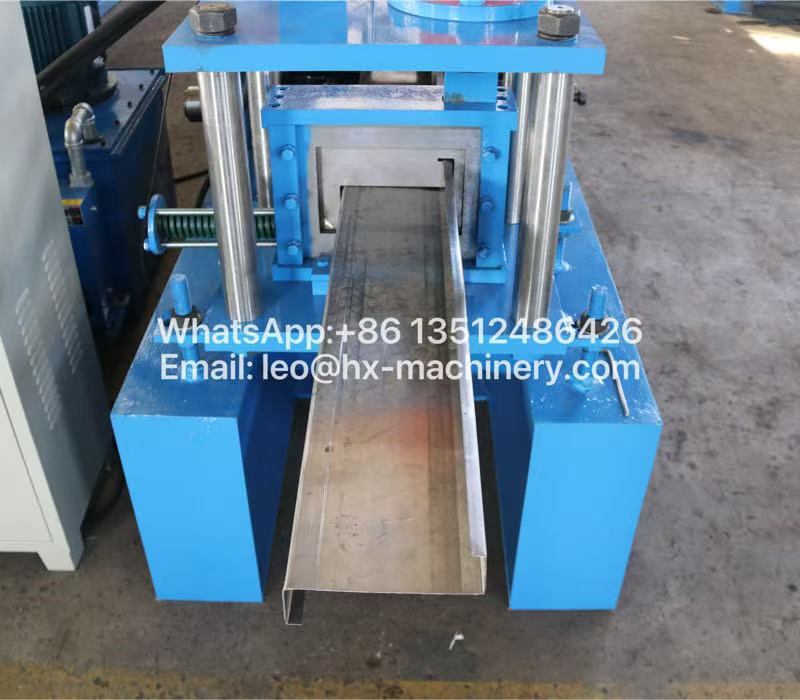

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
