Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

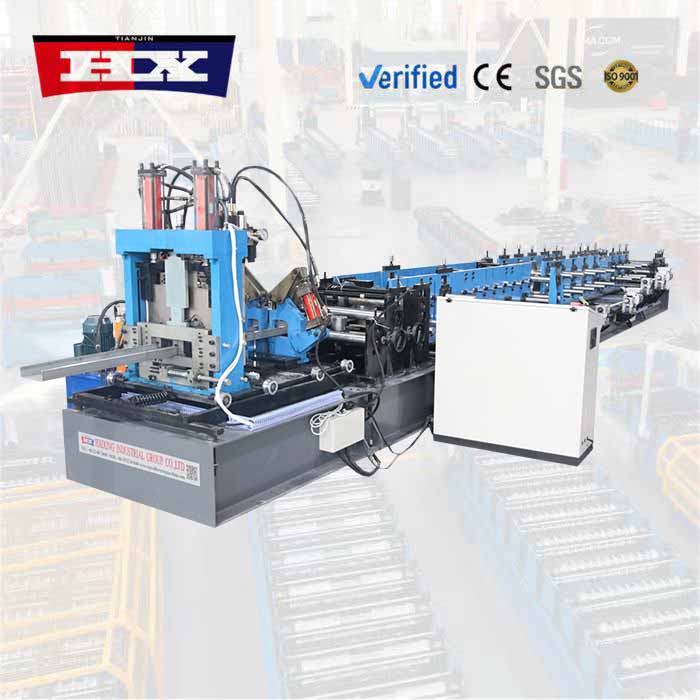

With over 20 years of innovation in roll forming technology, Haixing Industrial Group Co., Ltd. proudly presents our advanced automatic c purlin roll forming machine—a solution designed for manufacturers who want to minimize manual intervention while maximizing output consistency and production efficiency.

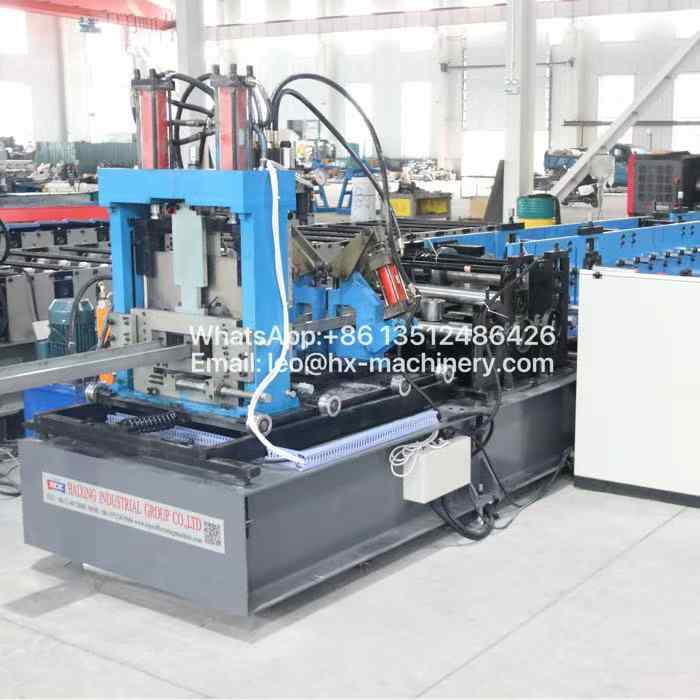

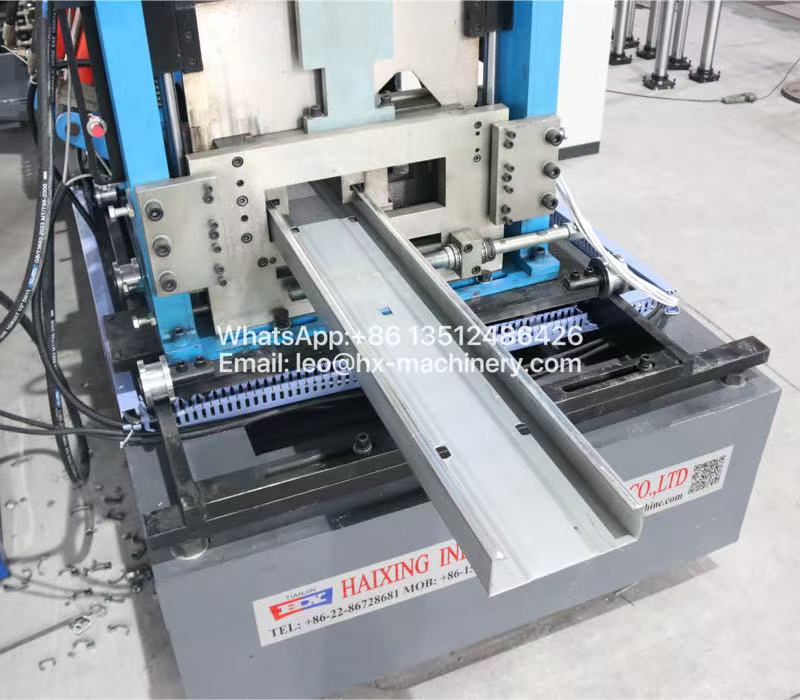

Our automatic c purlin roll forming machine integrates a fully automated production line, featuring an uncoiler with auto-loading, servo feed control, hydraulic punching stations, flying cutoff, and a finished-part stacker—all coordinated through a centralized PLC system that stores up to 99 profile recipes. Operators simply select the desired profile on the touchscreen, and the machine automatically adjusts roller positions, punch timing, and cutting lengths, enabling seamless changeovers in under five minutes without using hand tools.
What makes this automatic c purlin roll forming machine a standout choice in export markets—including Canada, Chile, the UAE, and Thailand—is its ability to run continuously with minimal supervision, allowing one operator to manage multiple machines simultaneously. This significantly reduces labor overhead, eliminates human measurement errors, and ensures consistent profile quality across shifts. Additionally, our remote monitoring option allows managers to track production data and machine status from anywhere, further streamlining workflow management.
For complete technical specifications, configuration options, and suggested layout drawings, please refer to the details below for this automatic c purlin roll forming machine.
Machine parameters
| No. |
Automatic c purlin roll forming machine |
|
| 1 |
Feeding Mode |
Guide shaft + guide roller |
| 2 |

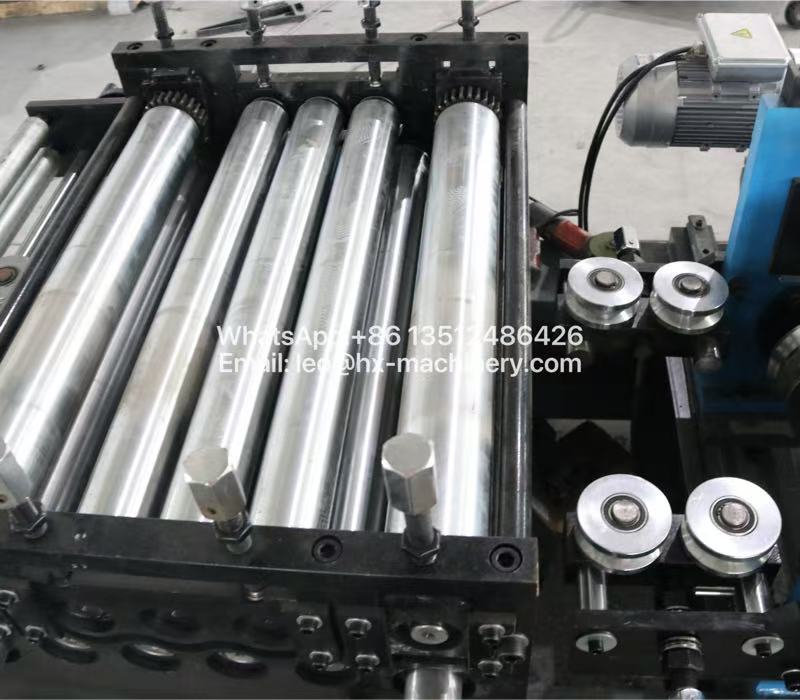

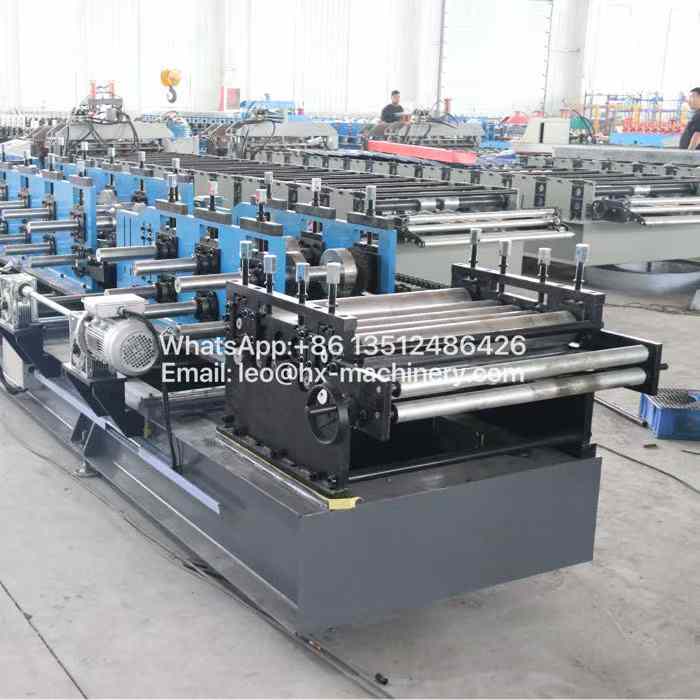

Leveling Structure
|
4‑upper & 3‑lower rollers, with two feeding passes |
| 3 |
Material |
45# steel |
| 4 |
Rib Pressing |
Straight single rib, automatic profile change by computer |
| 5 |
Straightening Structure |
1‑upper & 2‑lower rollers, 3‑axis straightener
|
| 6 |
Cutting Blade Material |
Cr12 |
| 7 |
Main Control Cabinet |
1 set (with aviation plug connector) |
| 8 |
Hydraulic Motor |
Outer five‑star piston connecting‑rod type (Ningbo Hanzhu) |
| 9 |
Hydraulic Power Station |
Power 22 kW, oil‑tank volume 500 L |
| 10 |
Main Component Origin |
Solenoid valve (Zhejiang Yongxin) |
| 11 |
Load Capacity |
5 tons |
| 12 |
Expanding Mode |
Hand‑crank four‑linkage center outward expanding |
| 13 | Braking Mode |
Dual main‑shaft holding brake |
| 14 |

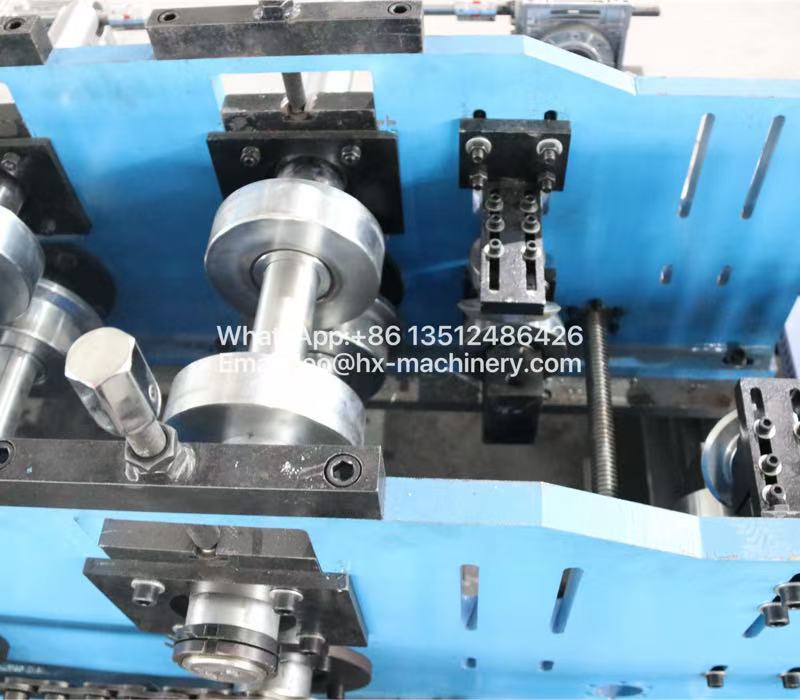

Roller Material |
GCr15, processed in Wuxi
|
| 15 |
Main Shaft Material |
45# steel |
| 16 |
Sliding Sleeve Material |
45# steel |
| 17 |
Outlet Speed |
Max.20 m/min (depends on punching quantity) |
| 18 |
Overall Dimension |
L 9.5 m × W 1.4 m × H 1.7 m |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
