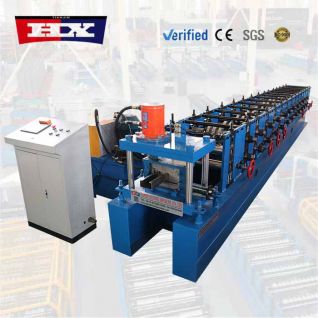

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of industry leadership, Haixing Industrial Group Co., Ltd. supplies a highly versatile c purlin roll former that has earned its reputation among fabricators who value both simplicity and flexibility—especially those handling mixed-order workshops and just-in-time delivery schedules.
Our c purlin roll former features a hydraulic quick-change system that enables profile adjustments in under 10 minutes, making it ideal for job shops that frequently switch between different C-purlin sizes. It includes a color-coded roller stand system and step-by-step on-screen guidance that minimizes training time—new operators typically achieve full production speed within their first shift. Customization options include variable-speed drives, multi-punch configurations, and stacker attachments, giving buyers the freedom to tailor the machine to their exact workflow.
What gives our c purlin roll former a distinct edge in overseas markets—including the UK, Saudi Arabia, Indonesia, and Nigeria—is its ability to handle small-batch runs economically, turning what is often a challenge into a competitive advantage. Customers report dramatically reduced setup waste and faster response to custom orders, helping them win more bids. Backed by our remote diagnostics service, 24-hour parts availability, and straightforward mechanical design, this machine keeps downtime short and productivity high.
Below you will find the complete technical data and profile options for our c purlin roll former, along with typical production capacity figures.

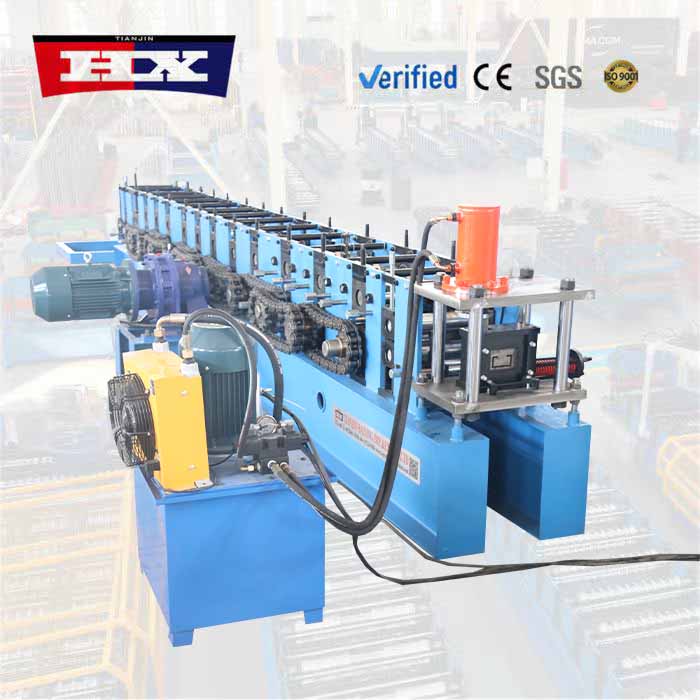

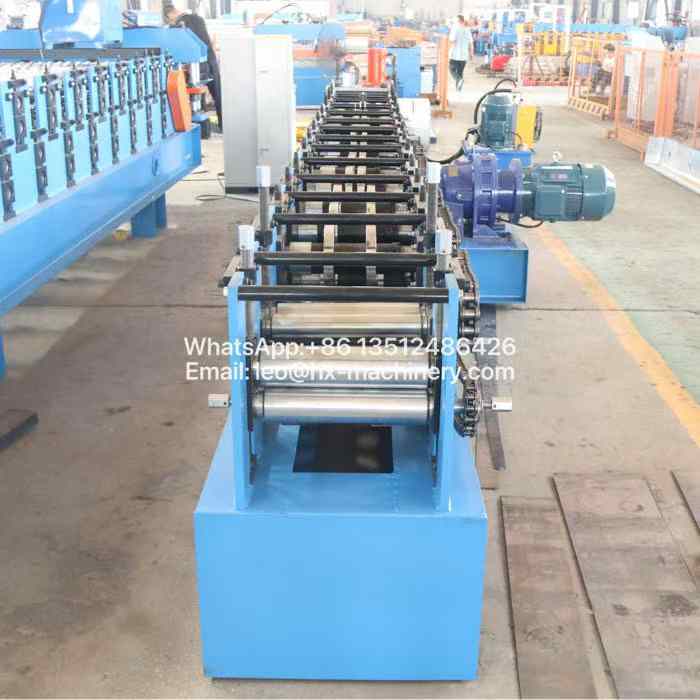

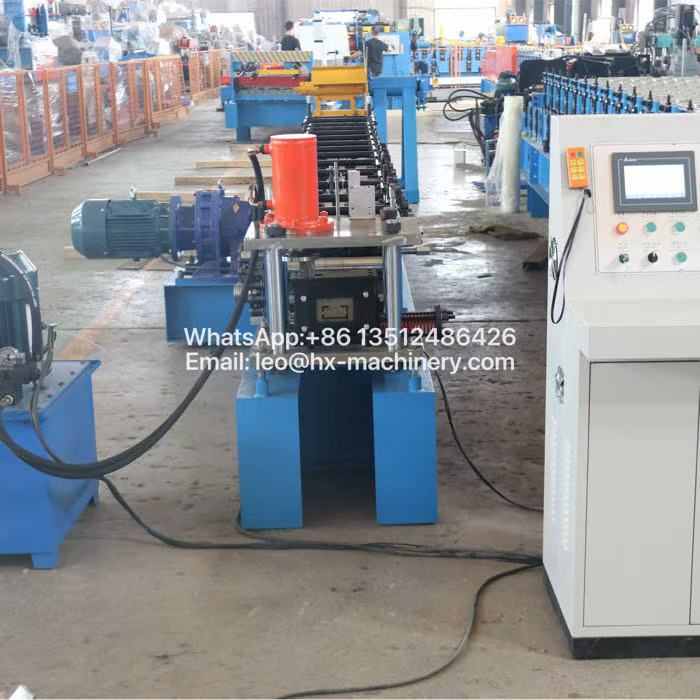

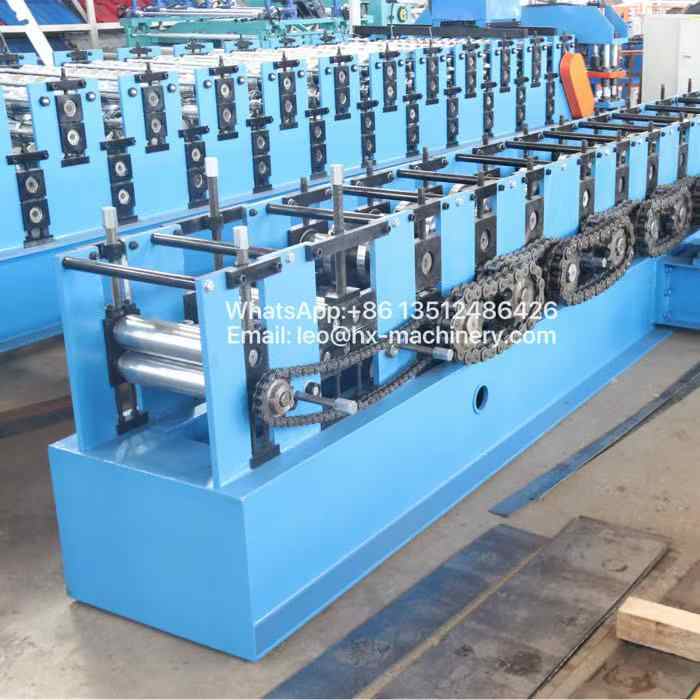

Machine parameters
| No. |
C purlin roll former |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

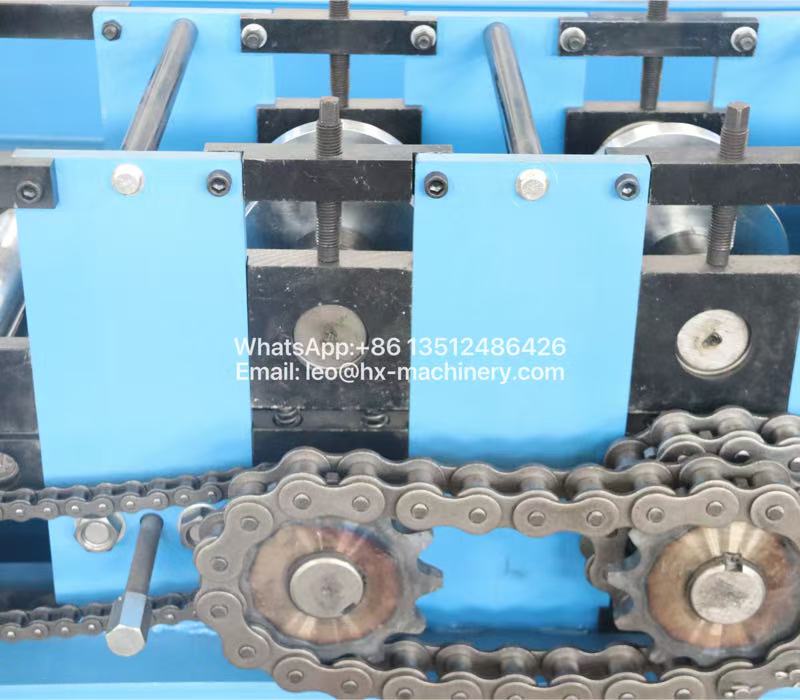

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

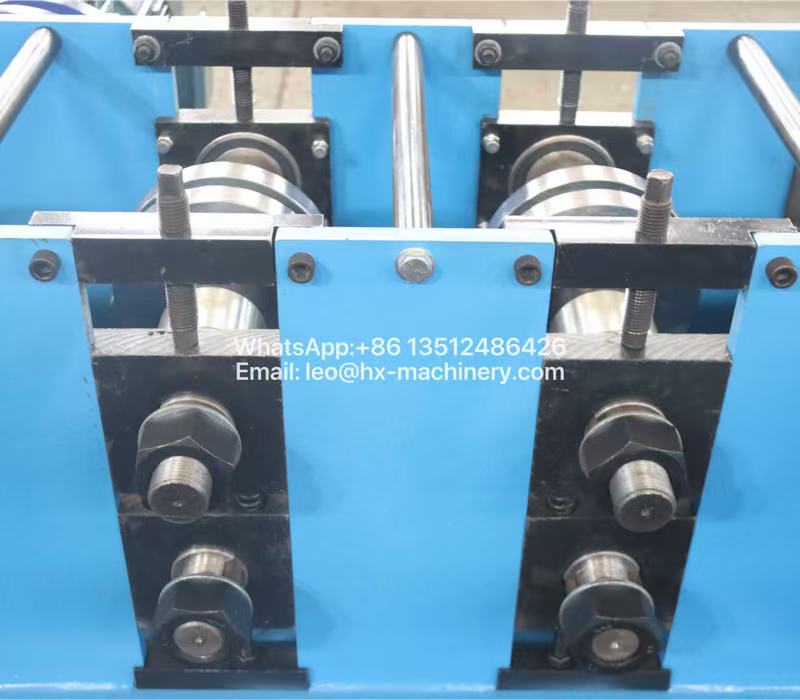

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

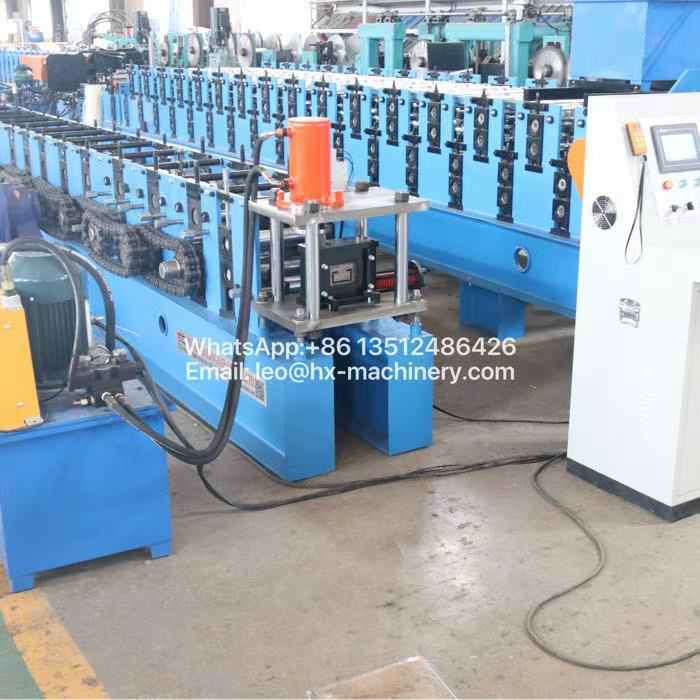

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
