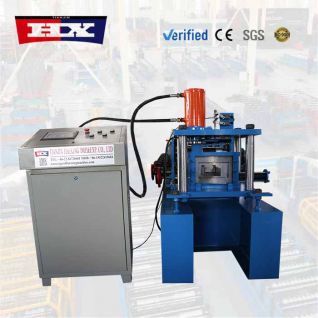

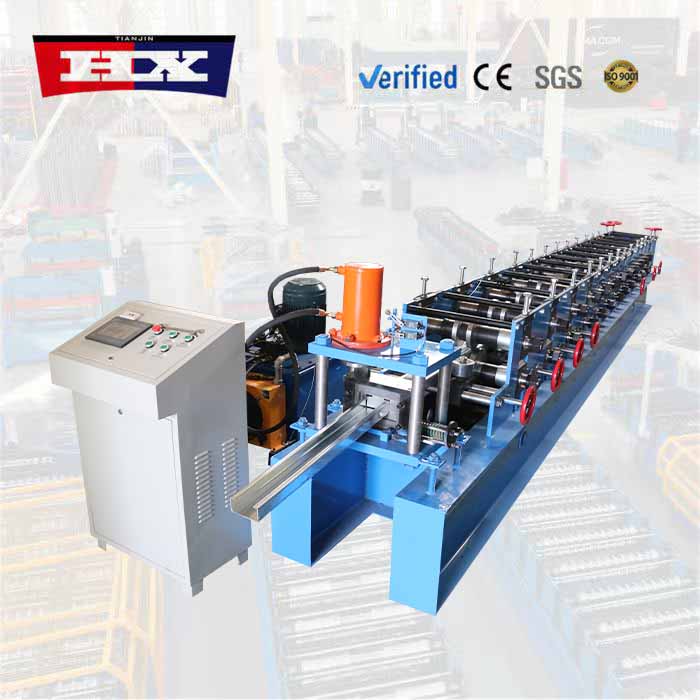

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. brings over 20 years of engineering excellence to every c channel machine we deliver, earning us a solid reputation among steel fabricators on six continents.

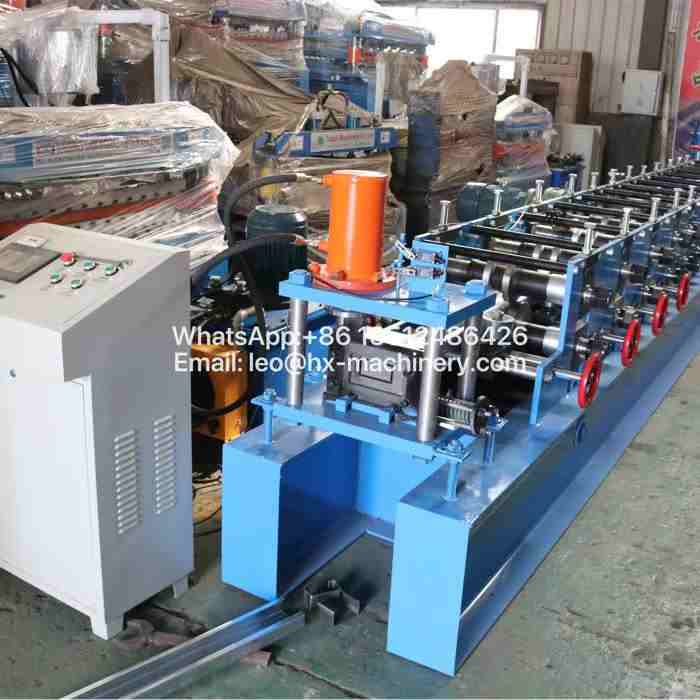

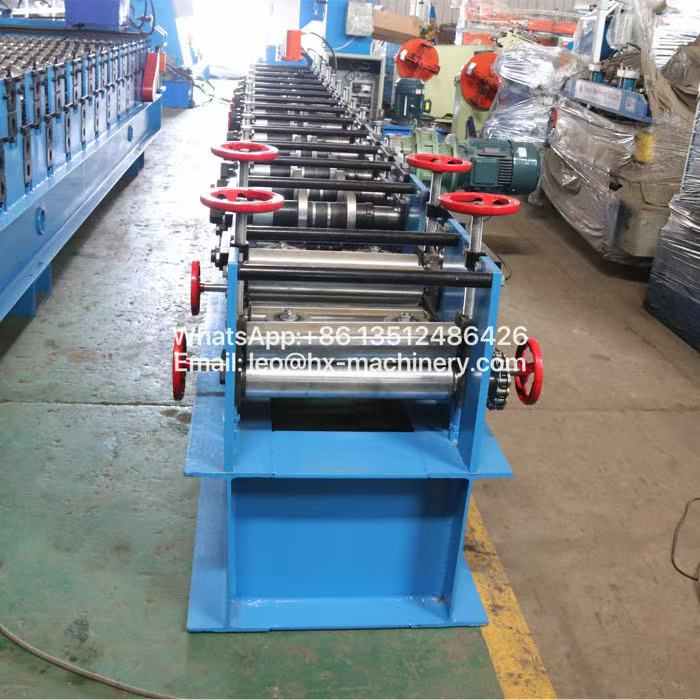

This c channel machine features a reinforced frame design and precision-ground rollers that ensure exceptional forming accuracy even with high-strength steel coils. It accommodates a wide range of material thicknesses and channel depths, with customizable fly punching and variable-speed control to match diverse production scenarios—from light-duty framing to heavy structural supports.
What makes this c channel machine particularly attractive to international buyers—especially in markets like the Middle East, Latin America, and Southeast Asia—is its adaptability to different power supplies (220V/380V/415V, 50Hz/60Hz), robust corrosion-resistant components for humid climates, and compact footprint that fits easily into existing workshop layouts. Clients consistently highlight how this machine reduces setup time, simplifies maintenance through modular component design, and delivers consistent output quality that meets international standards such as ASTM and EN.

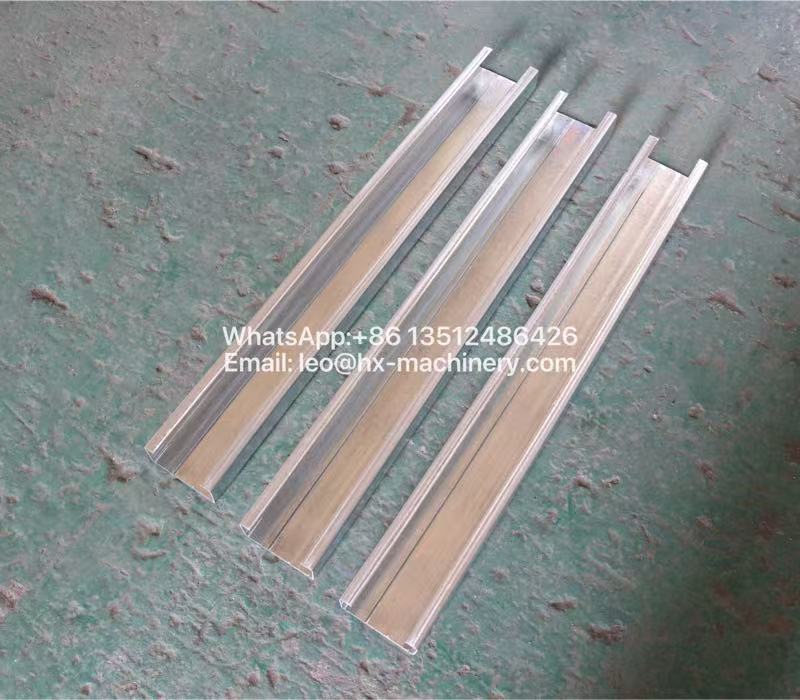

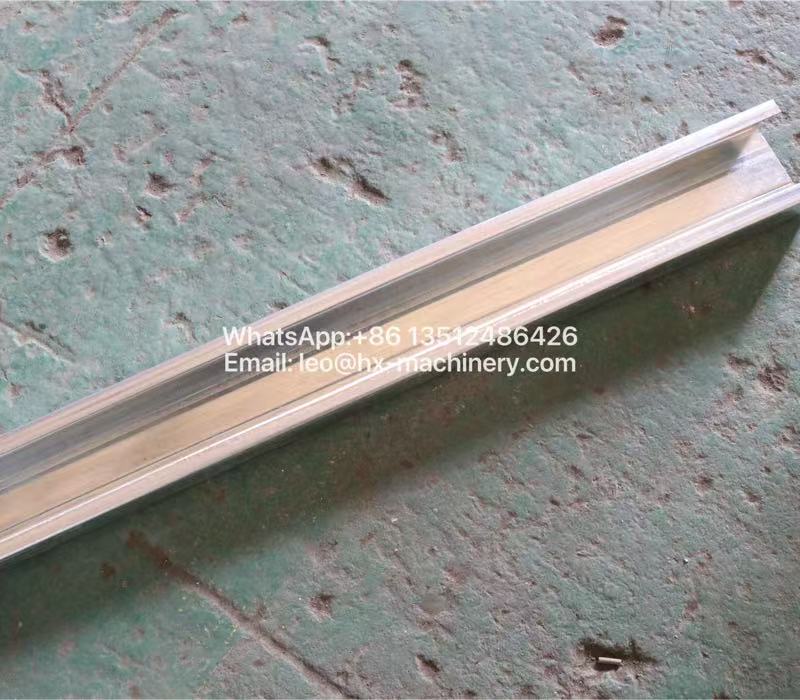

For your reference, we have attached the complete technical data for this c channel machine and the C-channel profiles it can produce.
Machine parameters
| No. |
C channel machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

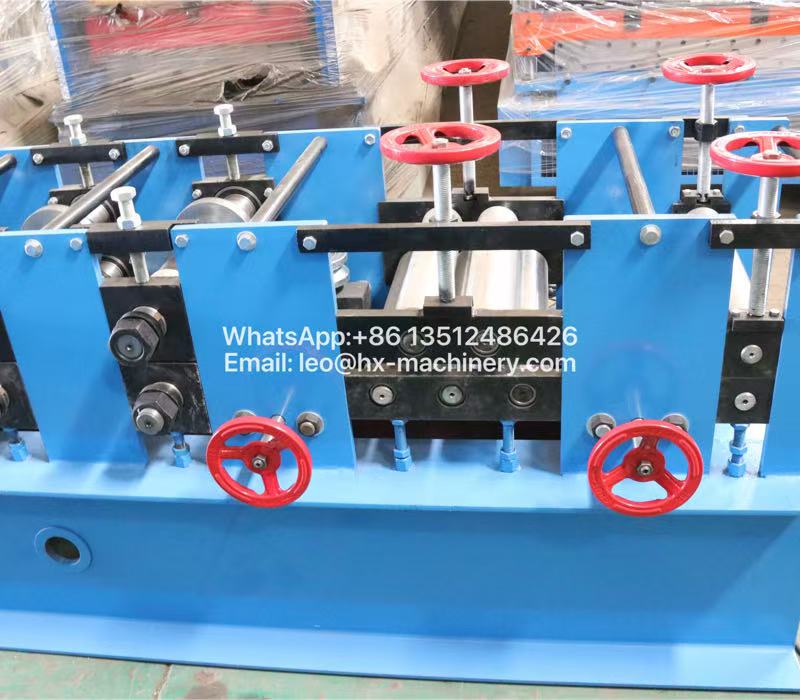

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

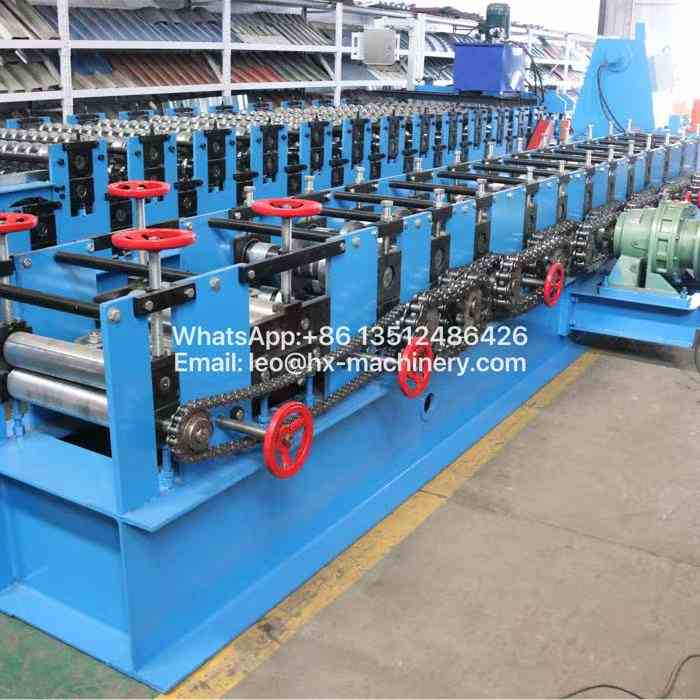

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |
Roll Material |

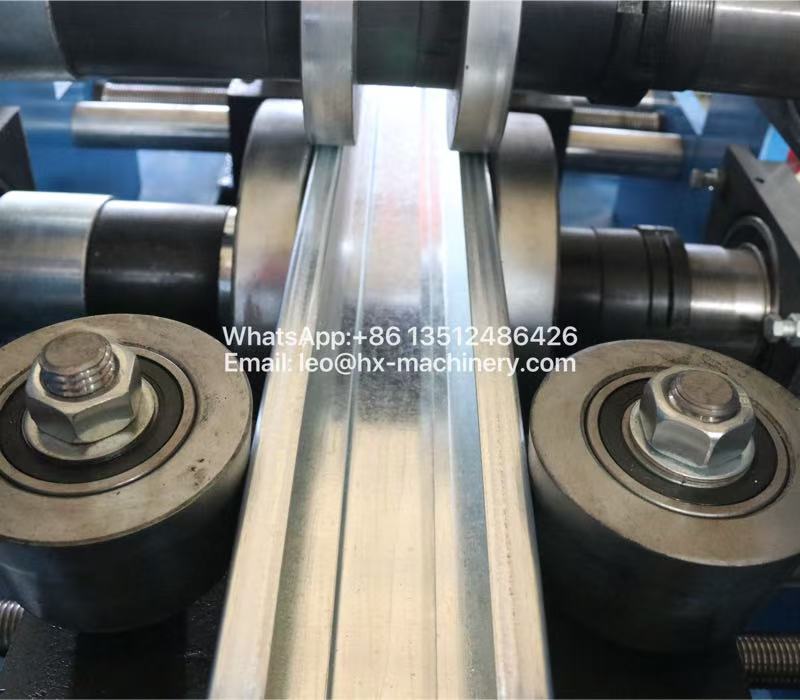

Bearing steel, quenched, precision turned and electroplated |
| 11 |

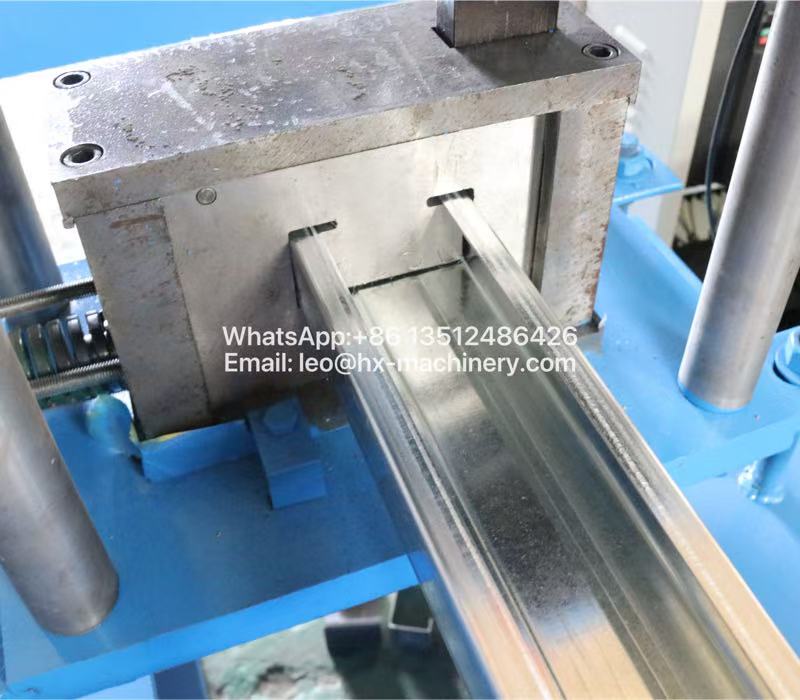

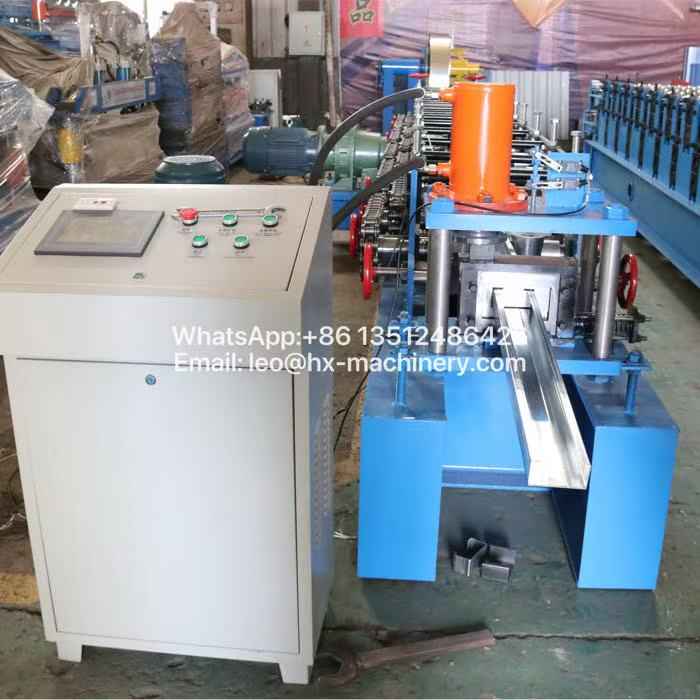

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

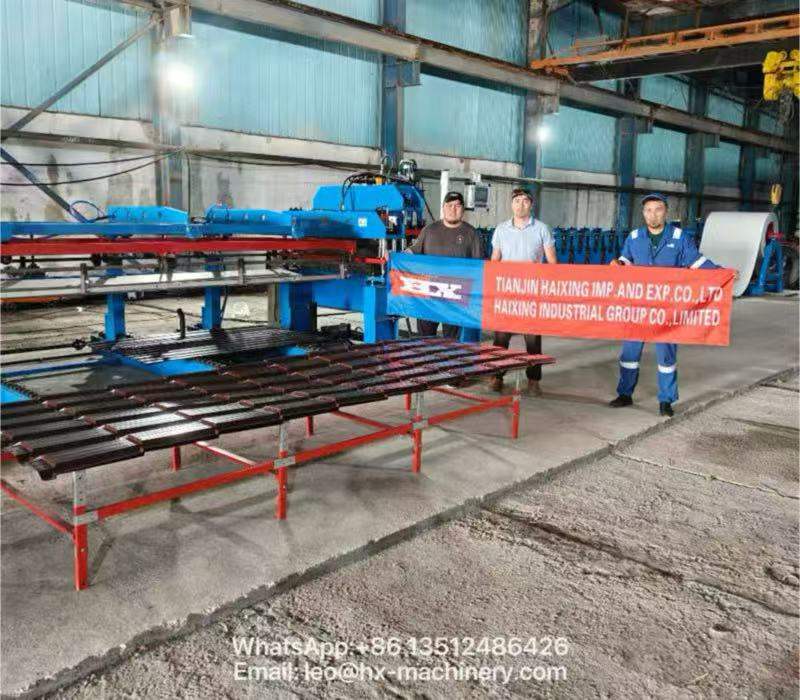

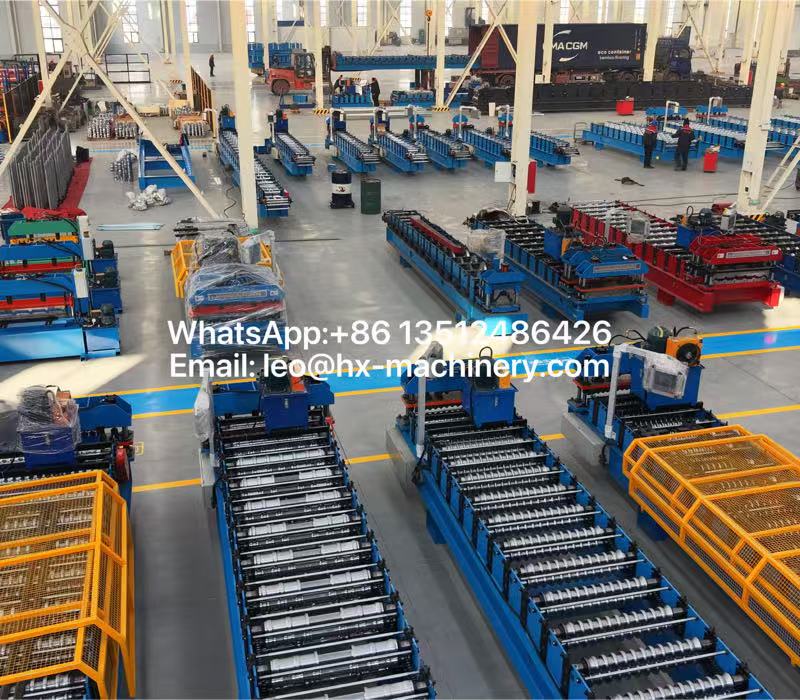

Clients Showing
