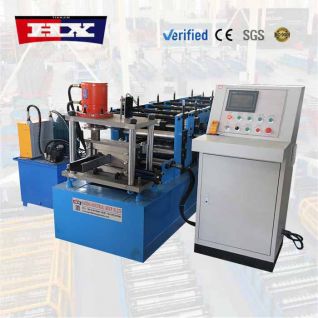

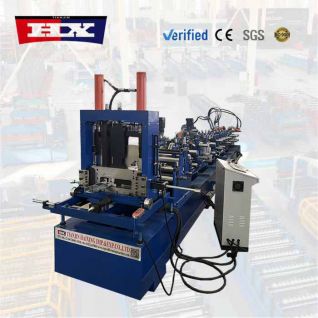

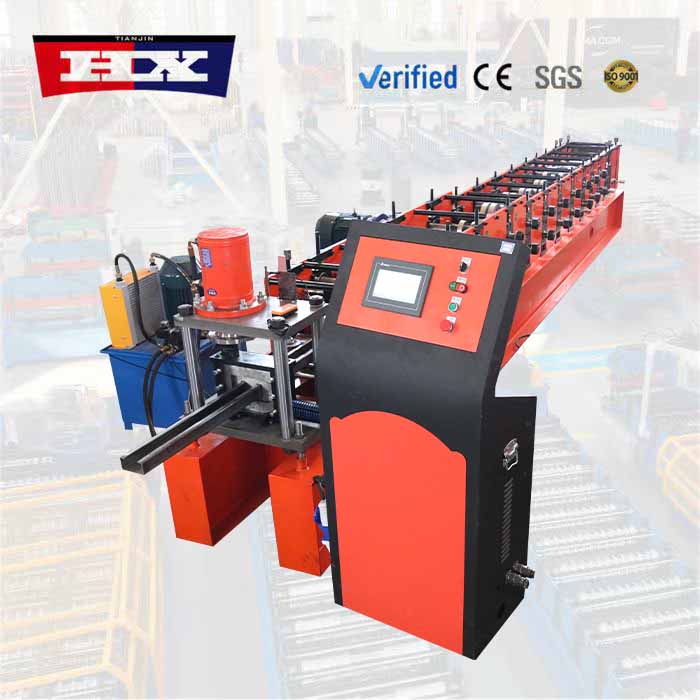

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
When evaluating c purlin machine manufacturers, Haixing Industrial Group Co., Ltd. stands out as a seasoned partner with over 20 years of dedicated service in the roll forming sector—not just as a supplier, but as a long-term ally to steel fabricators across more than 50 countries.
Choosing the right c purlin machine manufacturers involves more than comparing price lists; it requires assessing build quality, post-sale responsiveness, and the ability to customize equipment for local building codes. Our machinery features heavy-duty gearboxes, precision-ground rollers, and user-friendly PLC systems, all designed to produce consistent C-shaped purlins with minimal operator intervention. Every machine is fully customizable—from web heights and flange widths to hole punching patterns and stacking systems—ensuring it fits seamlessly into diverse production environments.
What truly distinguishes us among c purlin machine manufacturers is our commitment to transparency. We provide factory floor video inspections, third-party quality reports, and real-time production updates to overseas clients, so they can verify our processes before committing. Our machines currently operate successfully in North America, Eastern Europe, West Africa, and the Middle East, with many repeat orders coming from clients who appreciate our accessible technical support team and strategically located spare parts warehouse that serves international shipments efficiently.
Below is a comprehensive overview of our manufacturing capabilities, quality control protocols, and technical specifications for our c purlin machine line.

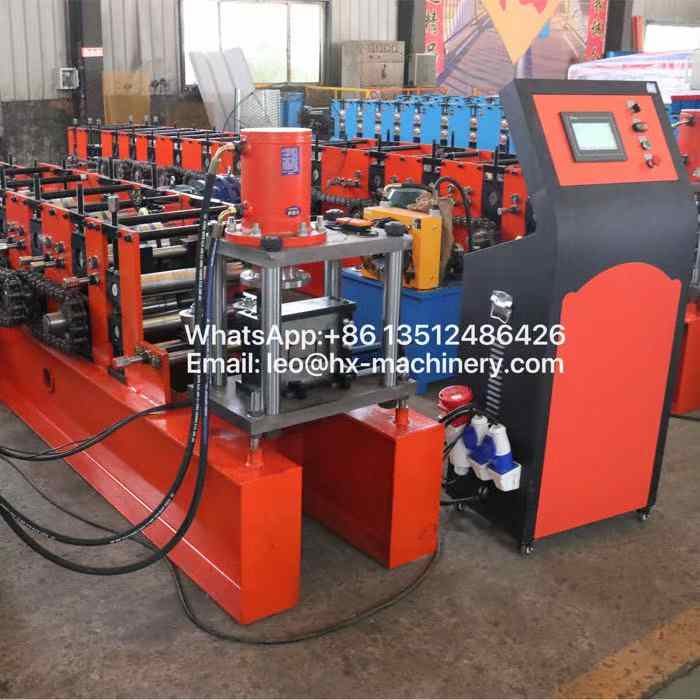

Machine parameters
| No. |
C purlin machine manufacturers |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

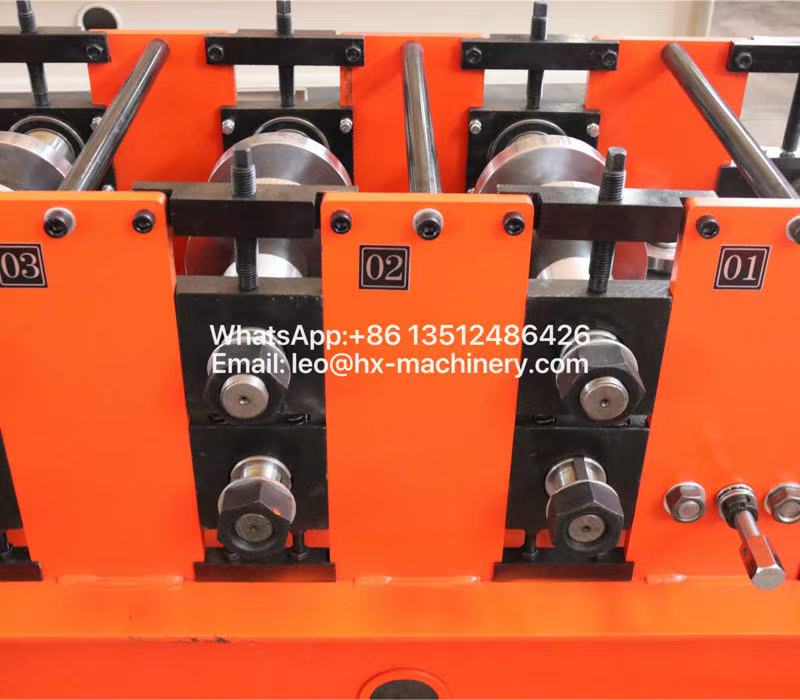

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |
Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |

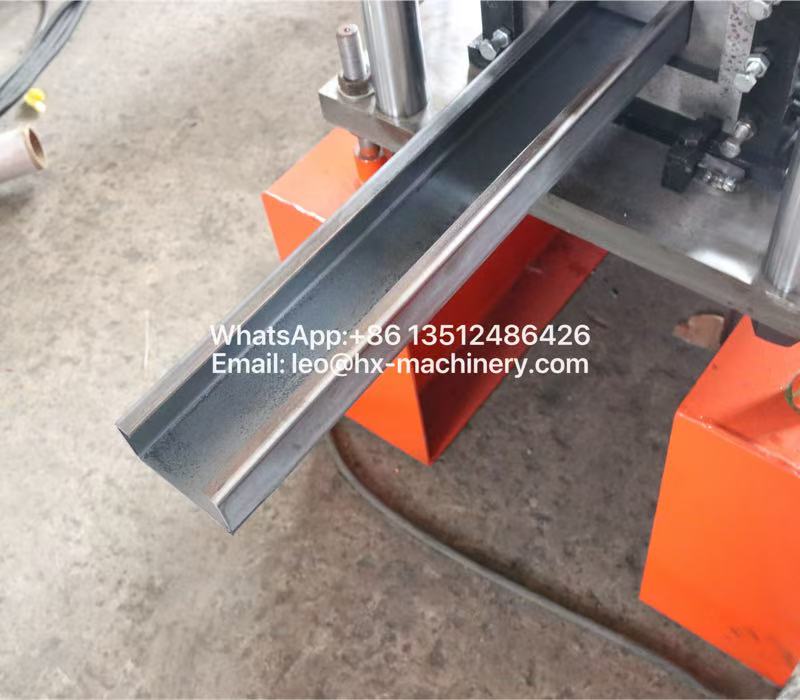

| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

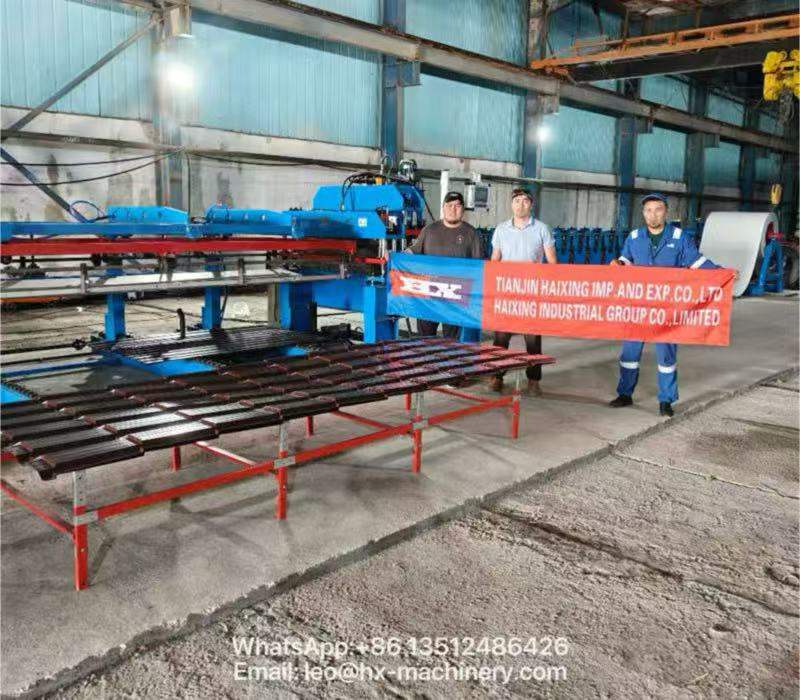

Clients Showing
