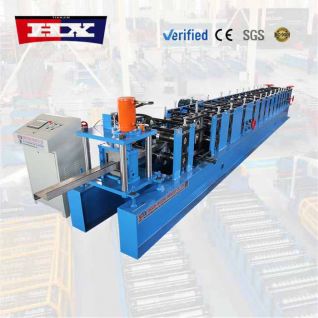

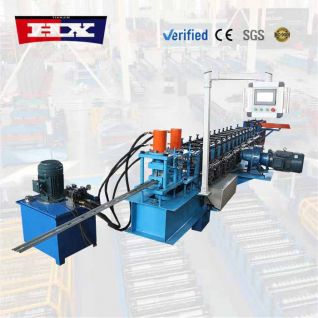

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

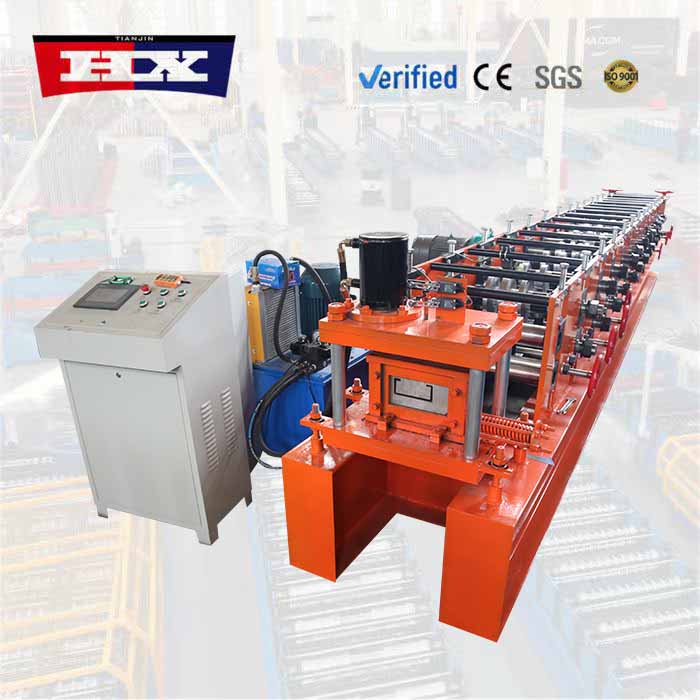

With over 20 years of hands-on expertise in heavy-duty forming equipment, Haixing Industrial Group Co., Ltd. has engineered our steel purlin machine to handle the toughest production demands—processing high-tensile steel up to 600 MPa with consistent accuracy and minimal wear.

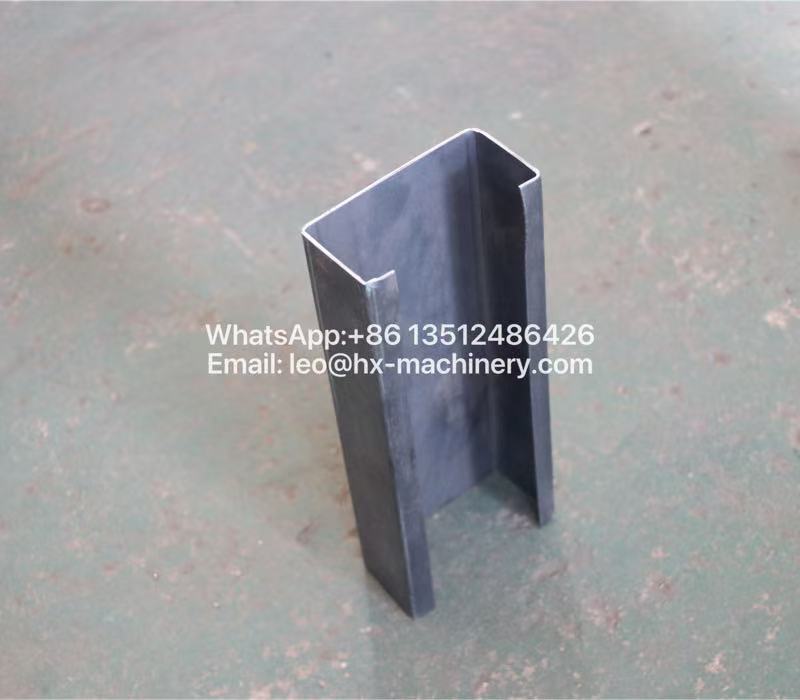

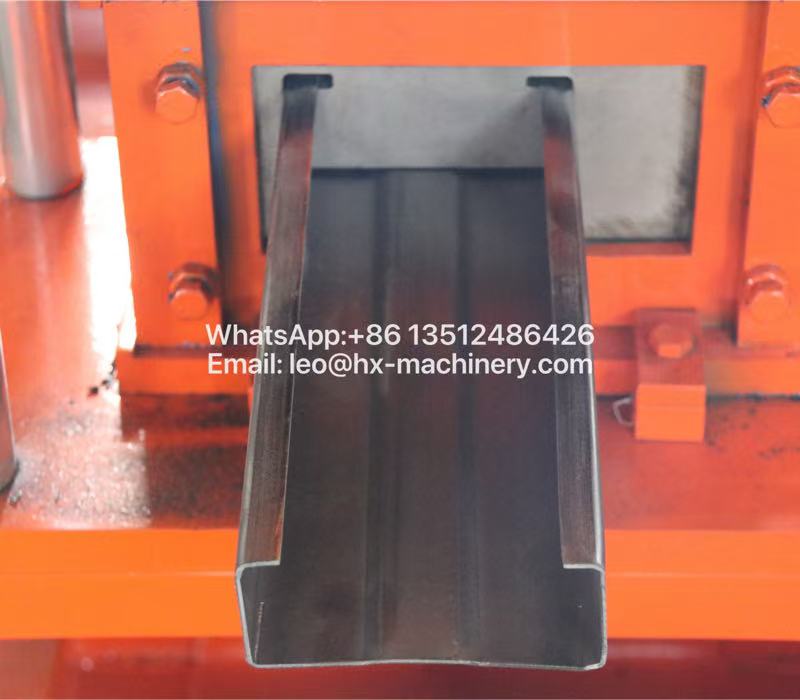

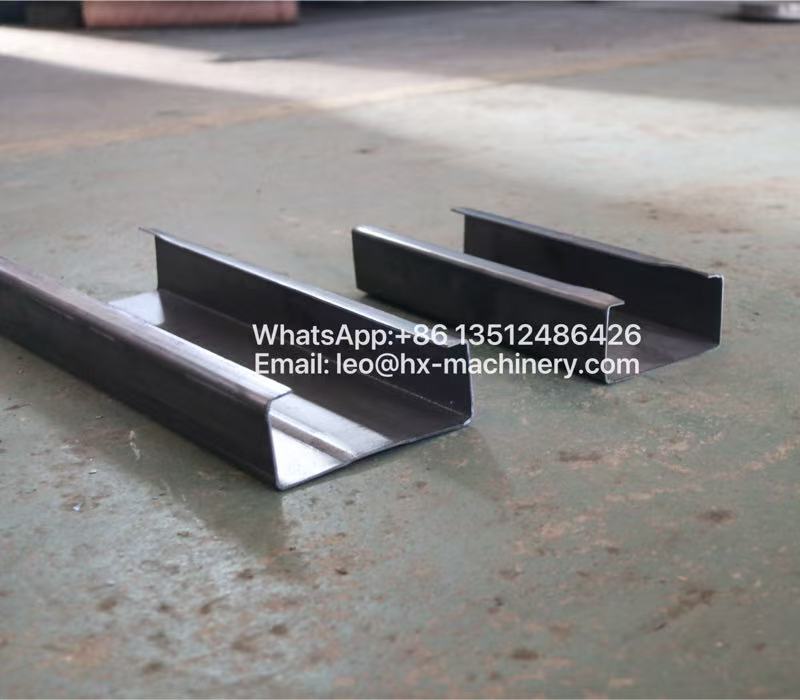

Our steel purlin machine features a reinforced cast-iron frame, oversized roller shafts, and a dual-drive transmission system that delivers stable torque even when forming thick-gauge coils. It supports both C and U profiles, with optional quick-change cassettes for size transitions, and can be customized with multi-punching stations and high-speed cutting systems to suit solar mounting, warehouse framing, and heavy infrastructure projects. The control system includes load-monitoring sensors that automatically adjust speed and pressure to prevent overloading.
What sets our steel purlin machine apart in demanding export regions—including Canada, Saudi Arabia, Kazakhstan, and Chile—is its ability to perform reliably in extreme conditions, from sub-zero cold to high-humidity coastal environments. Our machines are equipped with corrosion-resistant coatings, sealed bearings, and IP-rated electrical cabinets. Equally important is our global spare parts network, with stocked components in multiple regional warehouses, ensuring that even critical parts can be shipped within 48 hours to minimize production interruptions.
Below are the full technical specifications of this steel purlin machine, along with material compatibility charts and recommended maintenance schedules.
Machine parameters
| No. |
Steel purlin machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

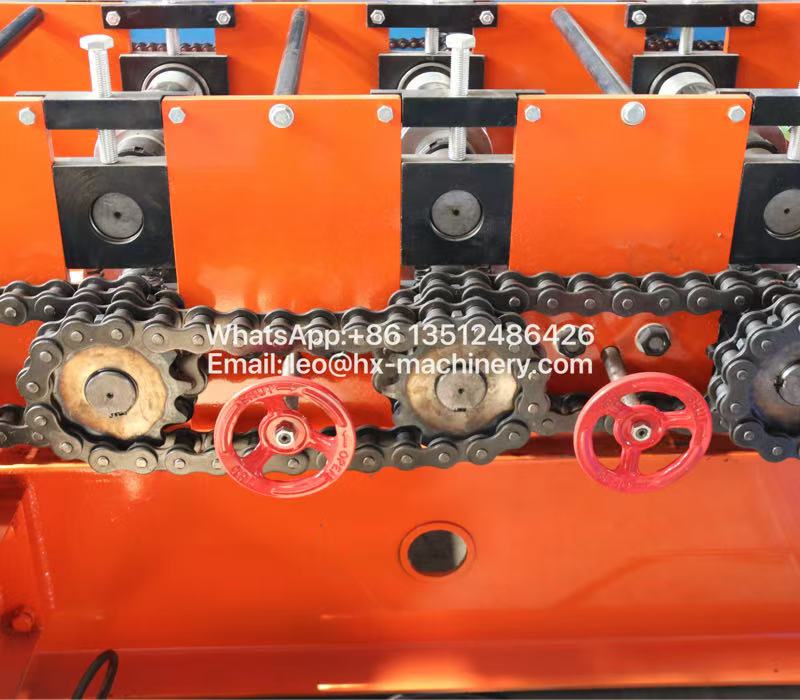

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

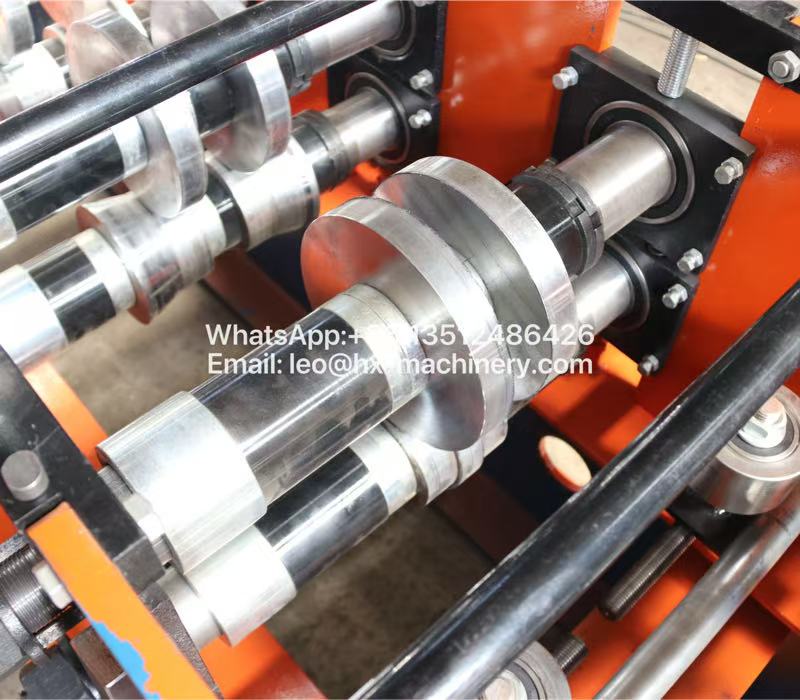

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

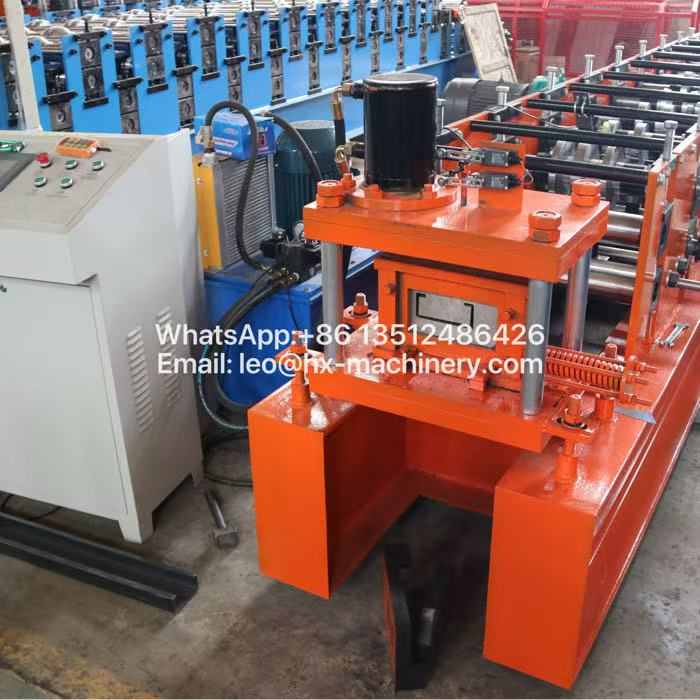

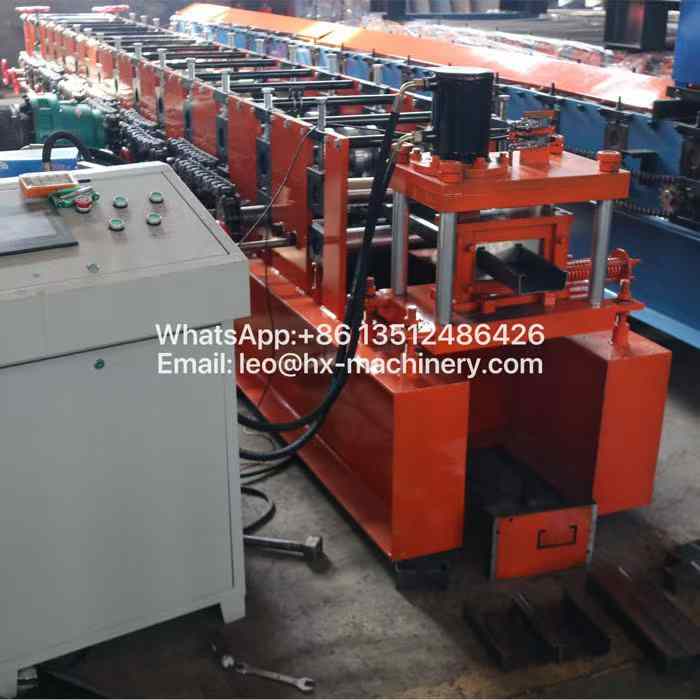

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |

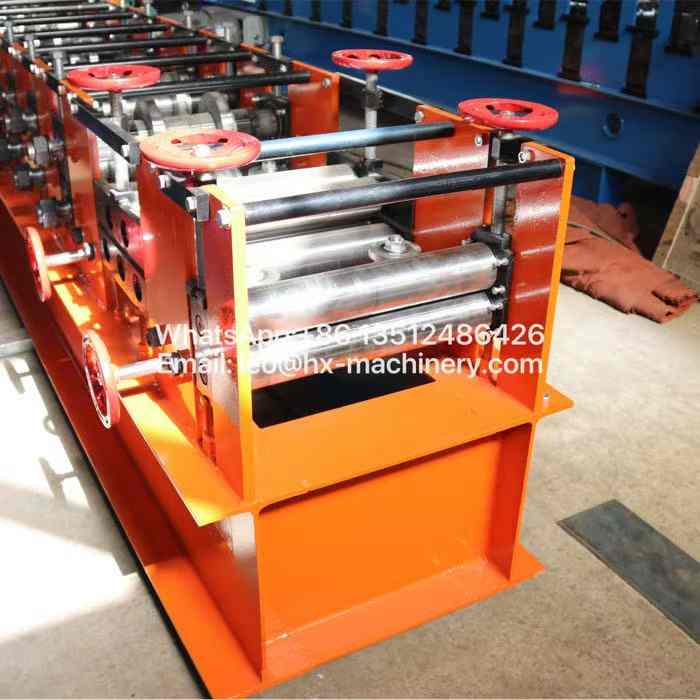

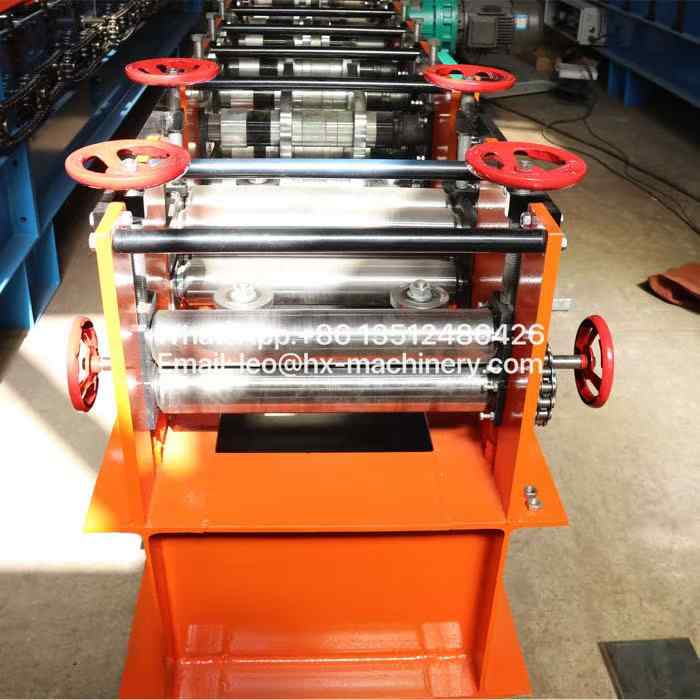

Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
