Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

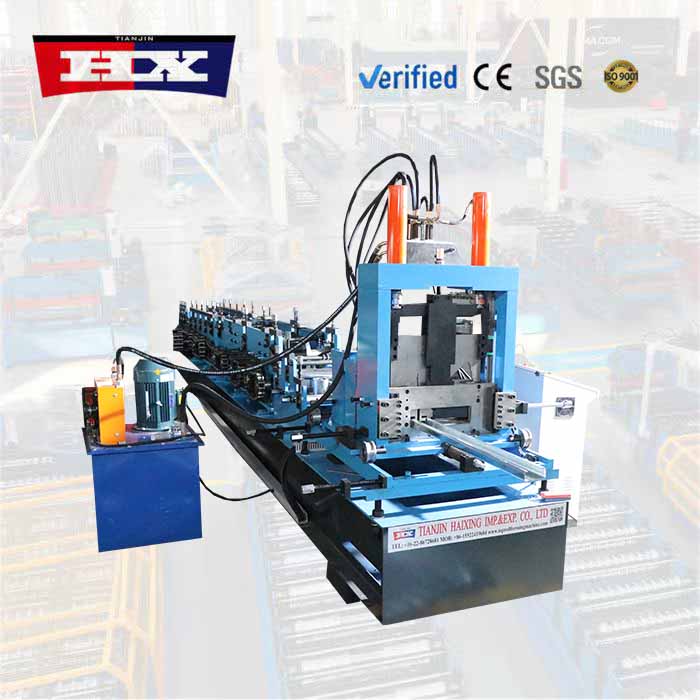

With over two decades of specialized engineering experience, Haixing Industrial Group Co., Ltd. has developed a high-performance c profile roll forming machine that delivers exceptional profile accuracy and seamless integration with downstream processes—making it a trusted choice for prefab building manufacturers and large-scale contractors worldwide.

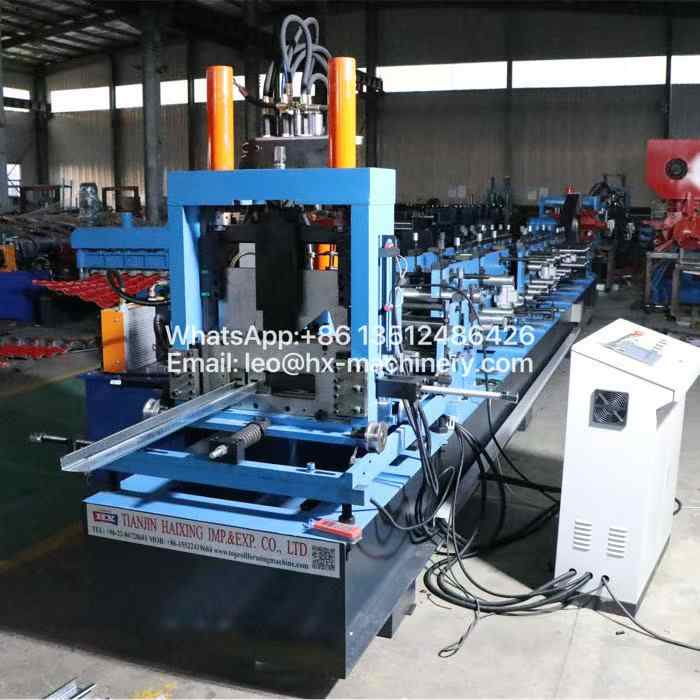

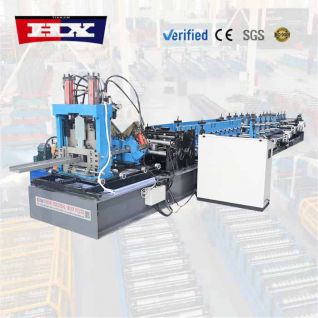

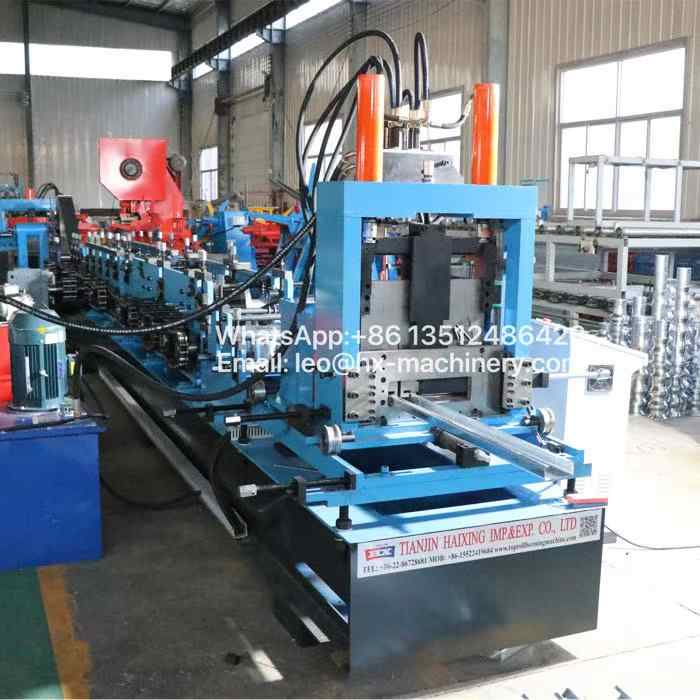

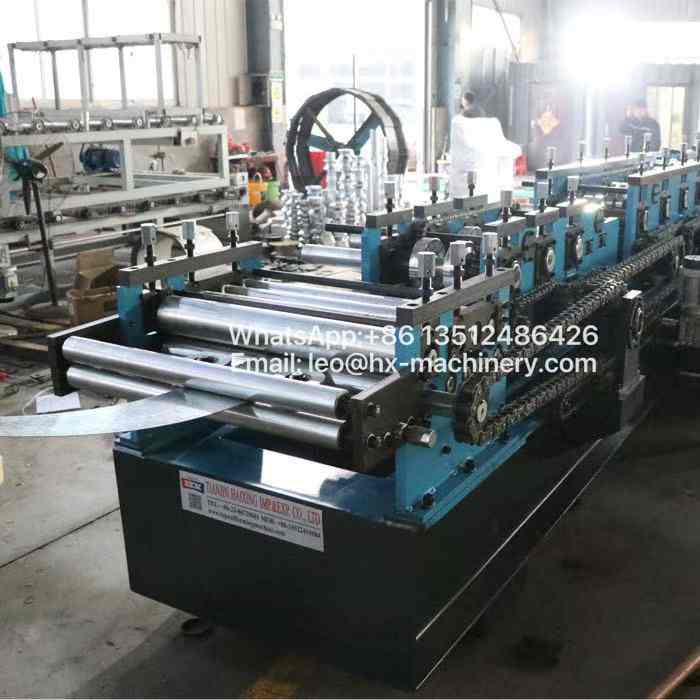

Our c profile roll forming machine incorporates precision-ground roller sets and a closed-loop feedback system that continuously monitors material thickness and feed speed, automatically adjusting roller pressure to maintain consistent C-profile geometry throughout the entire production run. It is equipped with servo-driven punch stations, flying cutoff saws, and optional stacking units that work in synchronized sequence, enabling a fully automated line from coil to finished stack. Custom configurations include variable flange heights, multiple hole patterns, and embossing options to meet diverse structural requirements.
What drives the growing demand for our c profile roll forming machine in markets such as Poland, Mexico, South Africa, and the Philippines is its proven ability to maintain profile straightness within ±0.5mm over long production cycles—a critical factor in modular construction where panel alignment and bolted connections must be precise. Buyers also appreciate our comprehensive pre-shipment testing, including full-run simulations with their specified materials, as well as our detailed video manuals that simplify local maintenance and troubleshooting.
Below are the full technical specifications of this c profile roll forming machine, along with sample profile drawings and recommended ancillary equipment.
Machine parameters
| No. |
C profile roll forming machine |
|
| 1 |
Feeding Mode |
Guide shaft + guide roller |
| 2 |

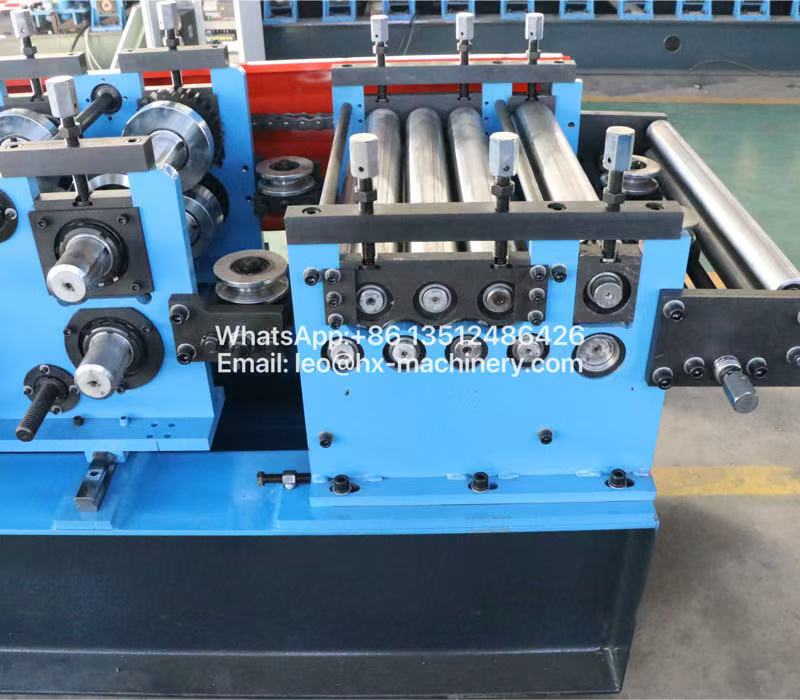

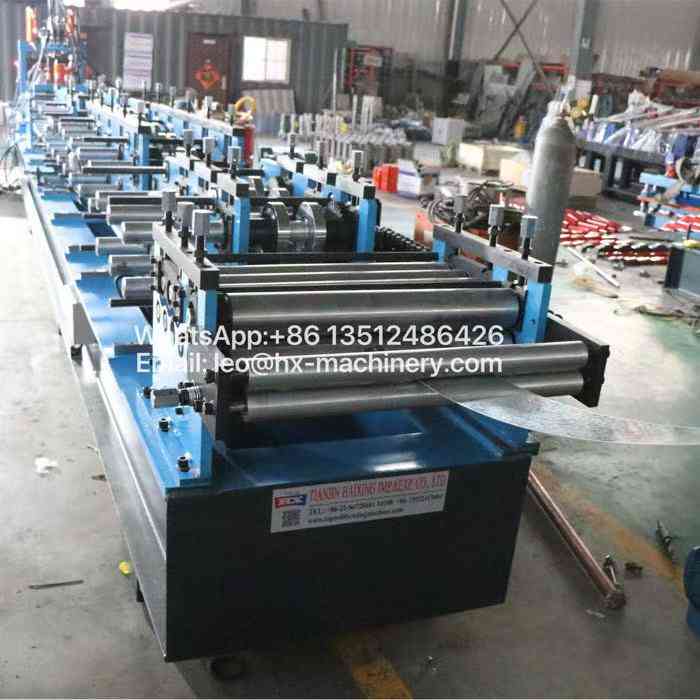

Leveling Structure
|
4‑upper & 3‑lower rollers, with two feeding passes |
| 3 |
Material |
45# steel |
| 4 |
Rib Pressing |
Straight single rib, automatic profile change by computer |
| 5 |
Straightening Structure |
1‑upper & 2‑lower rollers, 3‑axis straightener
|
| 6 |
Cutting Blade Material |
Cr12 |
| 7 |
Main Control Cabinet |
1 set (with aviation plug connector) |
| 8 |
Hydraulic Motor |
Outer five‑star piston connecting‑rod type (Ningbo Hanzhu) |
| 9 |
Hydraulic Power Station |
Power 22 kW, oil‑tank volume 500 L |
| 10 |
Main Component Origin |
Solenoid valve (Zhejiang Yongxin) |
| 11 |
Load Capacity |
5 tons |
| 12 |
Expanding Mode |
Hand‑crank four‑linkage center outward expanding |
| 13 | Braking Mode |
Dual main‑shaft holding brake |
| 14 |
Roller Material |
GCr15, processed in Wuxi
|
| 15 |
Main Shaft Material |
45# steel |
| 16 |
Sliding Sleeve Material |
45# steel |
| 17 |
Outlet Speed |
Max.20 m/min (depends on punching quantity) |
| 18 |
Overall Dimension |
L 9.5 m × W 1.4 m × H 1.7 m |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
