Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

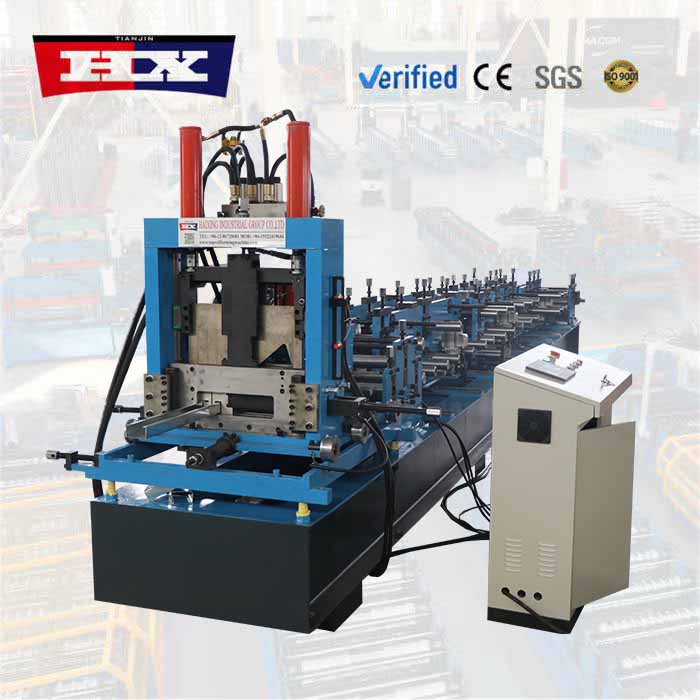

With over two decades of specialization in roll forming equipment, Haixing Industrial Group Co., Ltd. has developed a robust c purlin making machine that consistently delivers reliable performance for steel structure manufacturers worldwide.

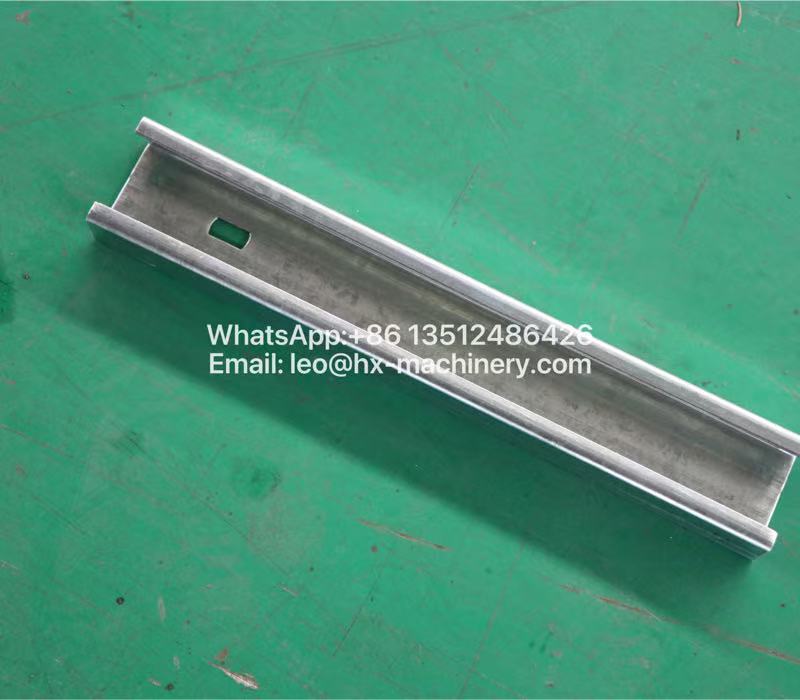

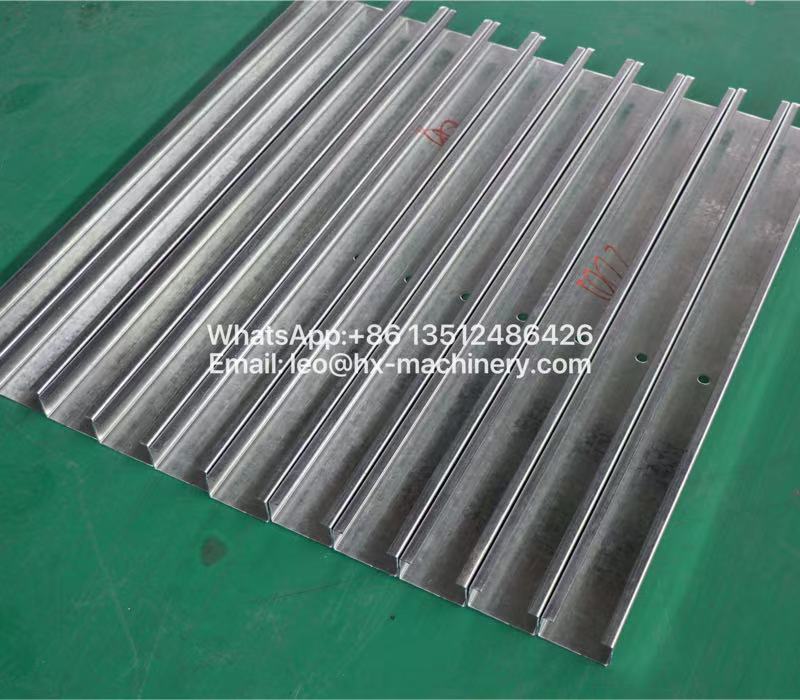

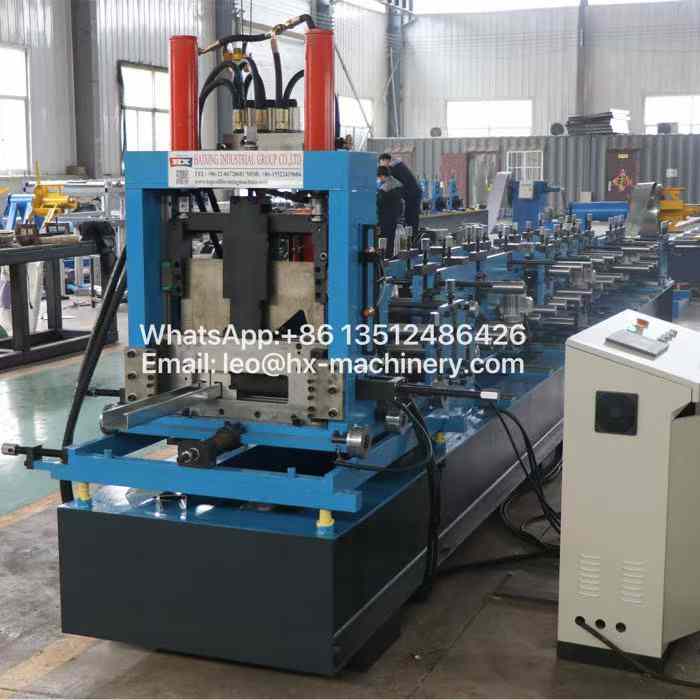

This c purlin making machine is built to transform coil stock into high-quality C-shaped purlins with precise tolerances and smooth edges. It offers extensive customization—from roll diameters and punching patterns to web heights and flange widths—ensuring it aligns seamlessly with diverse construction standards.
What makes this c purlin making machine particularly attractive to overseas clients—including those in South Africa, the UK, and Southeast Asia—is its combination of cost-effectiveness, straightforward maintenance, and responsive technical support. Users appreciate its ability to maintain accuracy over long production runs, handle various material grades with ease, and integrate smoothly into existing production lines. Backed by our global service network, customers report fewer interruptions and faster problem resolution, which directly contributes to higher profitability and on-time project delivery.
Provided below are the technical specifications and profile options for this c purlin making machine.
Machine parameters
| No. |
C purlin making machine |
|
| 1 |
Feeding Mode |
Guide shaft + guide roller |
| 2 |
Leveling Structure
|
4‑upper & 3‑lower rollers, with two feeding passes |
| 3 |
Material |
45# steel |
| 4 |
Rib Pressing |
Straight single rib, automatic profile change by computer |
| 5 |
Straightening Structure |
1‑upper & 2‑lower rollers, 3‑axis straightener
|
| 6 |
Cutting Blade Material |
Cr12 |
| 7 |
Main Control Cabinet |
1 set (with aviation plug connector) |
| 8 |
Hydraulic Motor |
Outer five‑star piston connecting‑rod type (Ningbo Hanzhu) |
| 9 |
Hydraulic Power Station |
Power 22 kW, oil‑tank volume 500 L |
| 10 |
Main Component Origin |
Solenoid valve (Zhejiang Yongxin) |
| 11 |
Load Capacity |
5 tons |
| 12 |
Expanding Mode |
Hand‑crank four‑linkage center outward expanding |
| 13 | Braking Mode |
Dual main‑shaft holding brake |
| 14 |

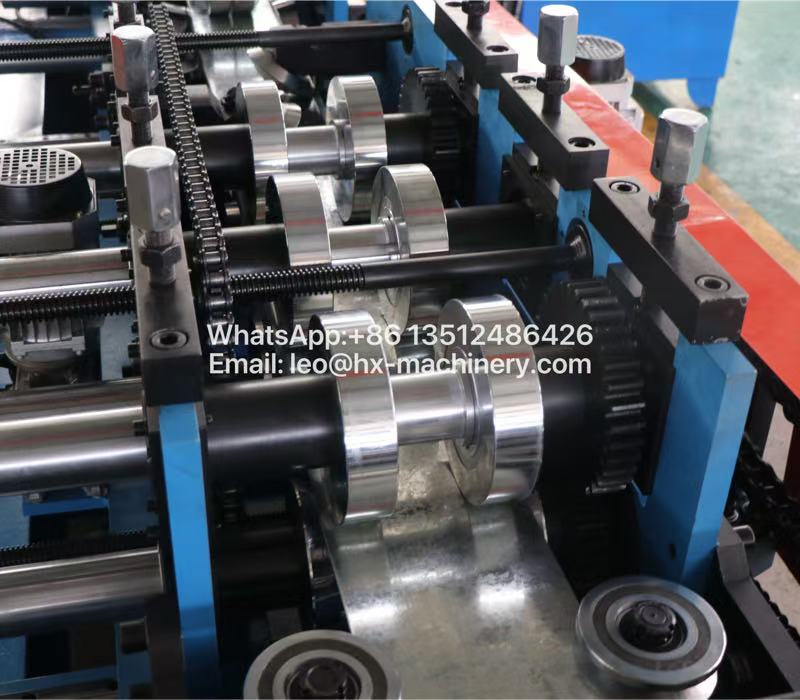

Roller Material |
GCr15, processed in Wuxi
|
| 15 |
Main Shaft Material |
45# steel |
| 16 |
Sliding Sleeve Material |
45# steel |
| 17 |
Outlet Speed |
Max.20 m/min (depends on punching quantity) |
| 18 |
Overall Dimension |
L 9.5 m × W 1.4 m × H 1.7 m |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
