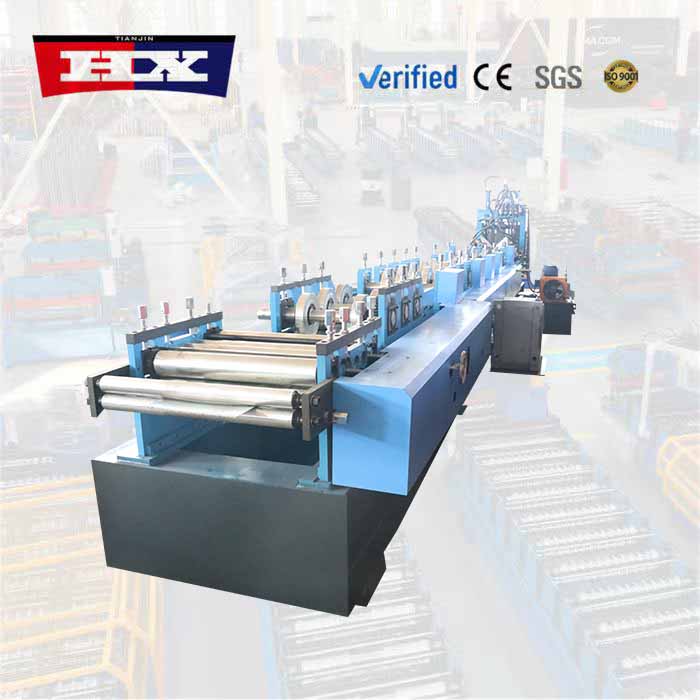

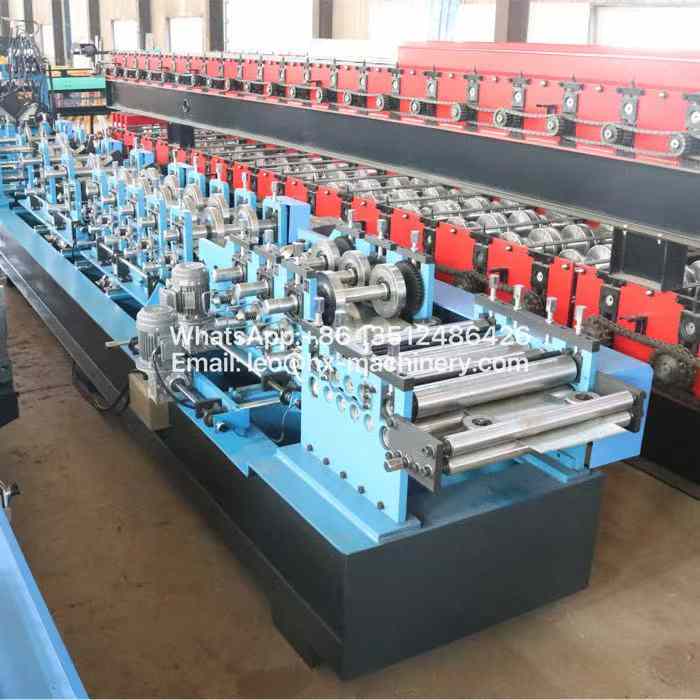

Model: HX-z purlin machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With more than 20 years of experience in roll forming technology, Haixing Industrial Group Co., Ltd. offers a premium z purlin machine that has earned a strong reputation in international construction markets.
This z purlin machine is purpose-built to produce high-strength Z-shaped purlins with tight tolerances and smooth surface finishes. It supports flexible customization—thickness, width, hole positions, and cutting lengths can all be adjusted per customer orders.
What makes this z purlin machine truly stand out is its robust frame construction, stable hydraulic shearing, and PLC-controlled automation, which together ensure trouble-free operation even under continuous heavy loads. Currently, it is widely exported to Australia, Russia, the UAE, and African countries, where builders appreciate its ability to reduce scrap rates, speed up production cycles, and adapt quickly to varying project specifications.
Below are the detailed technical parameters of this z purlin machine and the finished profile dimensions it can handle.
Machine parameters
| No. |
Z purlin machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |

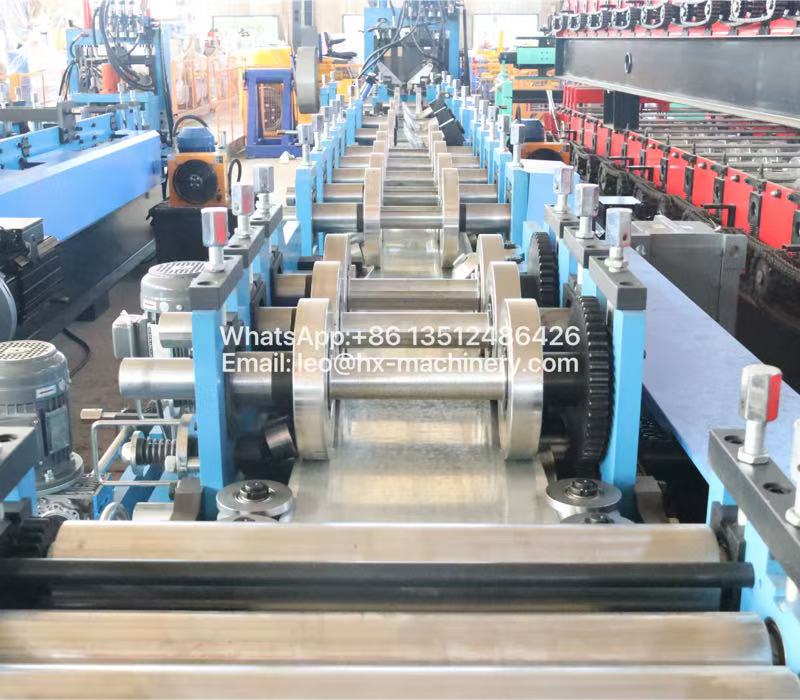

| 9 | Forming Passes |
12 passes |
| 10 |

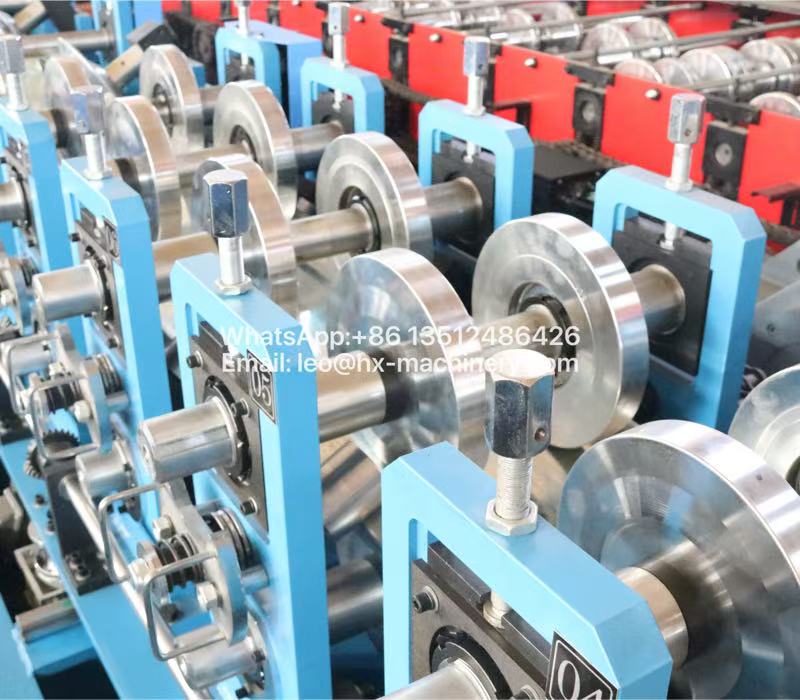

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

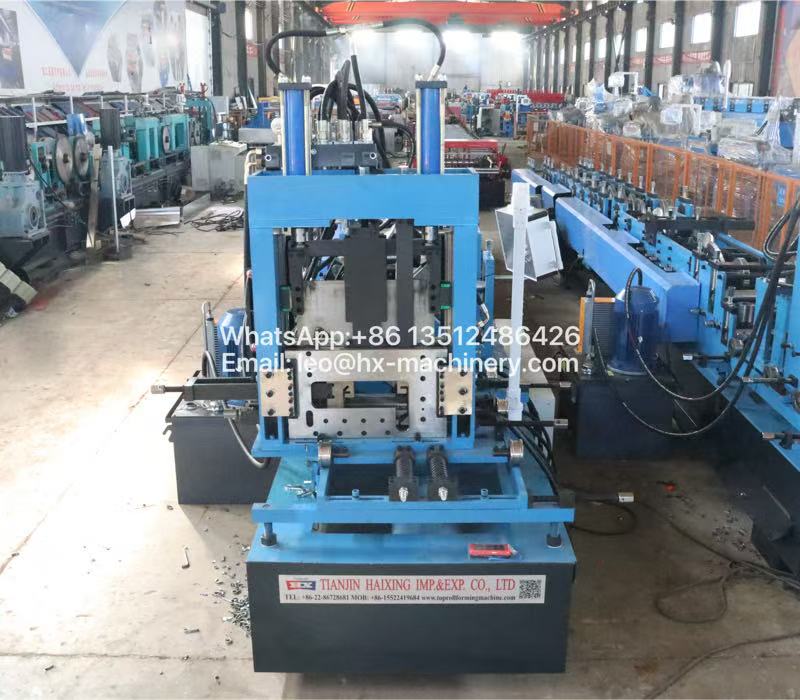

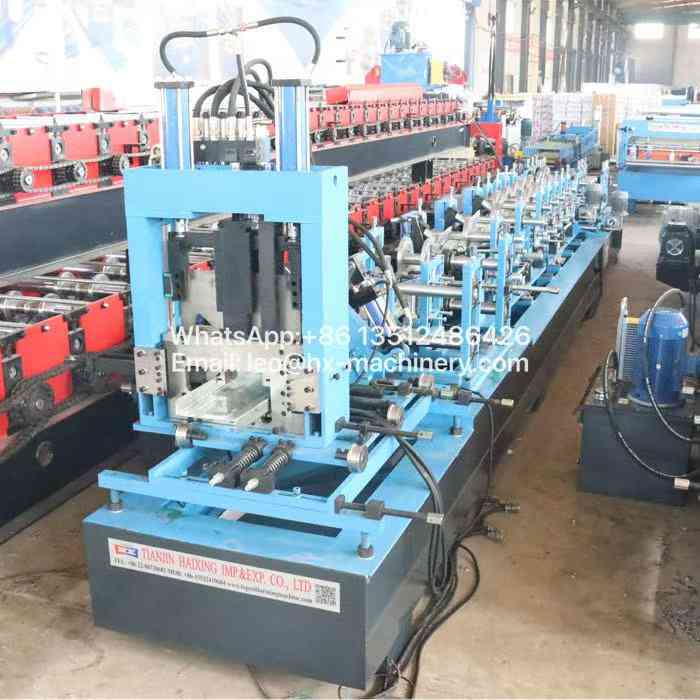

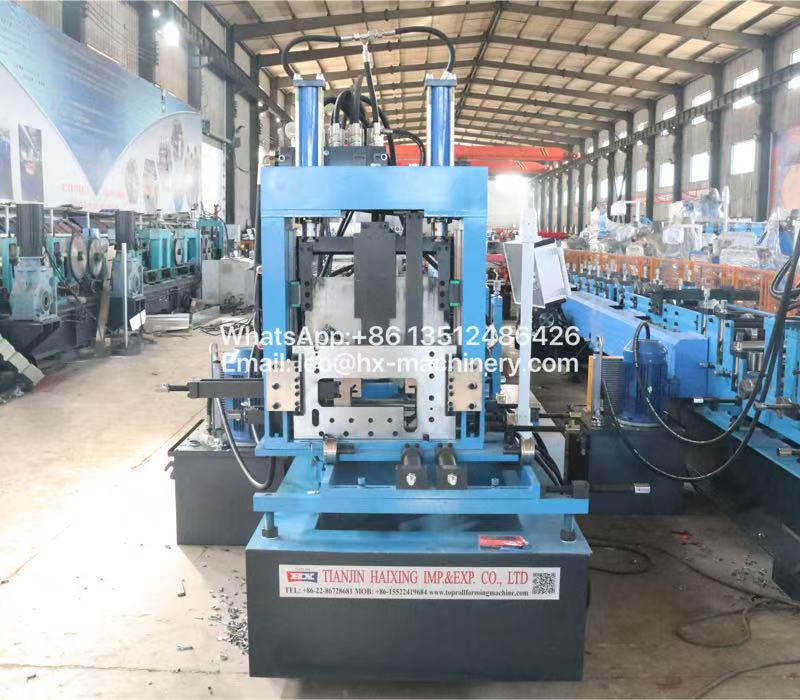

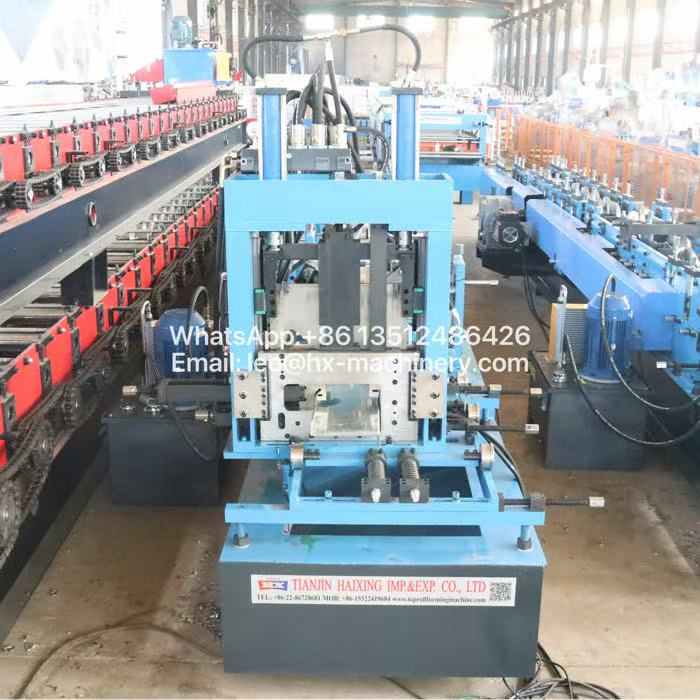

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |

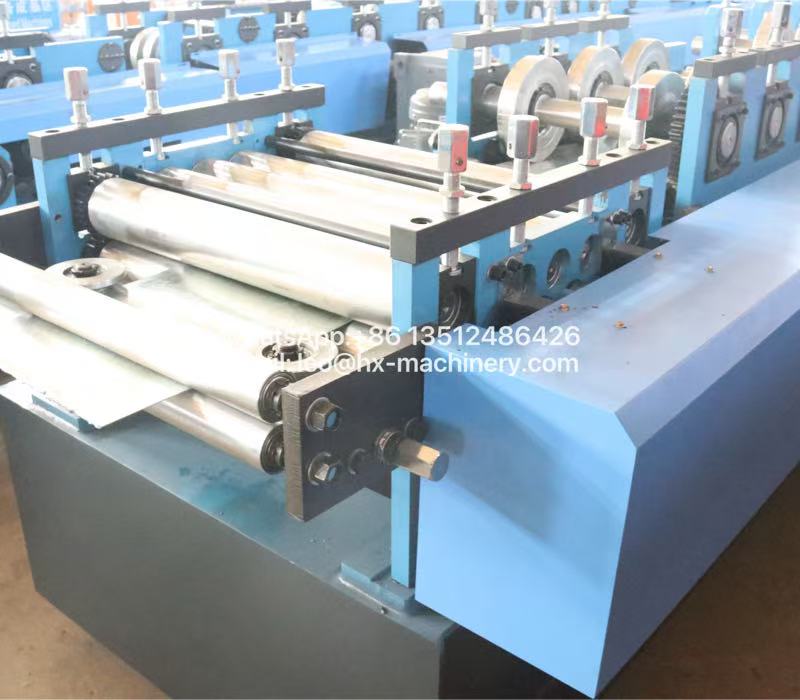

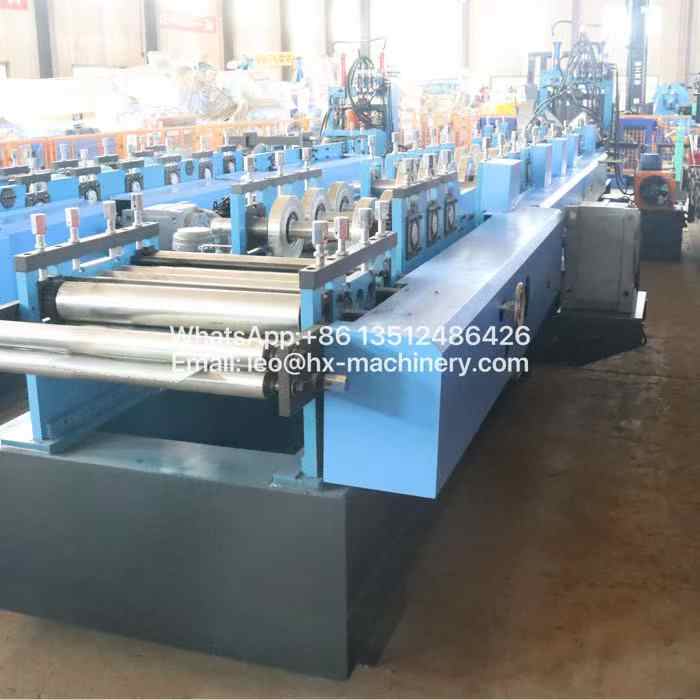

Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
