Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

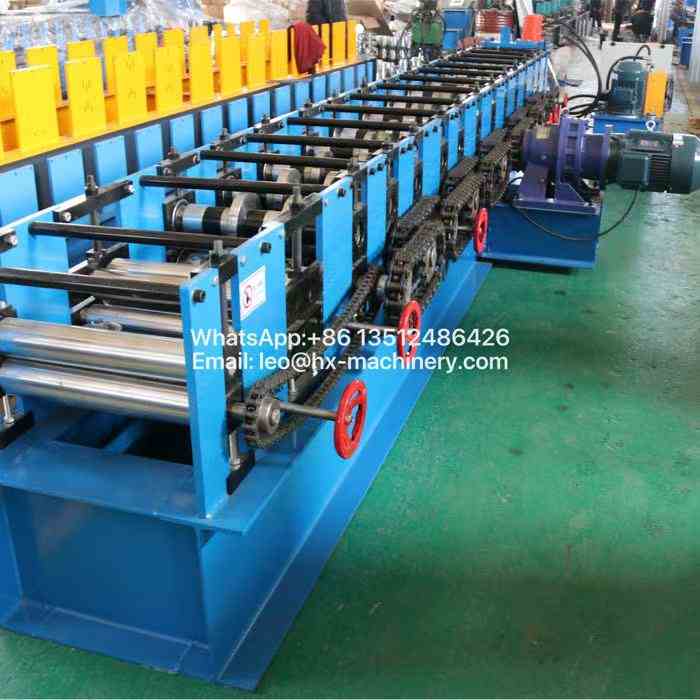

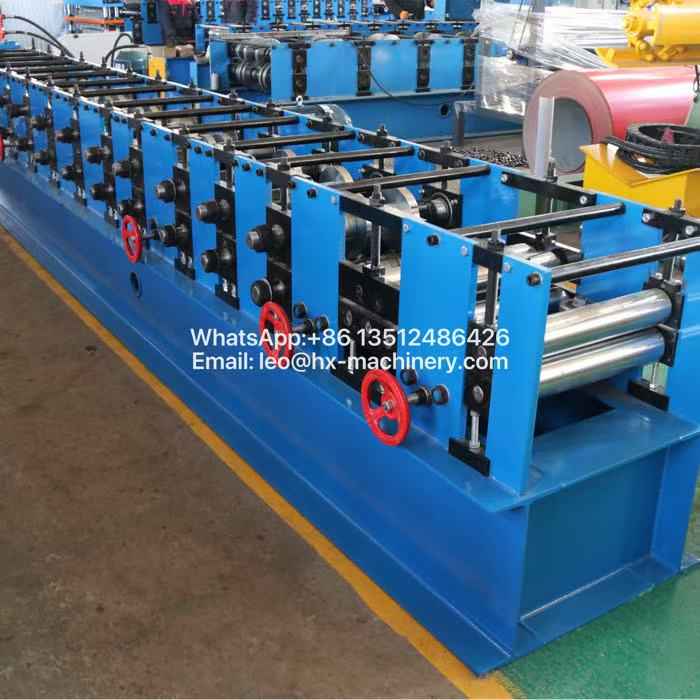

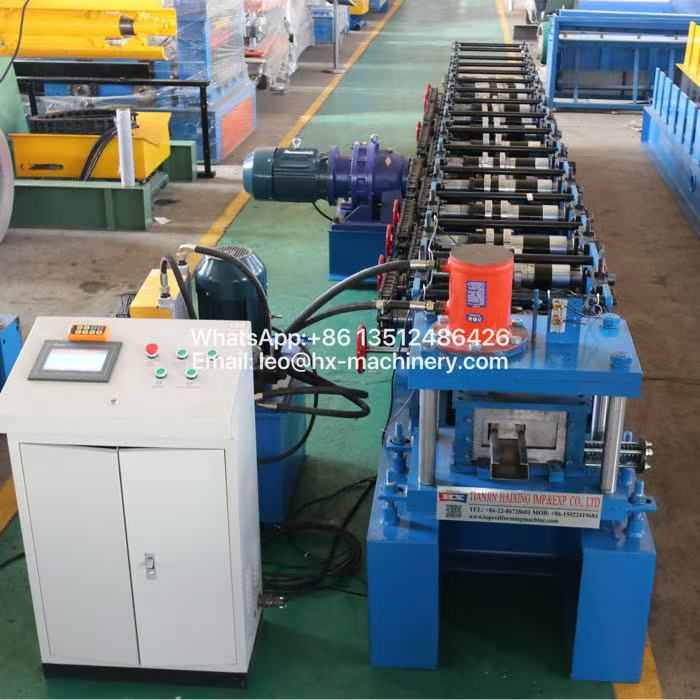

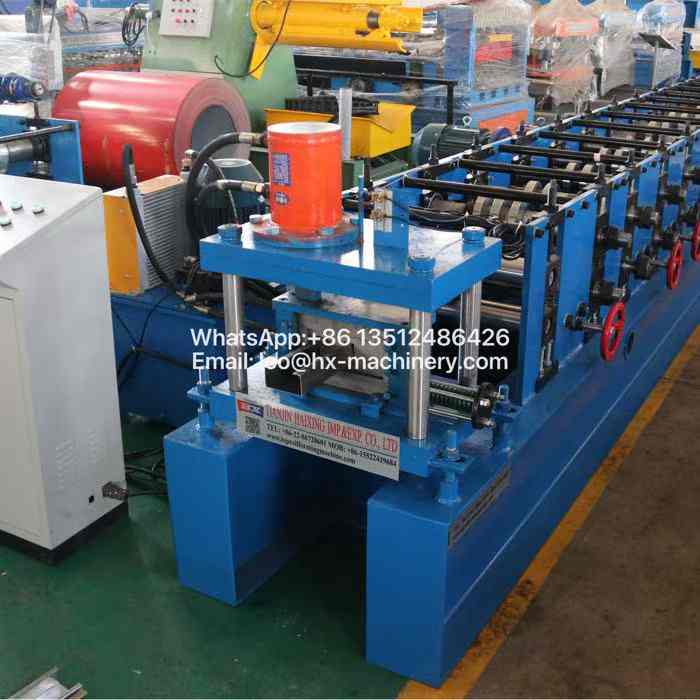

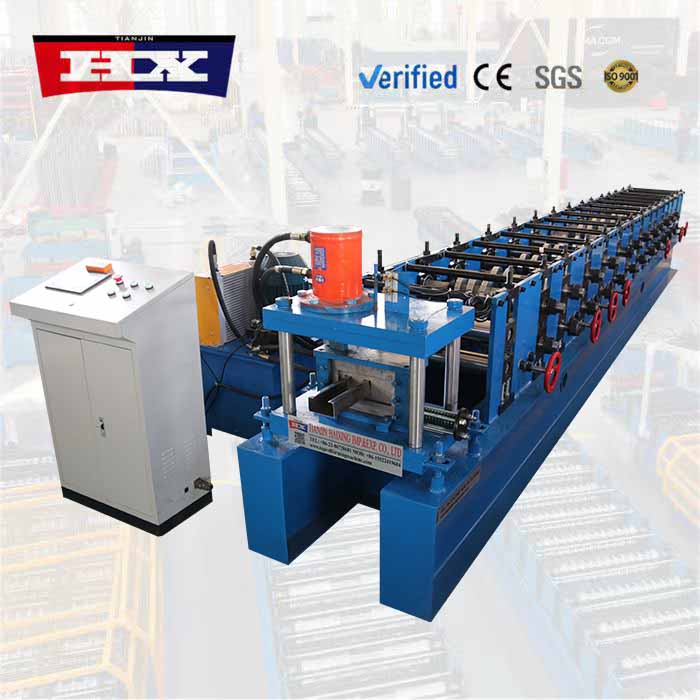

With over 20 years of hands-on experience in metal forming solutions, Haixing Industrial Group Co., Ltd. has perfected the design of our c channel forming machine—a versatile workhorse that meets the demanding requirements of modern construction and infrastructure projects.

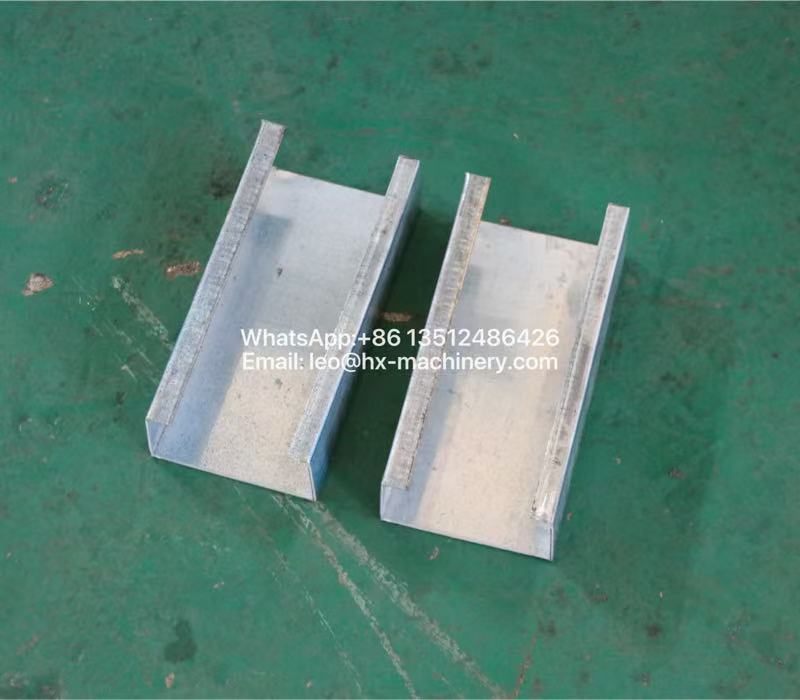

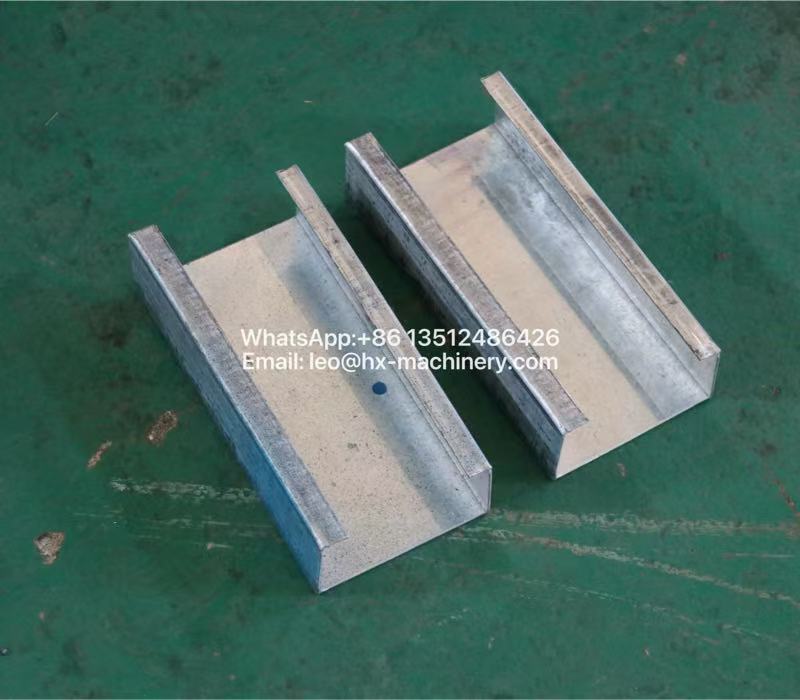

This c channel forming machine is engineered to process a broad spectrum of materials, from mild steel and galvanized coil to high-tensile alloys, delivering clean, distortion-free C channels with exceptional repeatability. It features an interchangeable roll cassette system that allows quick profile changes, along with adjustable punching and notching stations that can be configured to match customer blueprints precisely—whether for racking systems, building frames, or agricultural structures.
What gives this c channel forming machine a competitive edge in overseas territories such as Poland, Nigeria, and Peru is its straightforward operation—the touchscreen interface guides operators through setup steps in multiple languages, while the automatic lubrication system extends component life and minimizes daily maintenance chores. Buyers also appreciate our commitment to providing comprehensive installation videos, remote troubleshooting support, and a dedicated export logistics team that ensures smooth delivery to any port worldwide.
Below you will find the technical specifications for this c channel forming machine, along with the profile dimensions and punching patterns it can accommodate.
Machine parameters
| No. |
C channel forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

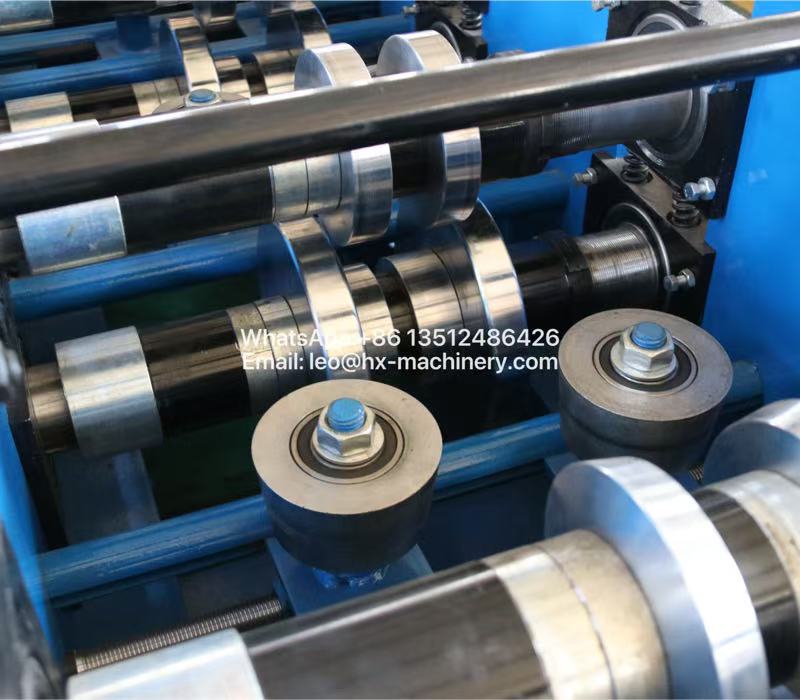

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

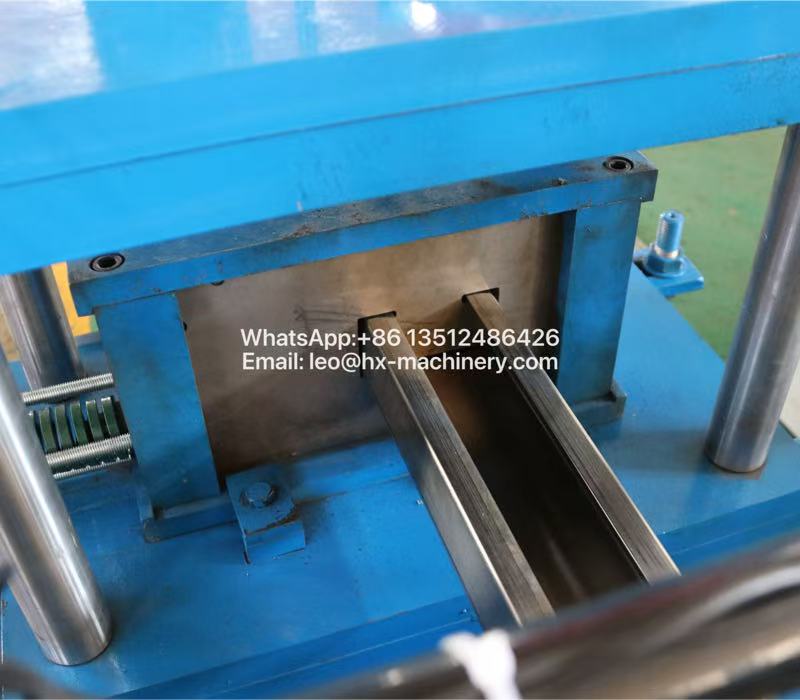

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
