Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

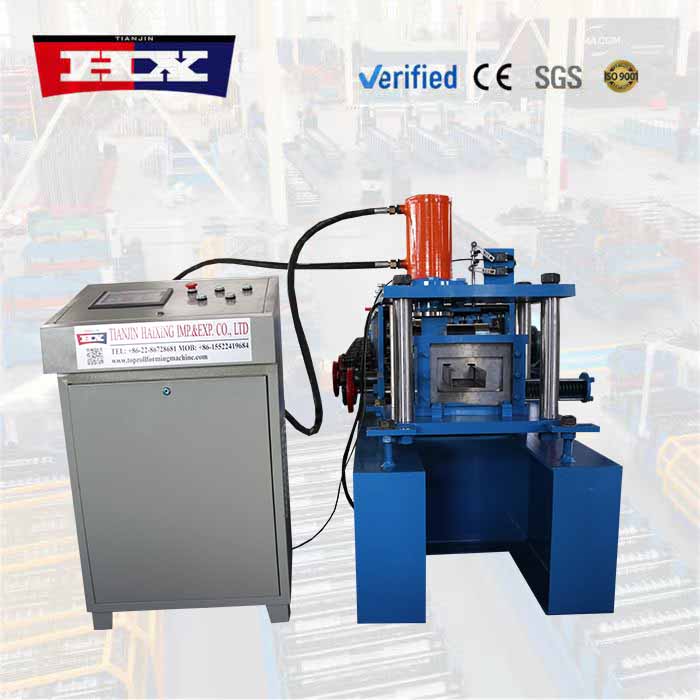

At Haixing Industrial Group Co., Ltd., with over 20 years of manufacturing excellence, we take pride in offering a robust c channel rolling machine that delivers reliable, high-precision output for steel structure projects around the world.

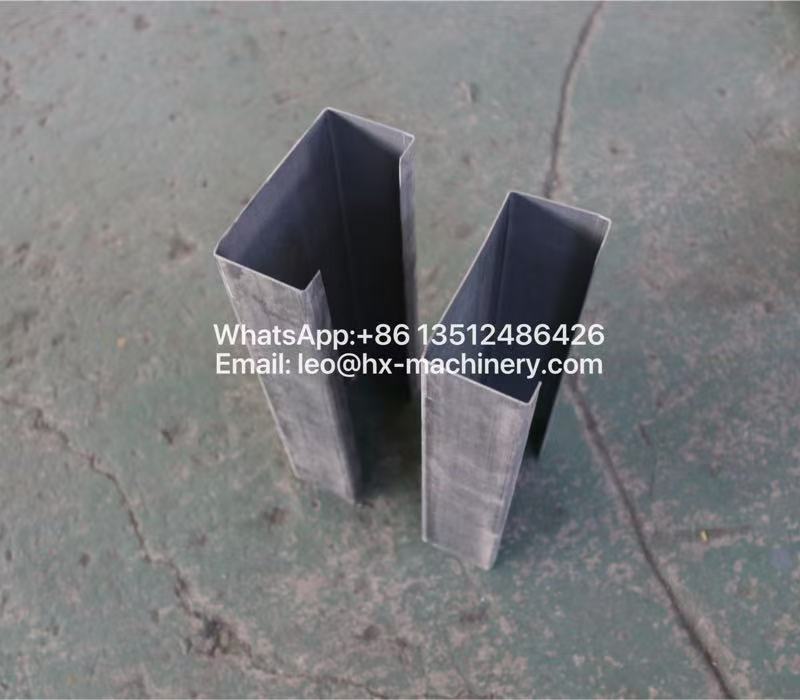

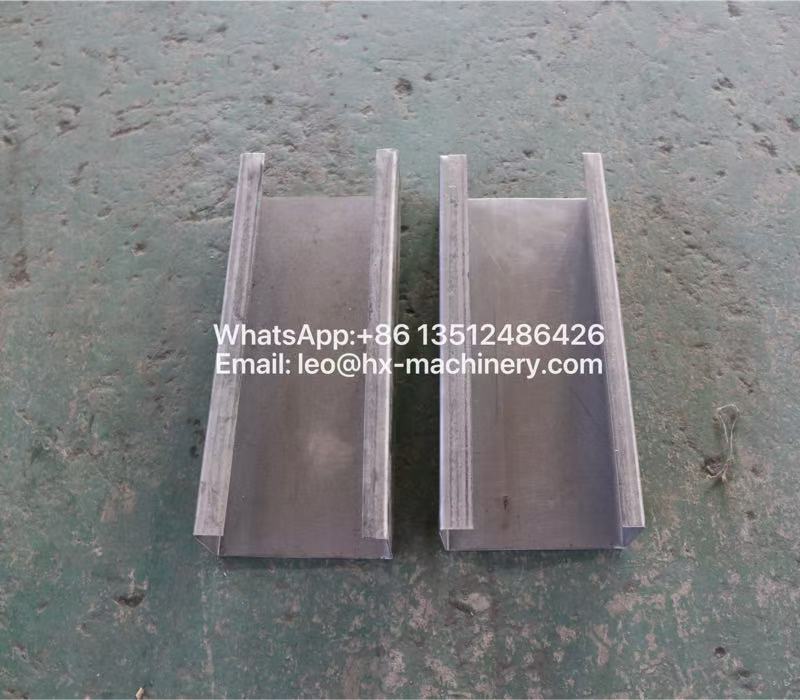

This c channel rolling machine is designed to handle a wide variety of coil widths and thicknesses, producing consistent C-shaped channels with excellent straightness and minimal distortion. Every unit can be customized with different roll sets, punching layouts, and hydraulic cutting systems, giving customers the flexibility to match their exact production needs.
What makes this c channel rolling machine a preferred choice in overseas markets—particularly in Brazil, Egypt, Vietnam, and the Middle East—is its superior build quality, stable performance under heavy loads, and fast return on investment. Its user-friendly PLC system minimizes operator training time, while the durable roller design ensures long service intervals, allowing fabricators to maximize uptime and reduce per-unit production costs. Backed by our global shipping network and responsive after-sales team, this machine gives international buyers confidence from installation through years of operation.
Below you will find the technical specifications of this c channel rolling machine along with the profile dimensions it can produce.
Machine parameters
| No. |
C channel rolling machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

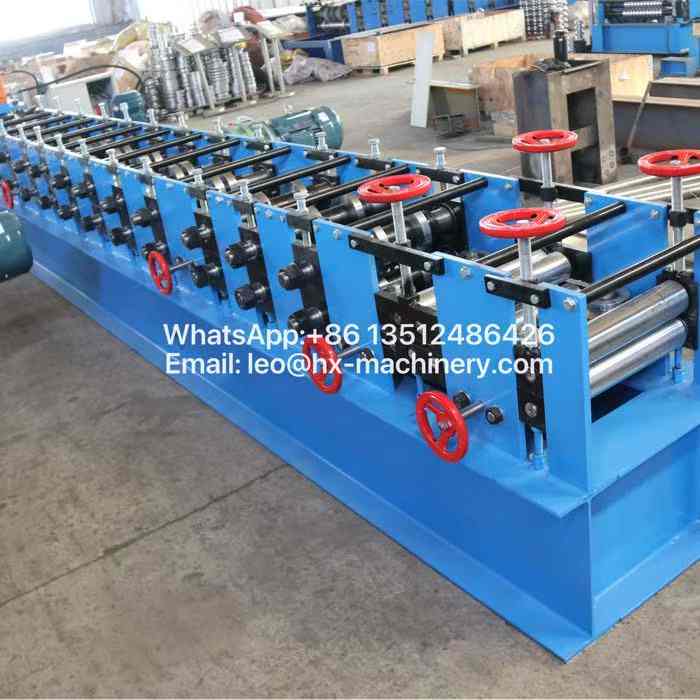

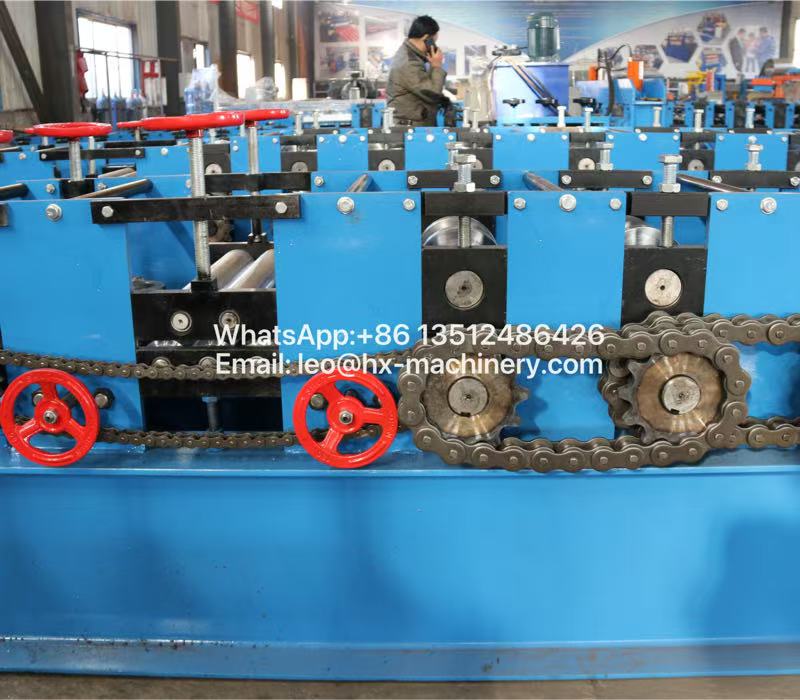

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

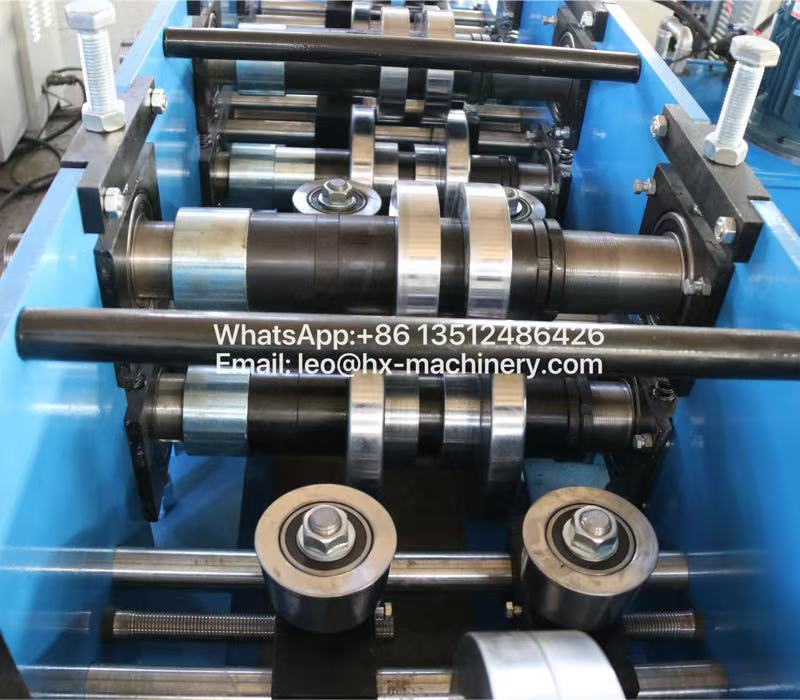

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

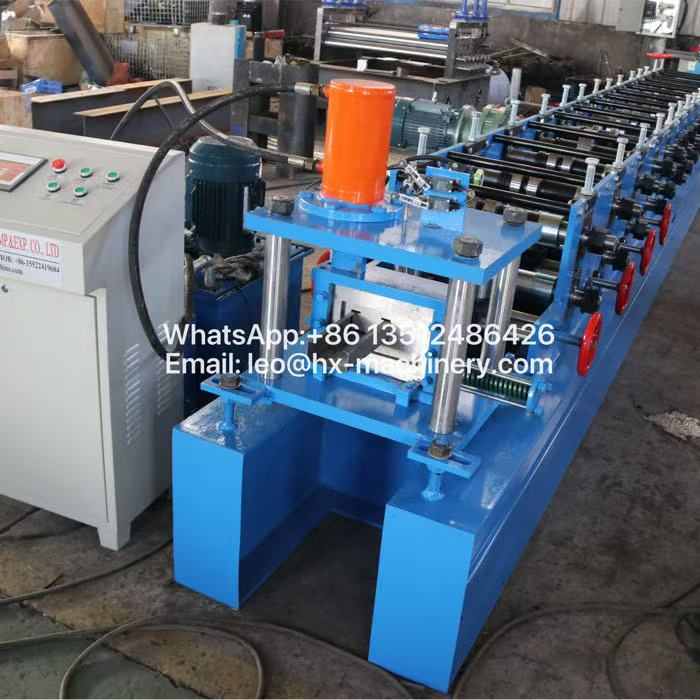

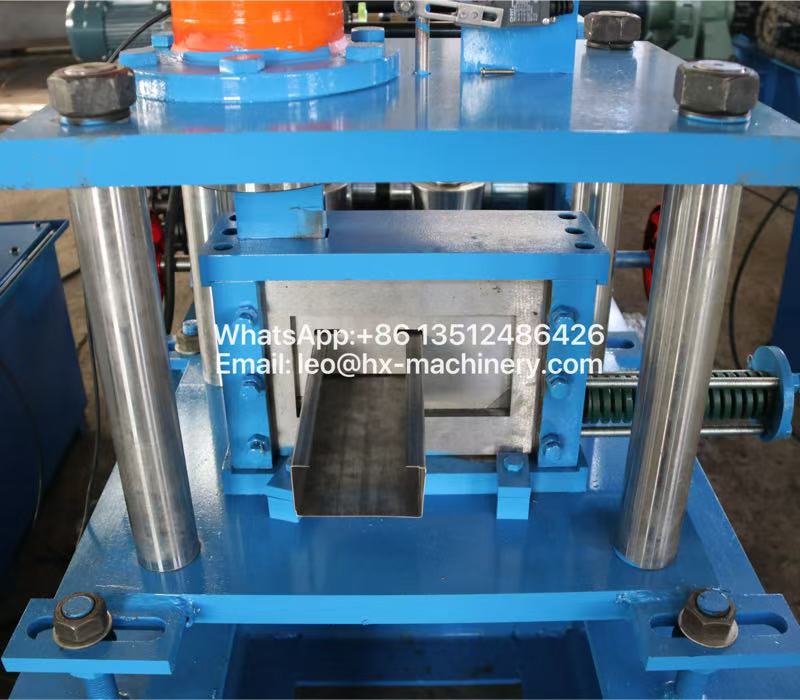

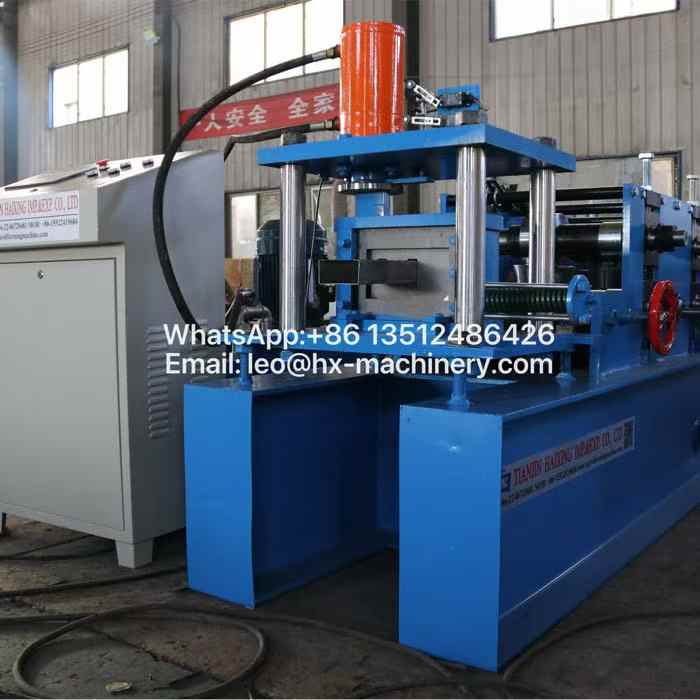

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |

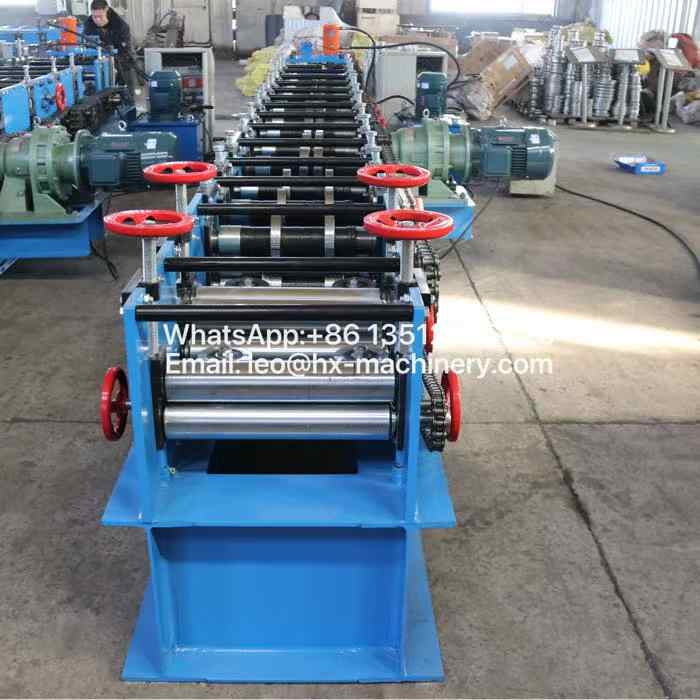

Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
