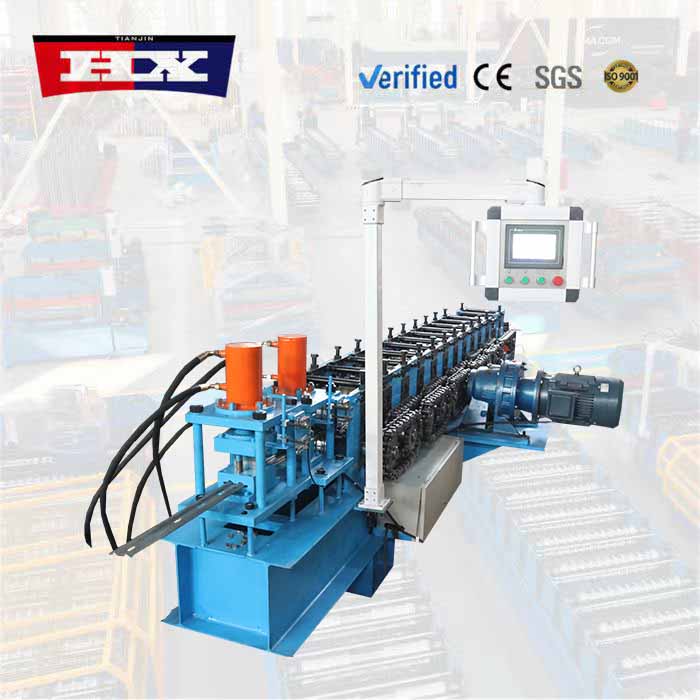

Model: HX-purlin forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of dedicated manufacturing experience, Haixing Industrial Group Co., Ltd. offers a sophisticated purlin forming machine that has become a benchmark for efficiency and reliability in the light steel framing industry.

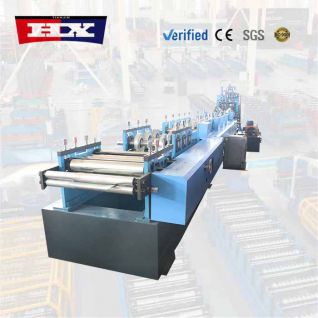

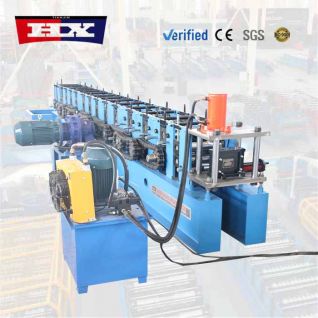

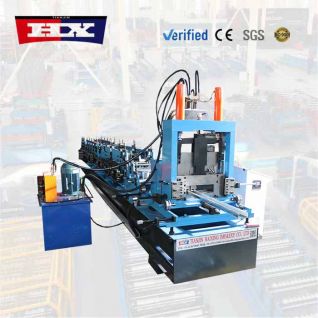

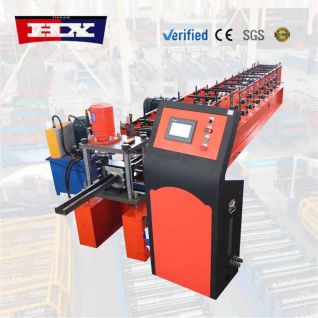

This purlin forming machine is engineered to produce both C and Z profiles with seamless changeover capability, eliminating the need for manual roller replacements. It features an intelligent PLC control system that stores multiple profile recipes, allowing operators to switch between different sizes and hole patterns with just a few taps. Customization options include variable web heights, flange widths, and reinforced punching stations to suit diverse structural demands.
What truly distinguishes this purlin forming machine in competitive export markets—including India, Mexico, and several African nations—is its smart diagnostic system that alerts operators to potential issues before they cause downtime, along with its energy-efficient drive motors that reduce power consumption by up to 15%. Recent installations in warehouse construction projects across Australia and modular housing factories in Scandinavia have validated its ability to maintain micron-level accuracy over extended production runs, significantly reducing material waste and rework rates.
Below are the full technical specifications of this purlin forming machine and the profile configurations it supports.
Machine parameters
| No. |
Purlin forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

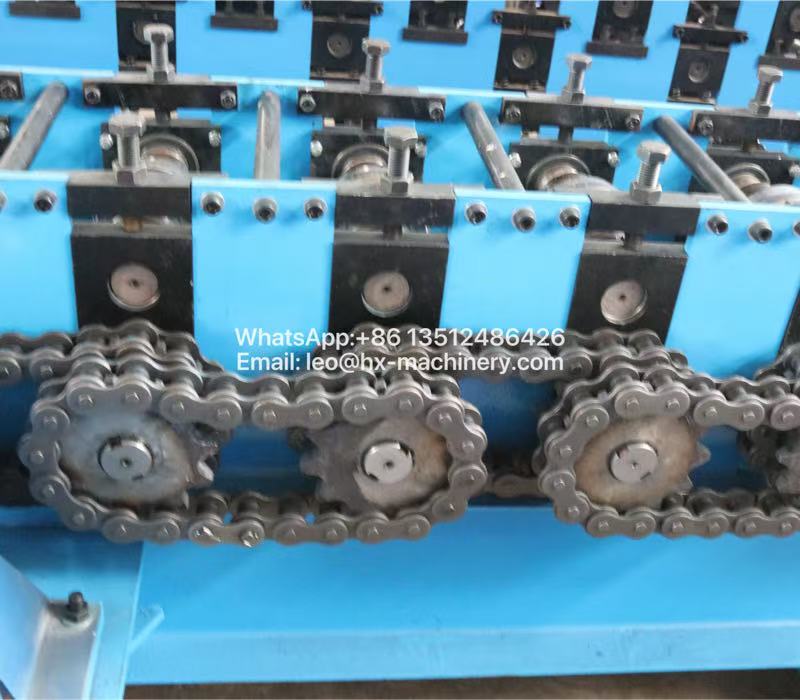

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

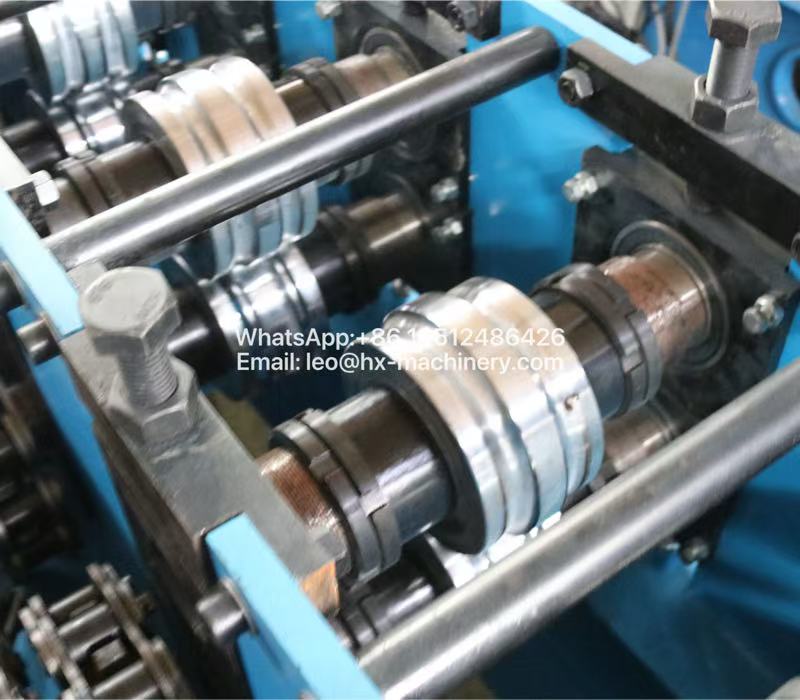

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |
Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |

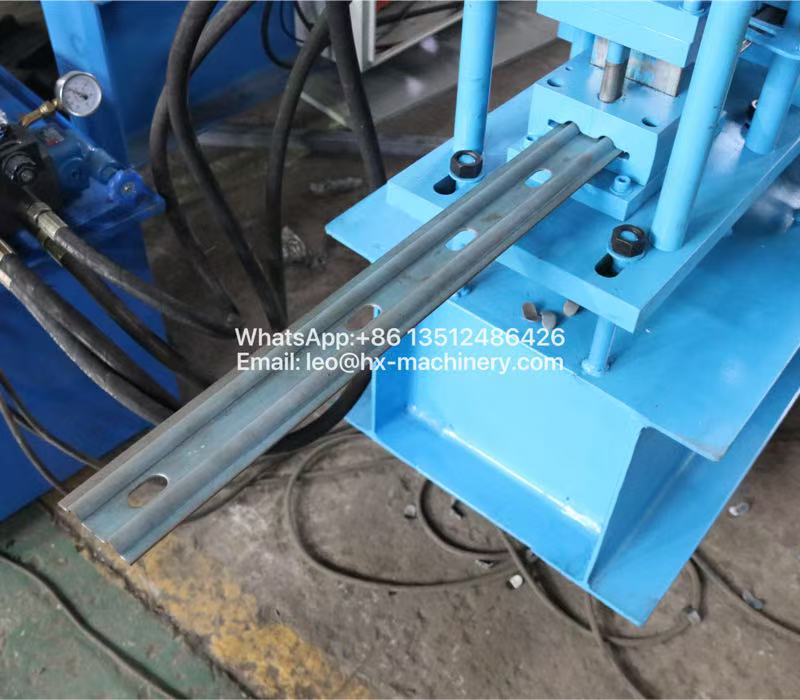

| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
