Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
As a seasoned manufacturer with over 20 years of industry know-how, Haixing Industrial Group Co., Ltd. proudly presents our high-performance c purlin roll forming machine—a solution trusted by builders and fabricators in more than 30 countries.

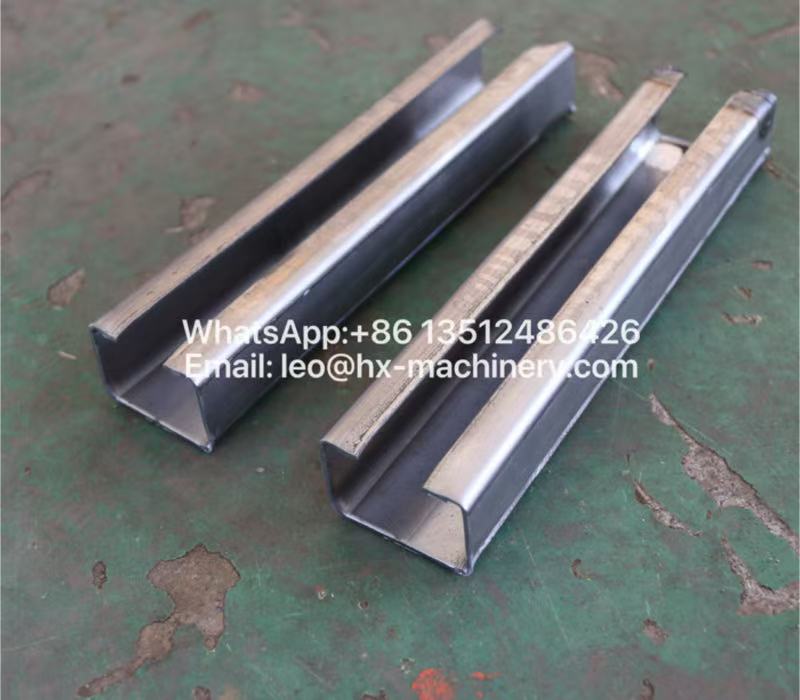

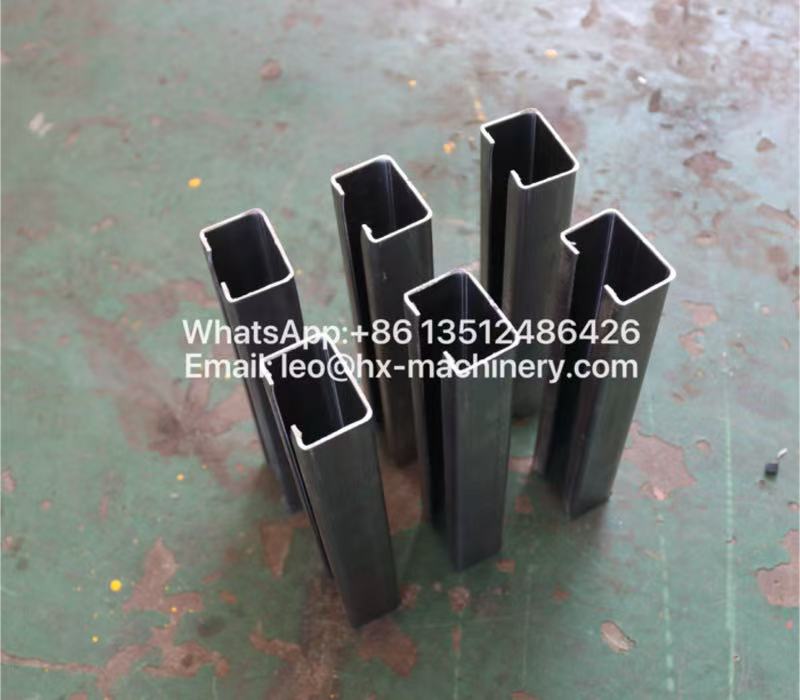

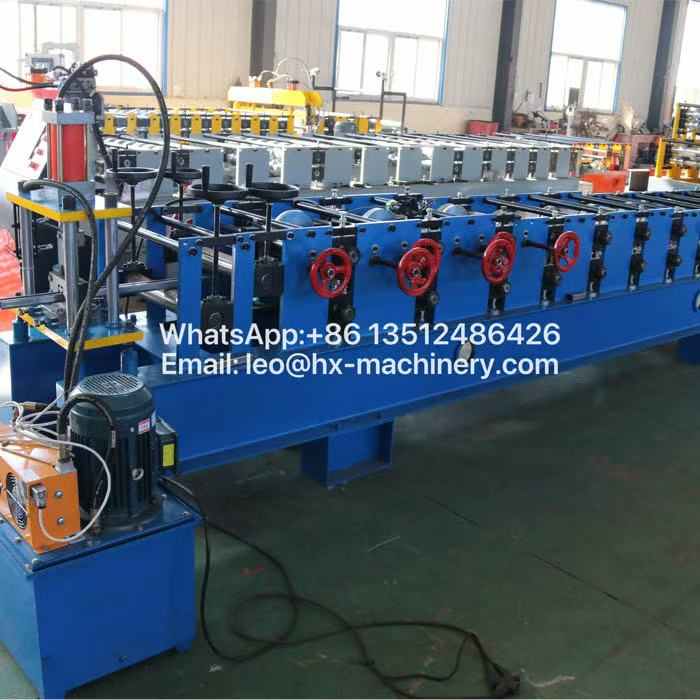

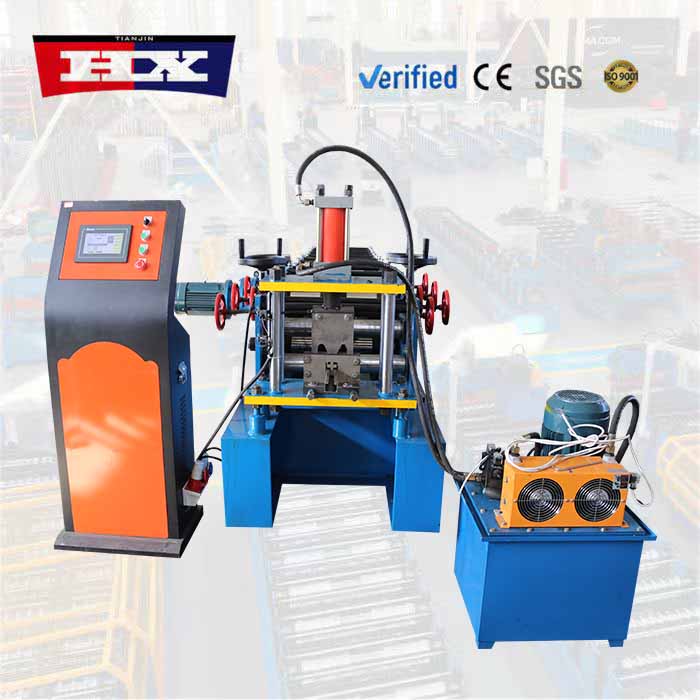

Our c purlin roll forming machine is engineered to produce precise, burr-free C purlins with consistent web and flange dimensions. It comes with fully customizable features, including multi-hole punching stations, variable speed drives, and automatic stacking systems, ensuring it adapts perfectly to each client's production requirements.
What truly drives global demand for this c purlin roll forming machine is its balanced combination of affordability, ruggedness, and after-sales support. With a 15–20 day delivery lead time, on-site commissioning assistance, and readily available spare parts, it gives overseas buyers peace of mind. Currently, it enjoys strong sales in the Philippines, Nigeria, Saudi Arabia, and Eastern Europe, where manufacturers value its ability to handle both light-gauge and heavy-gauge coils with minimal adjustments, boosting overall workshop productivity.
Please see below for the full technical specifications of this c purlin roll forming machine and the purlin profiles it produces.

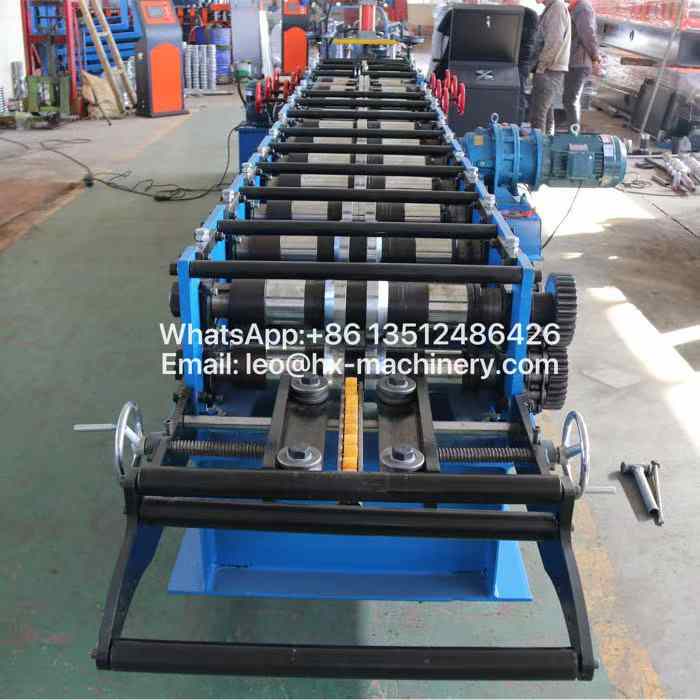

Machine parameters
| No. |
C purlin roll forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |

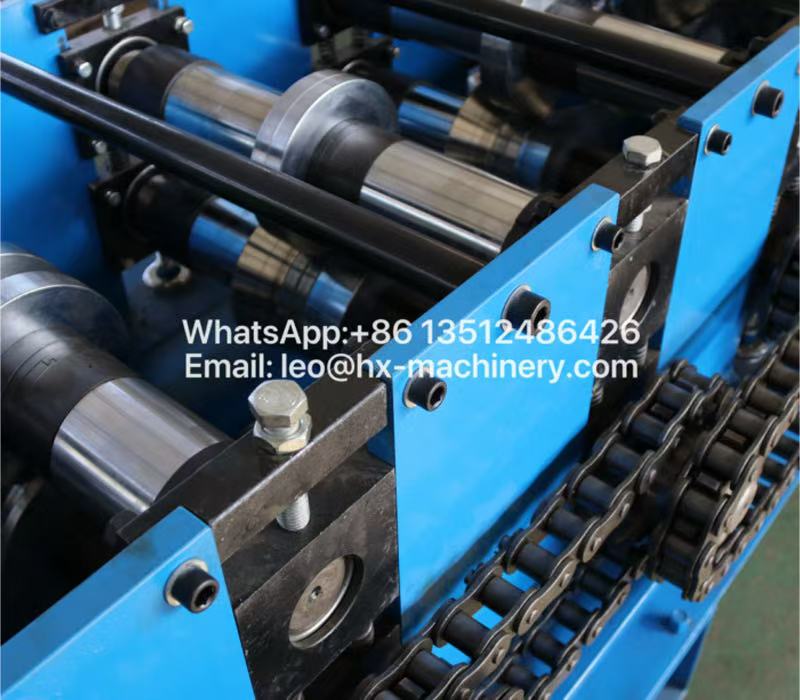

Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

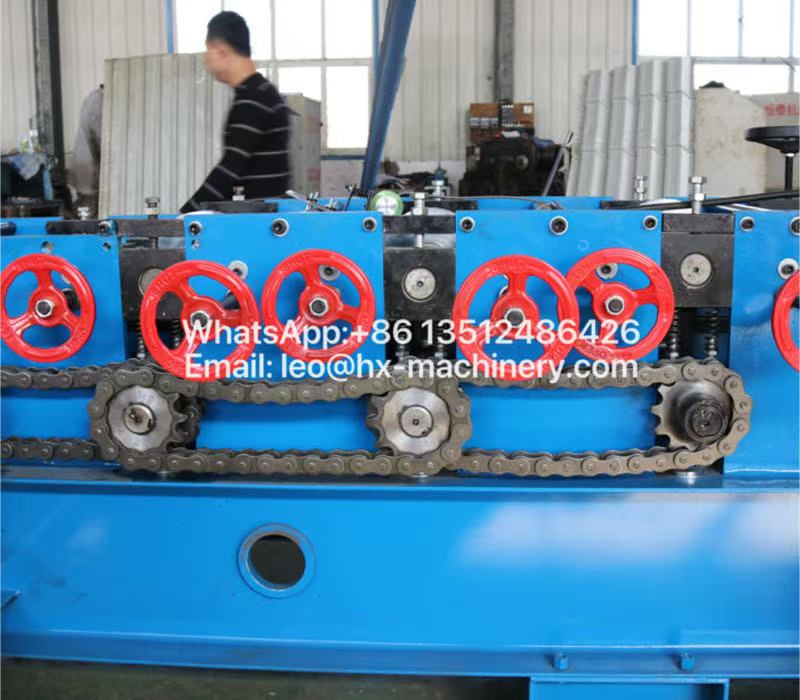

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |
Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

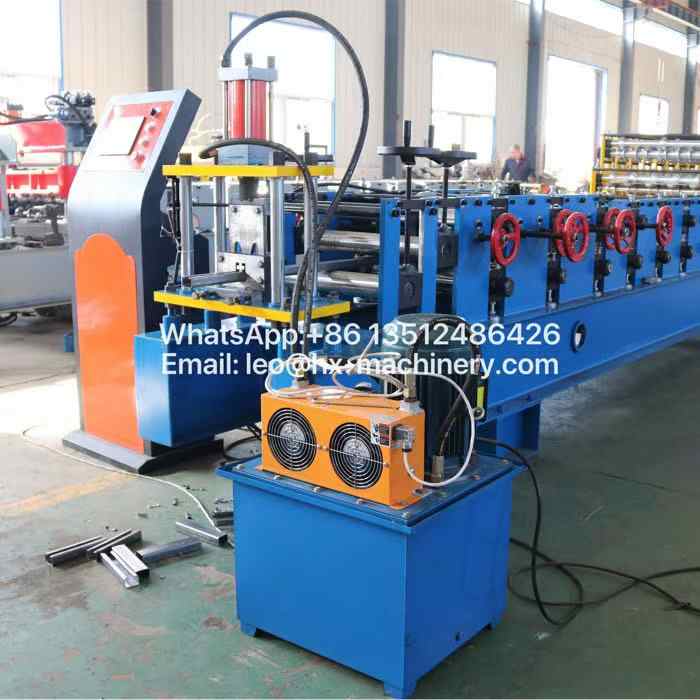

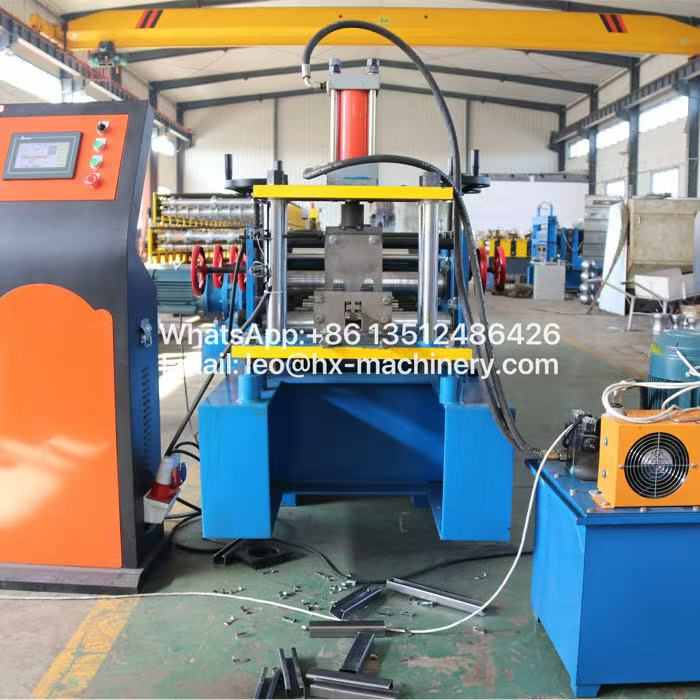

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
