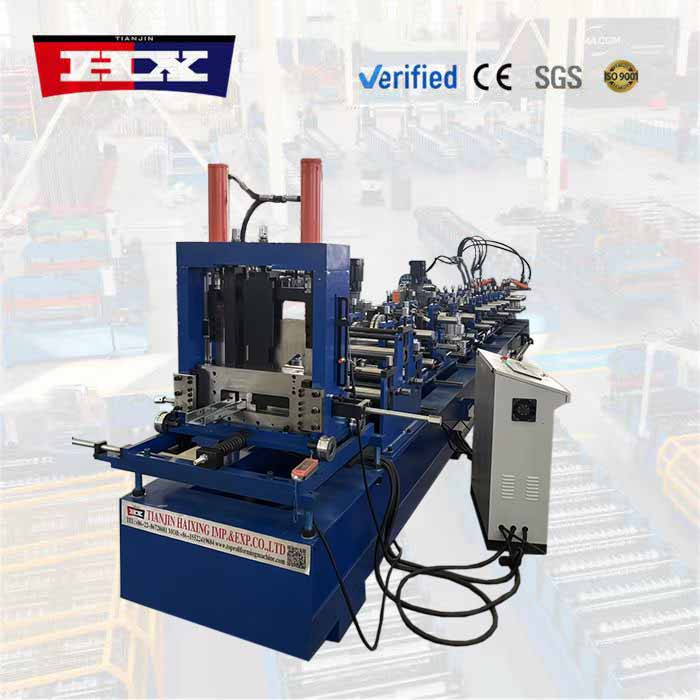

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
For over 20 years, Haixing Industrial Group Co., Ltd. has been dedicated to engineering durable and efficient roll forming machine for c purlin solutions that meet the evolving needs of the global steel construction industry.

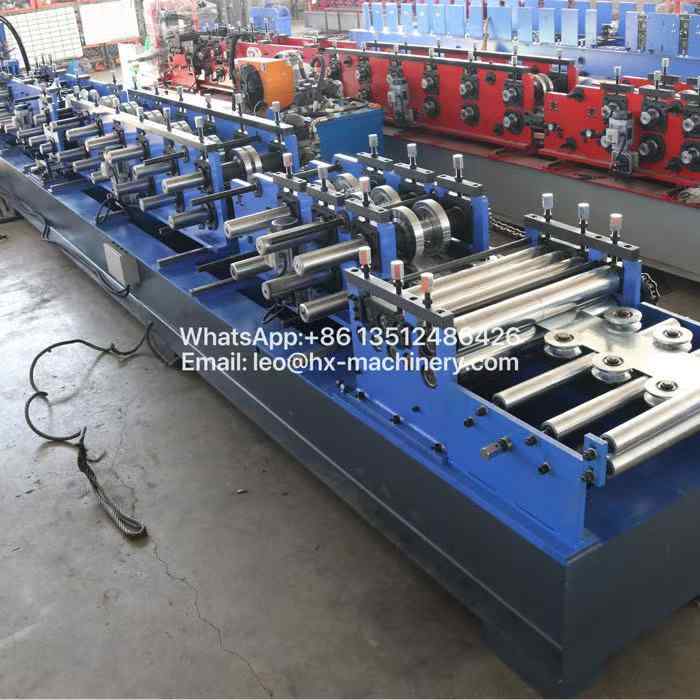

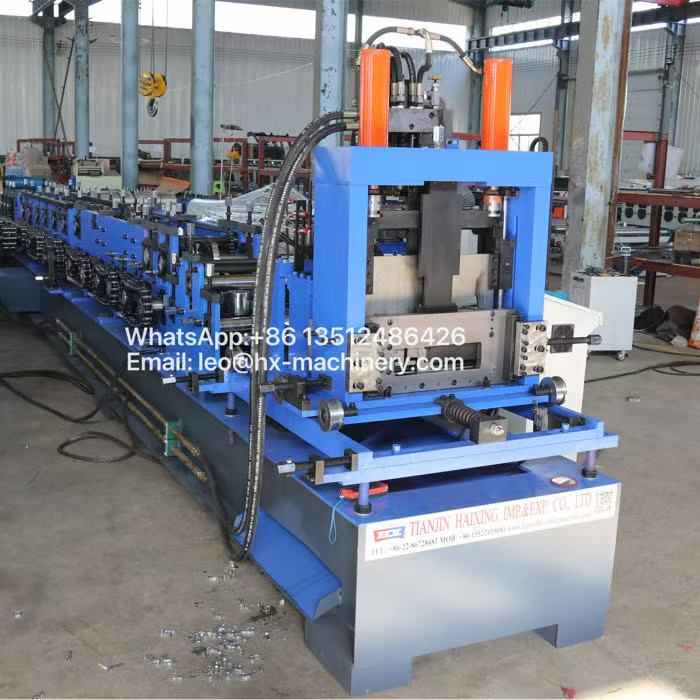

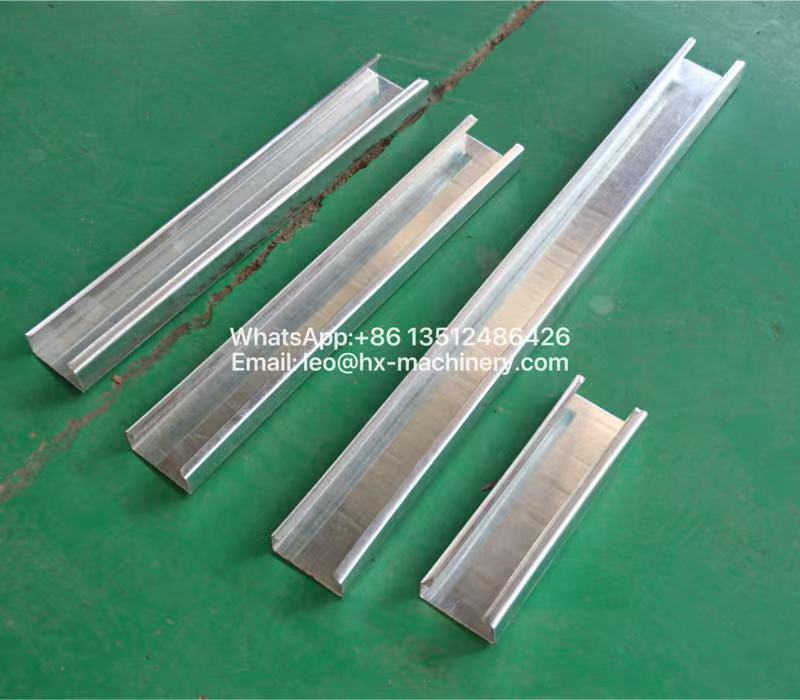

This roll forming machine for c purlin is specifically designed to produce uniform C-shaped channels with excellent straightness and dimensional stability. It offers broad customization capabilities—adjustable roll stations, variable punching dies, and flexible length control make it suitable for a wide array of structural framing projects.
What gives our roll forming machine for c purlin a competitive edge in export markets—including the UK, Poland, Mexico, and Southeast Asia—is its reinforced guide system, rapid roll changeover, and smart fault-diagnosis software. These features translate into higher output consistency, reduced operational errors, and extended tooling life. End users frequently highlight how this machine helps them fulfill tight delivery schedules while keeping material waste to an absolute minimum.
Attached below are the complete technical data sheets for this roll forming machine for c purlin along with the profile specifications it supports.
Machine parameters
| No. |
Roll forming machine for c purlin |
|
| 1 |
Feeding Mode |
Guide shaft + guide roller |
| 2 |
Leveling Structure
|
4‑upper & 3‑lower rollers, with two feeding passes |
| 3 |
Material |
45# steel |
| 4 |
Rib Pressing |
Straight single rib, automatic profile change by computer |
| 5 |
Straightening Structure |
1‑upper & 2‑lower rollers, 3‑axis straightener
|
| 6 |
Cutting Blade Material |
Cr12 |
| 7 |
Main Control Cabinet |
1 set (with aviation plug connector) |
| 8 |
Hydraulic Motor |
Outer five‑star piston connecting‑rod type (Ningbo Hanzhu) |
| 9 |
Hydraulic Power Station |
Power 22 kW, oil‑tank volume 500 L |
| 10 |
Main Component Origin |
Solenoid valve (Zhejiang Yongxin) |
| 11 |
Load Capacity |
5 tons |
| 12 |
Expanding Mode |
Hand‑crank four‑linkage center outward expanding |
| 13 | Braking Mode |
Dual main‑shaft holding brake |
| 14 |
Roller Material |
GCr15, processed in Wuxi
|
| 15 |
Main Shaft Material |
45# steel |
| 16 |
Sliding Sleeve Material |
45# steel |
| 17 |
Outlet Speed |
Max.20 m/min (depends on punching quantity) |
| 18 |
Overall Dimension |
L 9.5 m × W 1.4 m × H 1.7 m |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
