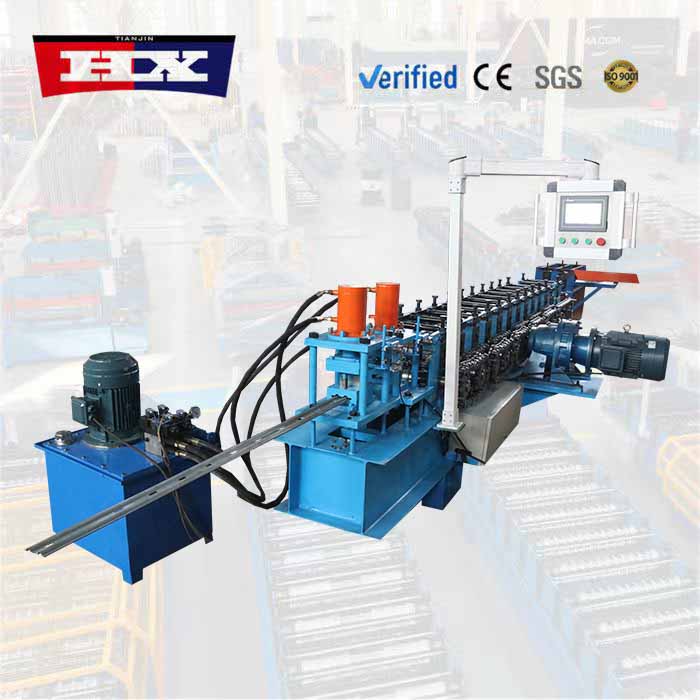

Model: HX-purlin forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
As a trusted name in metal forming equipment for over two decades, Haixing Industrial Group Co., Ltd. is proud to supply our latest new purlin forming machine to customers worldwide.

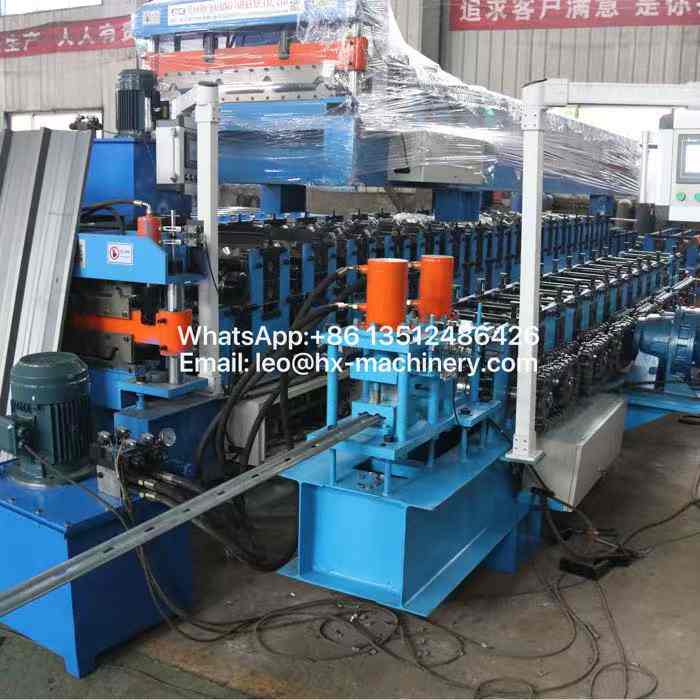

This new purlin forming machine features an advanced servo-driven system that enables rapid size switching between C and Z purlins without manual roller changes. It can be customized with various punching and cutting options to suit diverse construction needs.
What truly sets this new purlin forming machine apart is its energy-saving design, high-speed output, and simplified maintenance—benefits that have made it highly sought after in markets like the Middle East, Southeast Asia, and South America. By choosing our machine, clients gain a reliable solution that lowers production costs, improves material utilization, and delivers consistent results project after project.

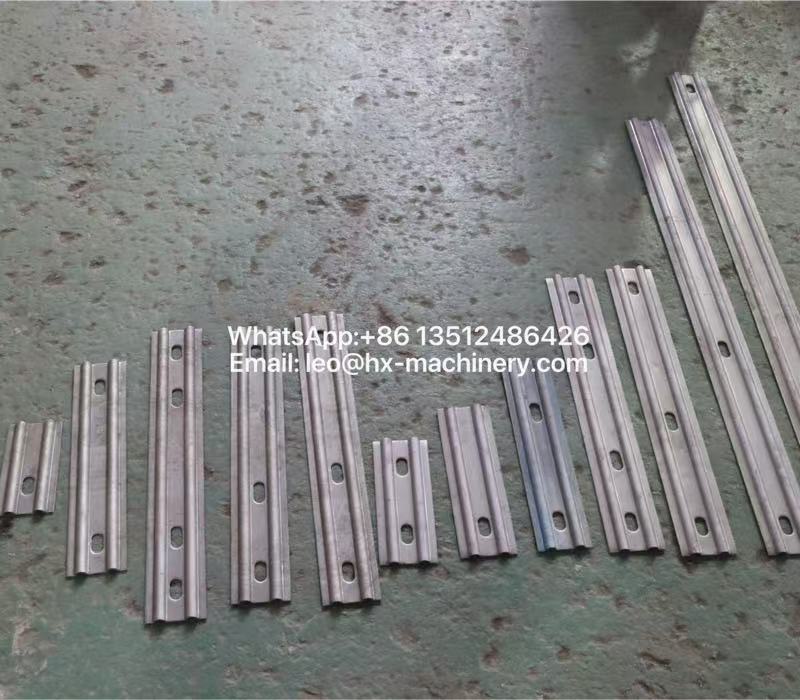

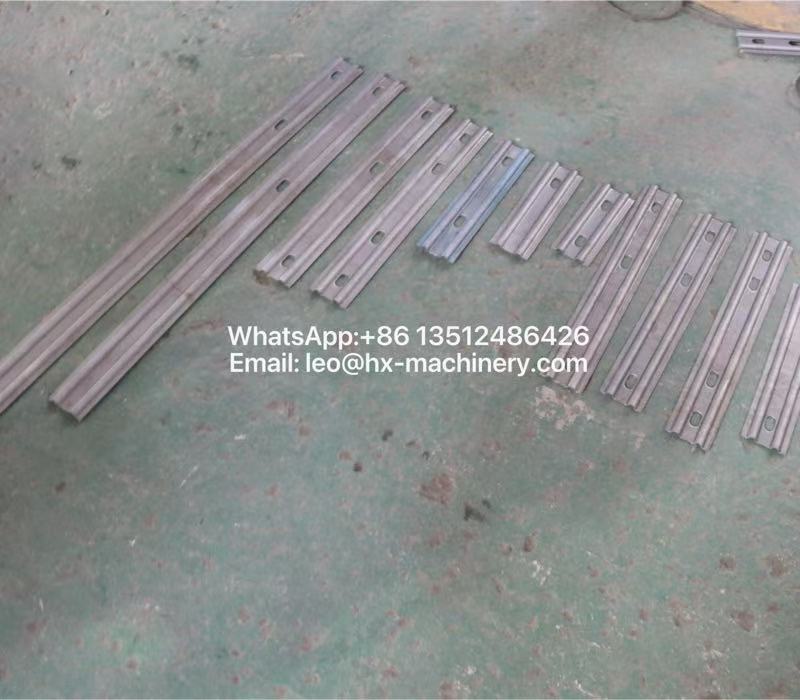

Please find below the technical data for this new purlin forming machine and the purlin profiles it produces.

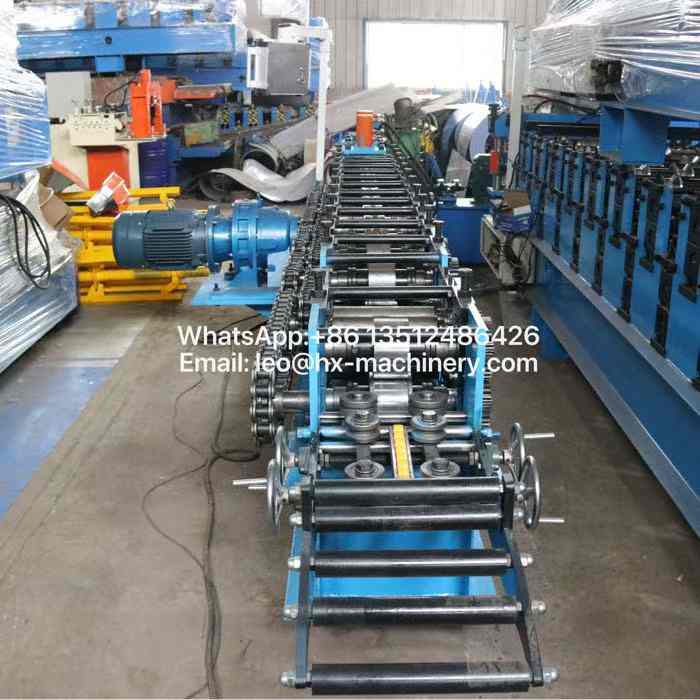

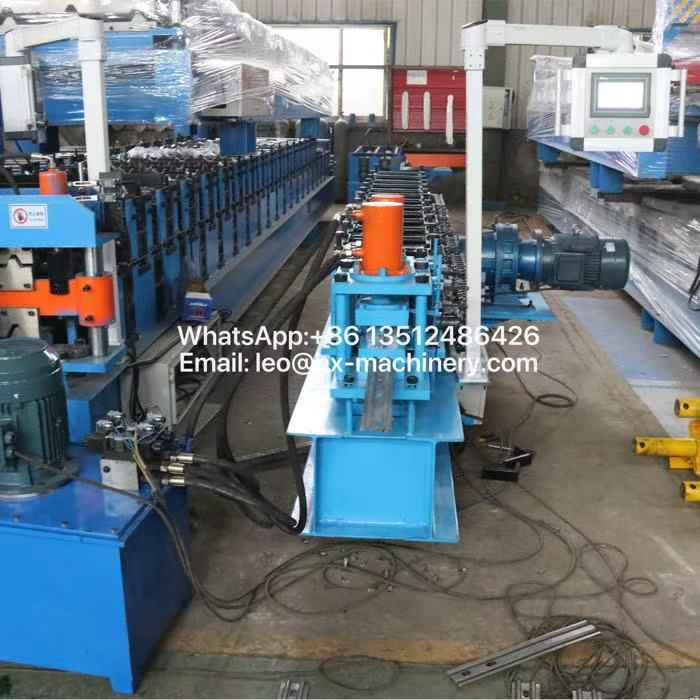

Machine parameters
| No. |
Purlin forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |

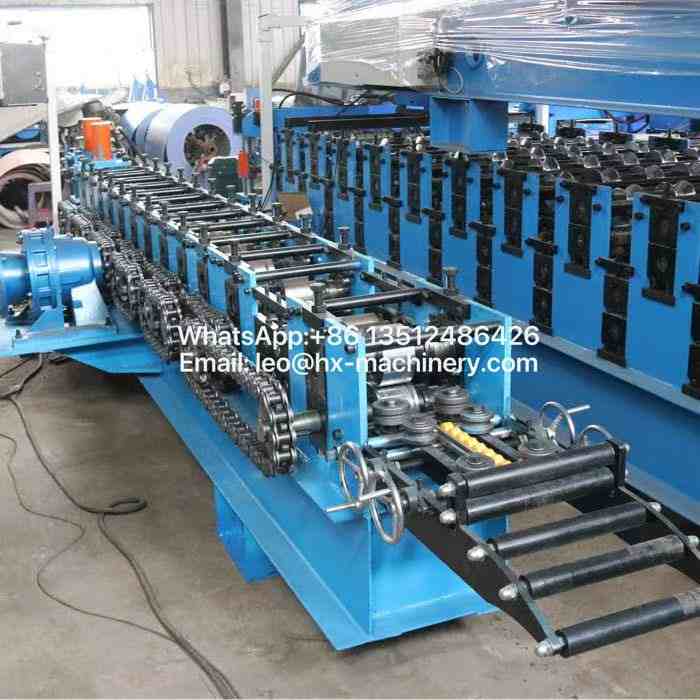

Feeding Guide Frame Type |
Side roller type
|
| 6 |

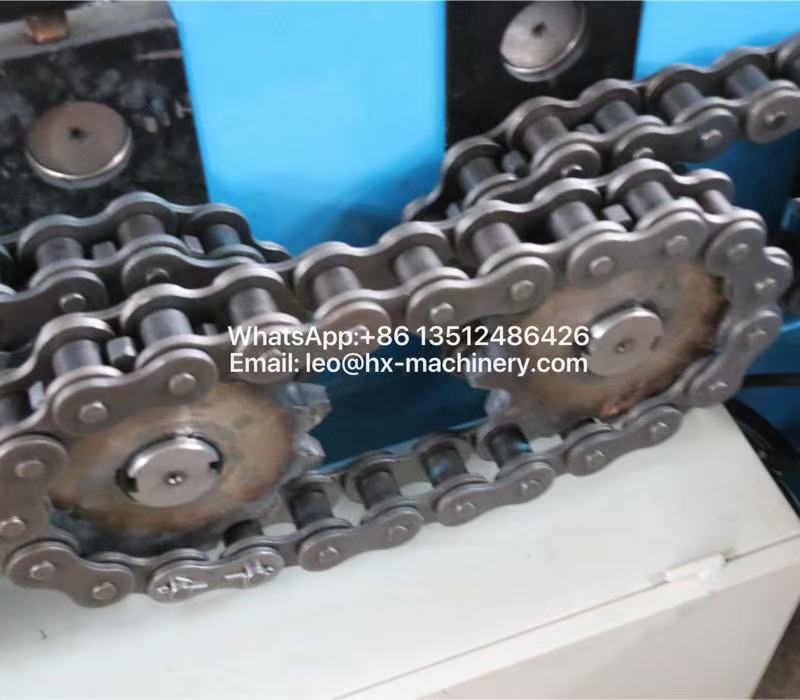

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

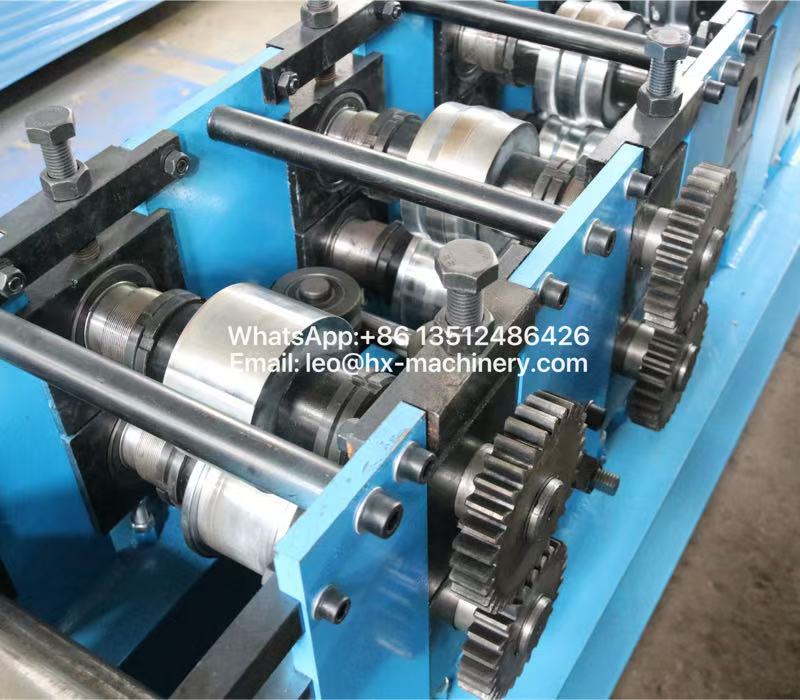

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

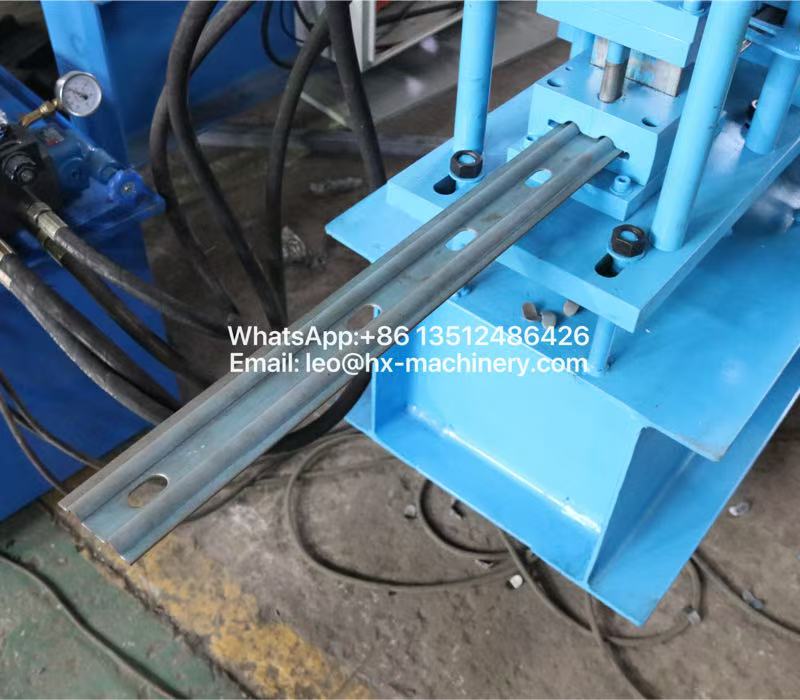

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
