Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
For more than 20 years, Haixing Industrial Group Co., Ltd. has been a trusted partner in the steel construction sector, delivering robust and reliable c purlin forming machine solutions that stand up to real-world demands in some of the harshest production environments.

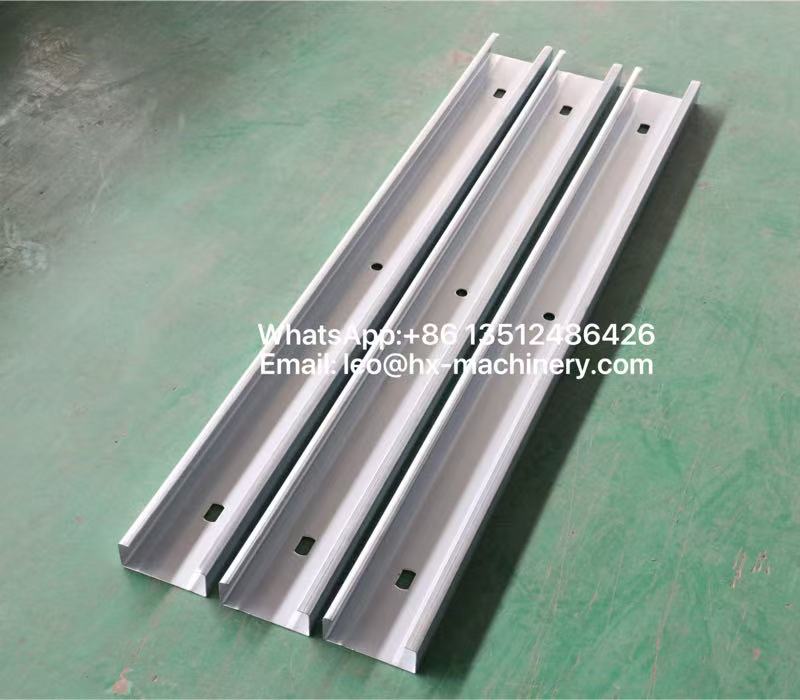

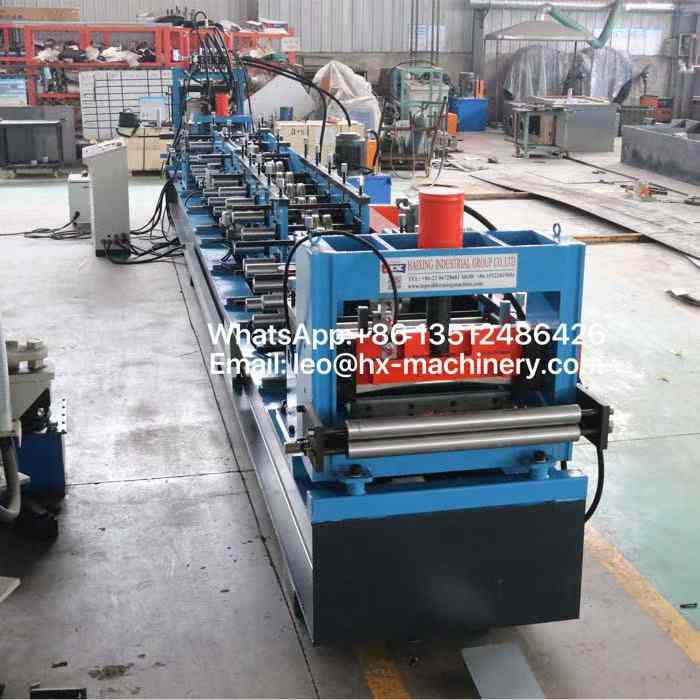

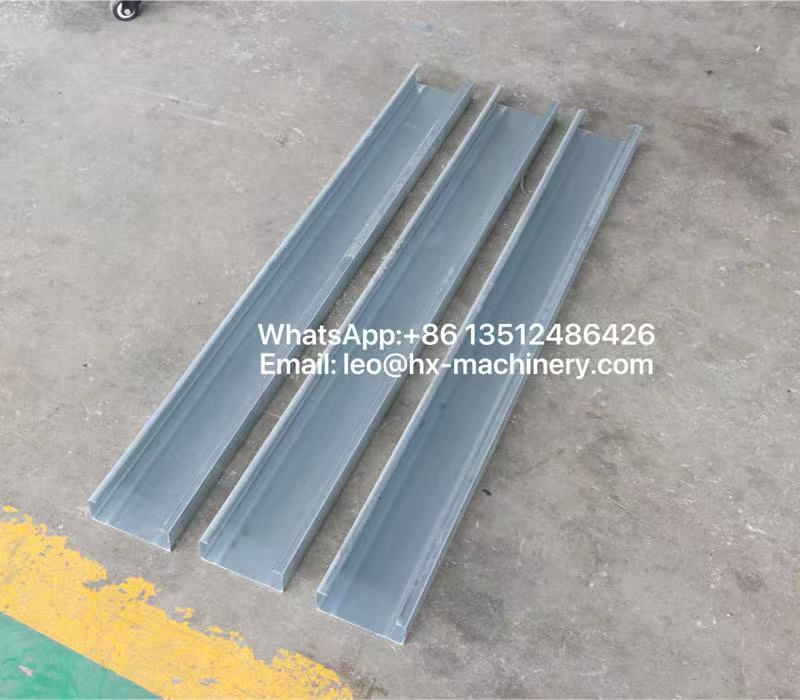

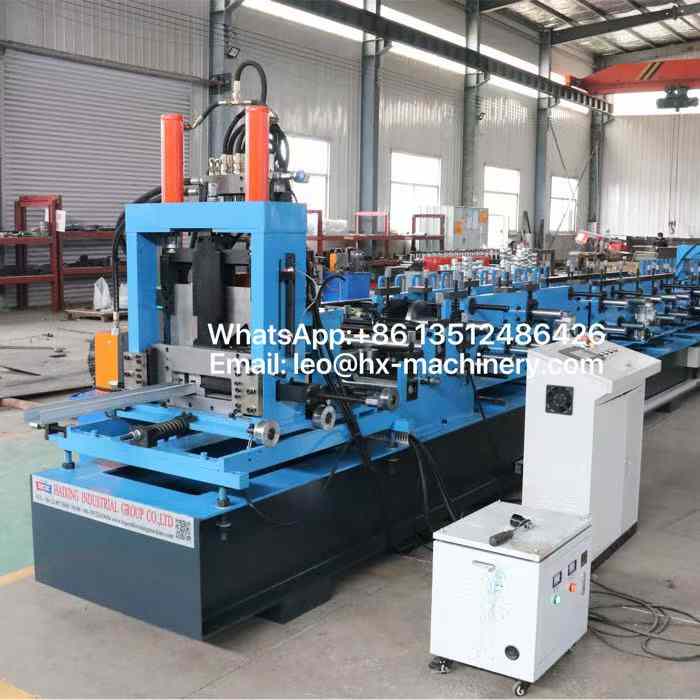

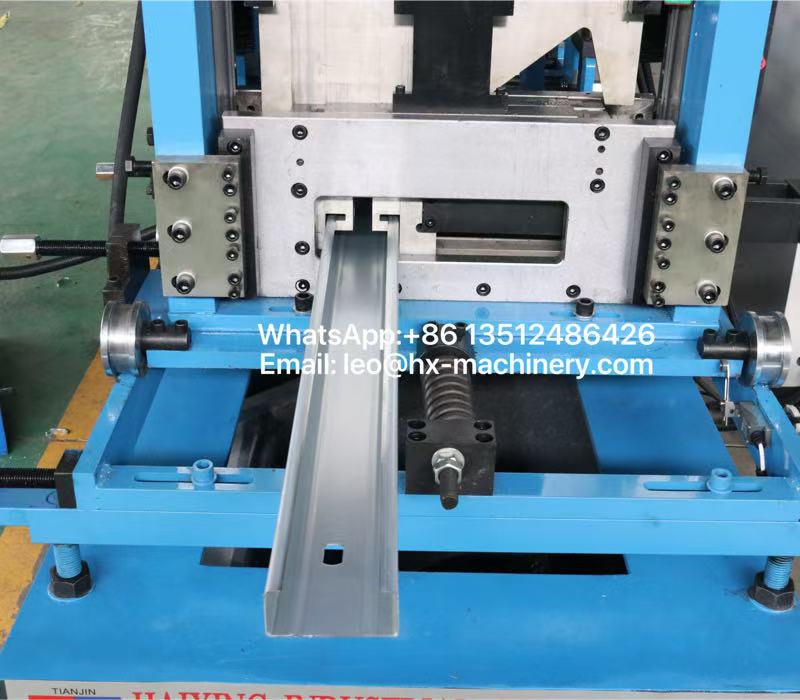

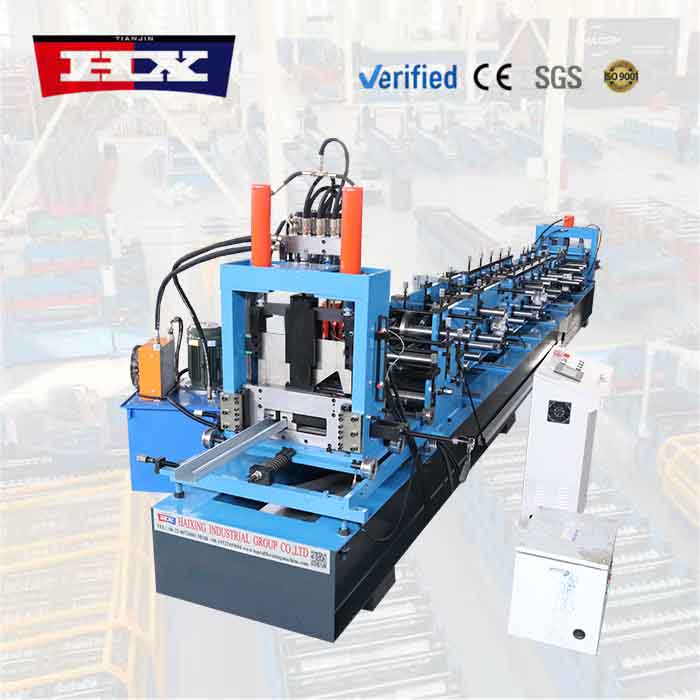

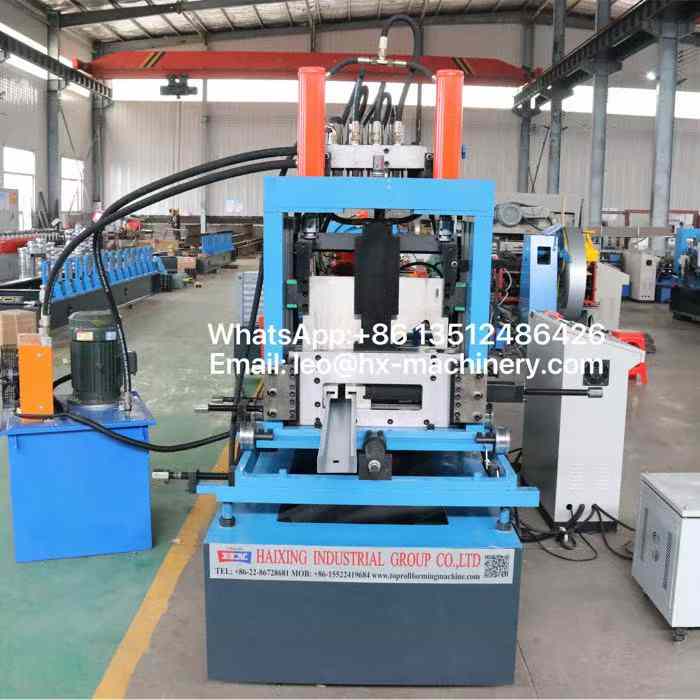

Our c purlin forming machine is built around a rigid frame, high-grade rollers, and an advanced hydraulic cutting system—ensuring each C-shaped purlin emerges straight, clean, and dimensionally accurate, even after thousands of hours of continuous operation. It can be configured with multiple punching units, variable-speed drives, and automatic length control, allowing each user to match the machine's output precisely to their structural framing needs.
The reason our c purlin forming machine continues to gain traction in markets like Saudi Arabia, Colombia, Vietnam, and Kenya is straightforward: our machines are proven performers. In one recent case, a Colombian roofing contractor increased their daily output by 40% while reducing scrap from 5% to under 1% within the first month of installation. Our clients regularly highlight the machine's straightforward maintenance, responsive remote support, and the peace of mind that comes from working with a manufacturer that delivers on its promises—from factory testing through to on-site commissioning.
Provided below are the technical specifications and standard configurations available for this c purlin forming machine.
Machine parameters
| No. |
C purlin forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

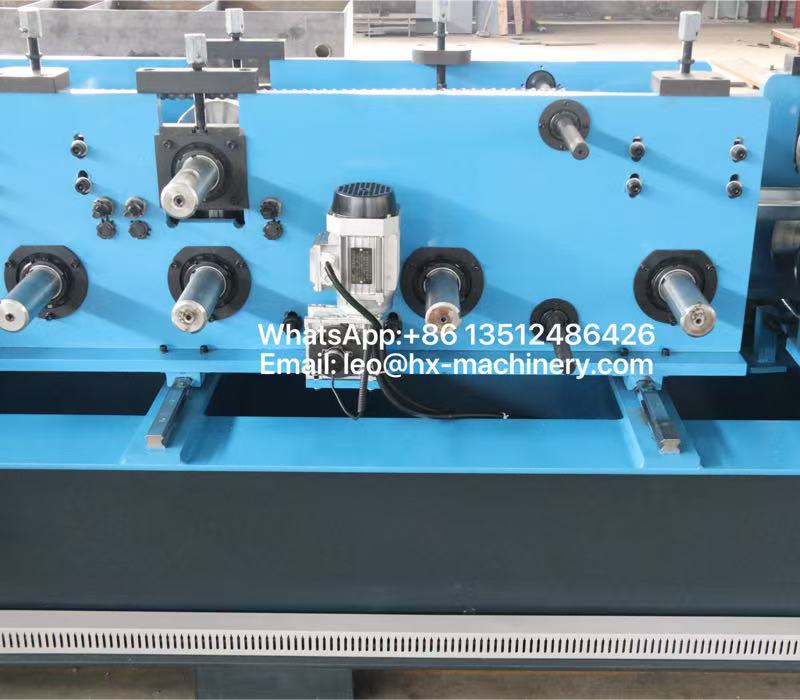

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |
Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

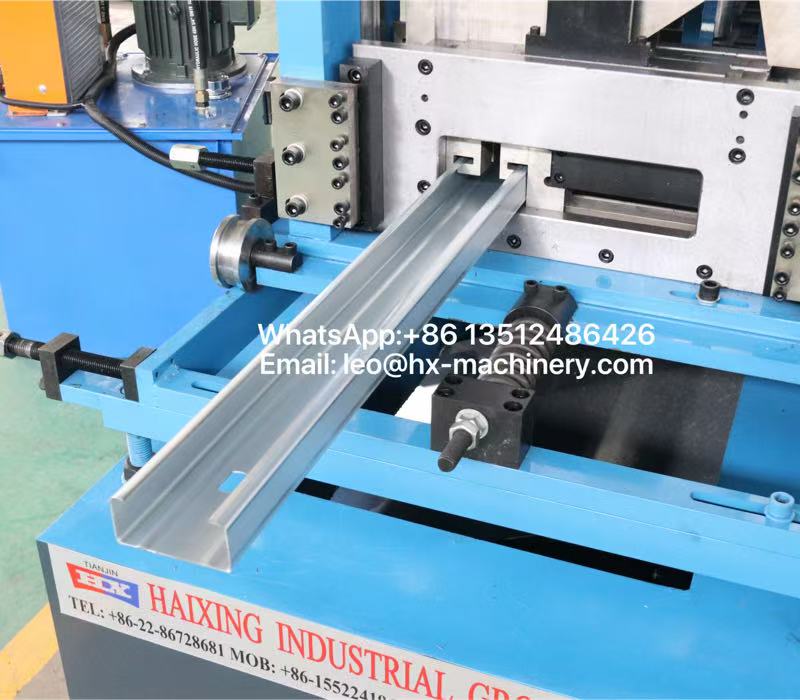

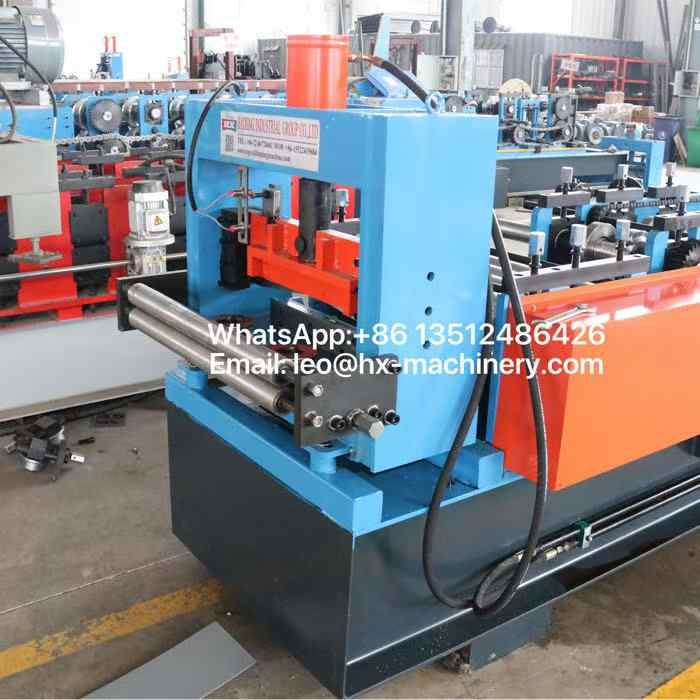

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
