Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
With over 20 years of uninterrupted focus on roll forming technology, Haixing Industrial Group Co., Ltd. has refined every aspect of our c channel making machine to deliver performance that is both predictable and enduring—qualities that resonate with quality-conscious buyers around the globe.

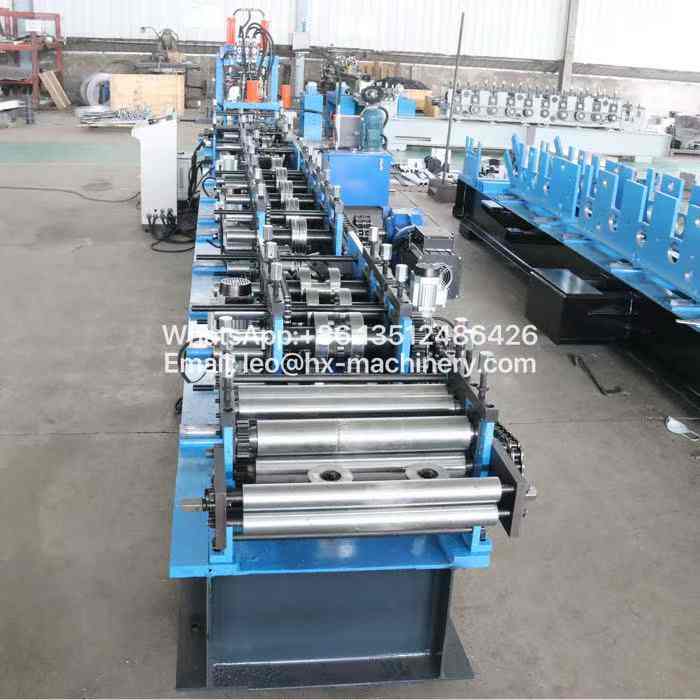

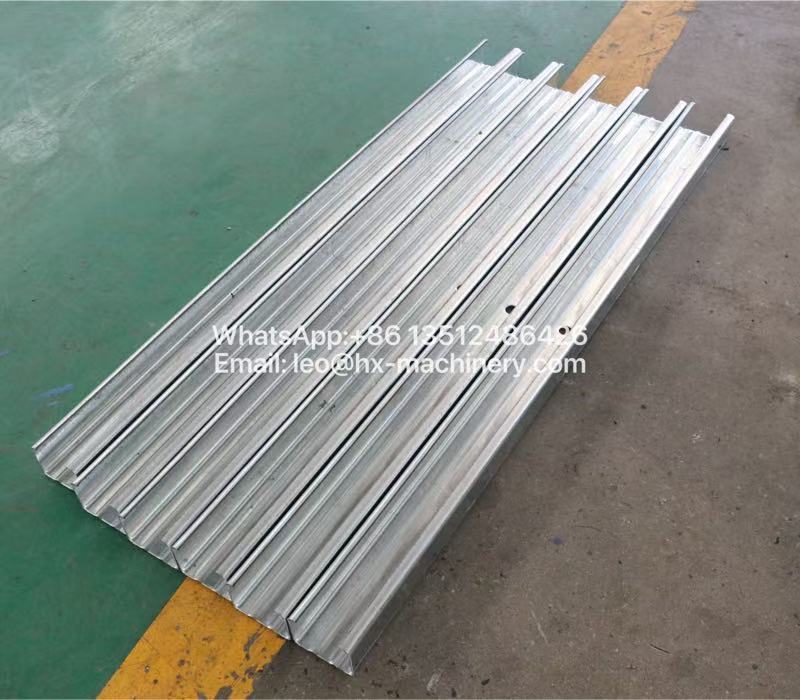

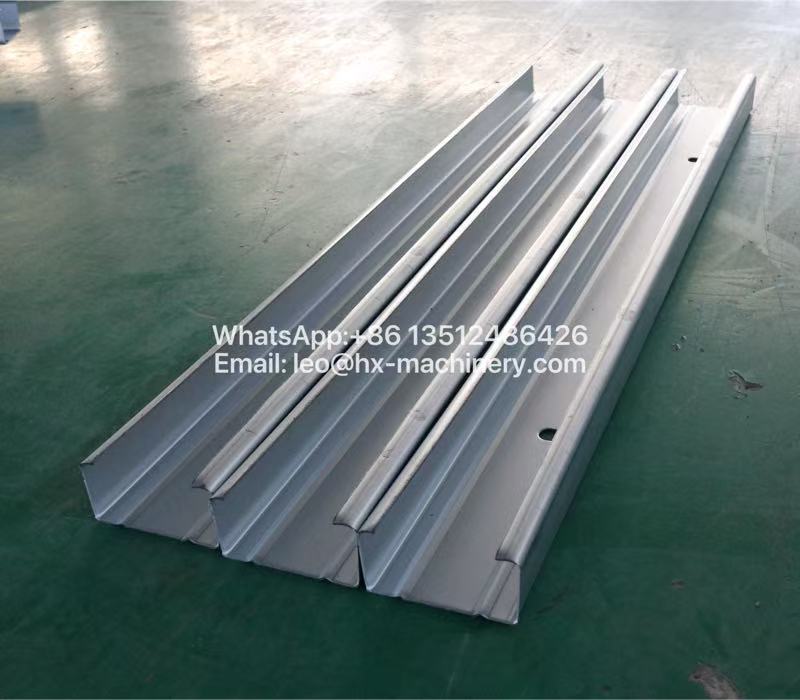

Our c channel making machine is crafted with attention to every critical detail: induction-hardened rollers for extended wear resistance, precision-aligned shafts to eliminate profile twisting, and a servo-driven feed system that ensures consistent material advancement even during rapid start-stop cycles. Beyond standard C-channel production, it supports custom configurations—including asymmetrical flanges, multiple punched holes, and embossed markings—to satisfy specialized engineering specifications.
What sets our c channel making machine apart in export destinations such as the United Kingdom, Chile, the Philippines, and Algeria is its proven reliability under sustained heavy loads. Independent tests show that key wear components maintain tolerance after 5,000+ operating hours, significantly outpacing industry averages. Our clients also value the thoughtful design of the control cabinet—clearly labeled terminals, simplified wiring, and built-in surge protection—which makes local electrical integration straightforward and minimizes commissioning delays.
For your reference, we have included below the detailed technical parameters of this c channel making machine, along with representative profile dimensions and available accessory options.
Machine parameters
| No. |
C channel making machine |
|
| 1 |
Feeding Mode |
Guide shaft + guide roller |
| 2 |
Leveling Structure
|
4‑upper & 3‑lower rollers, with two feeding passes |
| 3 |
Material |
45# steel |
| 4 |
Rib Pressing |
Straight single rib, automatic profile change by computer |
| 5 |
Straightening Structure |
1‑upper & 2‑lower rollers, 3‑axis straightener
|
| 6 |
Cutting Blade Material |
Cr12 |
| 7 |
Main Control Cabinet |
1 set (with aviation plug connector) |
| 8 |
Hydraulic Motor |
Outer five‑star piston connecting‑rod type (Ningbo Hanzhu) |
| 9 |
Hydraulic Power Station |
Power 22 kW, oil‑tank volume 500 L |
| 10 |
Main Component Origin |
Solenoid valve (Zhejiang Yongxin) |
| 11 |
Load Capacity |
5 tons |
| 12 |
Expanding Mode |
Hand‑crank four‑linkage center outward expanding |
| 13 | Braking Mode |
Dual main‑shaft holding brake |
| 14 |
Roller Material |
GCr15, processed in Wuxi
|
| 15 |
Main Shaft Material |
45# steel |
| 16 |
Sliding Sleeve Material |
45# steel |
| 17 |
Outlet Speed |
Max.20 m/min (depends on punching quantity) |
| 18 |
Overall Dimension |
L 9.5 m × W 1.4 m × H 1.7 m |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
