Model: HX-cz purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
At Haixing Industrial Group Co., Ltd., we have over 20 years of experience manufacturing the CZ purlin roll forming machine, which is why we are highly professional and trustworthy in this field.

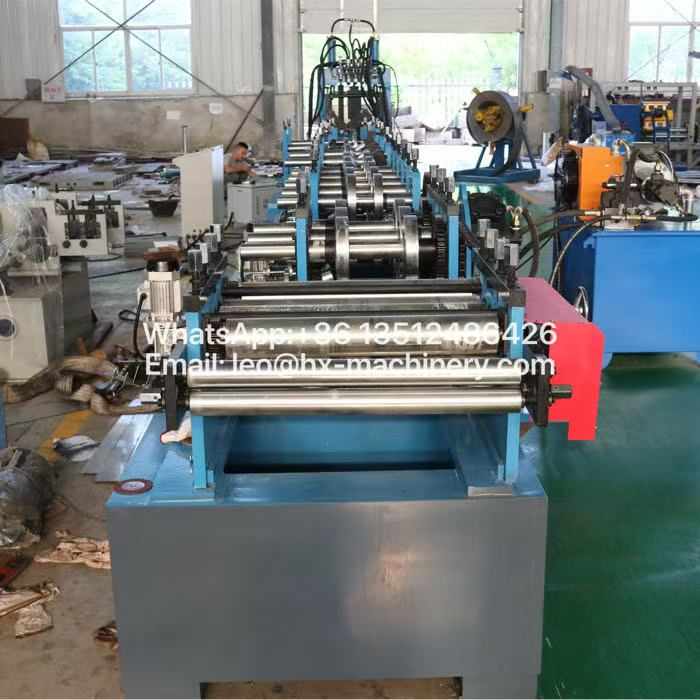

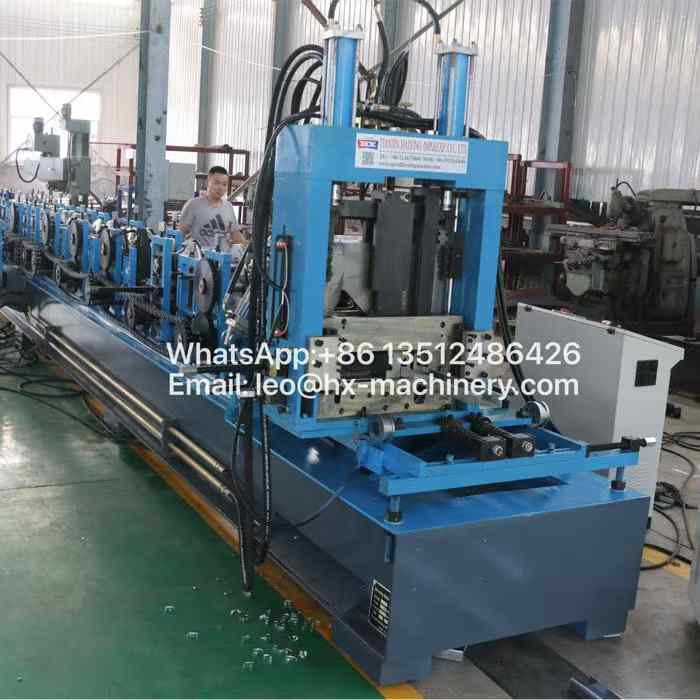

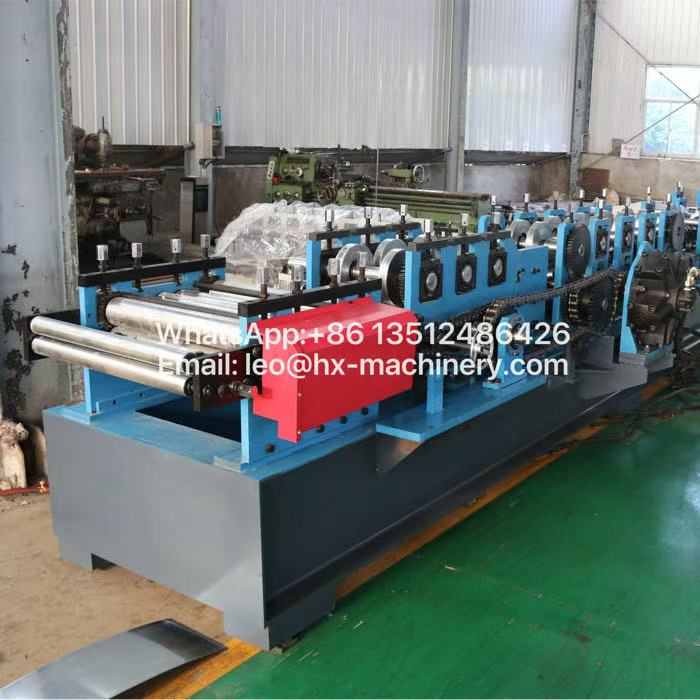

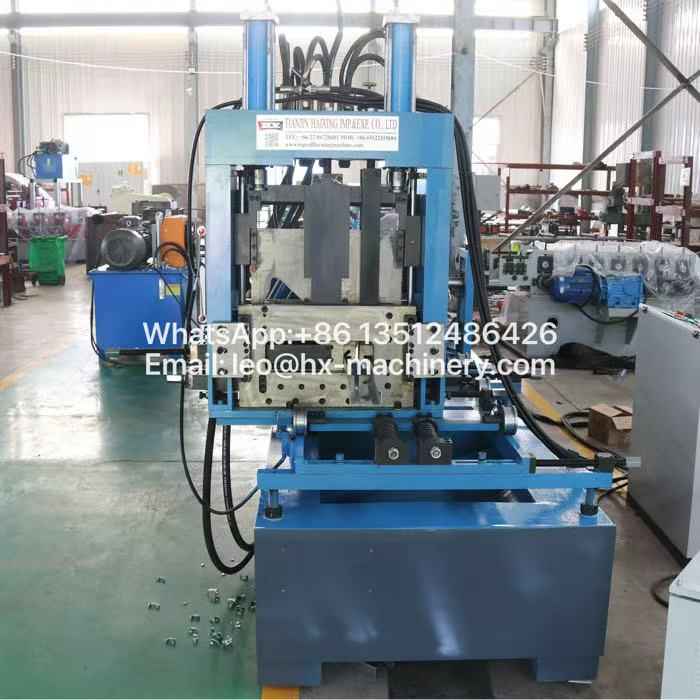

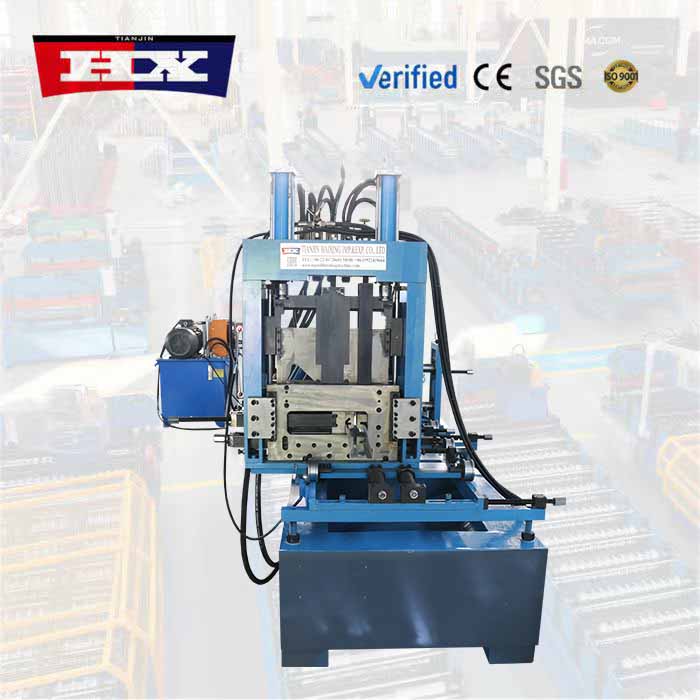

This CZ purlin roll forming machine is engineered to produce high-strength C and Z purlins with exceptional precision and flexibility. It can be fully customized to meet specific project requirements, including hole punching, cutting, and size adjustments.
Our CZ purlin roll forming machine is currently very popular in overseas markets such as the USA, Canada, Australia, the Middle East, and Southeast Asia, thanks to its robust structure, energy efficiency, and easy operation. It offers significant cost savings, reduces material waste, and ensures consistent quality—making it a reliable choice for steel structure manufacturers worldwide.

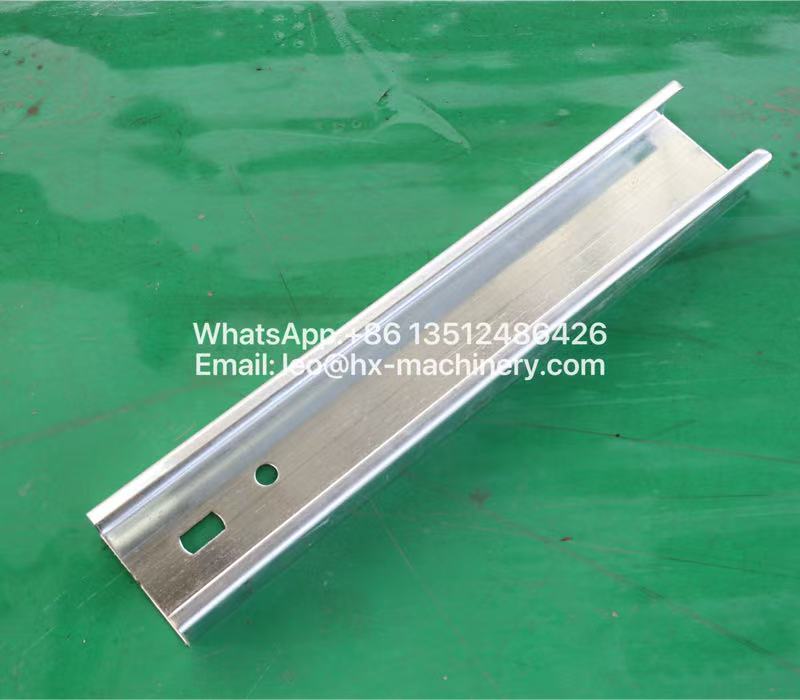

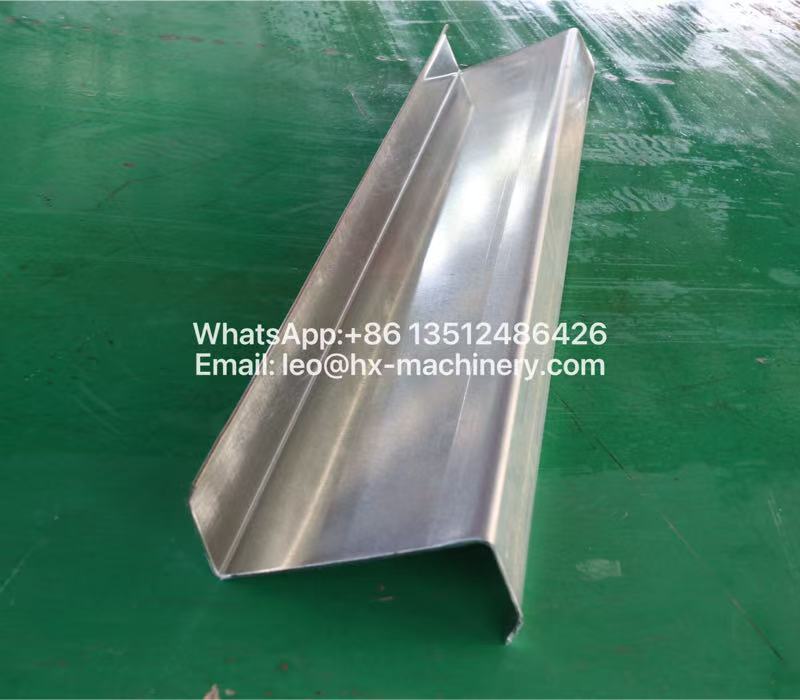

Below are the technical specifications of the CZ purlin roll forming machine and the purlin profiles it produces.
Machine parameters
| No. |
CZ purlin roll forming machine |
|
| 1 |
Feeding |
Guide shaft + guide wheel |
| 2 |
Rib pressing
|
Straight single rib, rib width manually adjustable |
| 3 |

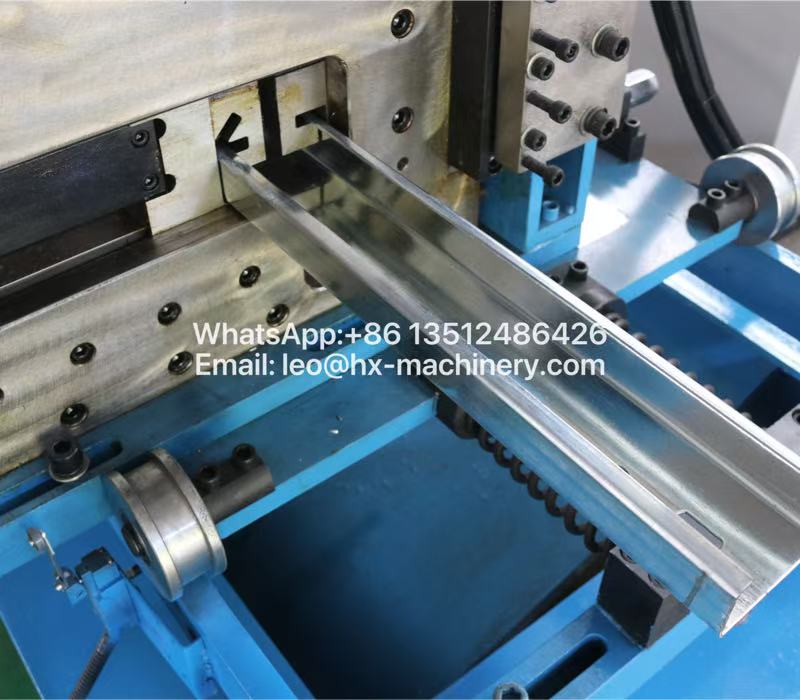

Cutting |
Stepless post-forming cutting system, no blade replacement needed for size change; cutting blade material: Cr12 |
| 4 |
Main control cabinet |
1 unit (aviation plug connection) |
| 5 |
Changeover distribution box |
1 unit, mounted at the middle of machine frame
|
| 6 |
Hydraulic motor |
External five-star piston connecting rod type (Ningbo Hanzhu) |
| 7 |
Hydraulic station |
22KW power, 500L oil tank volume |
| 8 |
Solenoid valve |
Beijing Huade |
| 9 |
Load capacity |
5 tons |
| 10 |
Brake |
Dual main shaft holding brakes |
| 11 |
Support length |
3m each, 2 sets in total |
| 12 |
Overall size |
L9.5m × W1.4m × H2m |
| 13 |
Machine weight |
9 tons |
| 14 |
Roll material |
Main rolls: GCr15 bearing steel; Auxiliary side rolls: Cr12
|
| 15 |
Roll process |
Forging tempering + rough turning + quenching HRC58-60 + CNC precision turning + polishing & hard chrome plating |
| 16 |
Expanding mode |
Hand-cranked four-link central outward expansion |
| 17 |
Shaft material |
Drive motor shaft: 40Cr; Other forming shafts: 45# stee |
| 18 |
Shaft process |
Quenching & tempering HB210-230 + rough turning + cylindrical grinding + polishing & hard chrome plating |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
