Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Leveraging over 20 years of metallurgical forming expertise, Haixing Industrial Group Co., Ltd. has engineered our c shape purlin roll forming machine to deliver both structural integrity and production agility—qualities that have made it a preferred choice for engineering firms and contractors across five continents.

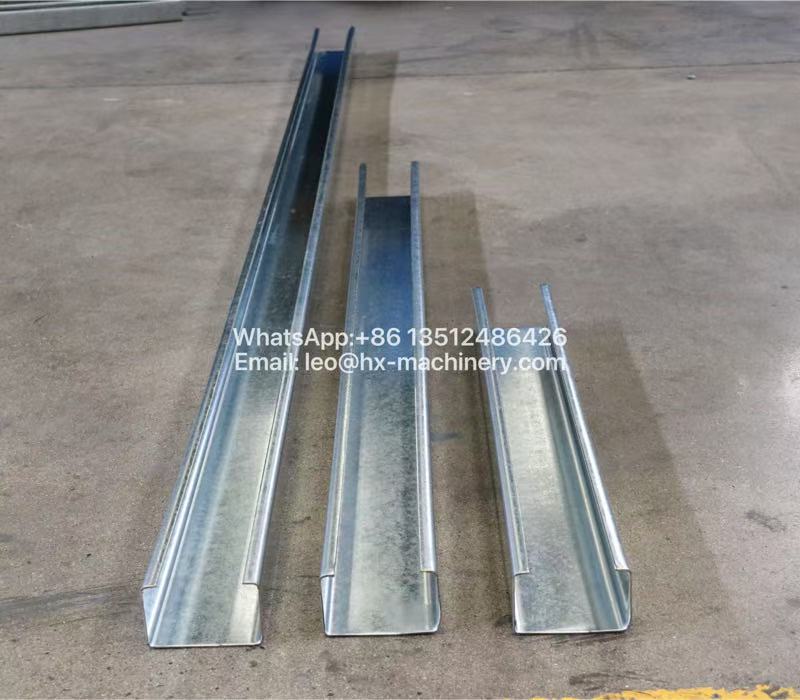

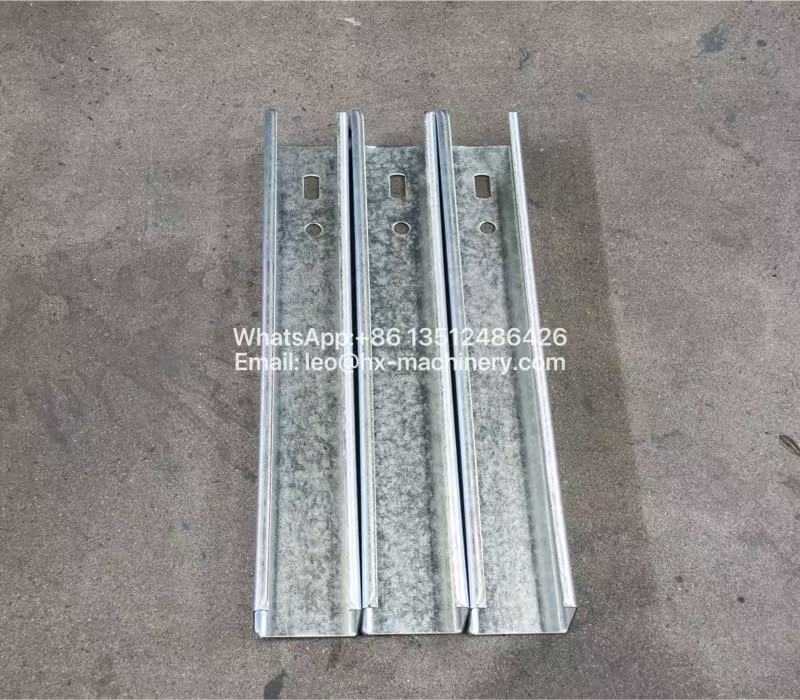

Our c shape purlin roll forming machine produces C-section purlins with exceptional uniformity in flange angles and web flatness—critical factors that directly impact load-bearing capacity and assembly precision in steel buildings. We have integrated a quick-adjust roll stand system that allows seamless transitions between different profile depths and material gauges, while our multi-stage punching units can be programmed to execute complex hole patterns without slowing production cycles.
What elevates our c shape purlin roll forming machine in competitive markets—including Germany, Australia, South Africa, and the Gulf region—is its full compliance with CE, ISO, and other international safety and quality standards, simplifying customs clearance and on-site inspections. Every unit undergoes a 24-hour continuous load test before shipment, and we provide bilingual manuals, full wiring diagrams, and remote commissioning support to ensure smooth integration regardless of local technical conditions. Customers consistently report that our machines run reliably for over a decade with routine maintenance, making them a sound long-term investment.
Below you will find the full technical specification sheet for this c shape purlin roll forming machine, along with detailed profile drawings and available customization options.

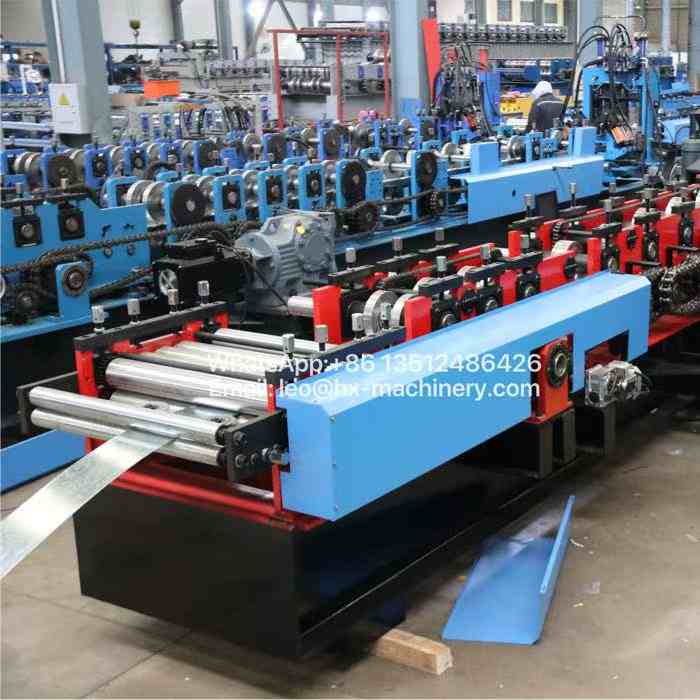

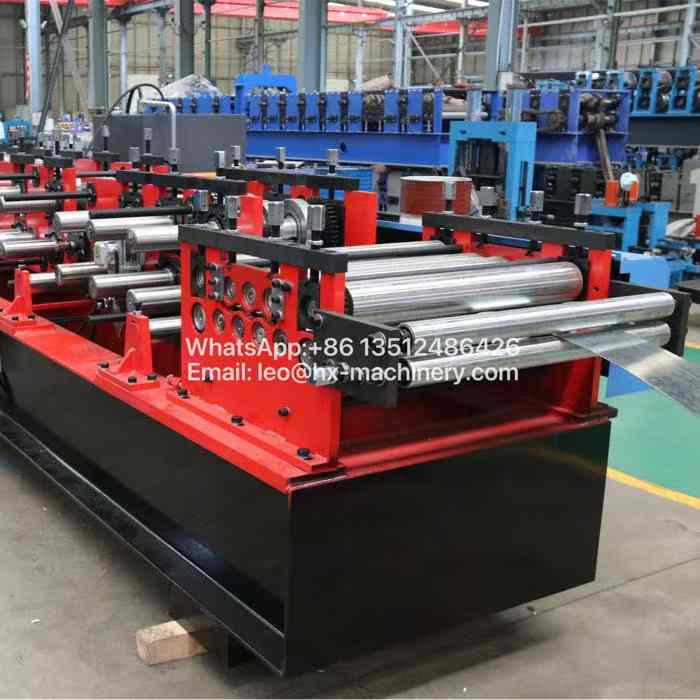

Machine parameters
| No. |

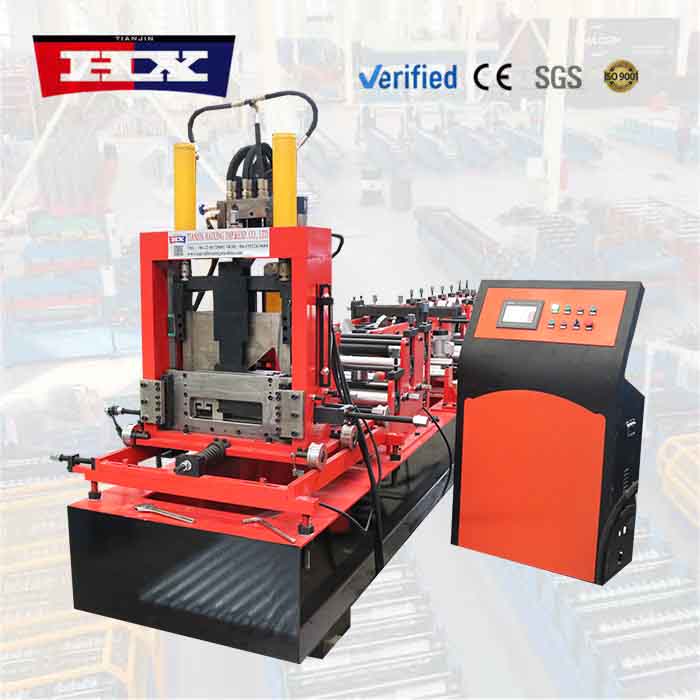

C shape purlin roll forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

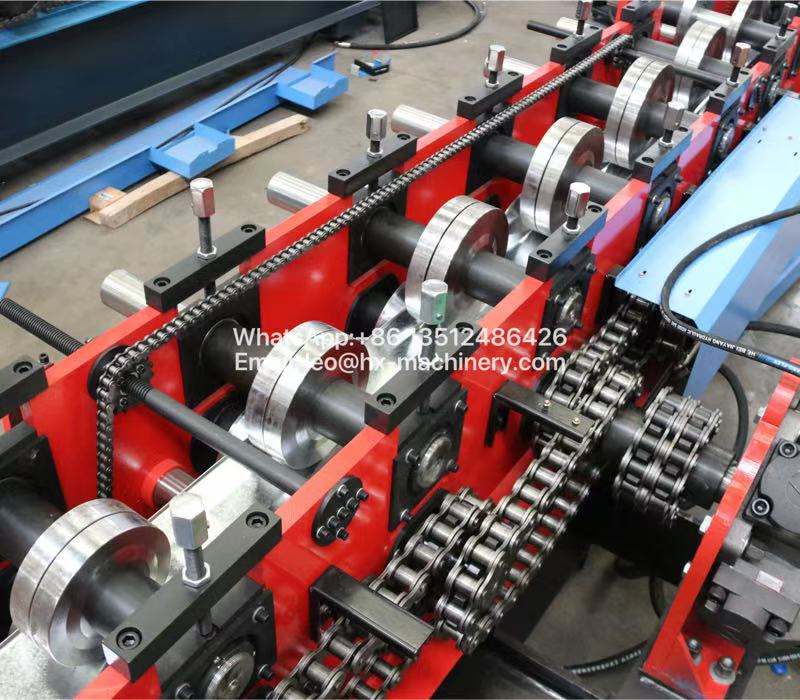

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |

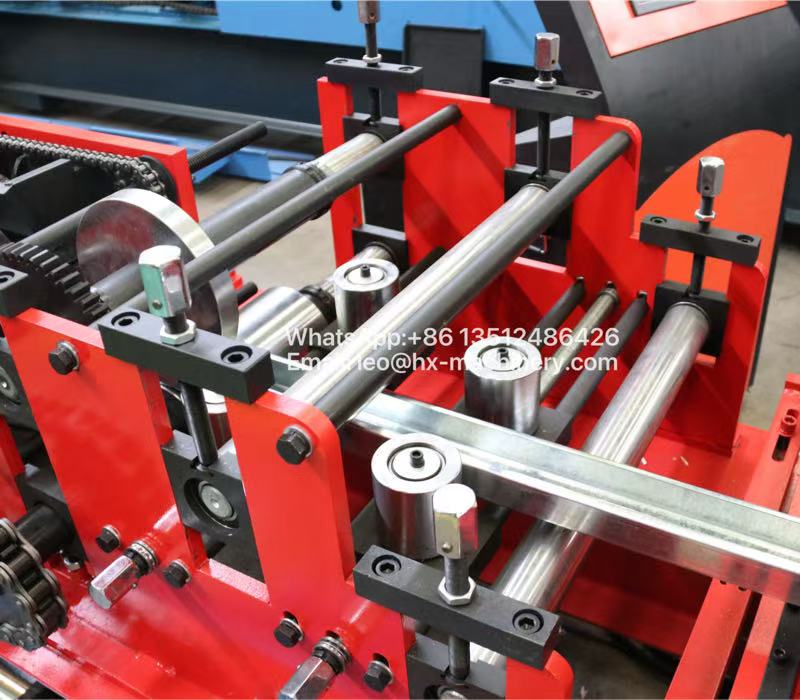

Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |
Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

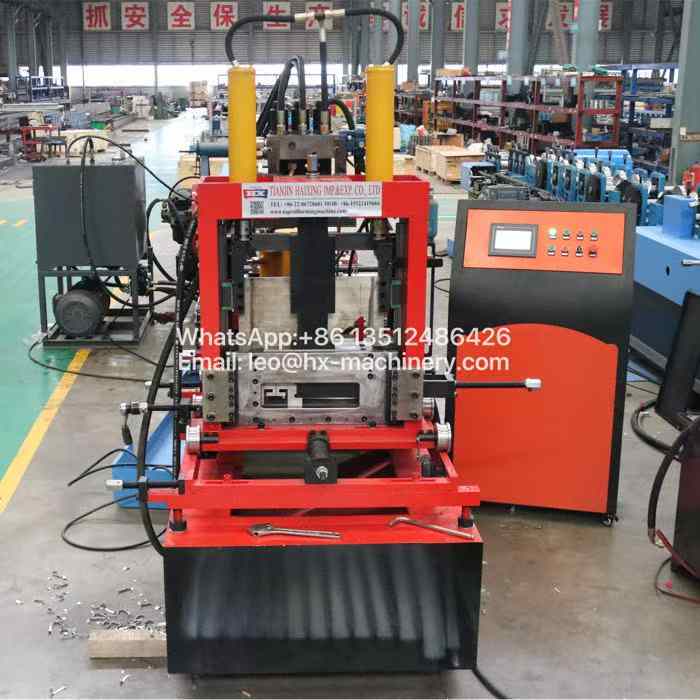

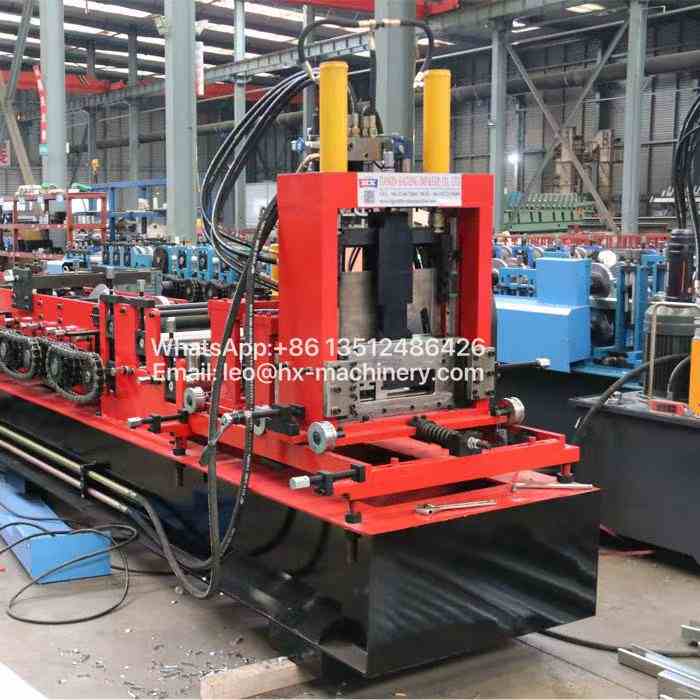

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |

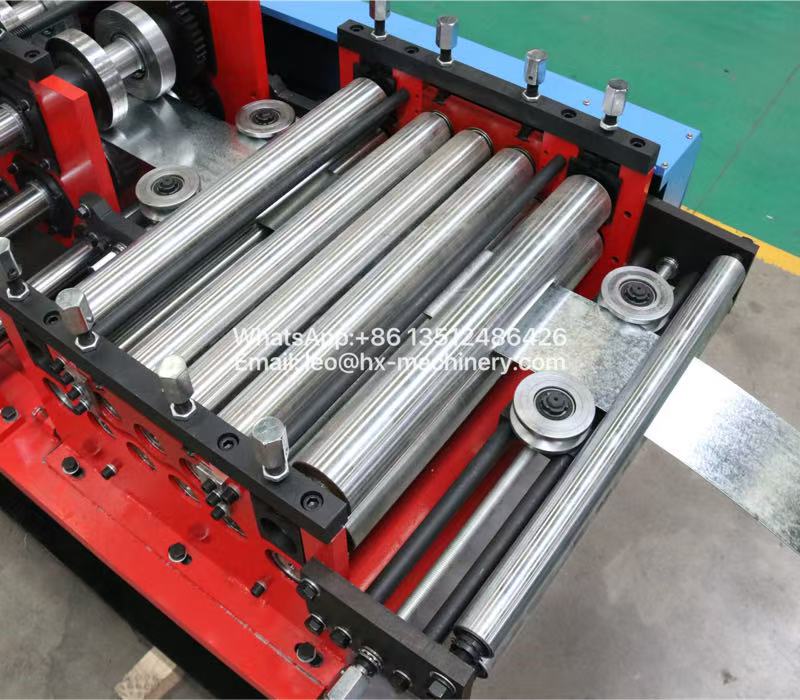

Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
