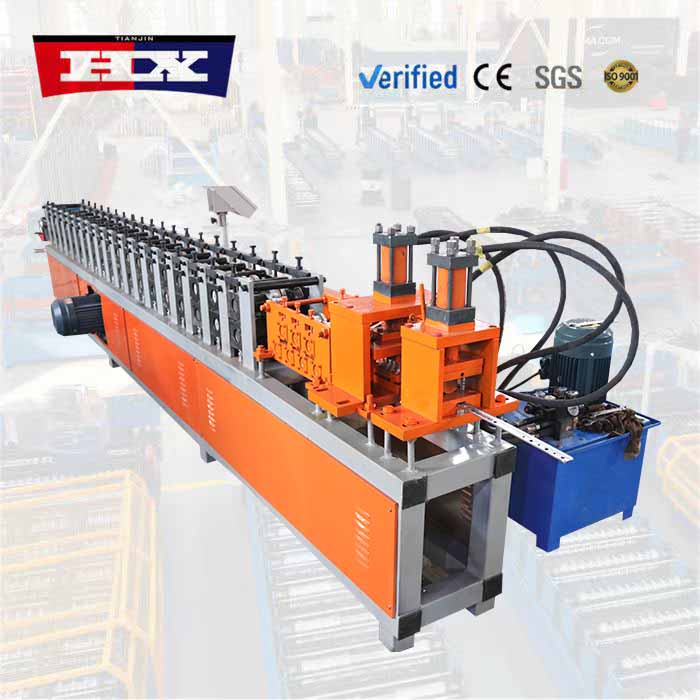

Model: HX-purlin machine for sale
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
At Haixing Industrial Group Co., Ltd., with over 20 years of manufacturing expertise, we take pride in offering a high-quality purlin machine for sale that stands out in the global market.

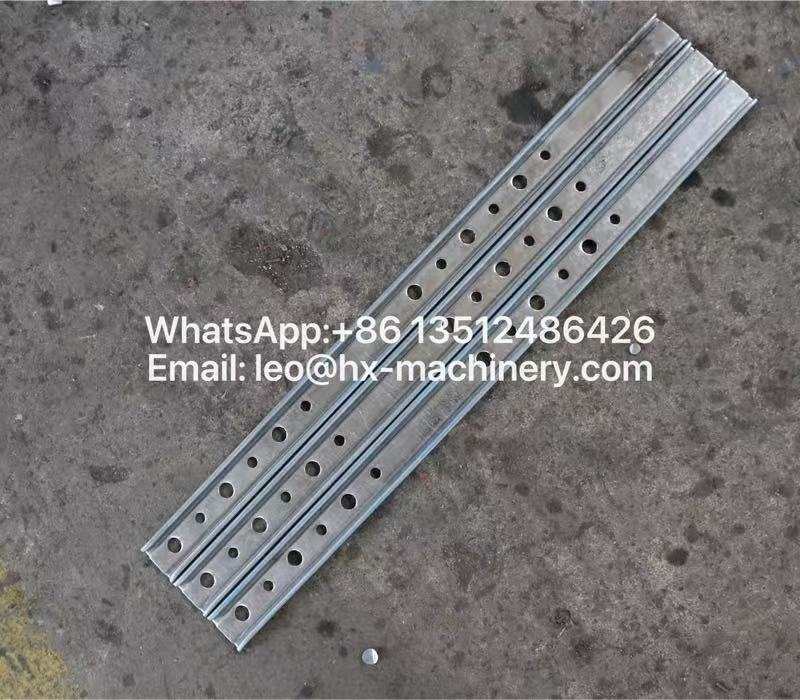

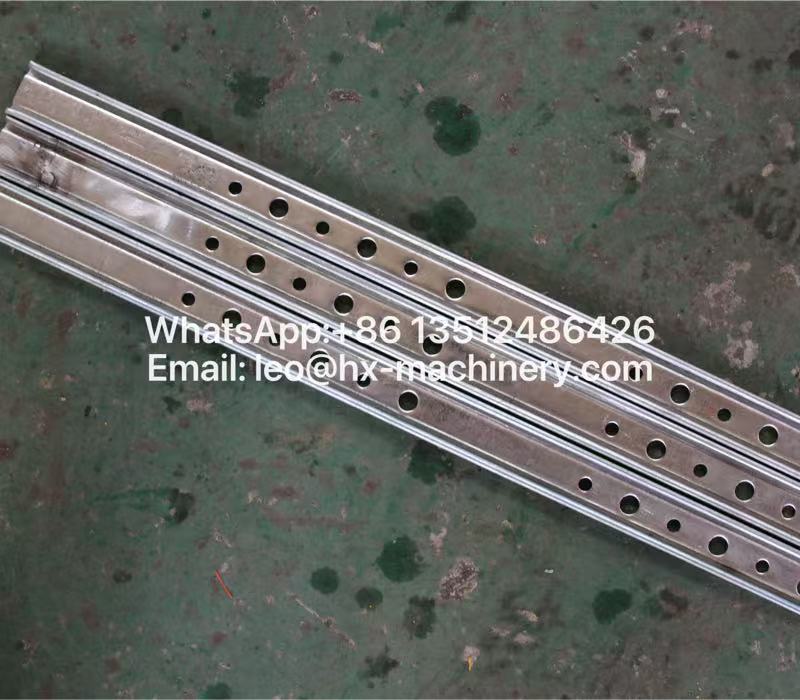

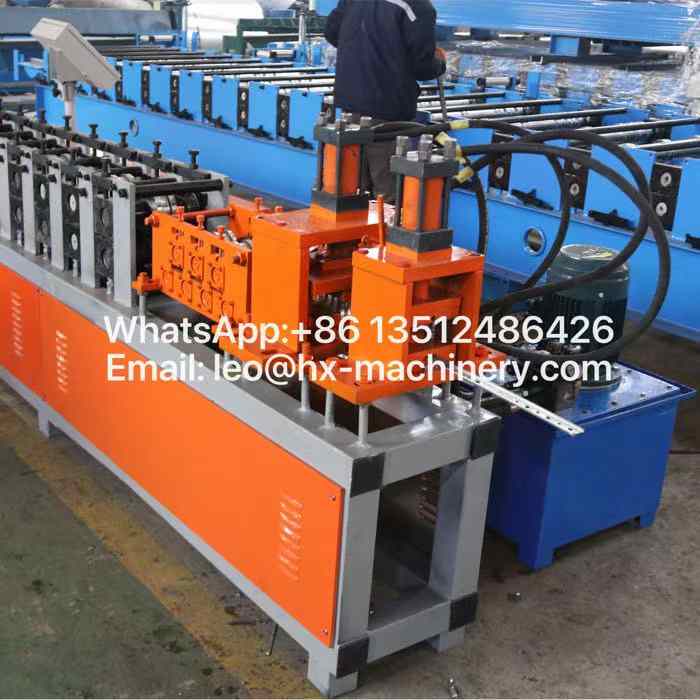

This purlin machine for sale is designed to produce both C and Z shaped purlins with outstanding accuracy and quick changeover capability. It supports full customization—roll sizes, punching patterns, and lengths can all be tailored to client specifications.
What makes this purlin machine for sale a favorite among buyers in Europe, Africa, and Latin America is its durability, low maintenance cost, and user-friendly control system. It helps fabricators boost production efficiency, minimize downtime, and achieve uniform product quality—key factors that give our customers a competitive edge in their local markets.
Below are the technical specifications of the purlin machine for sale and the profile dimensions it can form.

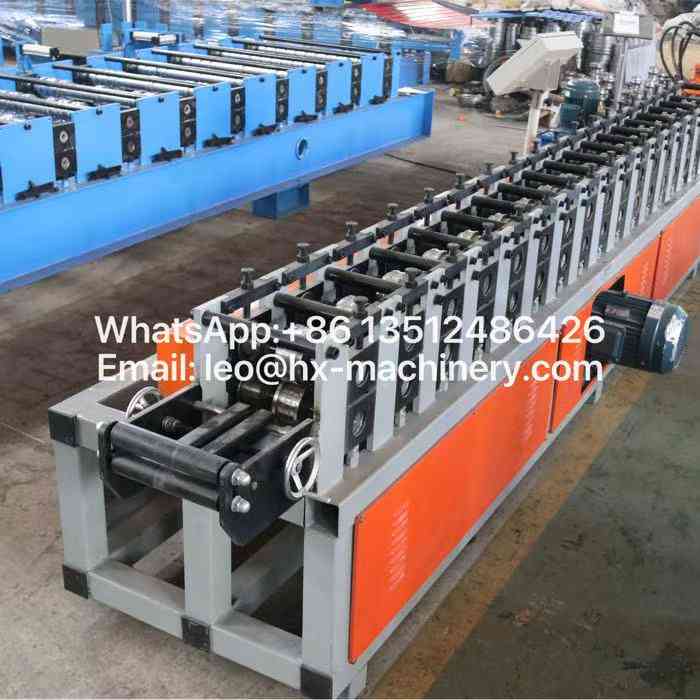

Machine parameters
| No. |
Purlin machine for sale |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |
Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

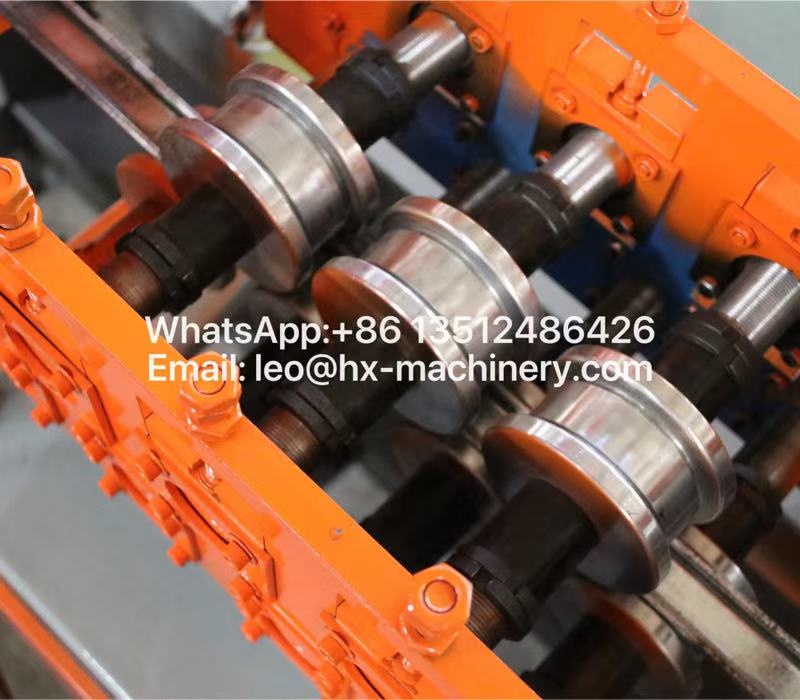

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

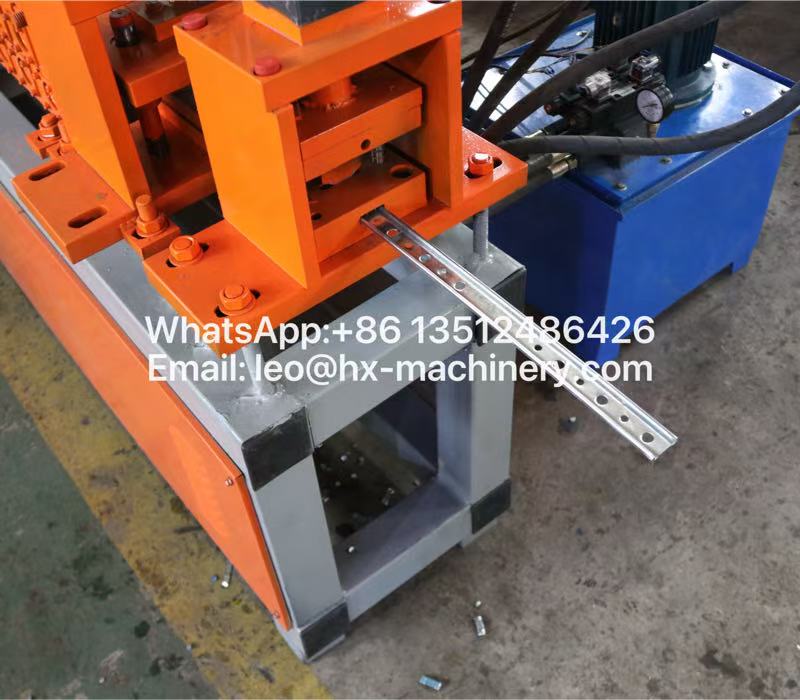

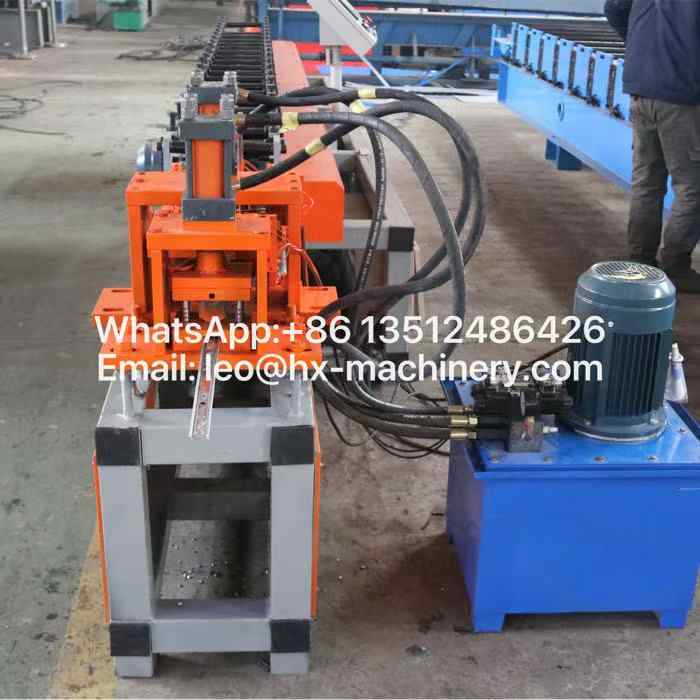

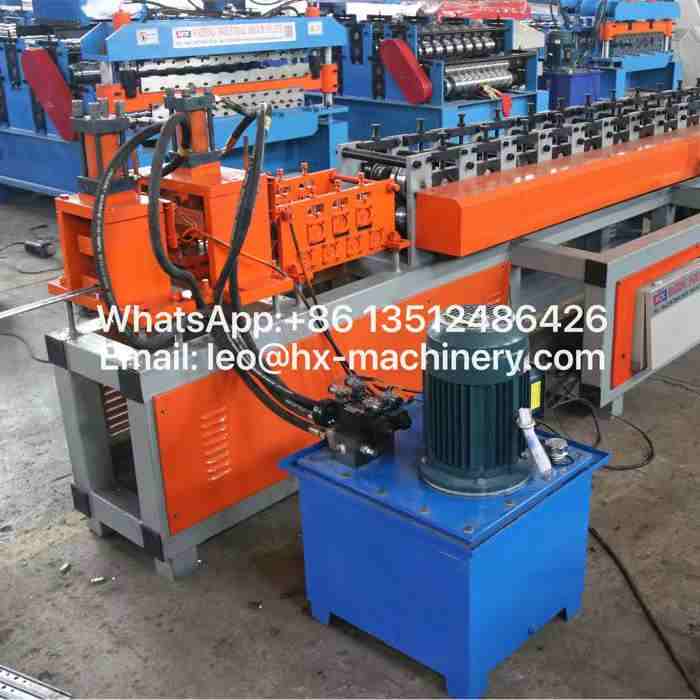

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |

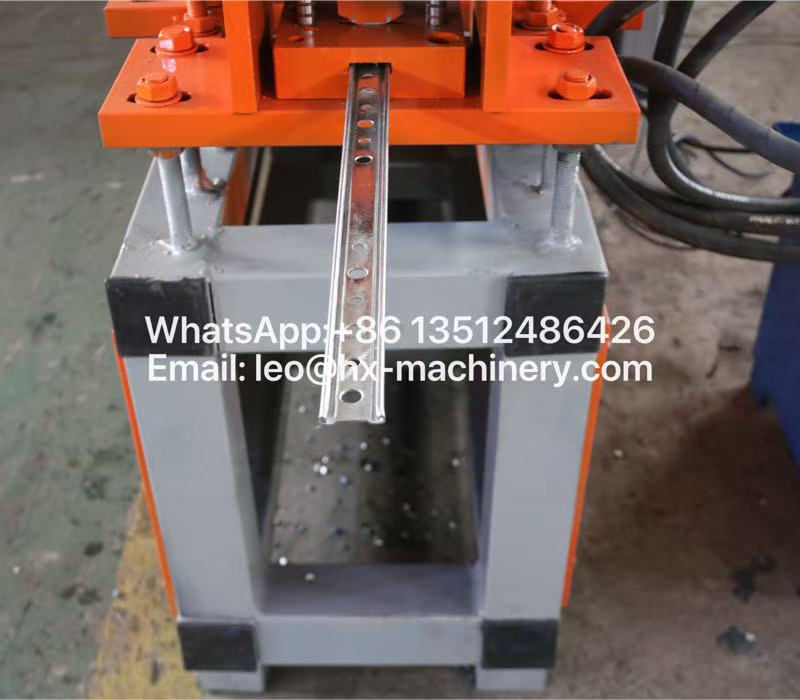

| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
