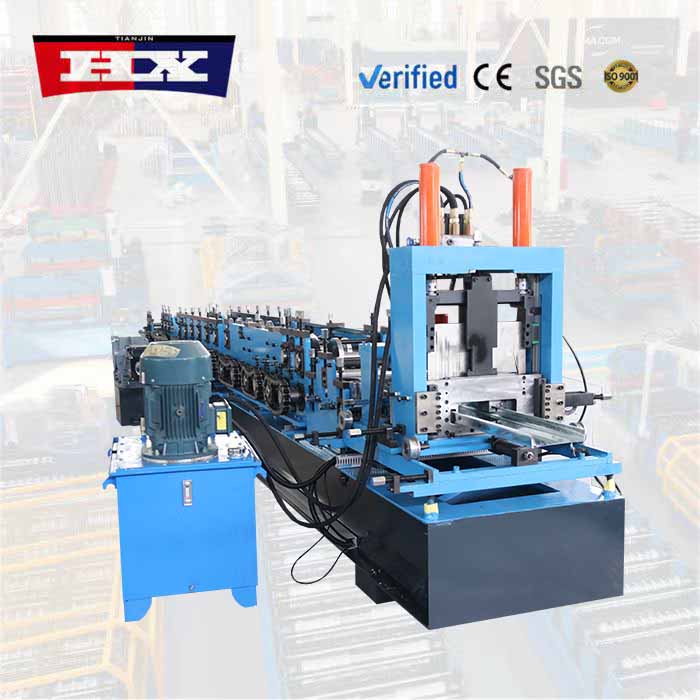

Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
As a seasoned manufacturer with over 20 years in the roll forming industry, Haixing Industrial Group Co., Ltd. offers a competitive c purlin roll forming machine price without compromising on quality or performance—a combination that has attracted buyers from more than 40 countries.
When evaluating a c purlin roll forming machine price, it's essential to consider not just the upfront cost but the total value—machine durability, production speed, after-sales support, and spare parts availability. Our machine delivers precisely that: heavy-duty construction, PLC-controlled precision, and full customization for web heights, flange widths, and hole patterns, ensuring it meets diverse project specifications while keeping operational costs low.
What makes our c purlin roll forming machine price especially appealing to overseas clients in Southeast Asia, the Middle East, and Africa is our factory-direct model, which eliminates middleman margins. We also offer flexible shipping options, 12-month warranties, and lifetime technical support. Many customers report recouping their investment within 12 to 18 months due to reduced scrap rates, faster changeovers, and lower maintenance needs compared to competitors.
Below are the detailed technical specifications of our c purlin roll forming machine, along with a reference price range based on different configurations. Please contact us for a quote tailored to your specific requirements.
Machine parameters
| No. |
C purlin roll forming machine price |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

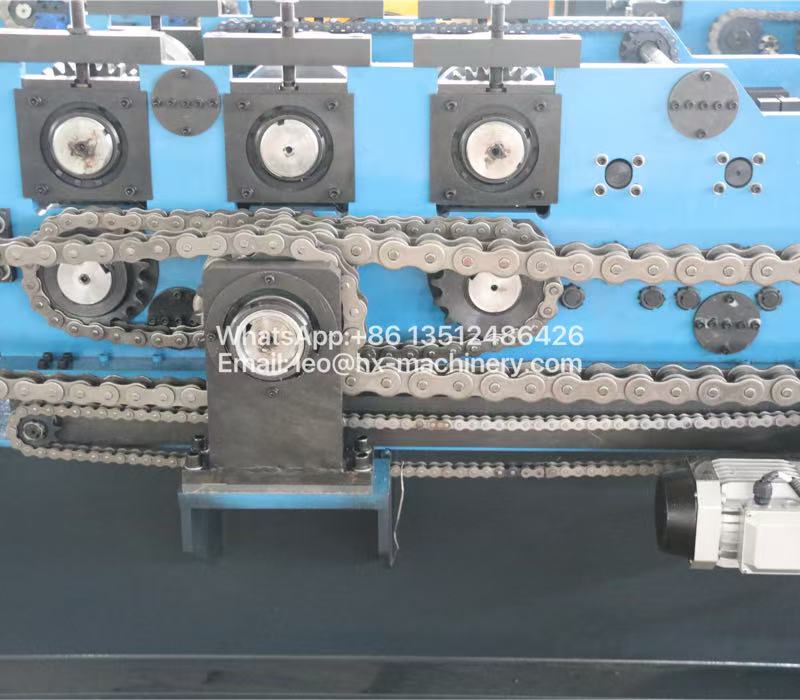

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |
Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

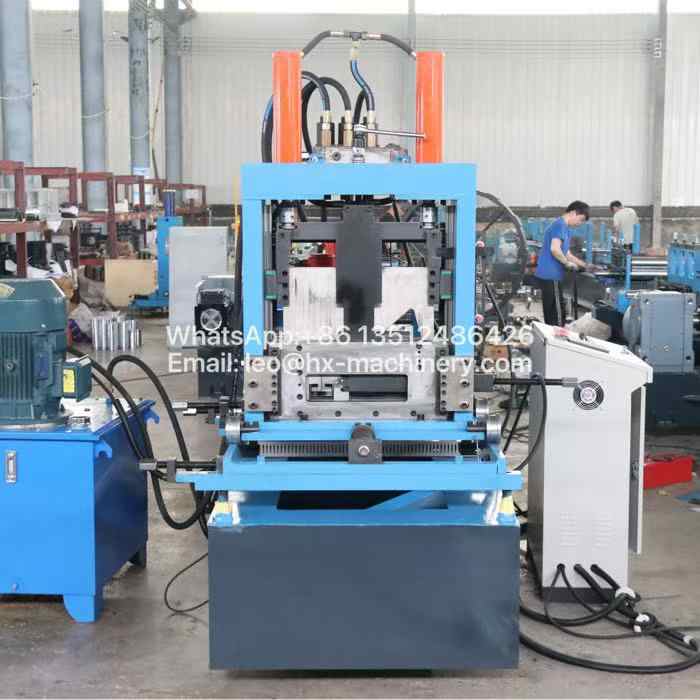

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |

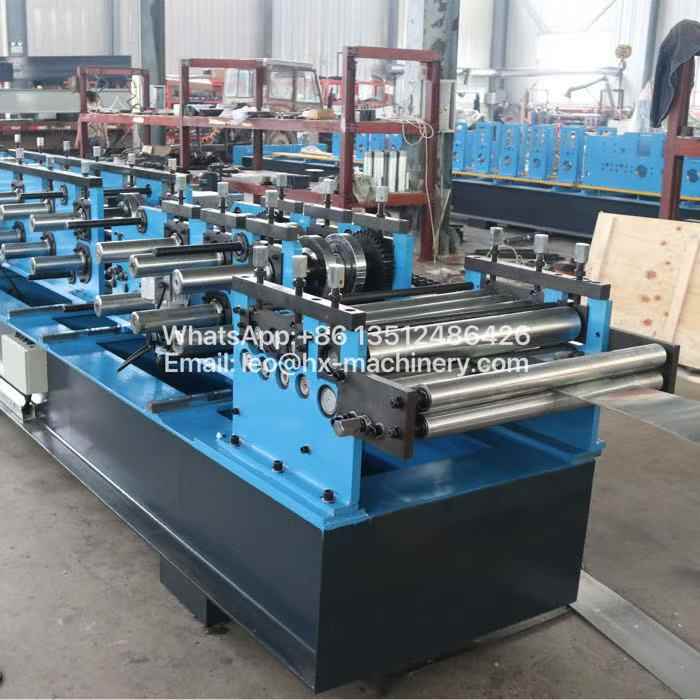

Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
