Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

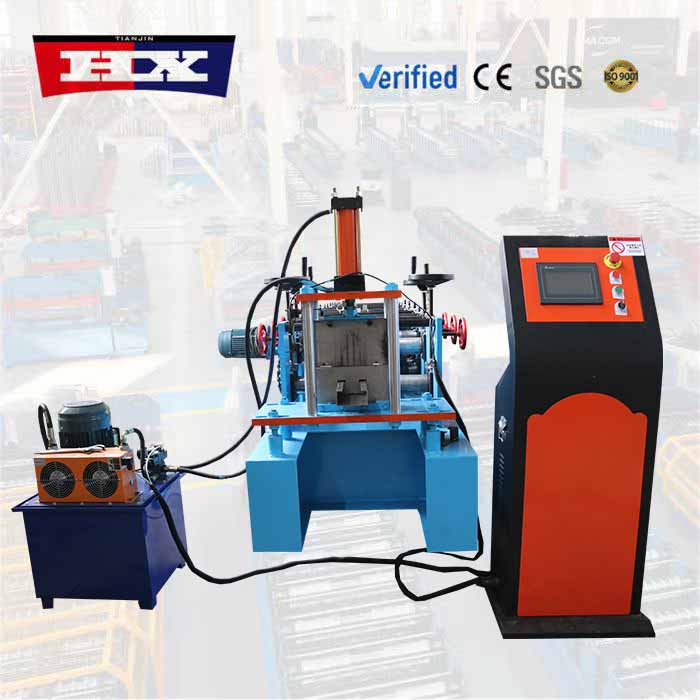

Haixing Industrial Group Co., Ltd. draws on more than 20 years of field-tested experience to deliver a versatile c channel roll forming machine that has become a go-to solution for structural steel suppliers across five continents.

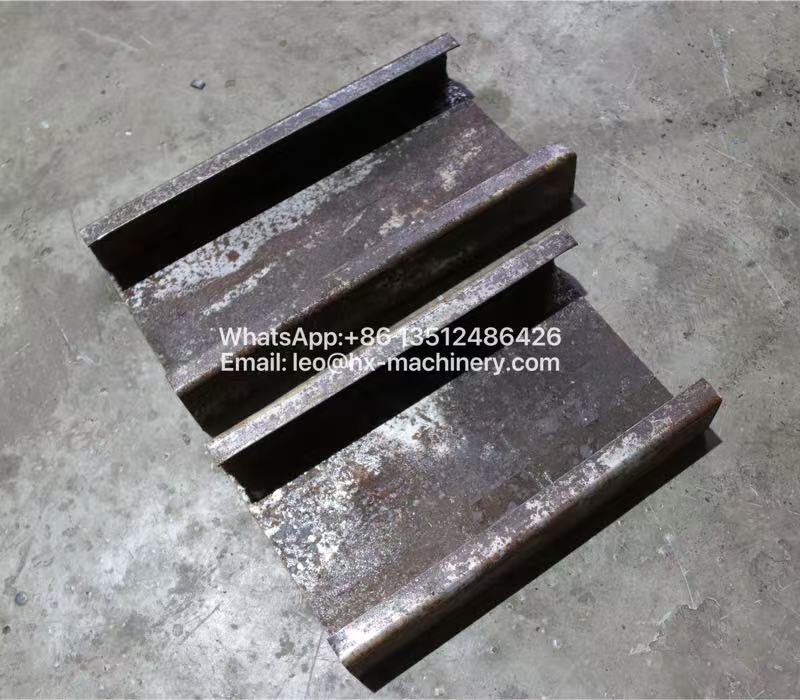

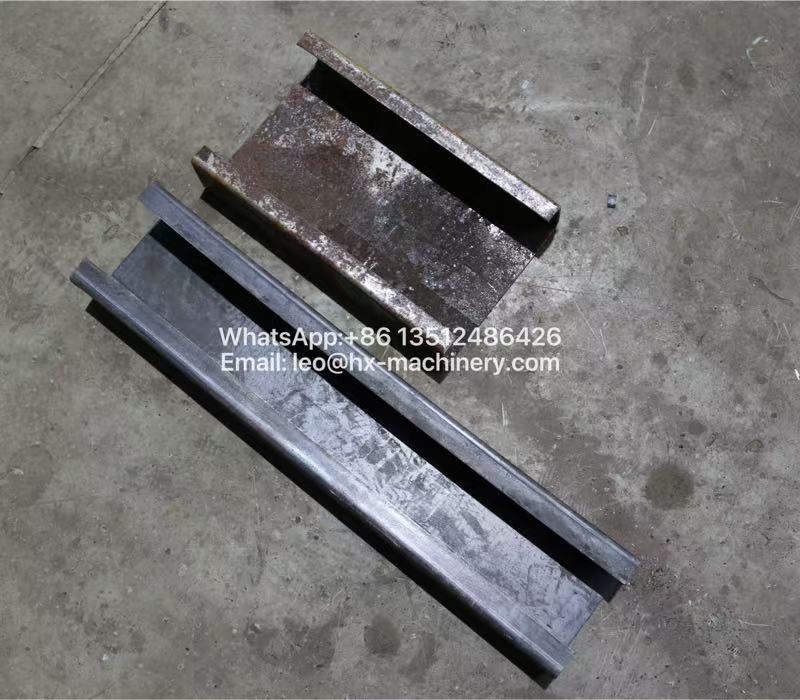

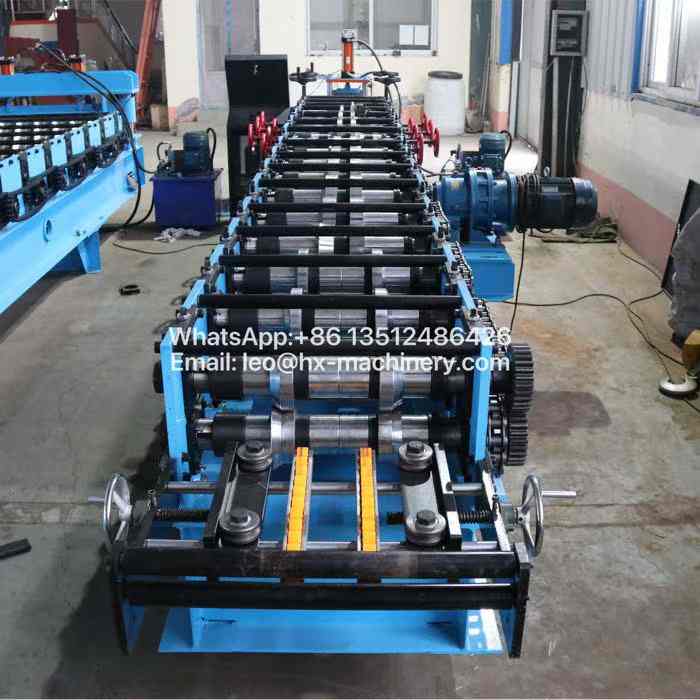

Our c channel roll forming machine produces clean, accurately shaped C channels suitable for a broad spectrum of applications—from warehouse framing and mezzanine flooring to solar panel mounting structures and agricultural buildings. It supports flexible adjustments in gauge thickness, hole spacing, and channel depth, allowing each customer to tailor the setup to their specific project portfolio.
What gives this c channel roll forming machine a distinct export advantage is its proven track record in large-scale infrastructure projects overseas. Recently, units have been deployed in Chile, Indonesia, and Kenya, where contractors praised their ability to handle continuous 24/7 operation, minimize coil waste, and adapt swiftly to design changes without lengthy retooling. Combined with our competitive factory-direct pricing, prompt delivery, and bilingual technical documentation, this machine helps overseas buyers reduce overall project costs while maintaining international quality standards.
Included below are the complete specifications of this c channel roll forming machine and the C-channel profiles it forms.
Machine parameters
| No. |
C channel roll forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

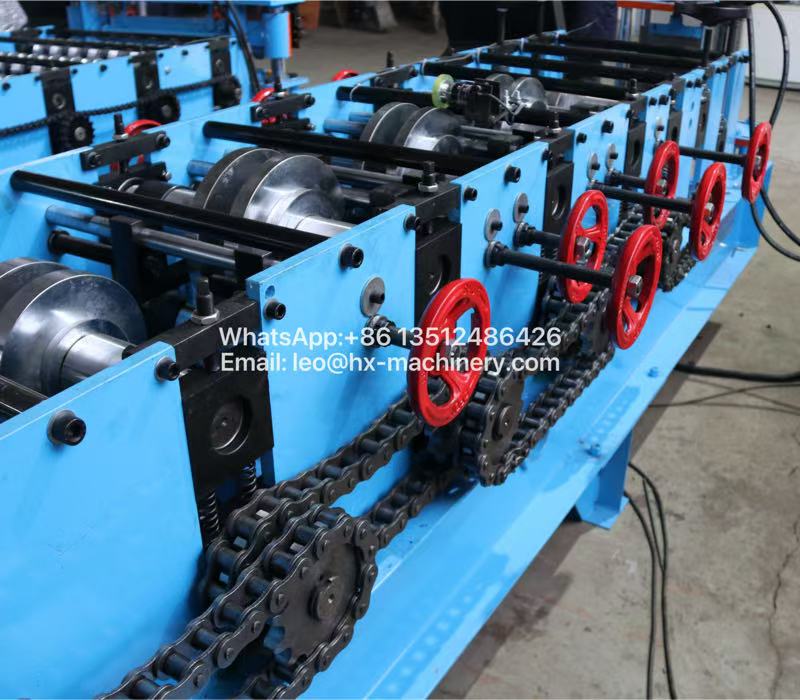

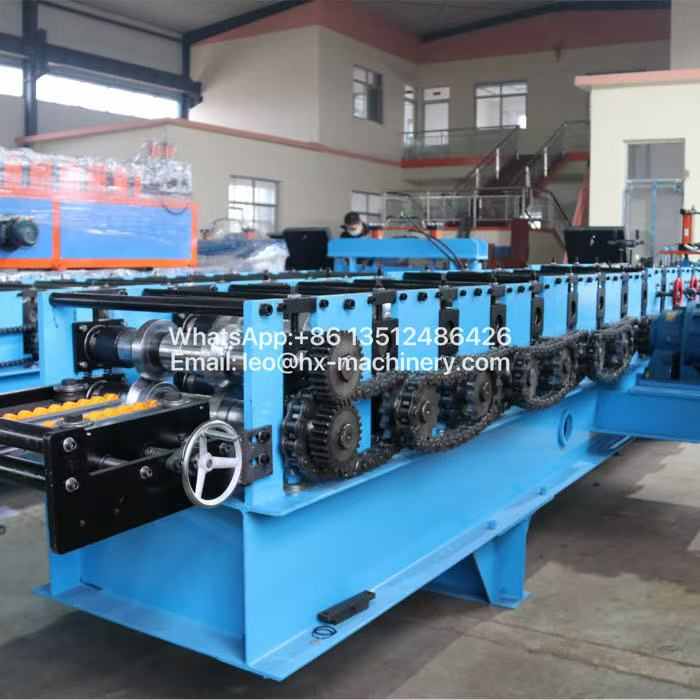

Forming Machine Type |
Wall plate chain drive |
| 4 |

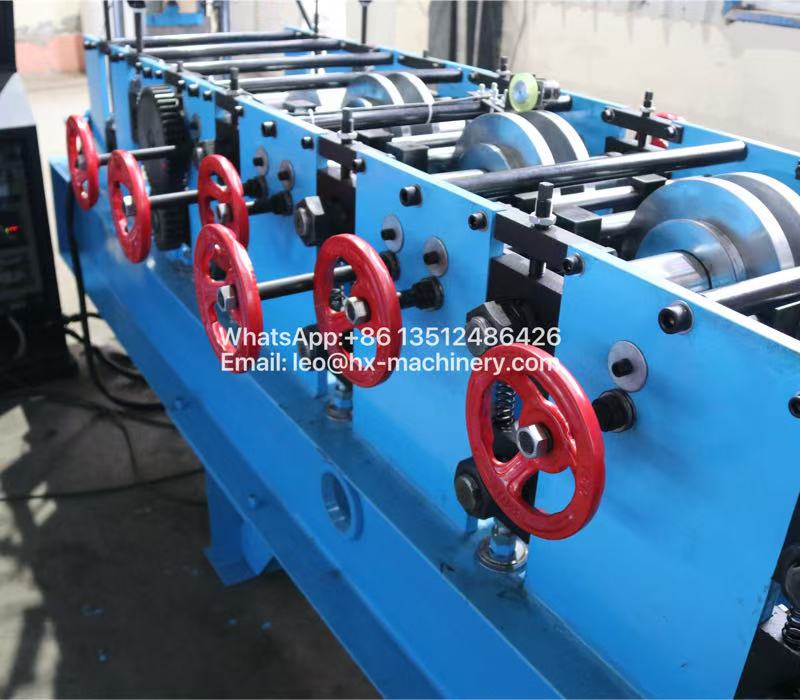

Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |
Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |
| 9 | Forming Passes |
12 passes |
| 10 |

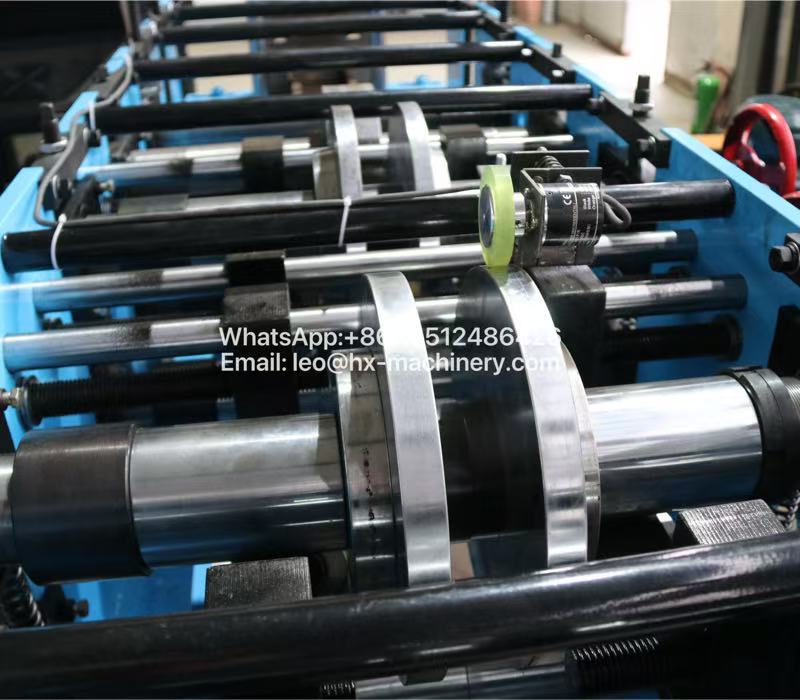

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

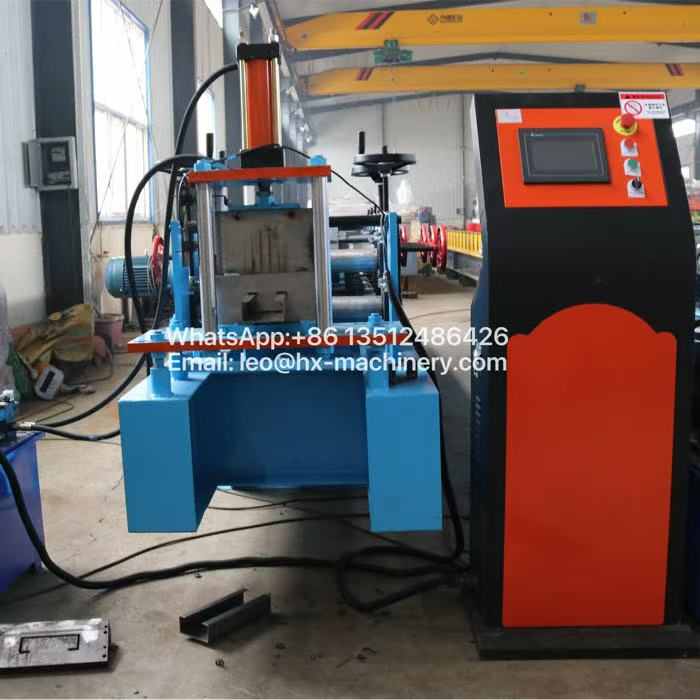

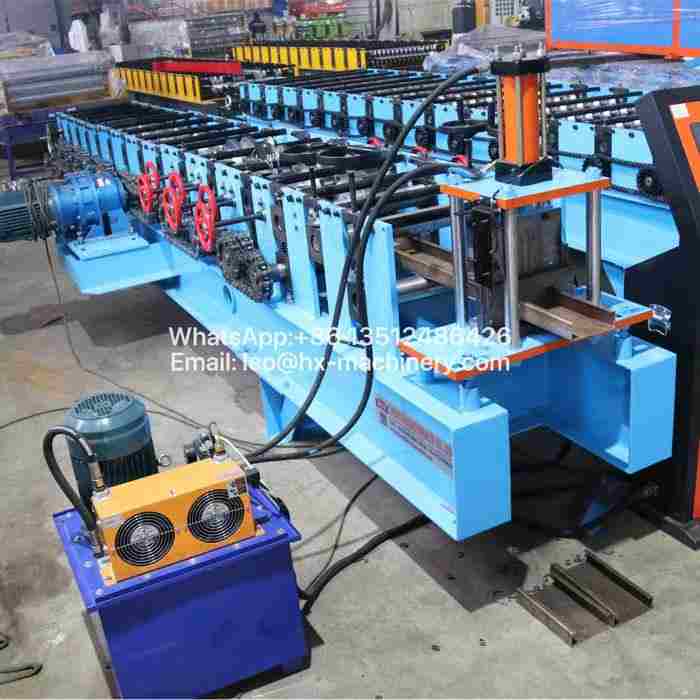

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
