Model: HX-c purlin
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

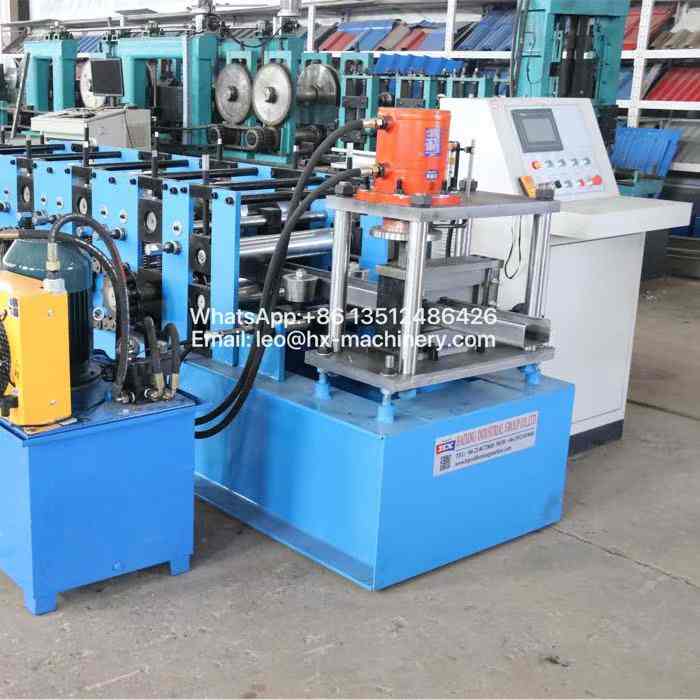

With a legacy spanning over 20 years in roll forming equipment manufacturing, Haixing Industrial Group Co., Ltd. delivers a highly adaptable c section roll forming machine that meets the evolving needs of structural steel suppliers worldwide—from small workshops to large-scale production facilities.
Our c section roll forming machine features a modular frame design that allows future expansions—adding extra roll stations, integrating additional punching units, or upgrading control systems—without replacing the entire line. This future-proof approach protects our customers' investments while enabling them to scale production gradually. The machine accepts a wide range of coil widths and thicknesses, and our engineering team works closely with each buyer to customize roll profiles, cutting lengths, and hole configurations based on project-specific blueprints.
What sets our c section roll forming machine apart in key export markets—including Malaysia, the Netherlands, Ghana, and the UAE—is our industry-leading delivery capability. Thanks to standardized component stocks and streamlined assembly processes, we can ship most configurations within 15–20 working days. Additionally, our machines are designed for straightforward container loading, reducing freight costs, and our site installation support ensures buyers are producing quality C-sections within 72 hours of arrival.
For detailed technical data, profile dimensions, and optional accessory lists, please refer to the specifications below for this c section roll forming machine.
Machine parameters
| No. |

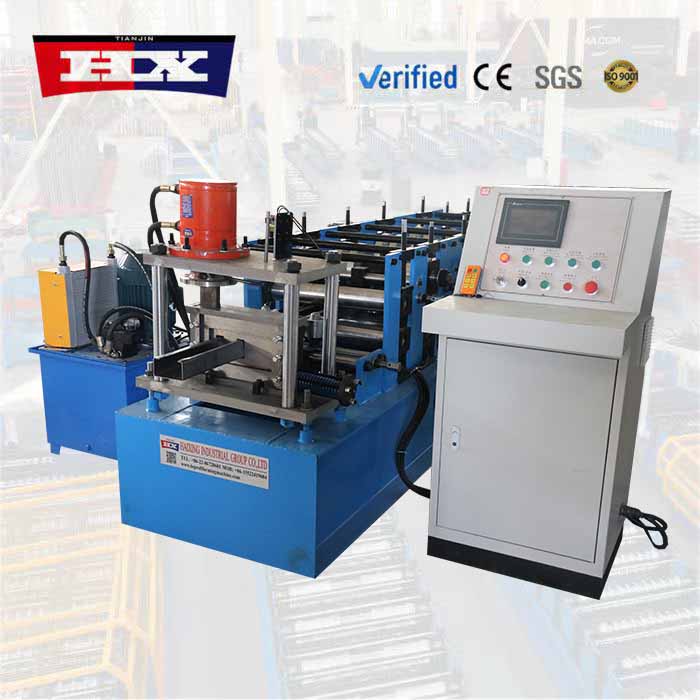

C section roll forming machine |
|
| 1 |
Frame |
Welded with 350 H-section steel |
| 2 |
Middle Plate Thickness
|
20 mm |
| 3 |

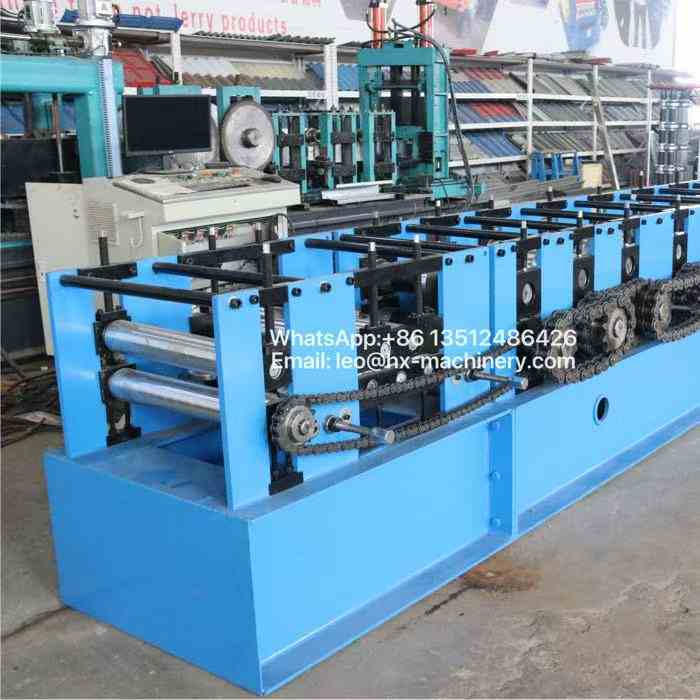

Forming Machine Type |
Wall plate chain drive |
| 4 |
Shaft Diameter |
Solid shaft of Φ80 mm |
| 5 |
Feeding Guide Frame Type |
Side roller type
|
| 6 |

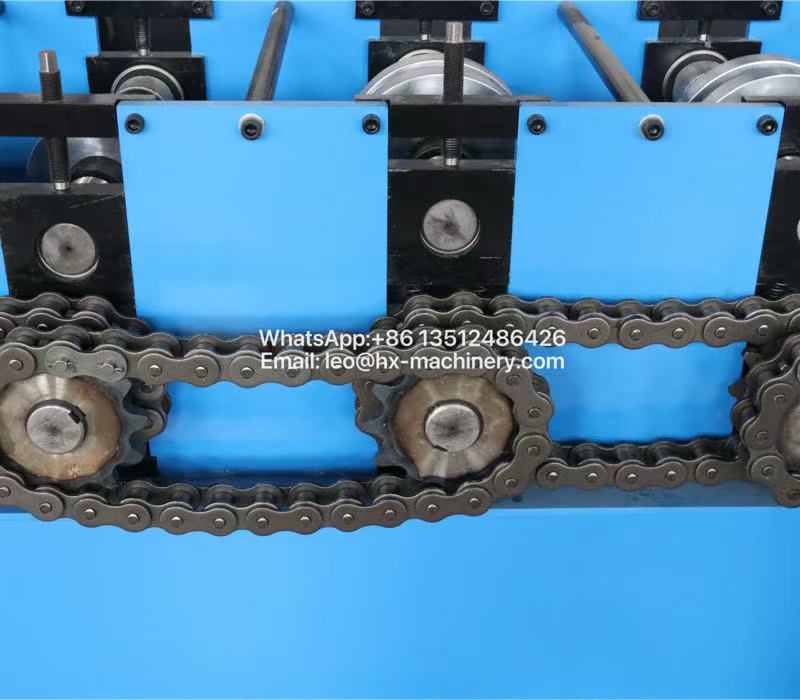

Chain Specification |
2-inch |
| 7 |
Forming Motor Power |
11 kW, Shanghai Bojiang Motor |
| 8 |
Line Speed |
8–12 m/min |

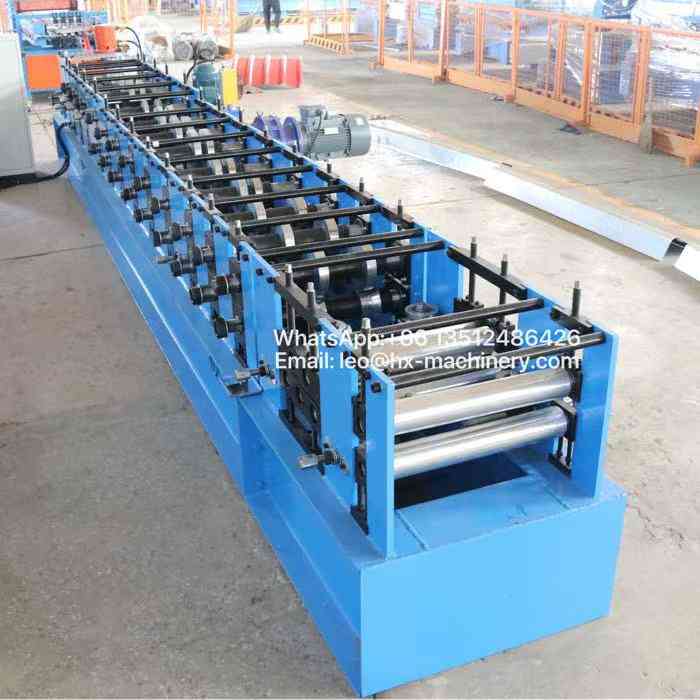

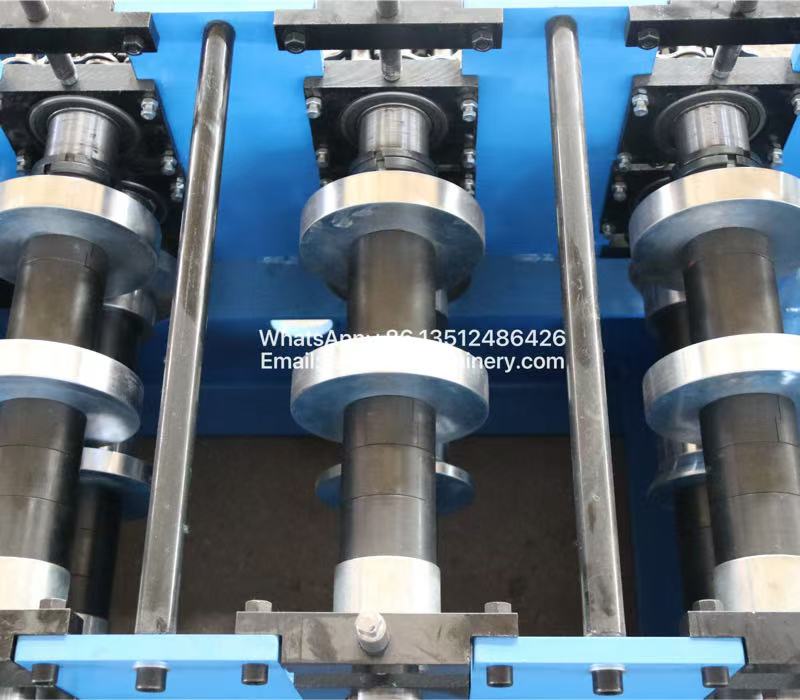

| 9 | Forming Passes |
12 passes |
| 10 |

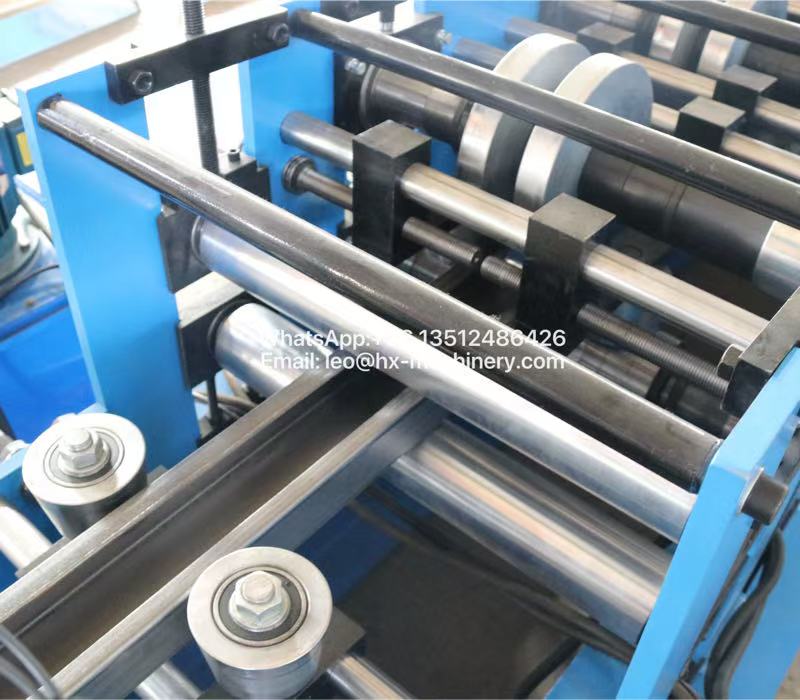

Roll Material |
Bearing steel, quenched, precision turned and electroplated |
| 11 |

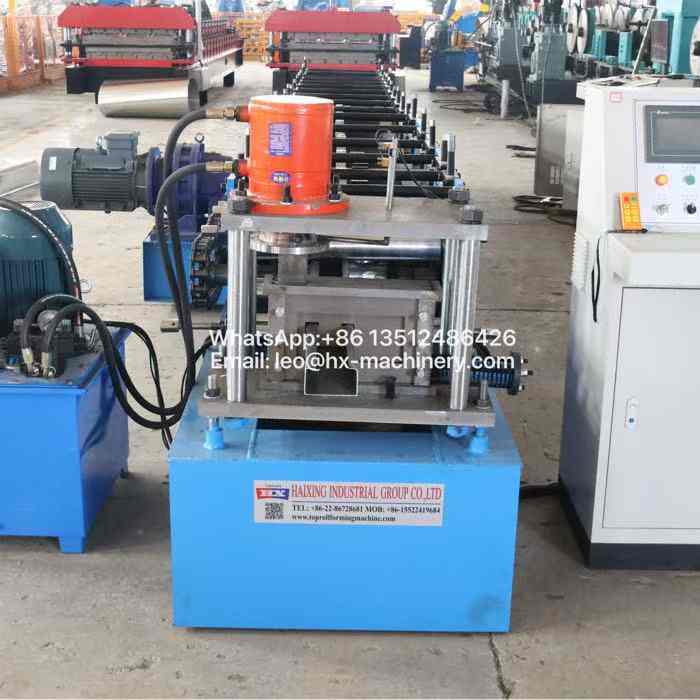

Cutting Mode |
Hydraulic shearing, 5.5 kW hydraulic station |
| 12 |
Decoiler Section |
Equipped with 5 leveling shafts |
| 13 | Outlet Section |
Equipped with straightening function |
| 14 |
Accessory |
One set of 3-meter material receiving rack
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
