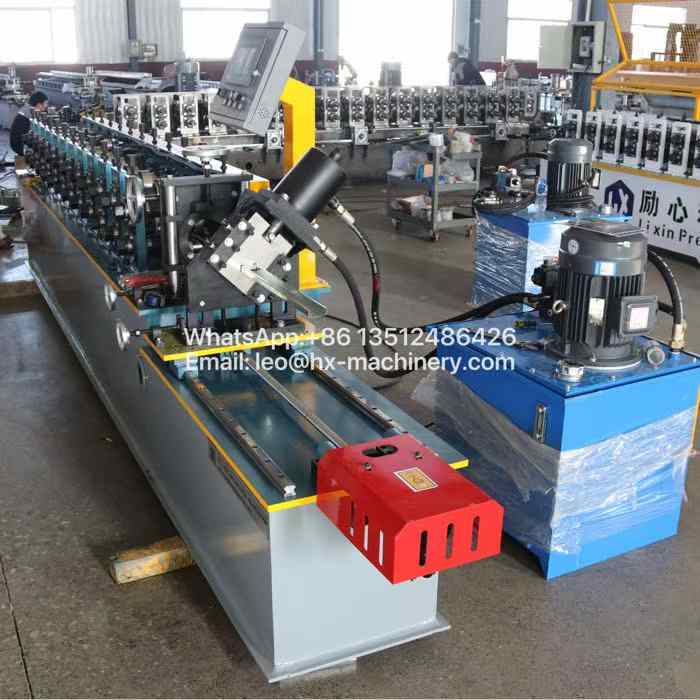

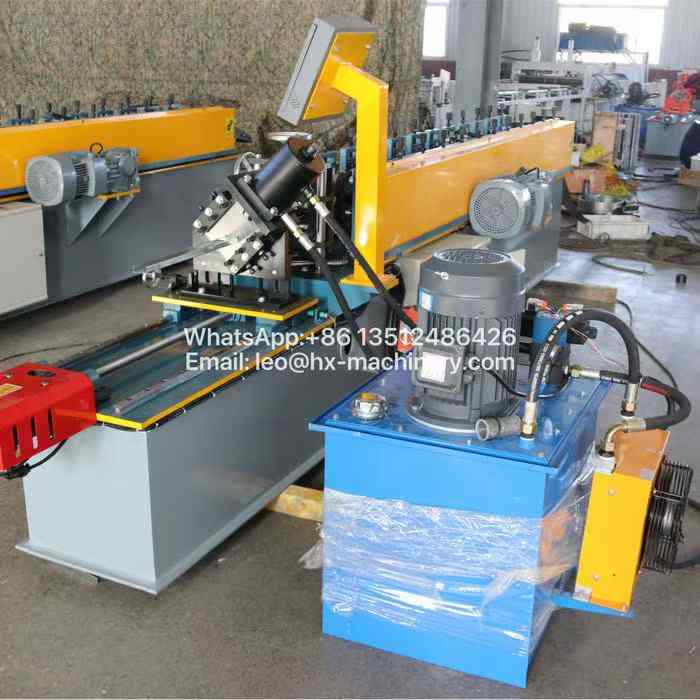

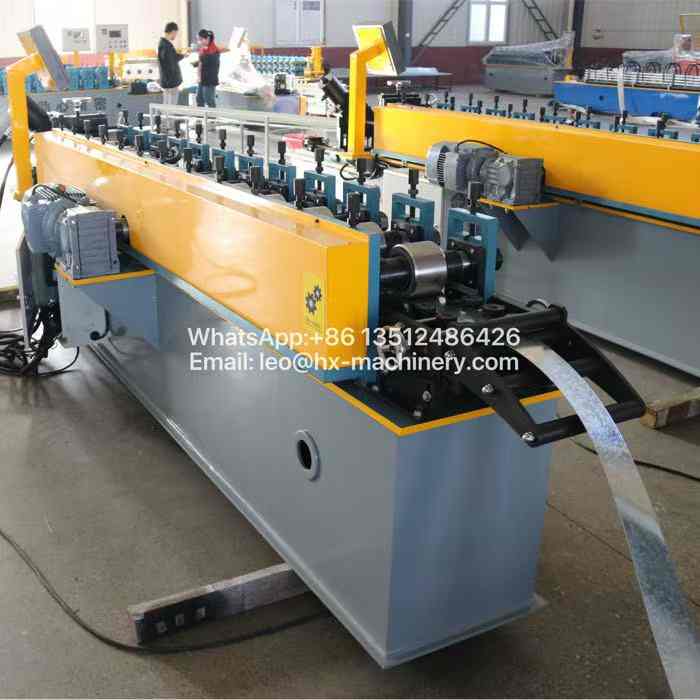

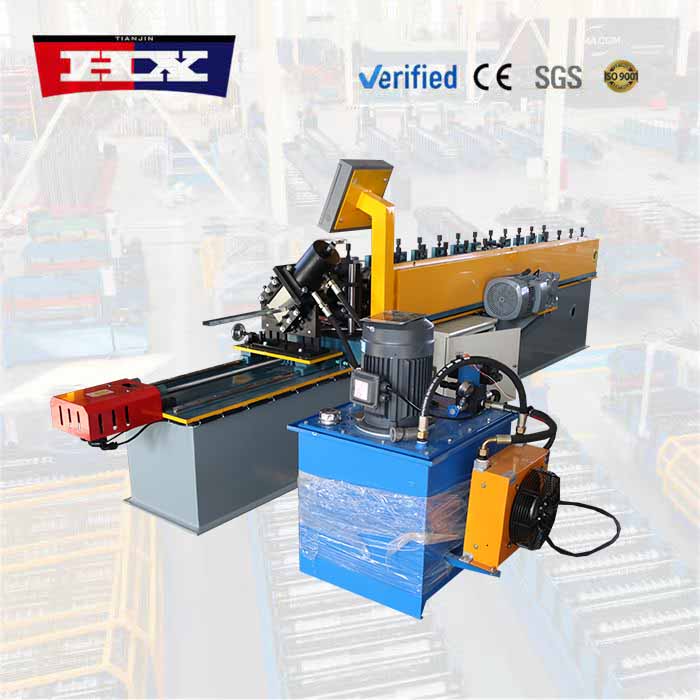

Model: HX-stud roll former
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
If you're in the business of light-gauge steel framing, you already know that stud quality determines build speed, material waste, and overall project profitability. That's precisely where our stud roll former comes into play—built to deliver accurate, uniform profiles that speed up installation and reduce rework on site.

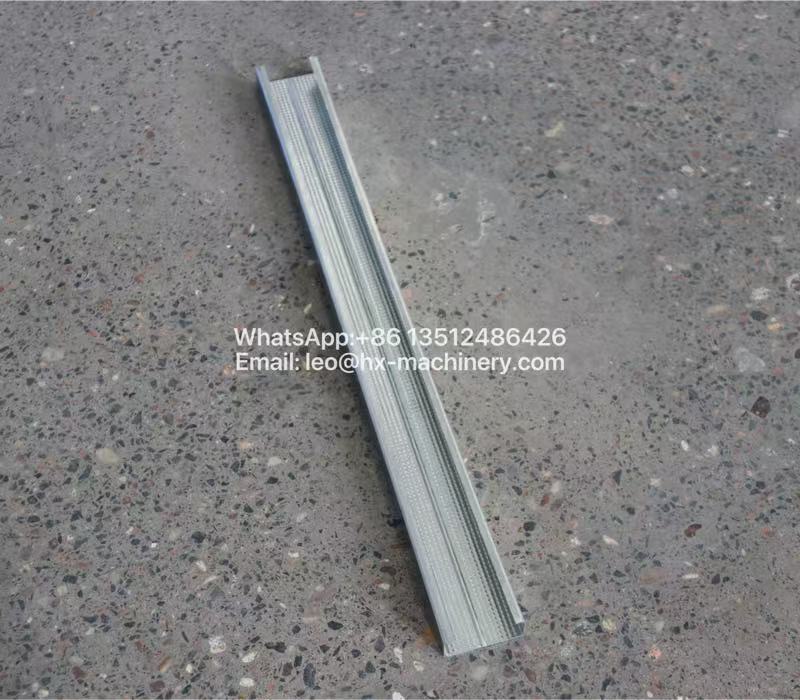

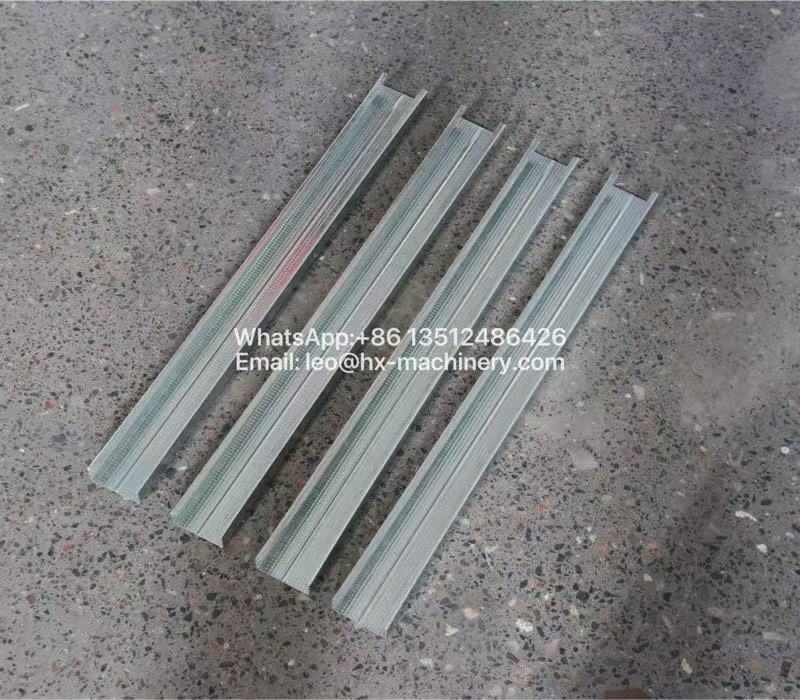

What makes our stud roll former different is the way it handles real-world shop conditions. We've reinforced the frame, upgraded the feed system, and simplified the control interface so that operators spend less time adjusting and more time producing. It forms clean studs with precise web dimensions and consistently spaced punch holes, ready to meet standard or custom specifications. The machine also supports fast changeovers, so you can move between profiles without losing production momentum.
Our customers often tell us that the real value of our stud roll former shows up months after installation—stable performance, fewer service calls, and easy access to wear parts when needed. Whether you're outfitting a new shop or upgrading an existing line, our stud roll former is built to keep you competitive in framing markets from North America to Southeast Asia. And we stay with you beyond the sale, offering technical support that's practical, responsive, and ready when you are.
Machine parameters
| No. |
Stud roll former |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

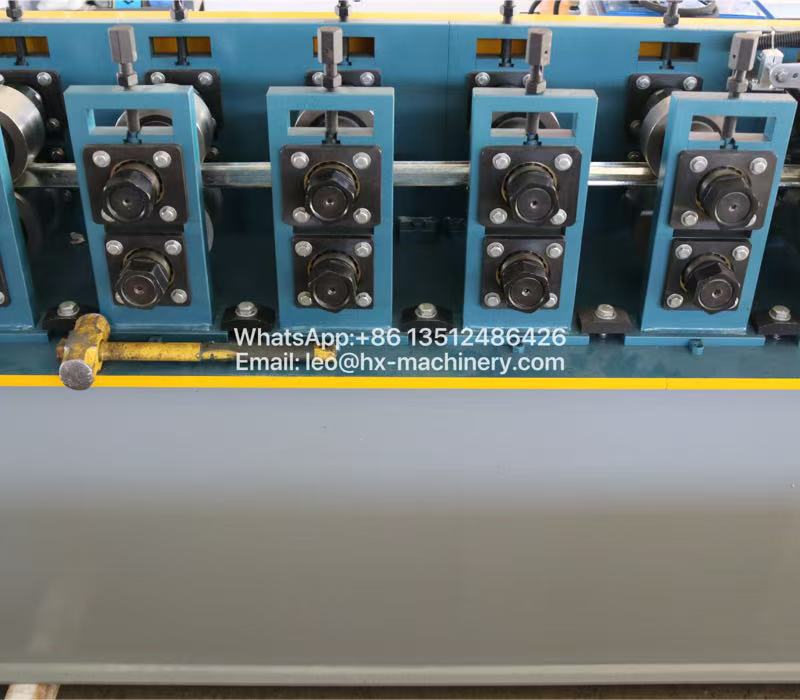

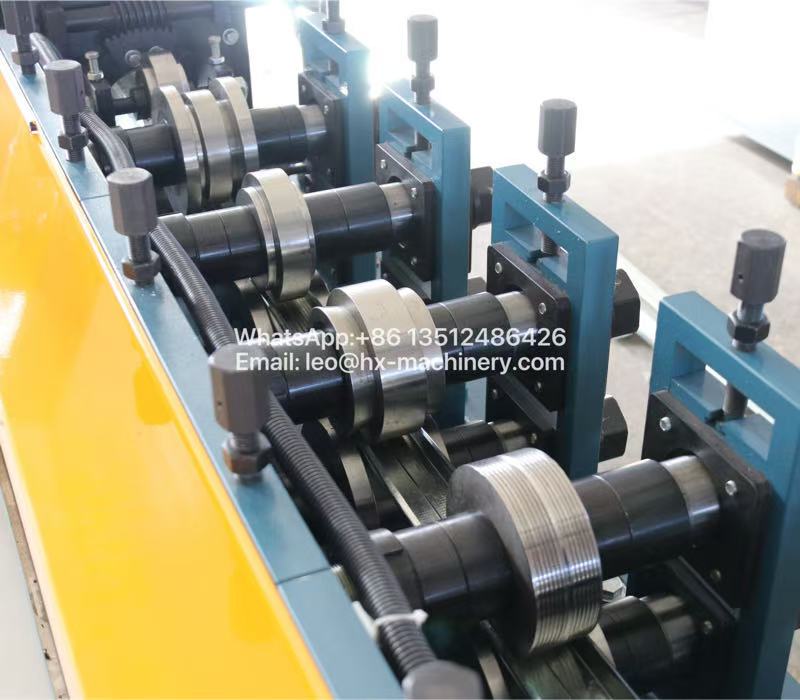

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
