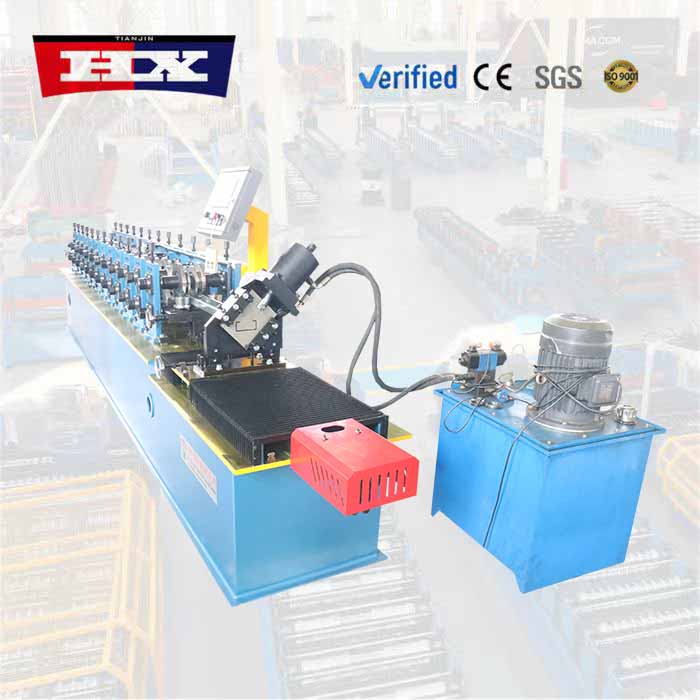

Model: HX-metal stud maker
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
There’s a certain peace of mind that comes when a machine simply does its job—no surprises, no constant tweaking, no unexpected downtime. That’s exactly the kind of reliability we’ve built into our metal stud maker, a practical solution for framing shops that need consistent output without the hassle.

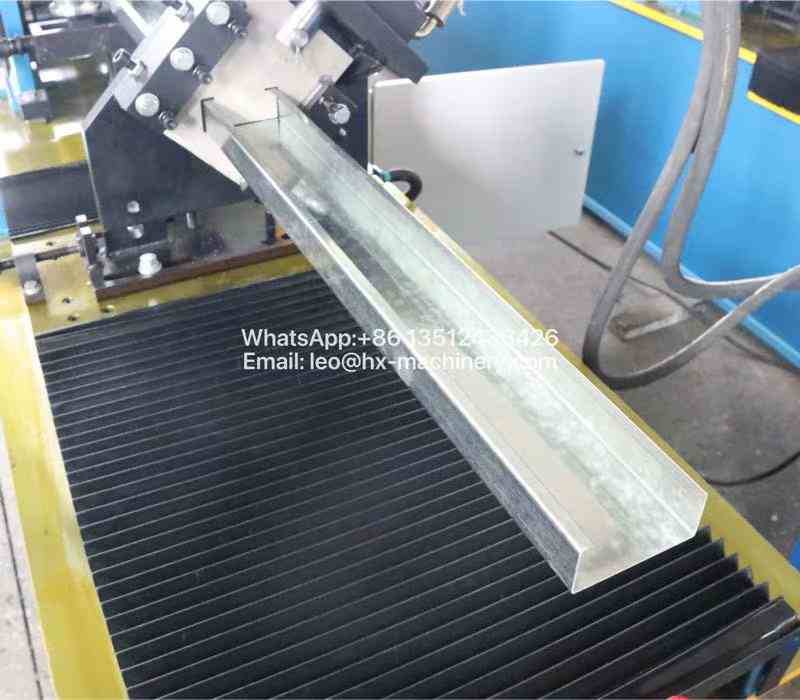

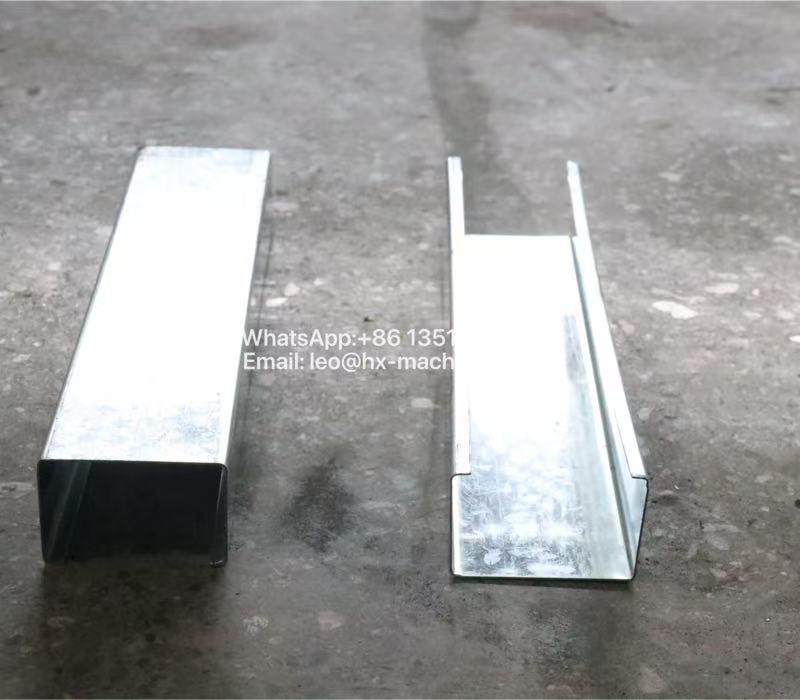

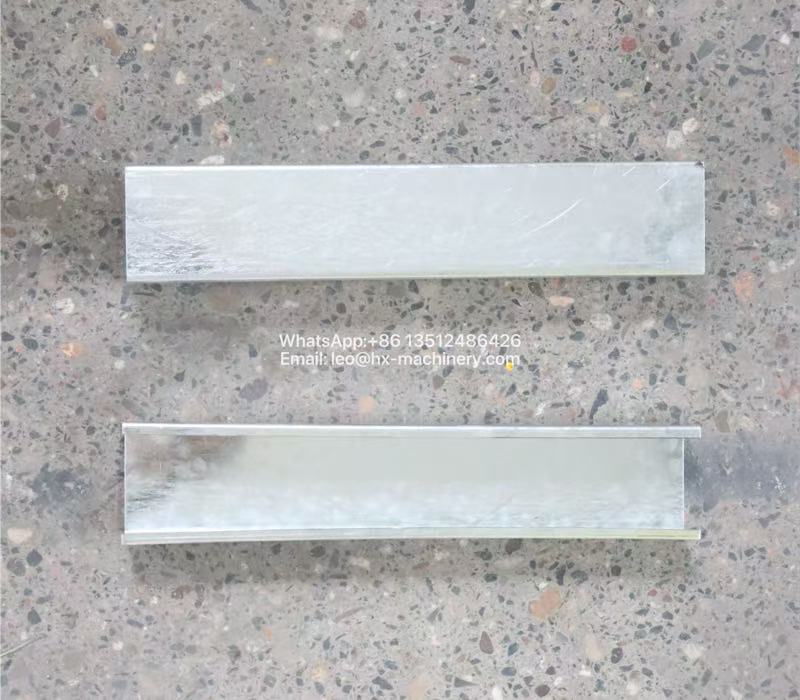

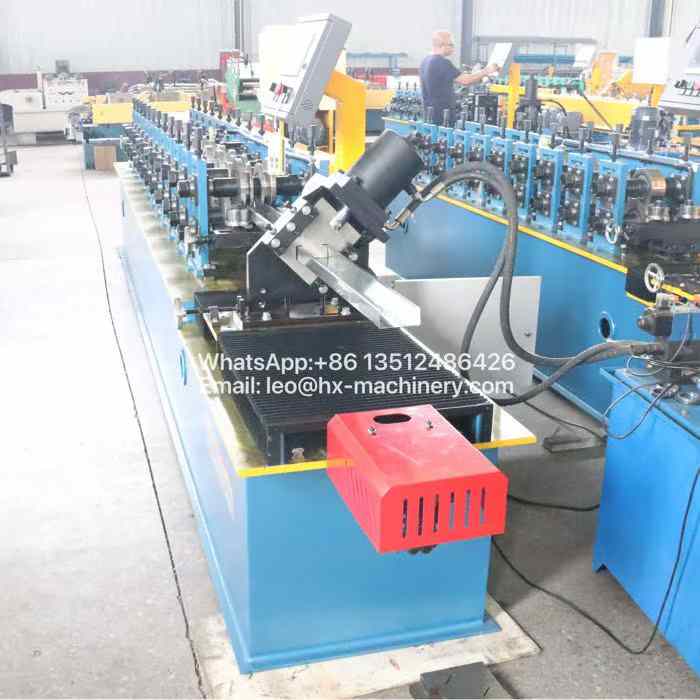

Our metal stud maker is designed with a clear focus: produce accurate studs with straight flanges, properly spaced holes, and clean cuts, run after run. The roll forming section is laid out to maintain tight tolerances, the punching system places holes where they belong, and the cutting action is synchronized to avoid material distortion. Changing between stud sizes and gauges is straightforward, so you can respond to different order requirements without losing productivity.
Where this metal stud maker really earns its keep is in the day-to-day routine. Operators find it easy to run, maintenance is simple enough to stay on top of during shift changes, and the machine keeps its settings reliably. Our support team is also available to assist with setup questions, troubleshooting, and parts needs, helping you keep the line moving. With our metal stud maker, you’re not just adding equipment—you're adding a dependable partner to your framing operation. It’s built to produce, and it’s built to last.
Machine parameters
| No. |
Metal stud maker |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

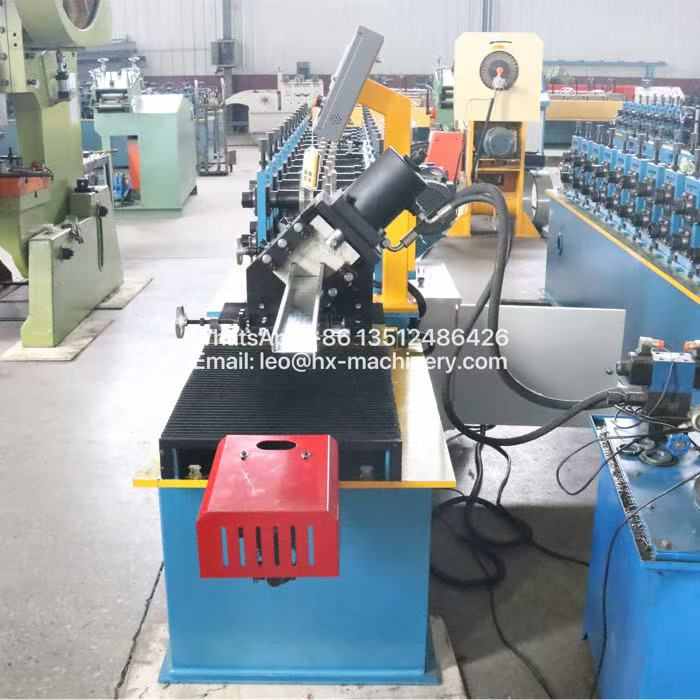

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

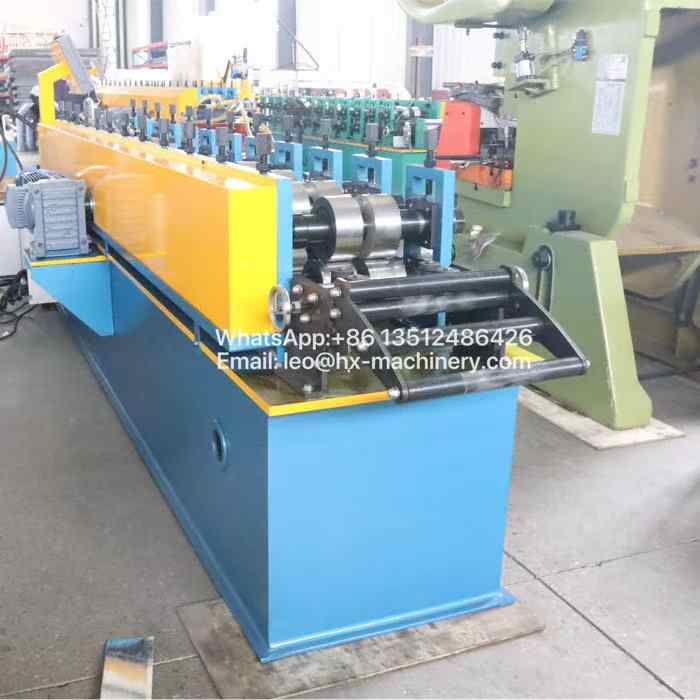

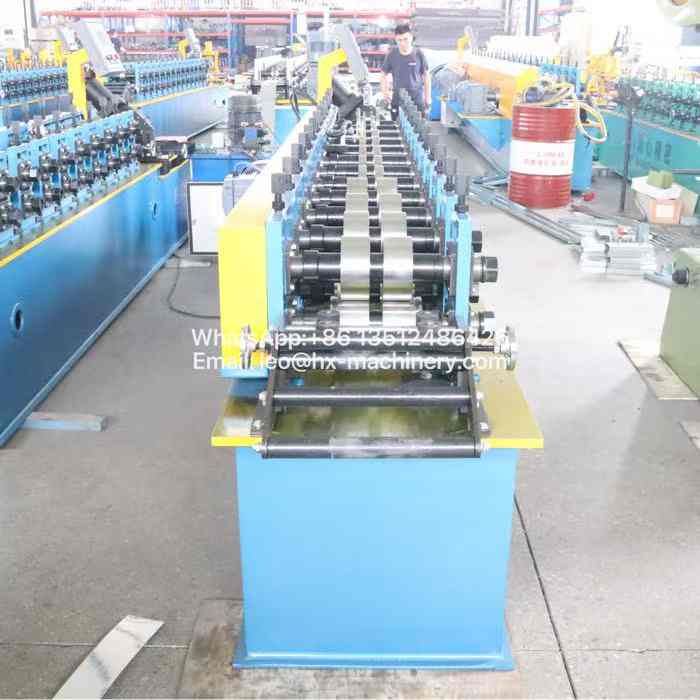

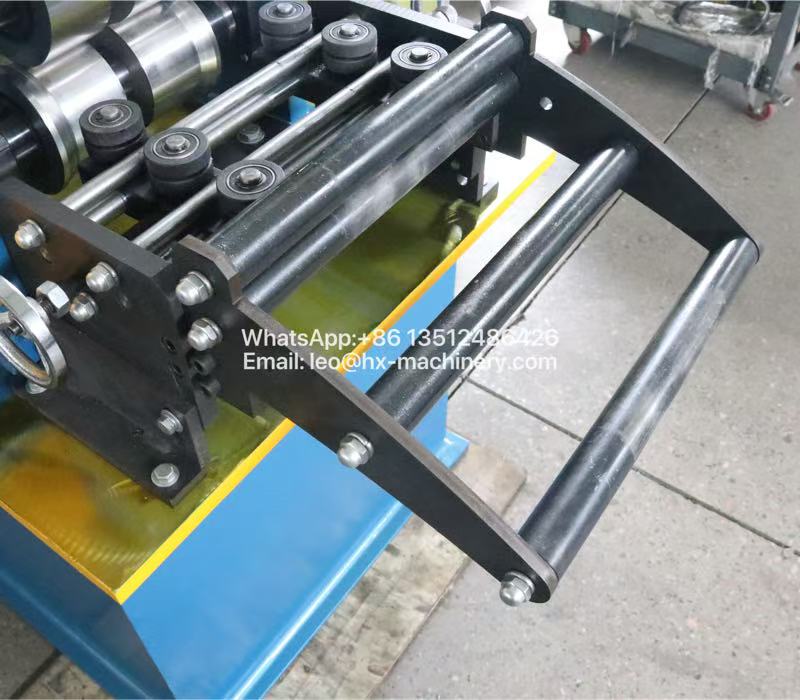

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

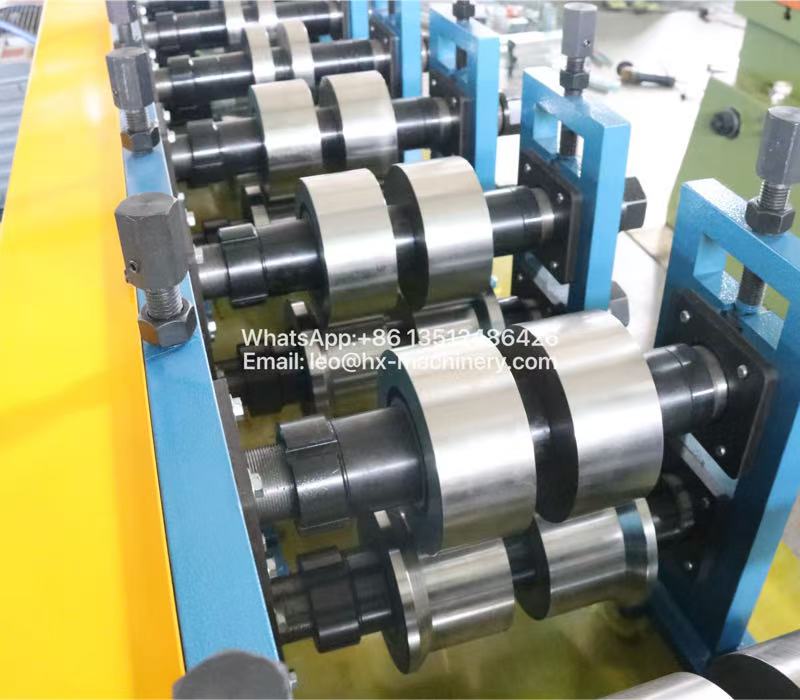

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

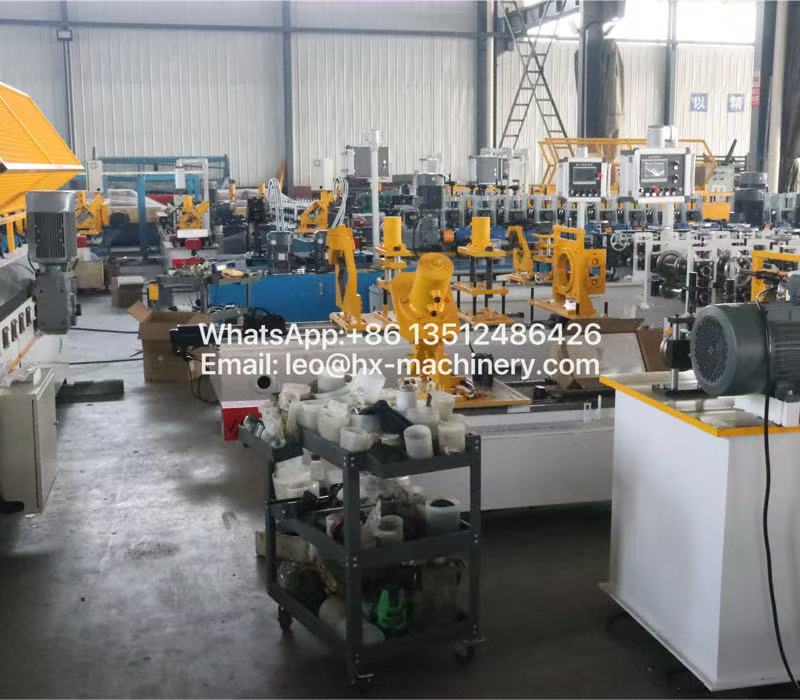

Clients Showing
