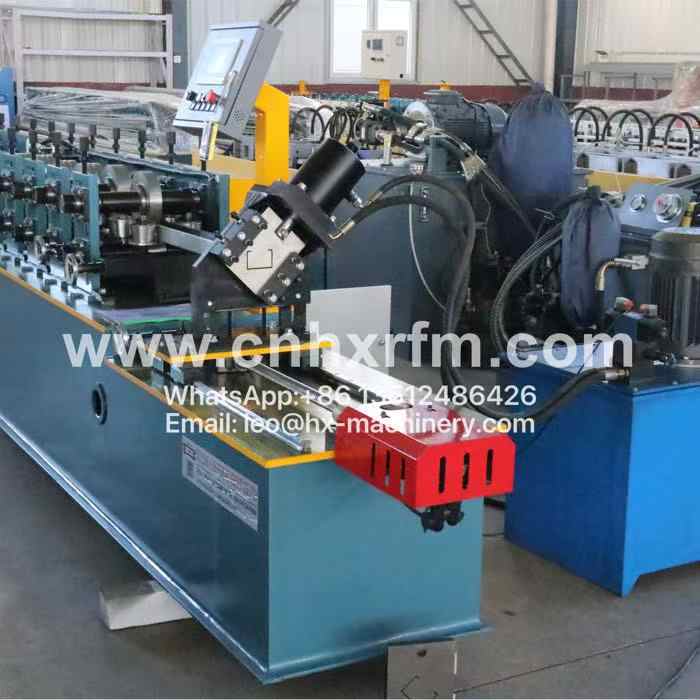

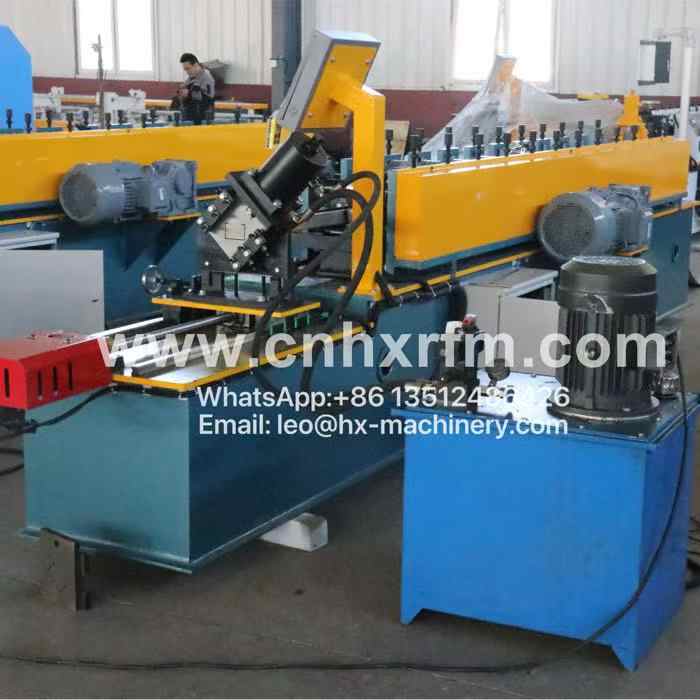

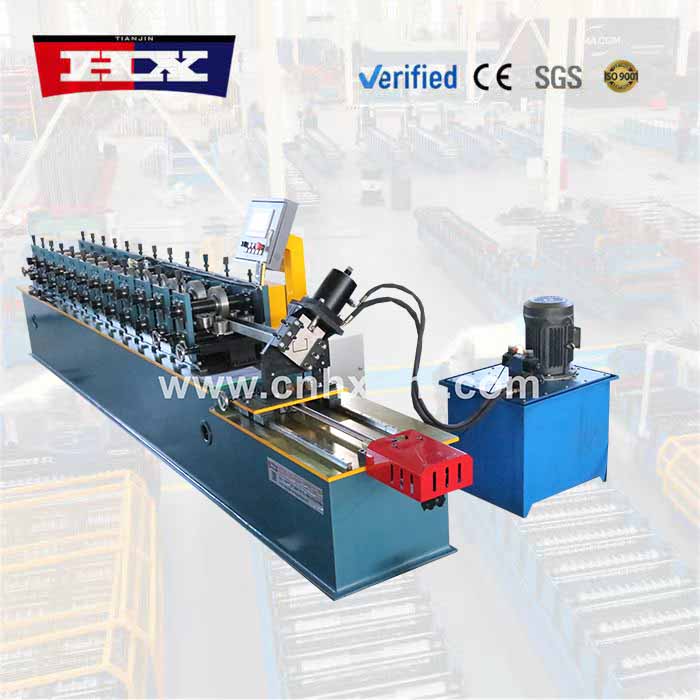

Model: HX-metal stud roll former
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
If you've been around steel framing long enough, you know that not every roll former handles the daily mix of gauges, lengths, and hole patterns without making you pay for it in setup time or scrap. That’s where our metal stud roll former changes the game—it’s built to keep you agile without sacrificing consistency.

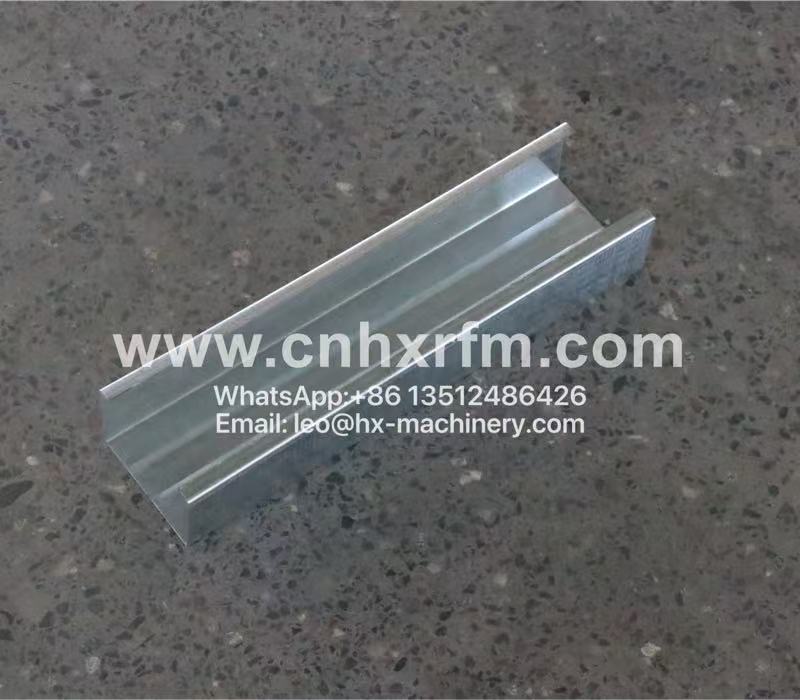

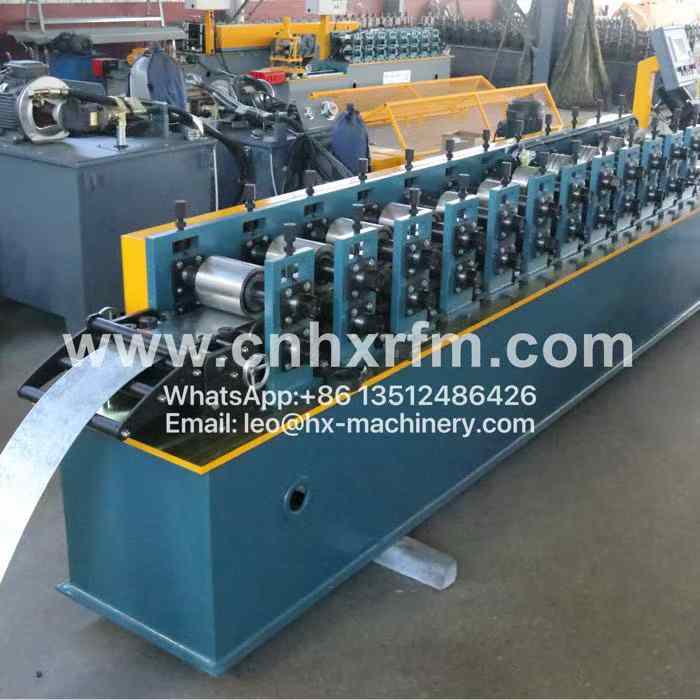

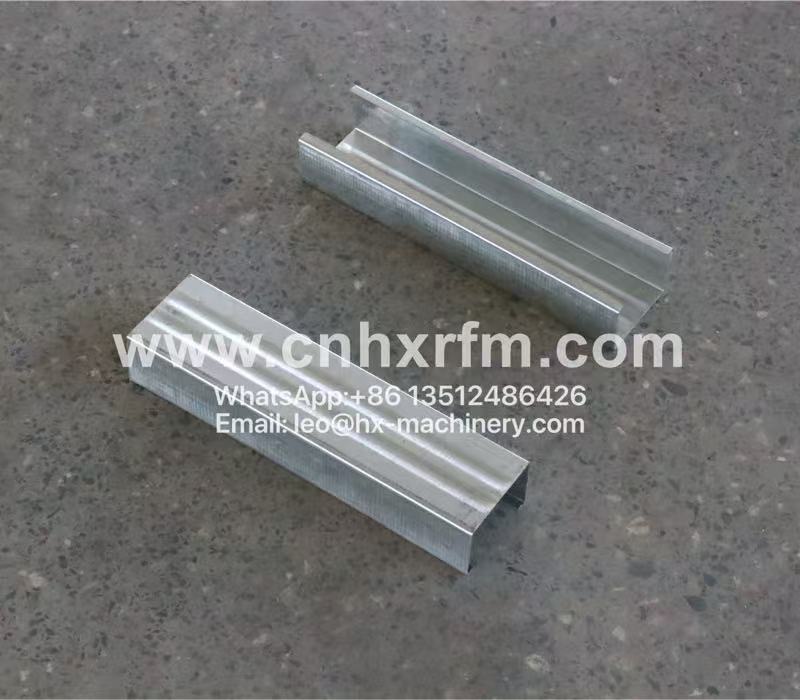

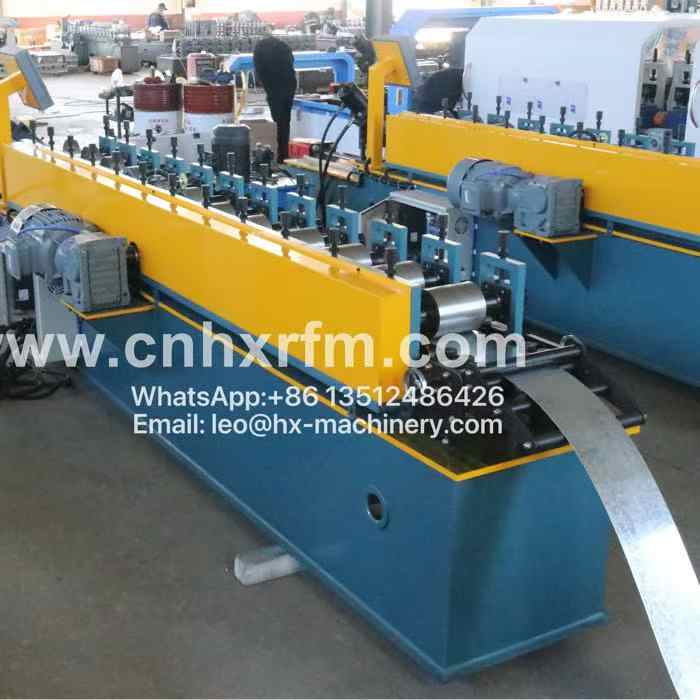

This metal stud roll former combines a rigid forming structure with an intelligent feed and cutting system that adapts to different material grades and thicknesses on the fly. The roll stations are precisely aligned to produce studs with straight flanges, square ends, and accurately positioned punch holes—details that make a real difference when your framing goes up fast. Changeovers are simplified through a stored recipe system, so you're not re-entering settings every time you switch profiles.
What shop managers consistently tell us about this metal stud roll former is that it handles the routine work without drama and the custom work without delay. It runs quietly, holds its settings well, and requires less frequent roller adjustment than many comparable machines. And when maintenance is needed, the design keeps key components easy to reach, reducing downtime. Backed by our responsive parts and support network, this metal stud roll former is a practical choice for shops that want dependable output without overcomplicating their operations.
Machine parameters
| No. |
Metal stud roll former |
|
| 1 |

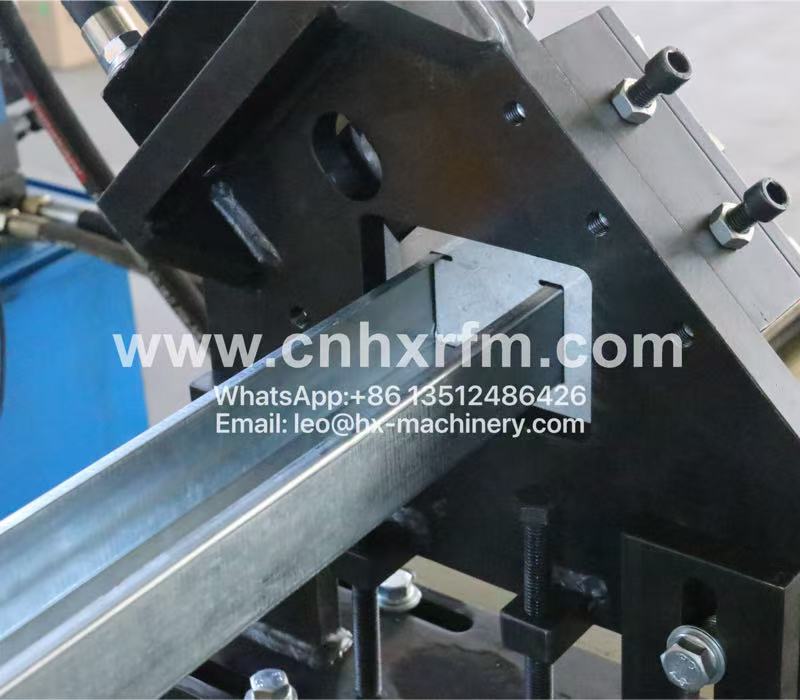

Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

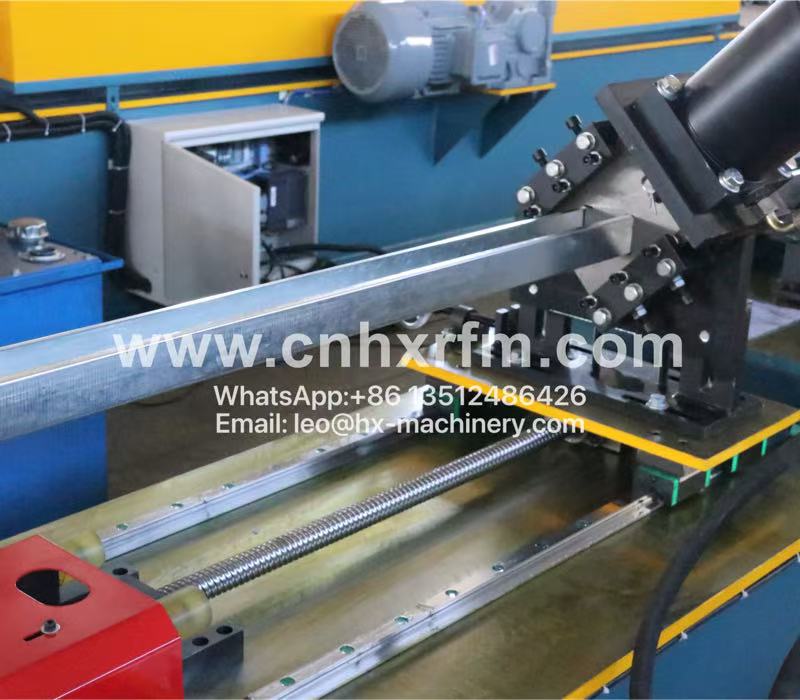

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

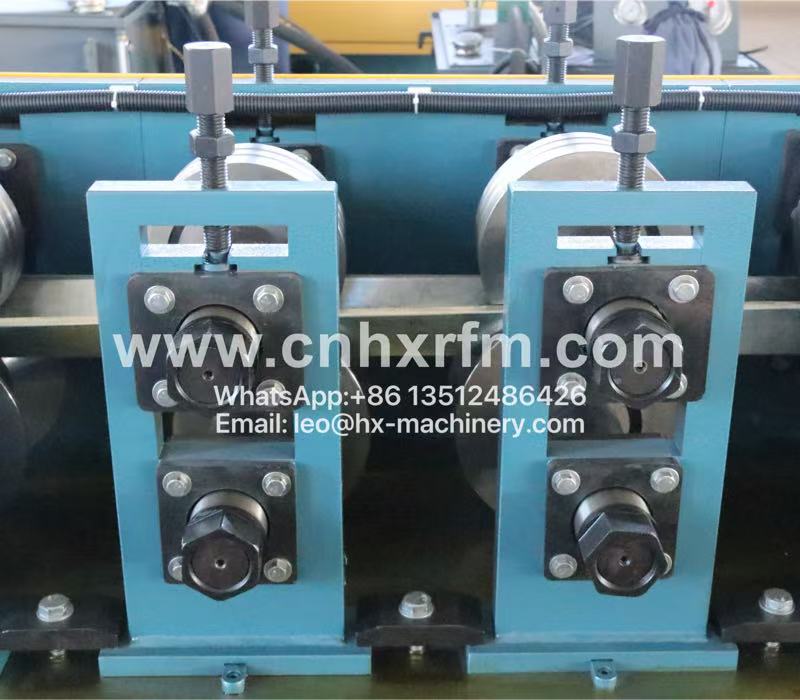

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
