Model: HX-metal stud framing
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

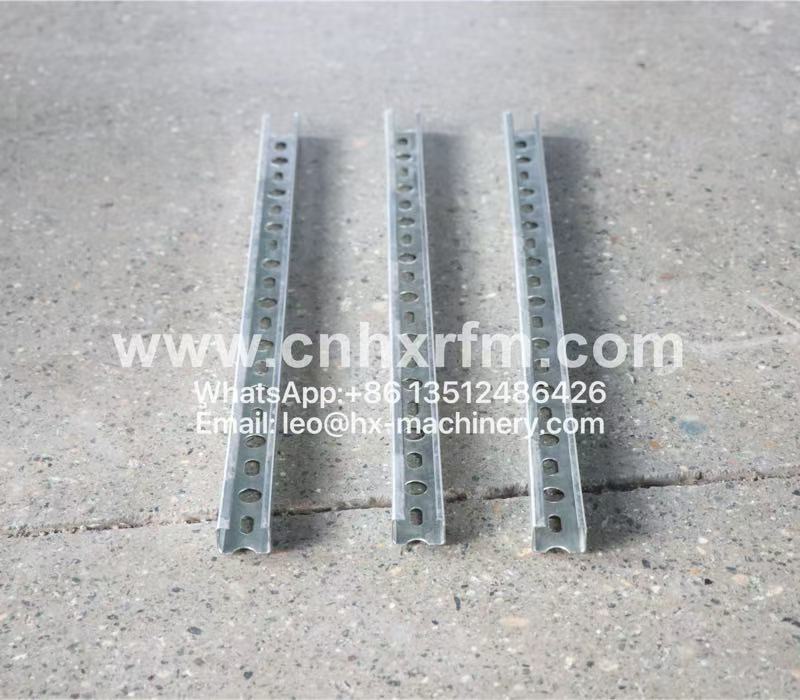

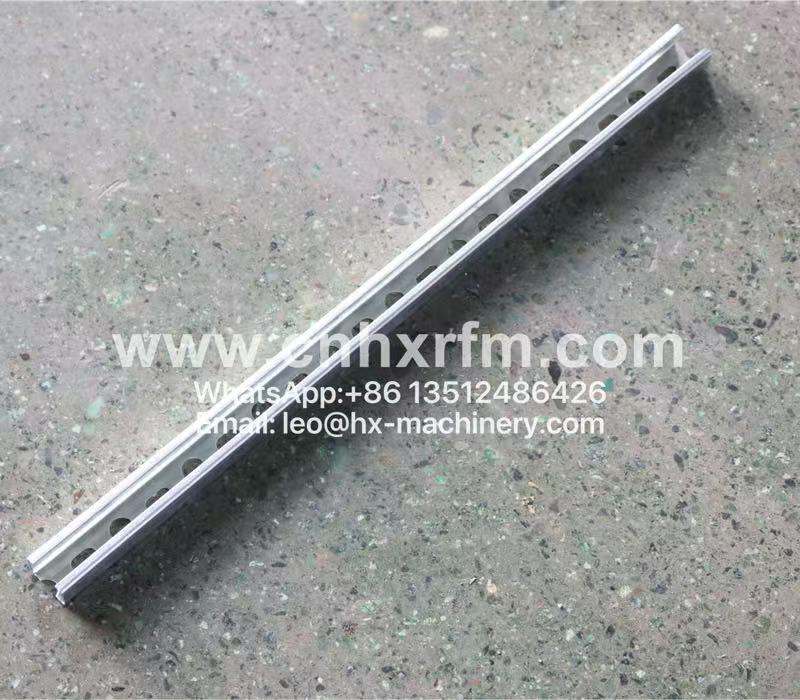

Walk into any modern commercial construction site, and you'll see the results of metal stud framing everywhere—partition walls, load-bearing structures, ceiling grids. Behind that efficiency is a machine that produces consistent, accurately punched studs at speed. That’s the purpose of our metal stud framing machine.

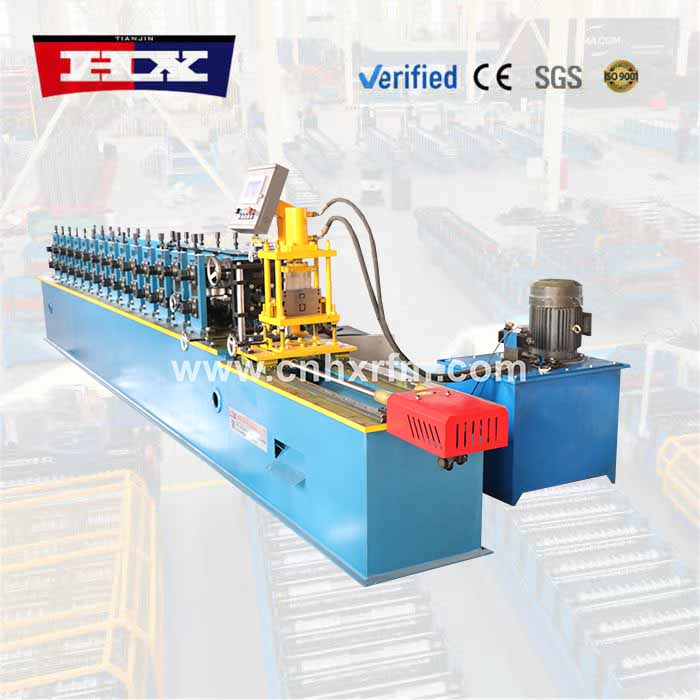

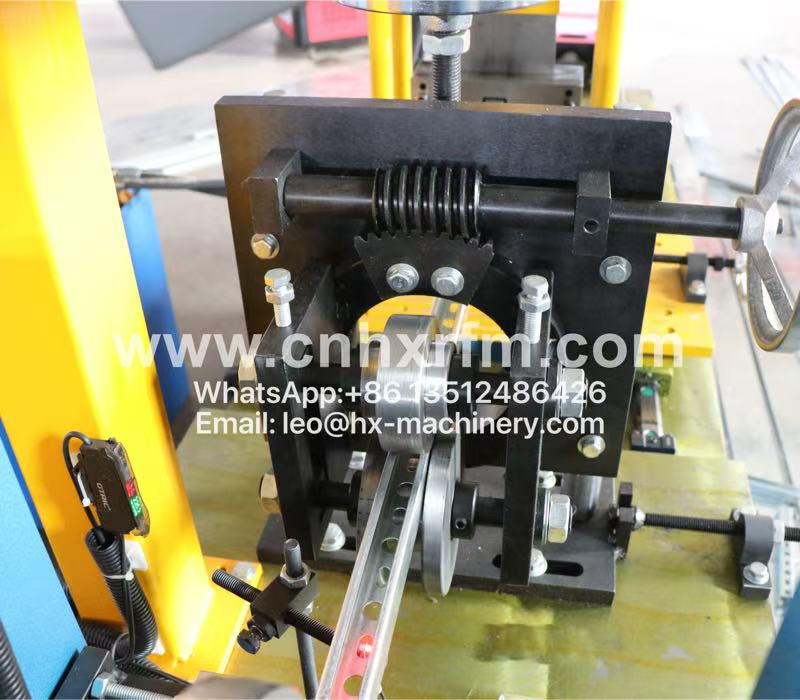

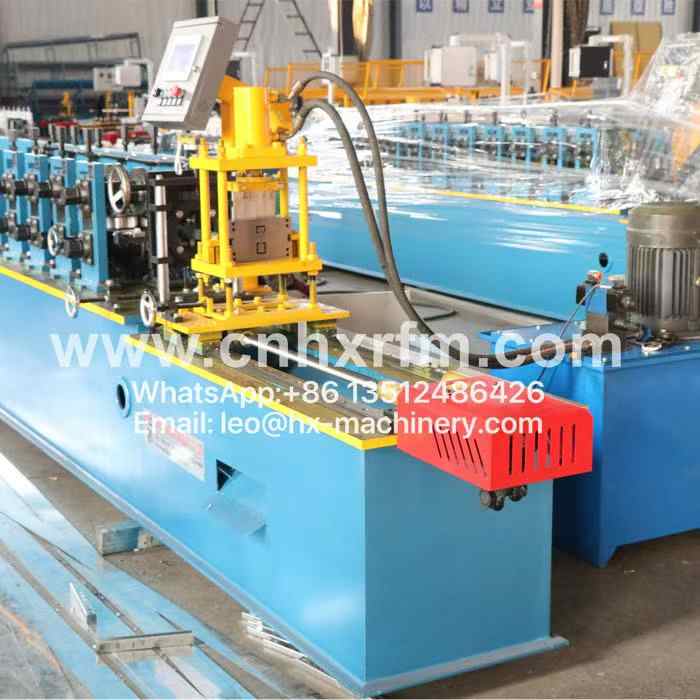

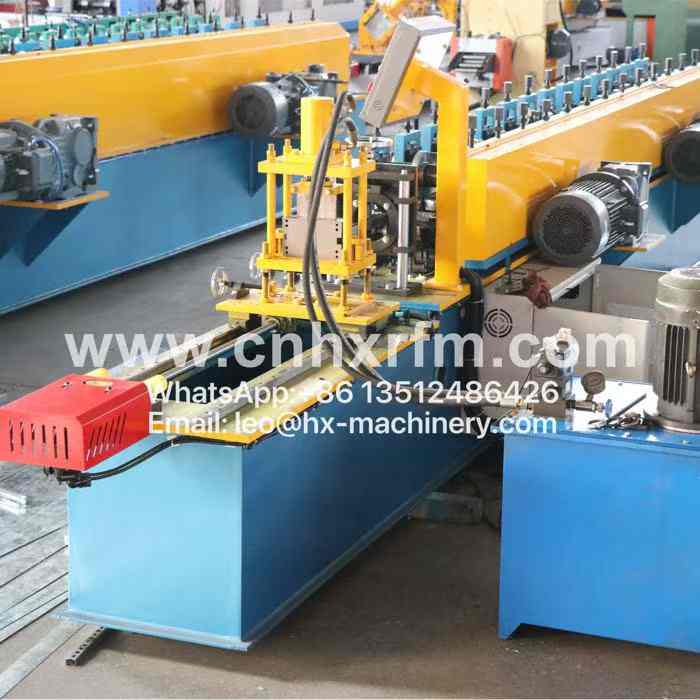

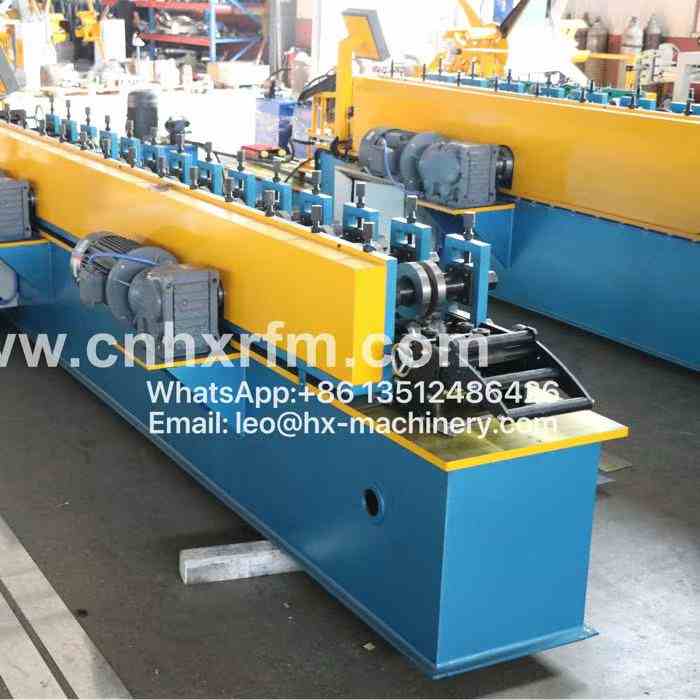

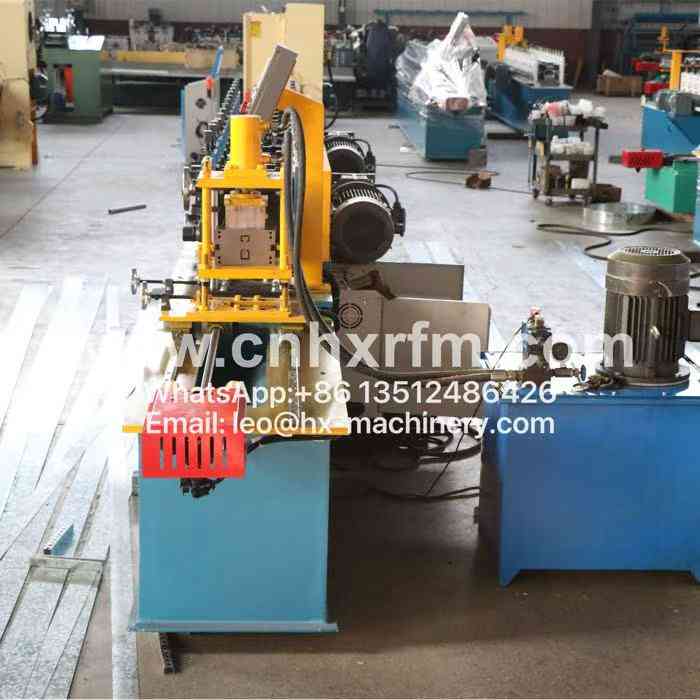

Our metal stud framing machine is built around a heavy-duty forming section that delivers straight studs with consistent web and flange dimensions. The integrated punching system places holes exactly where they're needed, and the cutting unit produces clean edges without distortion. It handles a variety of gauges and profile heights, with adjustable settings that let you switch between standard and custom specifications without extensive downtime.
What makes our metal stud framing machine valuable is its reliability in everyday operation. The controls are straightforward, the machine holds its settings well, and the maintenance routine is simple enough to fit into regular shift schedules. Customers also benefit from the practical support we provide—clear documentation, responsive troubleshooting, and fast parts access. With our metal stud framing machine, you get a machine that keeps your framing line moving, order after order, without demanding constant attention.
Machine parameters
| No. |
Metal stud framing machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

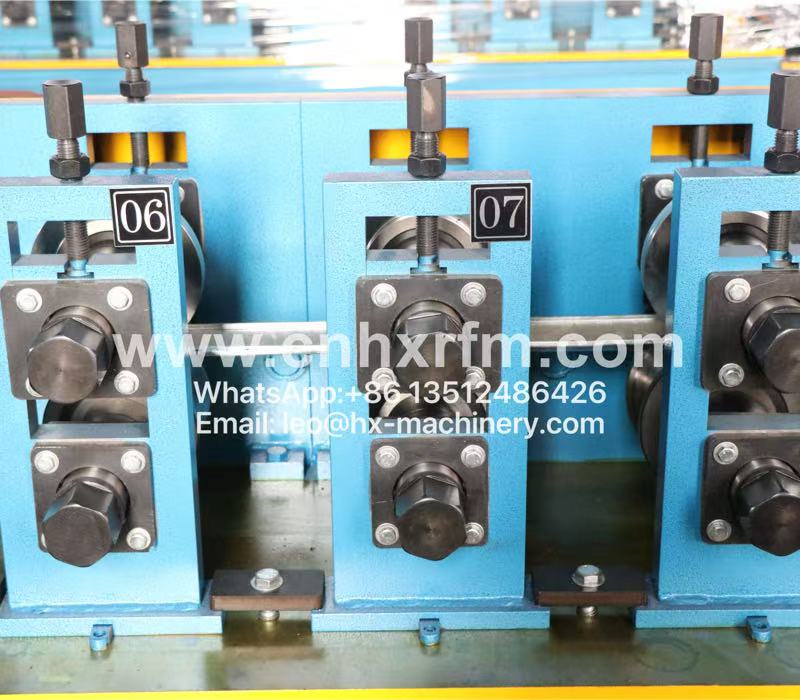

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

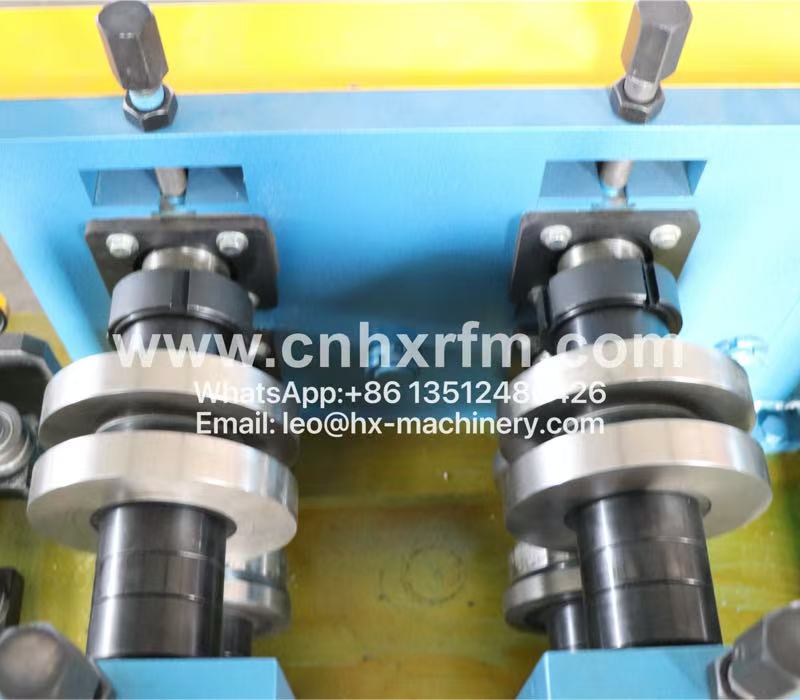

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
