Model: HX-steel stud
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

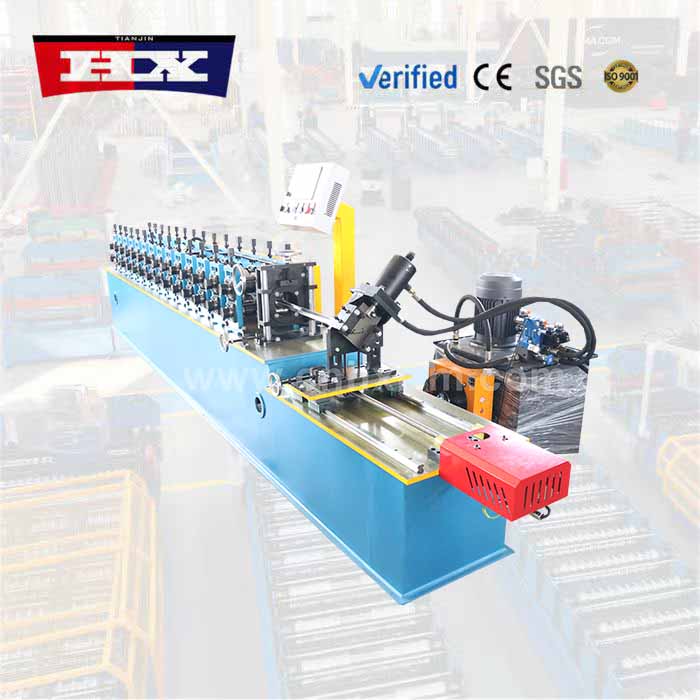

Setting up a reliable framing production line takes more than just individual machines—it requires a coordinated system that works together to deliver consistent output. That’s the idea behind our steel stud manufacturing equipment, which covers the entire process from coil handling to finished stacking, designed to keep your shop floor organized and productive.

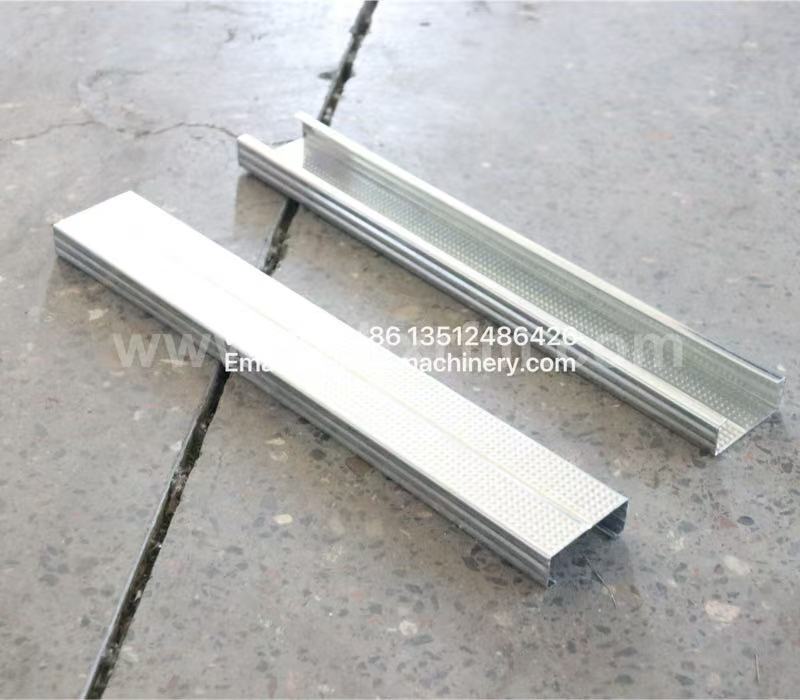

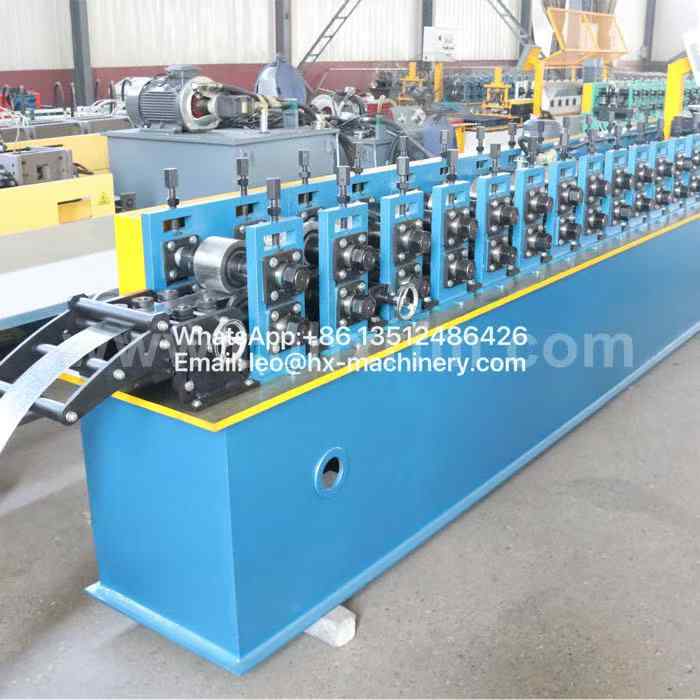

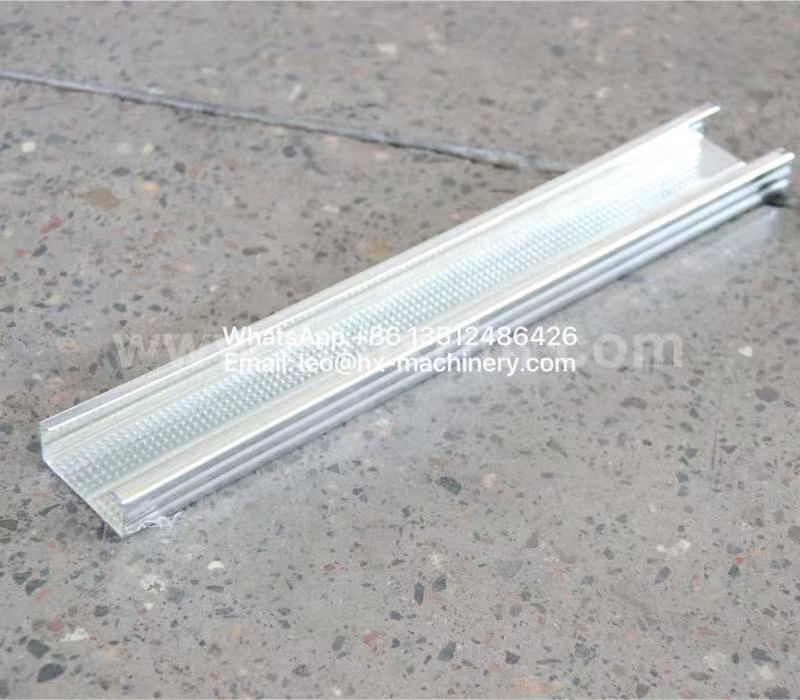

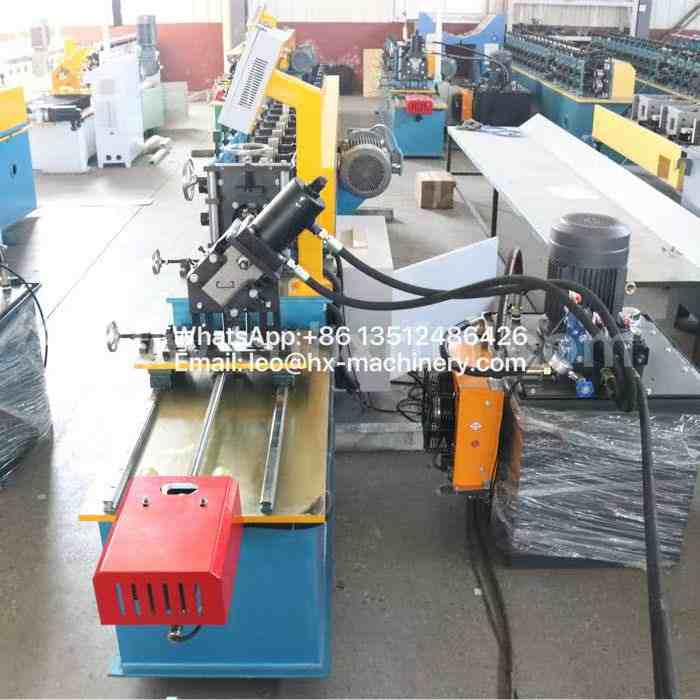

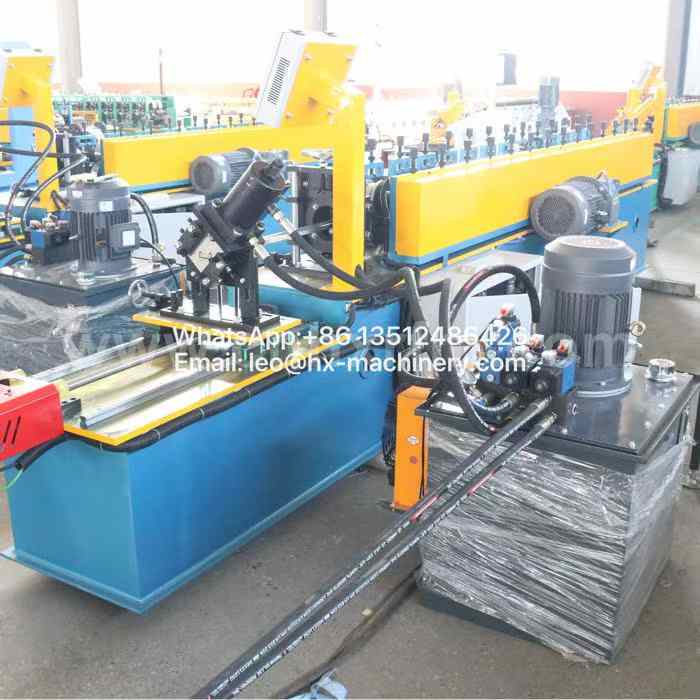

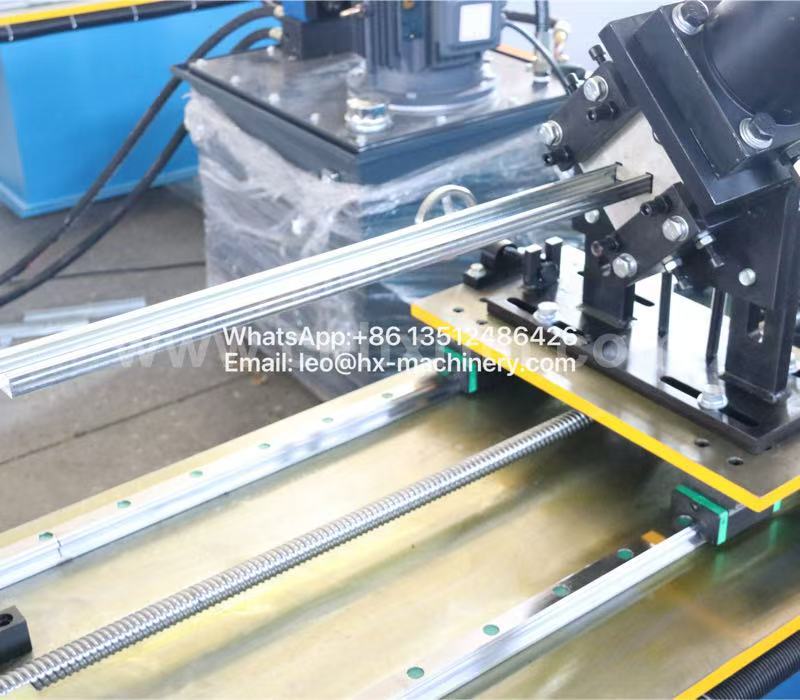

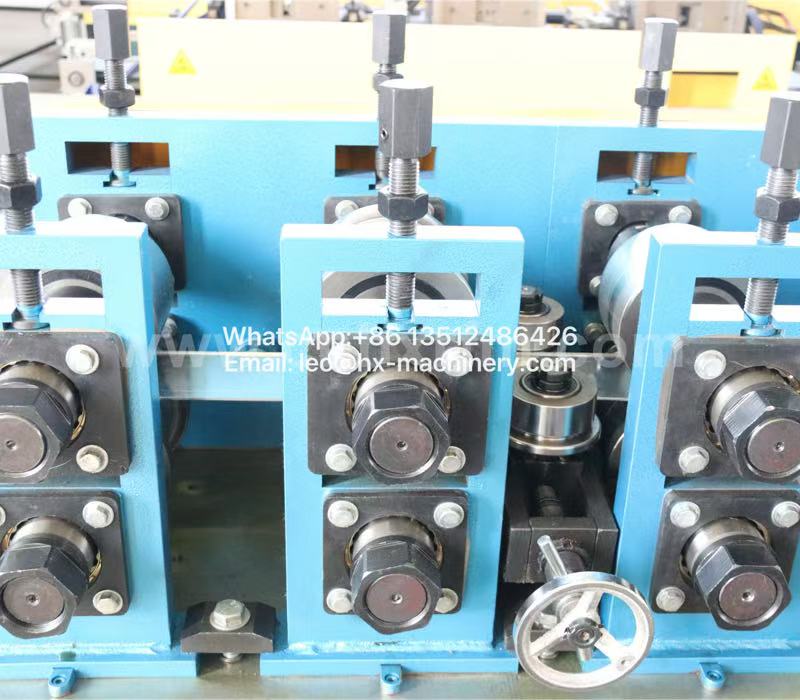

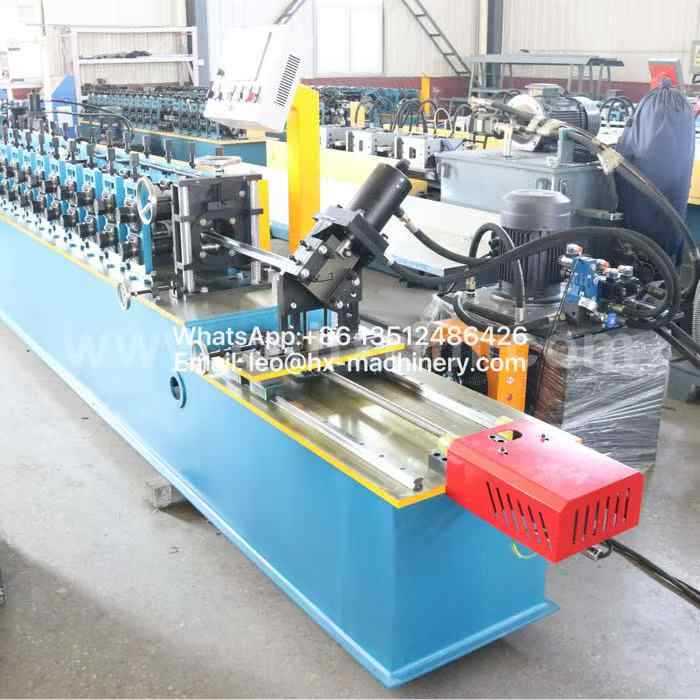

Our steel stud manufacturing equipment includes a decoiler, precision roll forming stations, an integrated punching system, and a synchronized cutting unit—all arranged to minimize material handling and reduce production bottlenecks. The forming section delivers consistent stud profiles with accurate web and flange dimensions, while the punching and cutting operations are timed to maintain steady flow. Whether you're producing standard drywall studs or custom framing components, this steel stud manufacturing equipment can be configured to match your specific profile requirements.
What sets this steel stud manufacturing equipment apart is its focus on smooth integration. The controls are centralized for easy operation, the machine settings are repeatable for consistent quality, and the modular design allows you to add components as your production needs grow. Users value the reliability of this system, supported by our responsive team that provides clear documentation, troubleshooting assistance, and fast parts service. With our steel stud manufacturing equipment, you're not just buying machines—you're building a production system that supports your framing business efficiently, day after day.
Machine parameters
| No. |
Steel stud manufacturing equipment |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

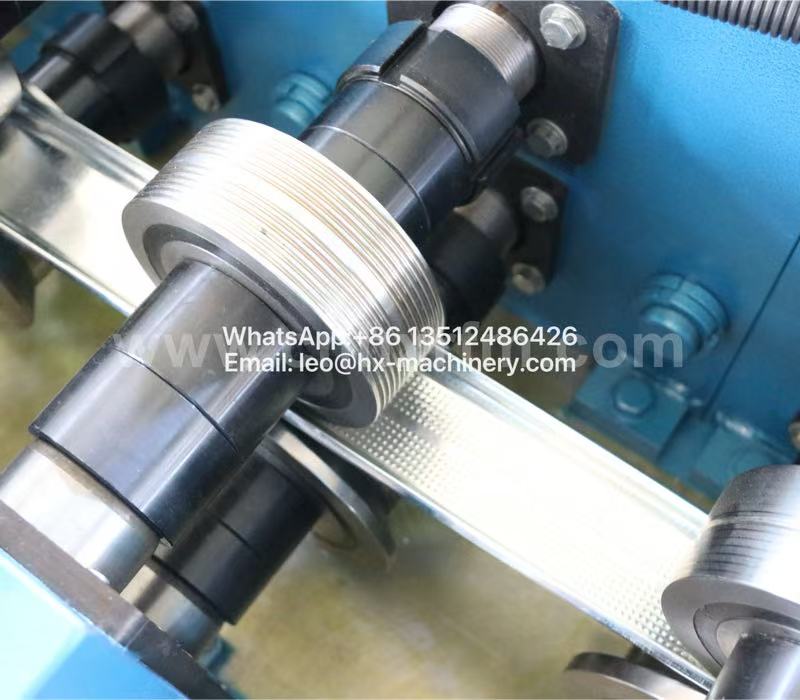

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
