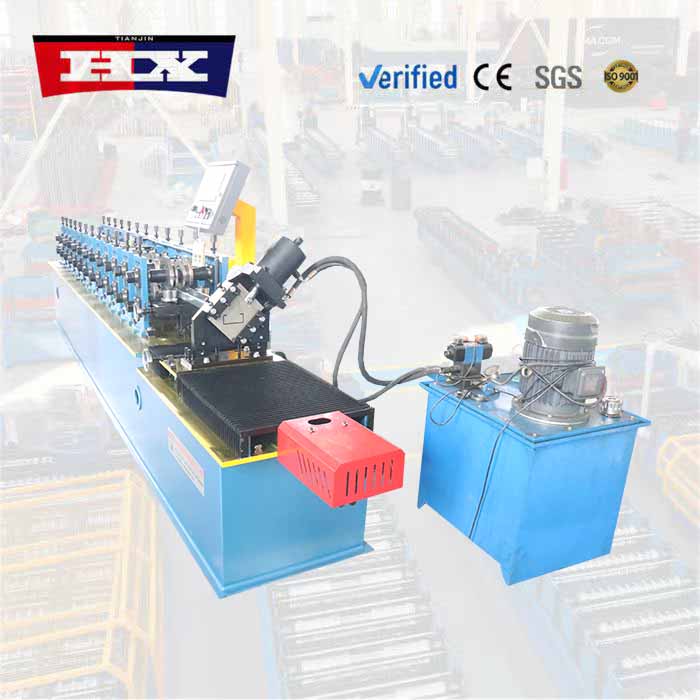

Model: HX-c channel making
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

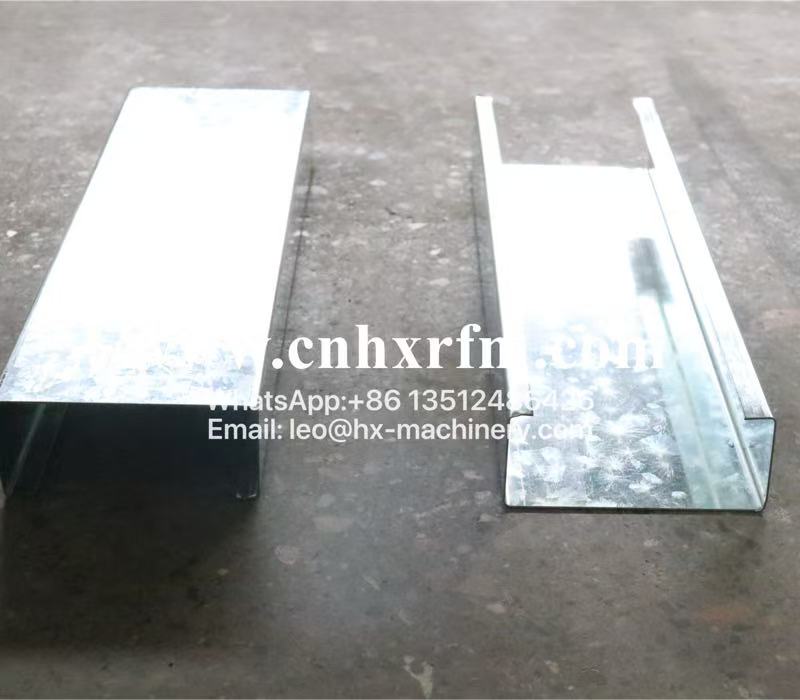

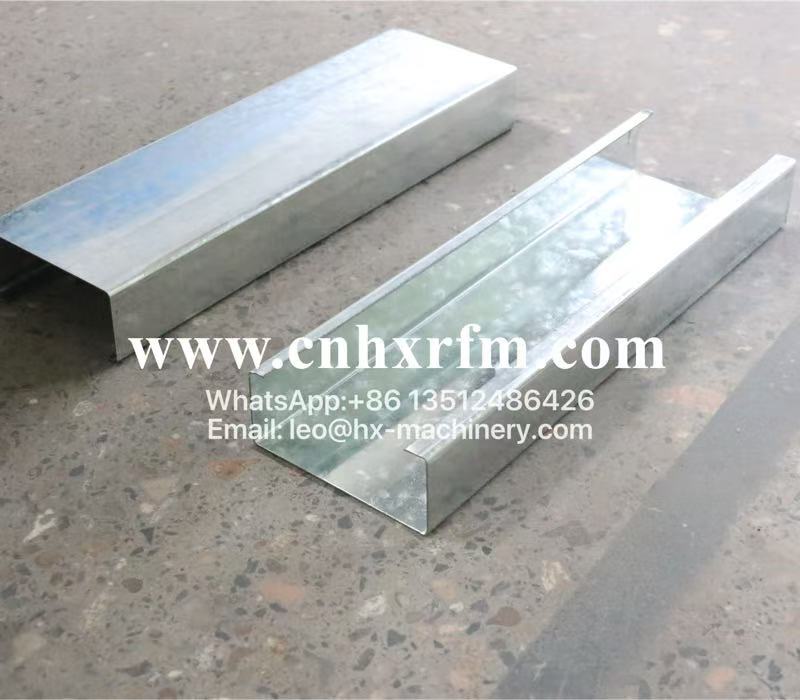

A C channel may be a simple shape, but achieving consistent dimensions across thousands of feet of material requires a machine that eliminates variables before they affect the profile. That’s the core idea behind our c channel making machine: minimize deviation, maximize repeatability.

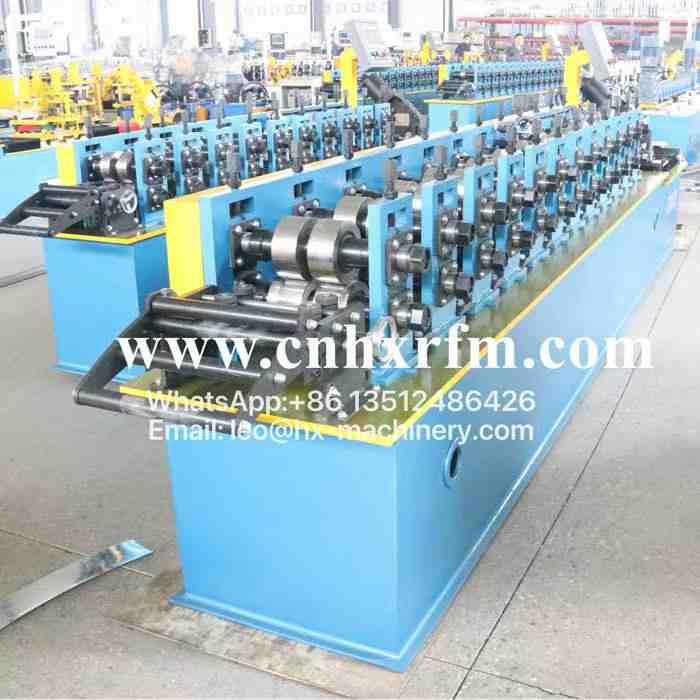

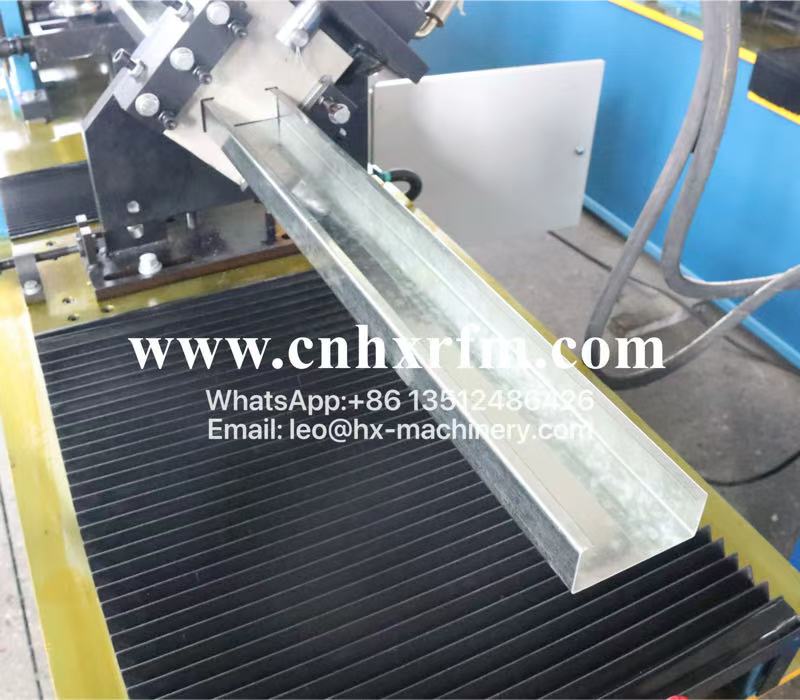

Our c channel making machine uses a staged forming process with closely controlled roller gaps to maintain uniform web and flange dimensions. The system handles various material grades and thicknesses, with quick adjustments that let you move between standard and custom sizes without interrupting workflow. The cutting unit is synchronized to produce clean, distortion-free ends, and the optional punching module adds precise holes or notches on the fly.
What users consistently report about our c channel making machine is its predictable performance. The machine holds settings well, requires minimal daily attention, and its simple design keeps maintenance tasks manageable. Our support team also provides clear setup instructions, troubleshooting guidance, and parts access when needed. Whether you're producing channels for framing, racking, or structural applications, our c channel making machine gives you consistent output, reduced scrap, and a machine that fits smoothly into your existing operations.
Machine parameters
| No. |
C channel making machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

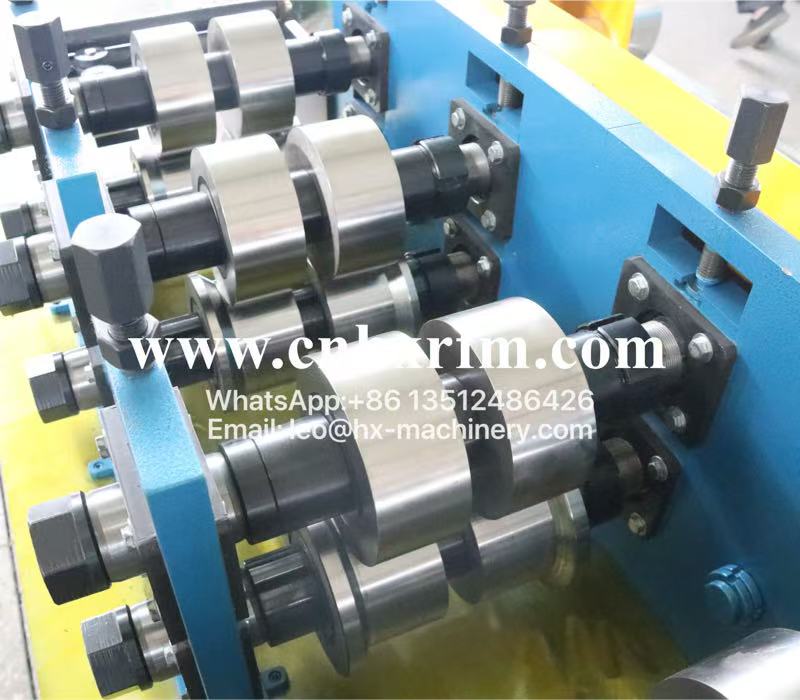

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
