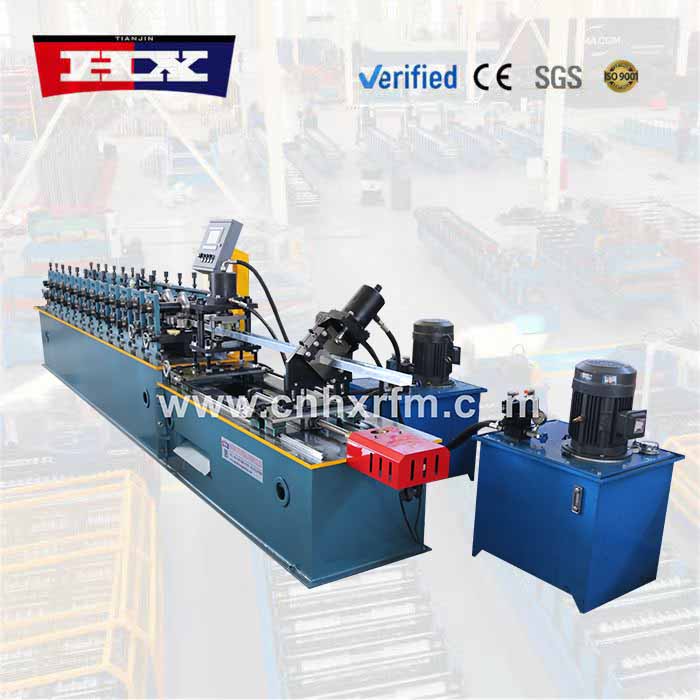

Model: HX-c profile roll forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

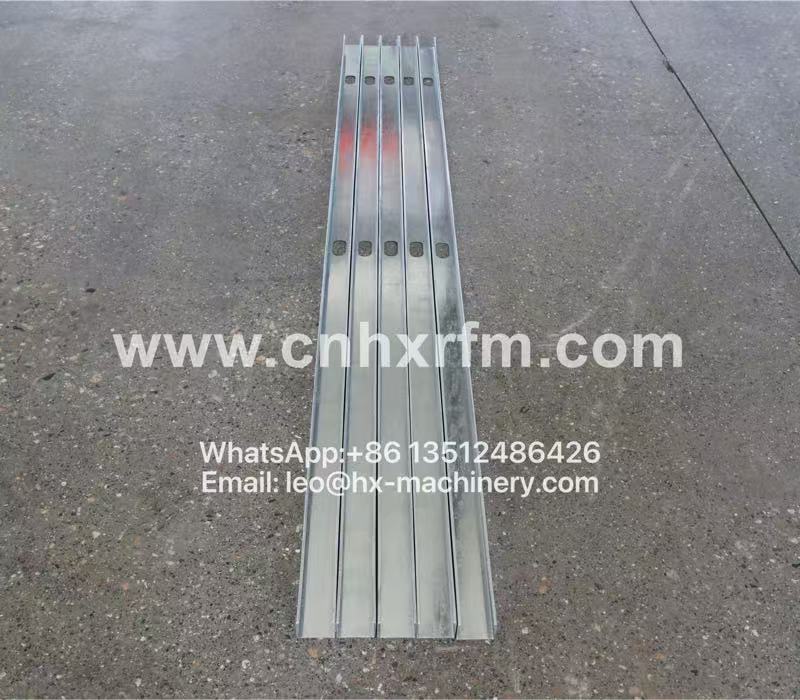

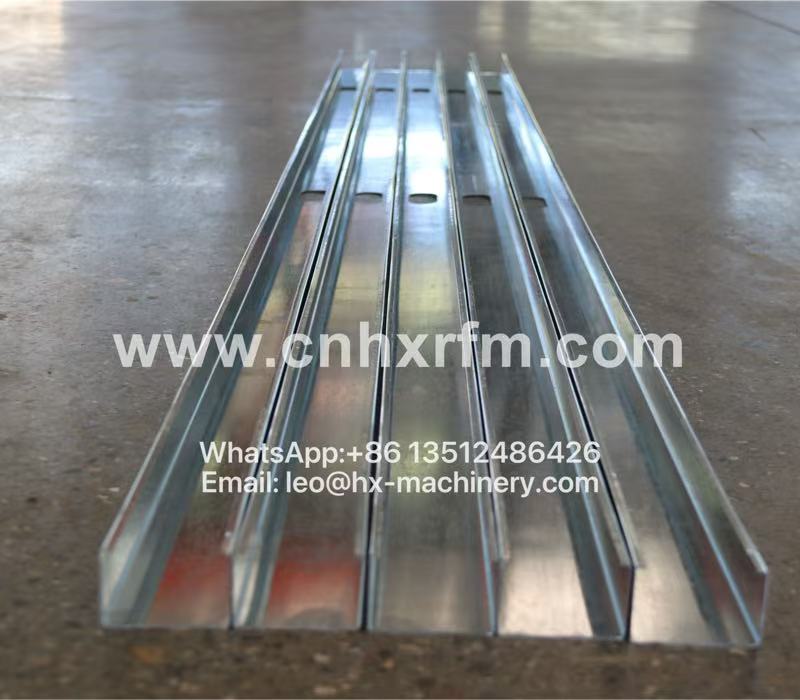

In structural steel applications, the C profile is more than just a shape—it's a specification that affects fit, load distribution, and assembly speed. That's why our c profile roll forming machine focuses on getting the details right, not just on keeping the line moving.

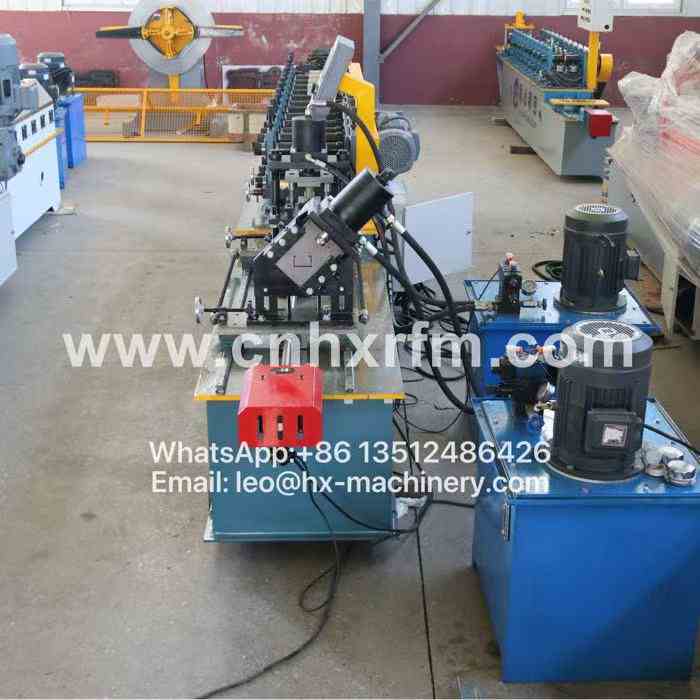

We've designed this c profile roll forming machine with a clear priority: forming accuracy that holds up over long runs. The frame is built to resist deflection, the rollers are hardened for extended life, and the cutting system is synchronized to produce clean ends without distortion. Whether you're forming channels for racking systems, framing members, or custom support structures, this c profile roll forming machine handles varying thicknesses and widths with minimal adjustment time.
Where this c profile roll forming machine truly earns its place on the shop floor is in day-to-day reliability. Operators find the controls straightforward, changeovers manageable, and maintenance predictable—factors that keep production schedules on track. And if something does need attention, our support team is organized to respond quickly, with practical documentation and available parts that reduce downtime. For shops that need a c profile roll forming machine they can count on without constant oversight, this machine delivers exactly that.
Machine parameters
| No. |
C profile roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

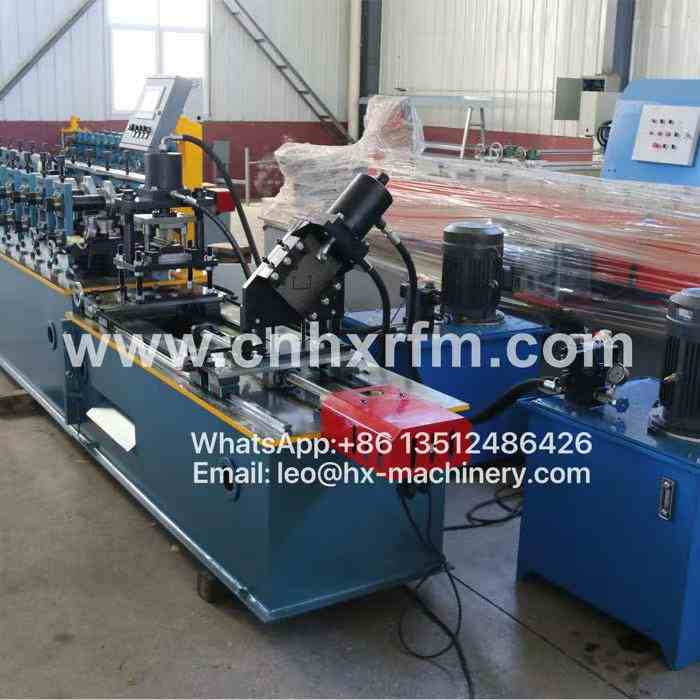

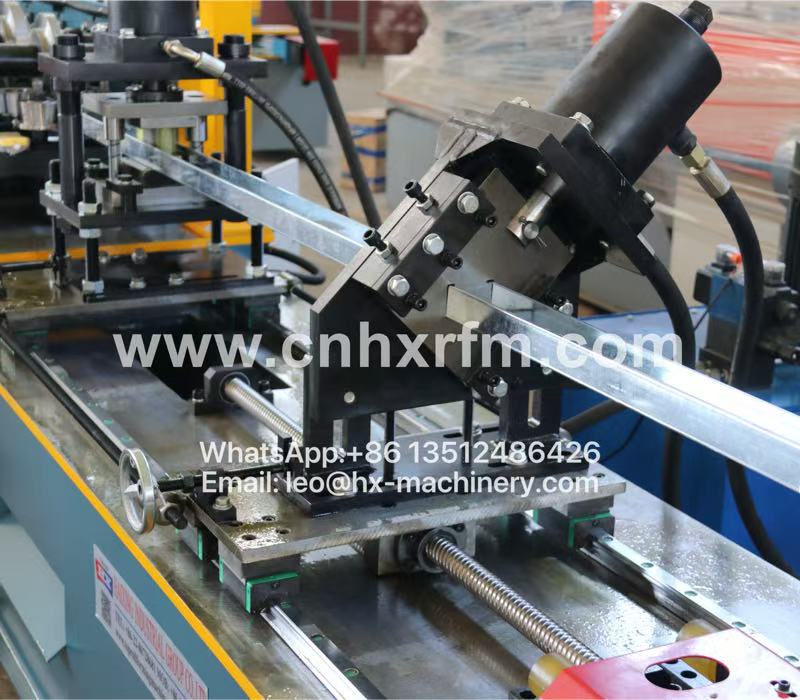

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

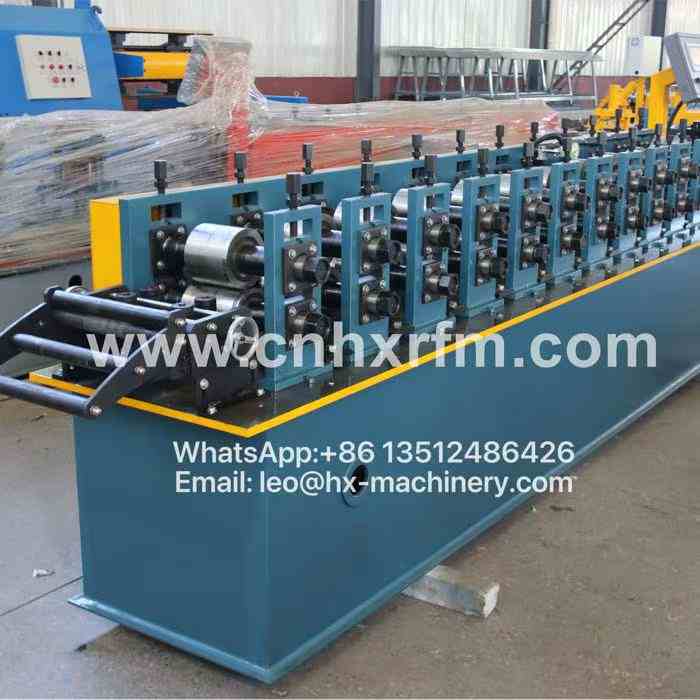

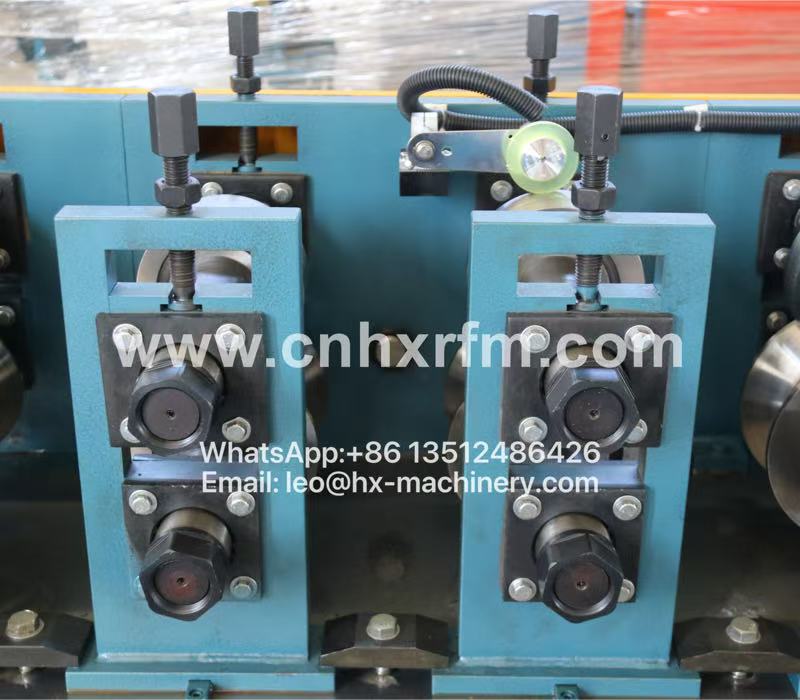

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

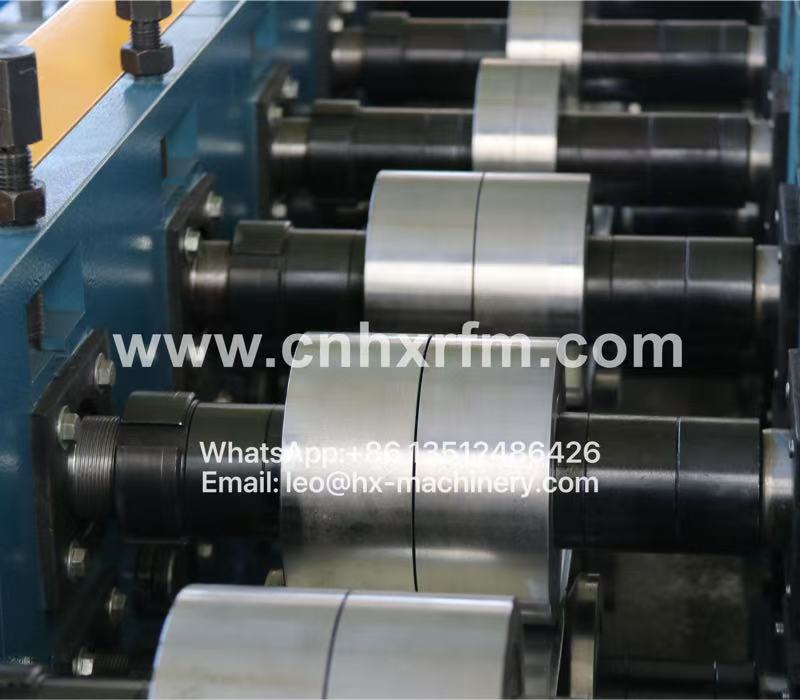

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
