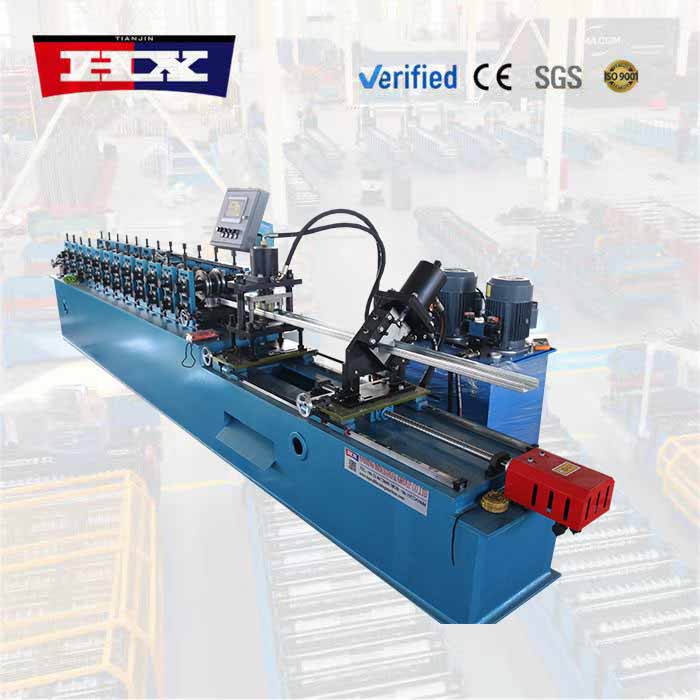

Model: HX-steel stud making machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

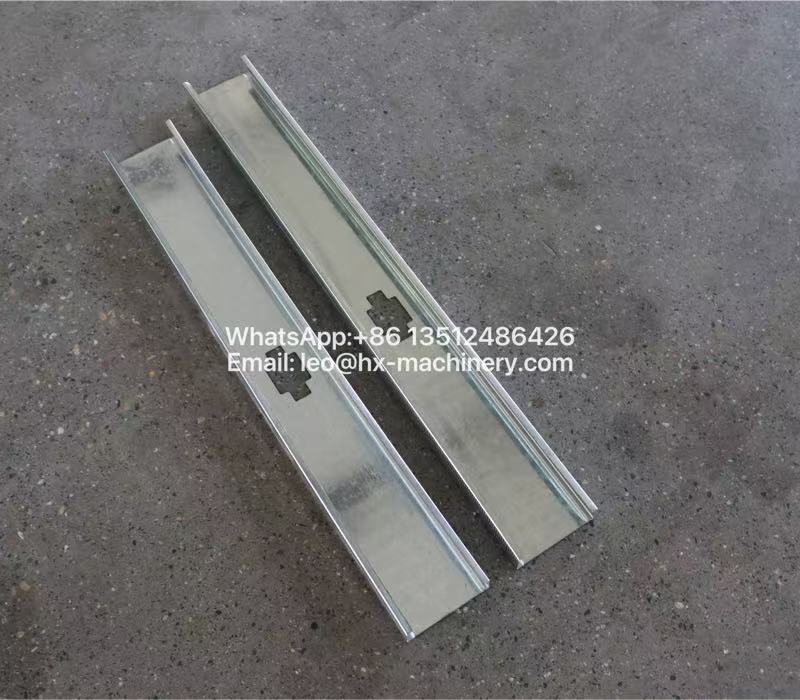

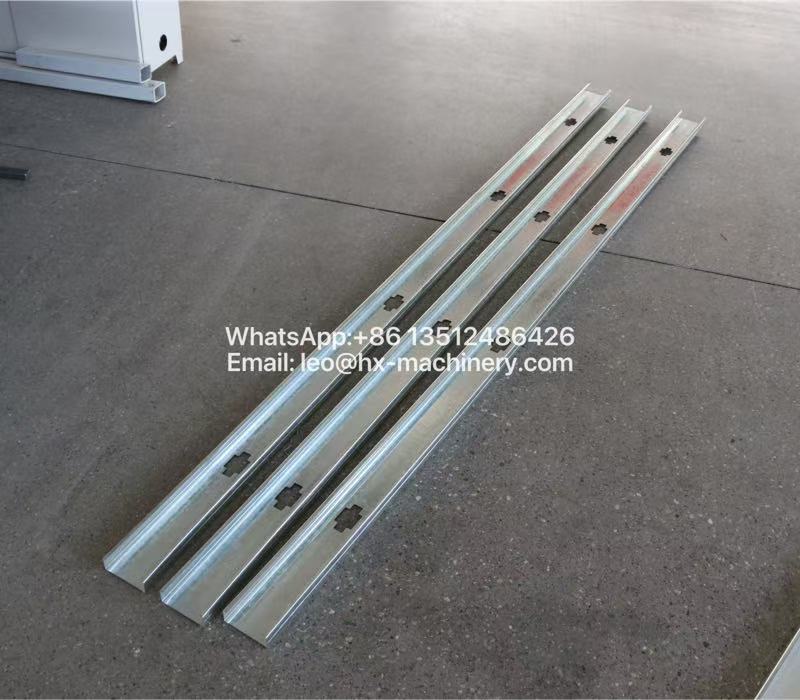

At Haixing Industrial Group Co., Ltd. , we understand that light steel framing demands precision, consistency, and speed. That’s exactly what our steel stud making machine delivers—a reliable workhorse for manufacturers producing drywall studs, track channels, and structural framing components for commercial and residential construction.

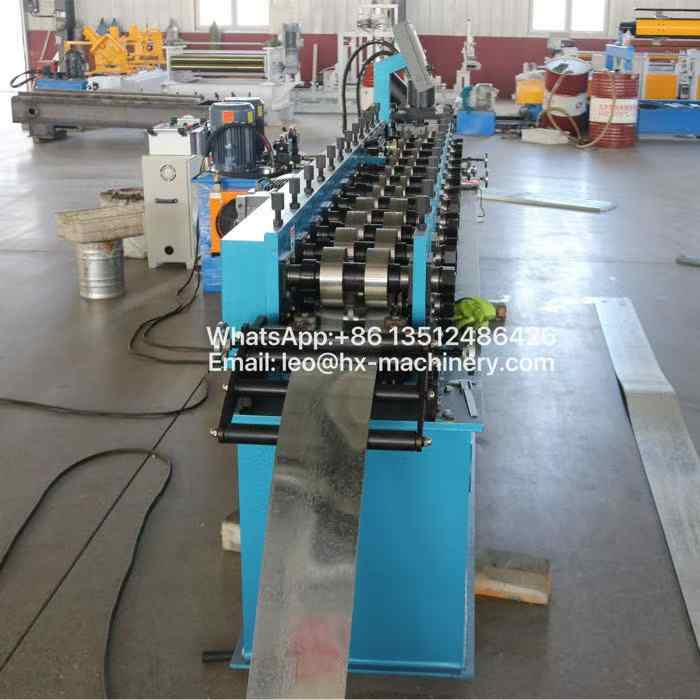

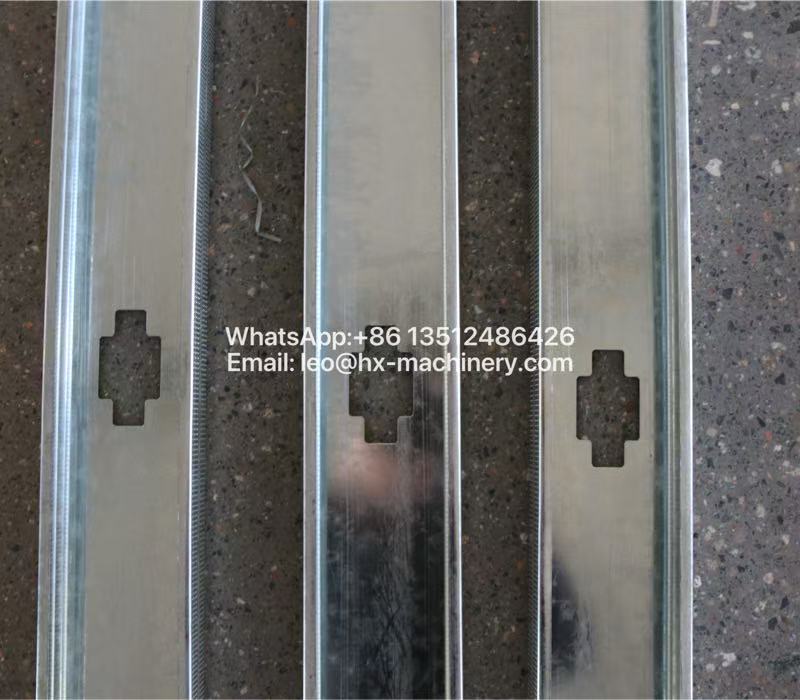

Our steel stud making machine is engineered with heavy-duty roll forming stands, precision tooling, and an integrated punching and cutting system that produces clean, burr-free profiles with accurate hole spacing and consistent web dimensions. It accommodates a wide range of stud heights, flange widths, and material gauges, giving you the flexibility to meet diverse project specifications without lengthy changeover times.
What truly sets our steel stud making machine apart is its proven reliability in real-world production environments. Customers across North America, Europe, and the Middle East consistently report reduced scrap rates, faster production cycles, and lower maintenance downtime. Backed by our responsive technical support, comprehensive documentation, and global spare parts availability, our steel stud making machine is more than equipment—it’s a long-term partner in your success.
Machine parameters
| No. |
Steel stud making machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

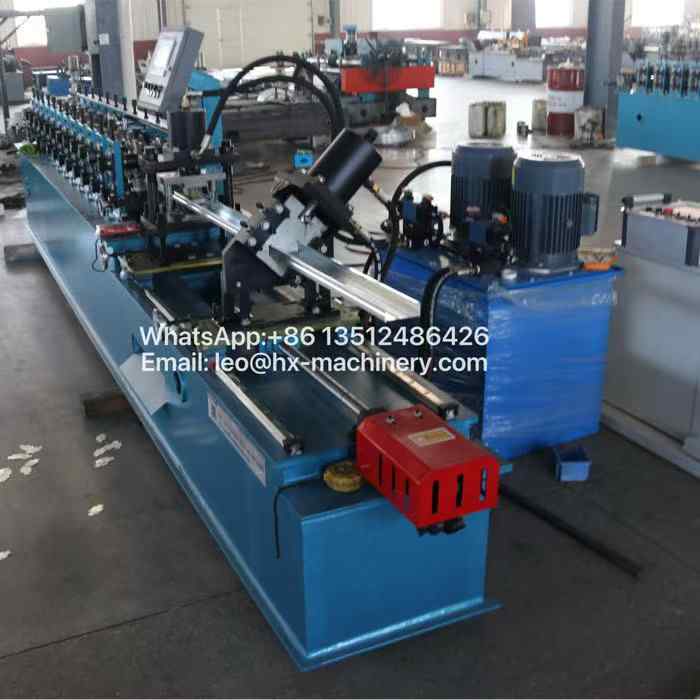

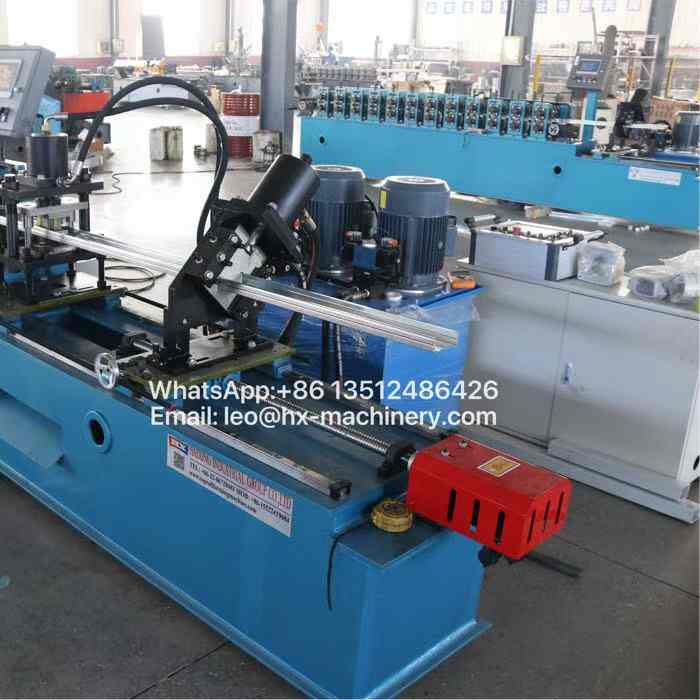

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

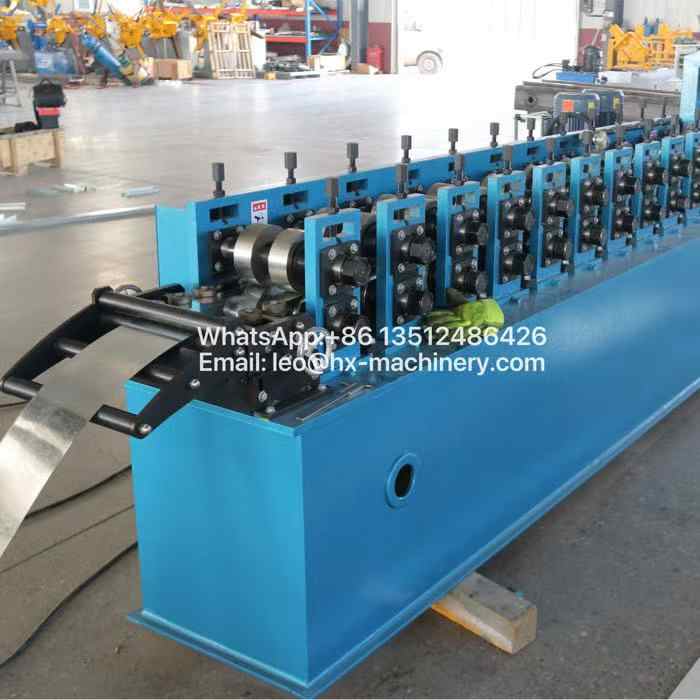

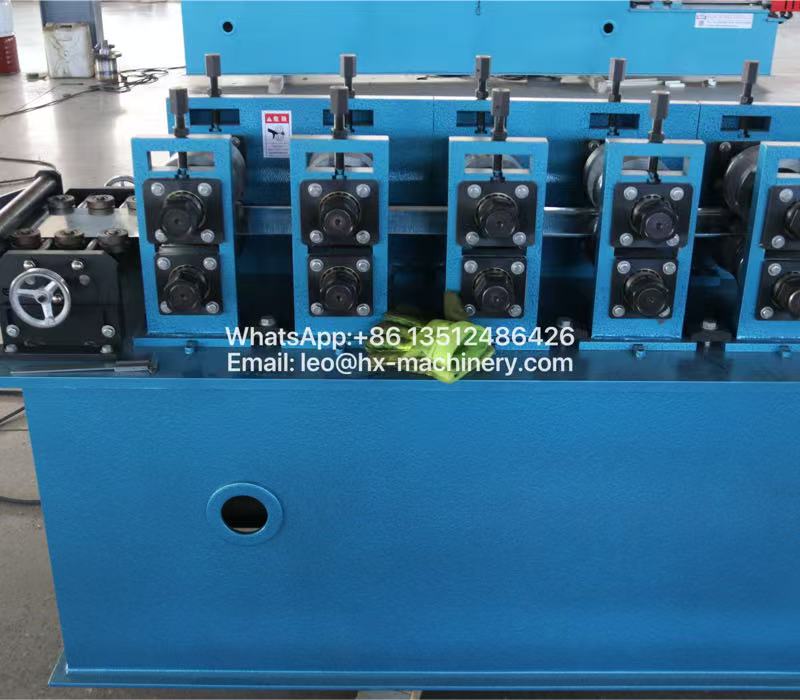

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

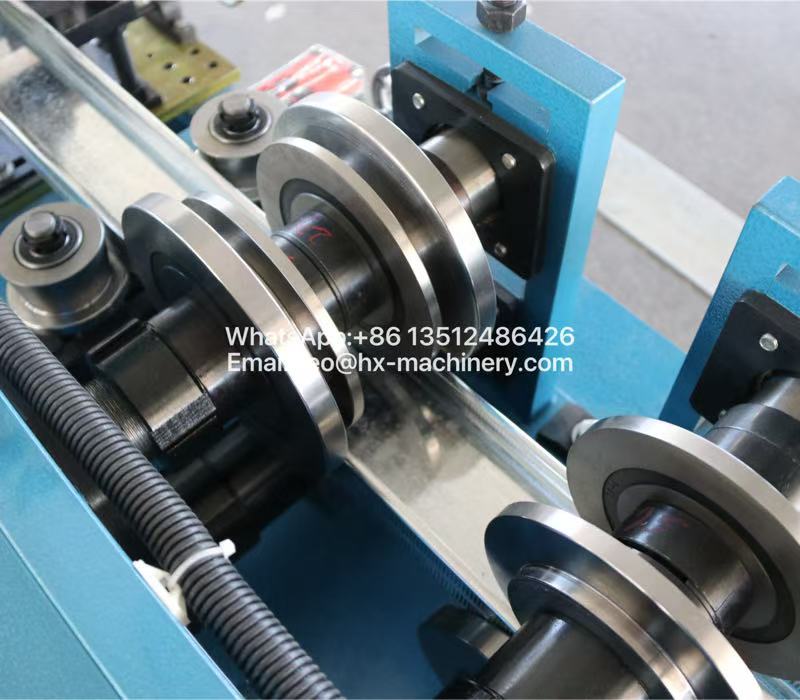

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
