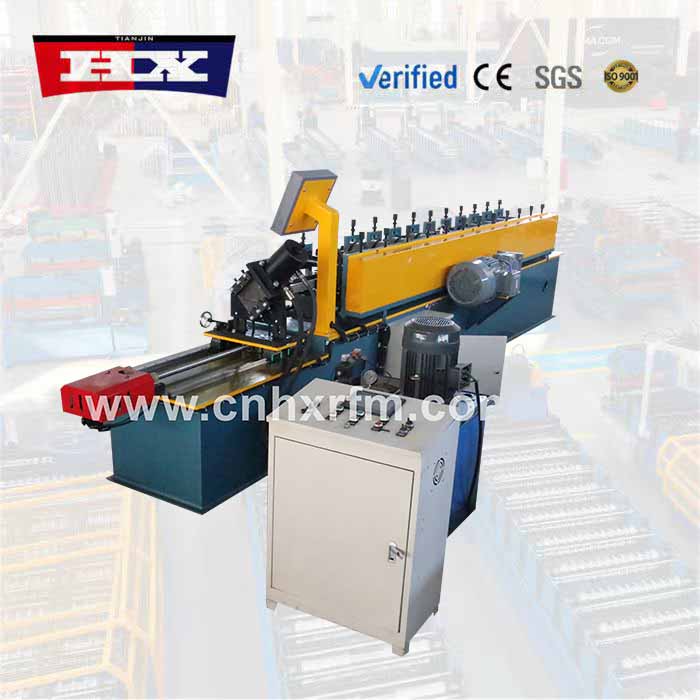

Model: HX-metal stud machine for sale
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

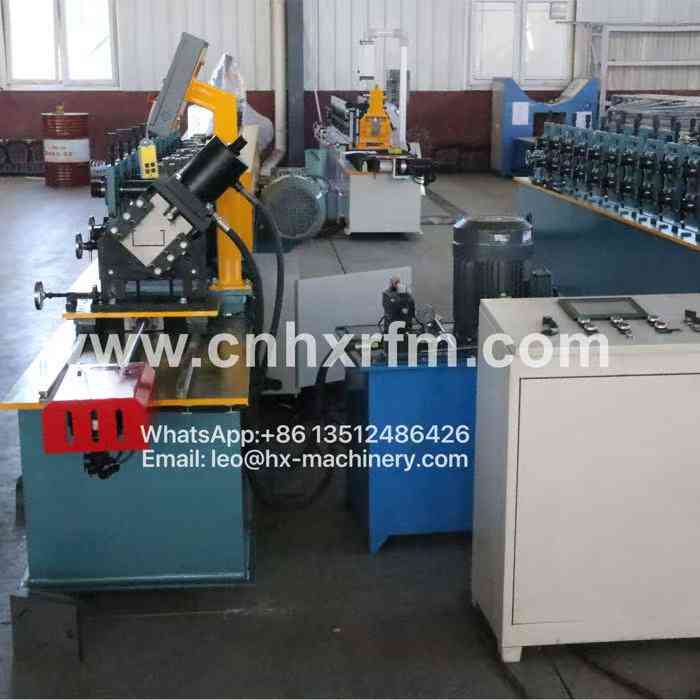

In today’s construction environment, having the right equipment on the floor can mean the difference between meeting deadlines and falling behind. Right now, we have a metal stud machine for sale that offers a straightforward way to improve your framing output without a lengthy procurement cycle.

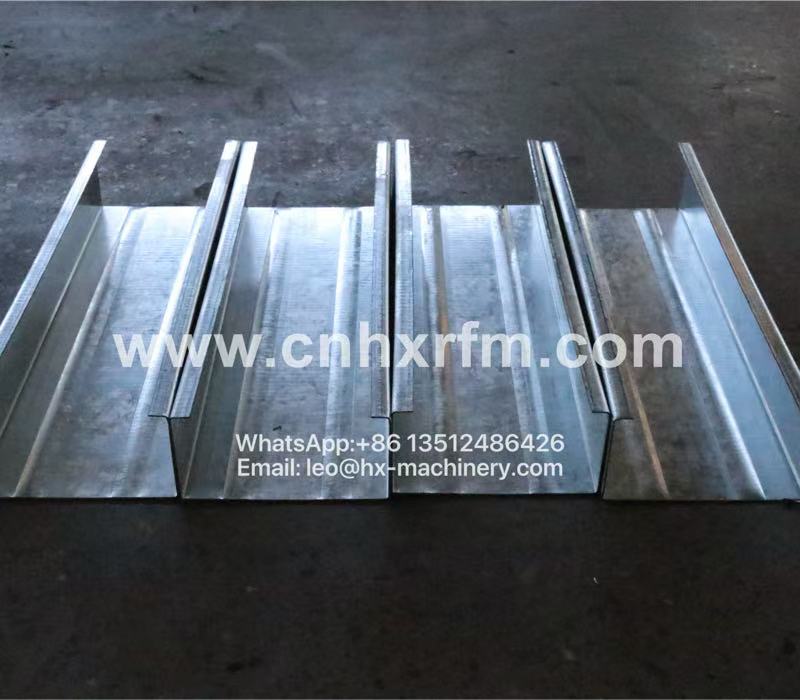

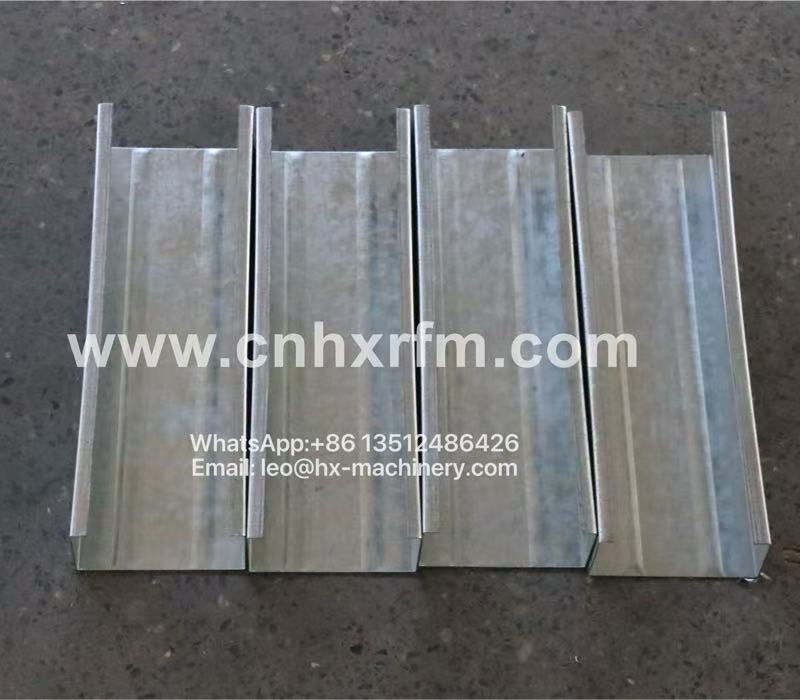

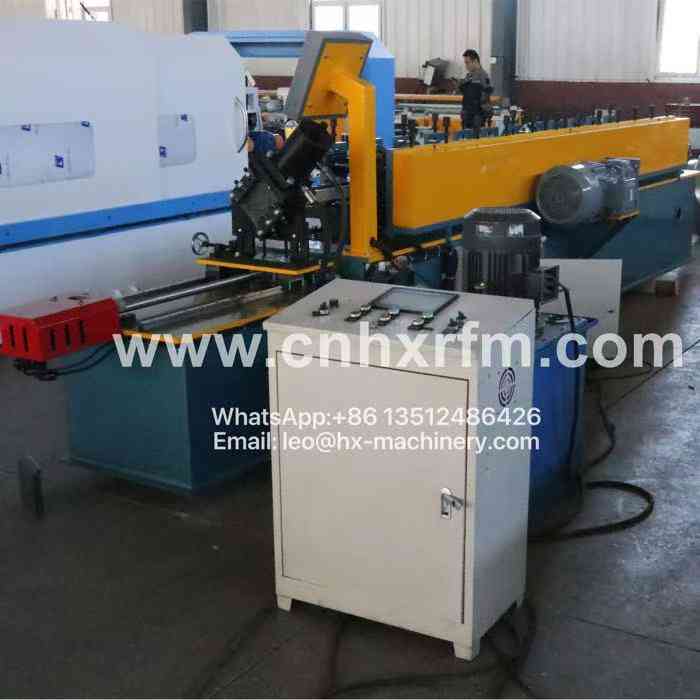

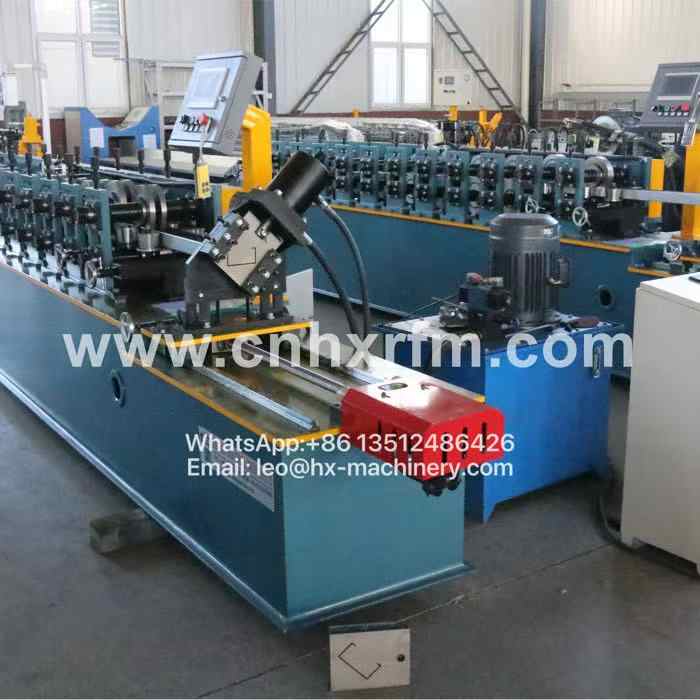

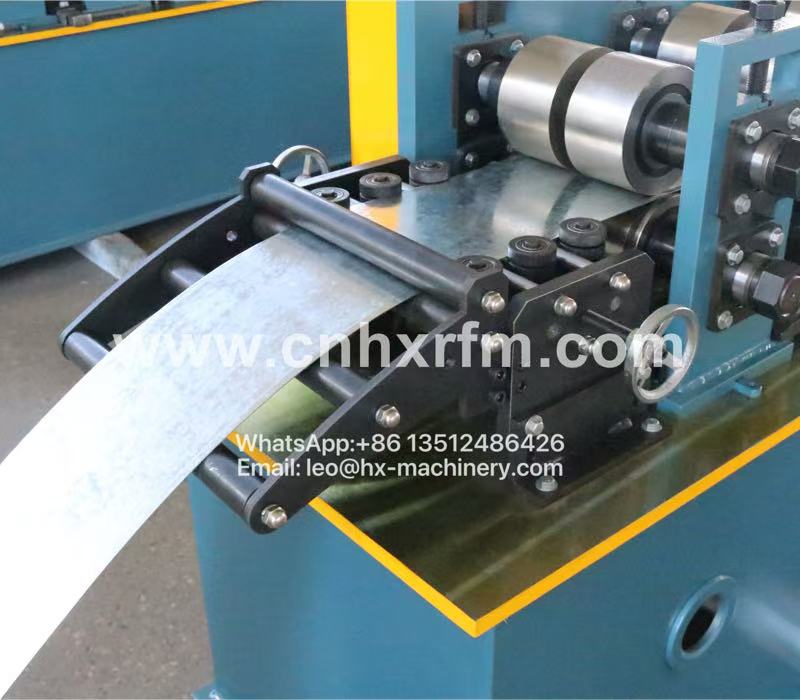

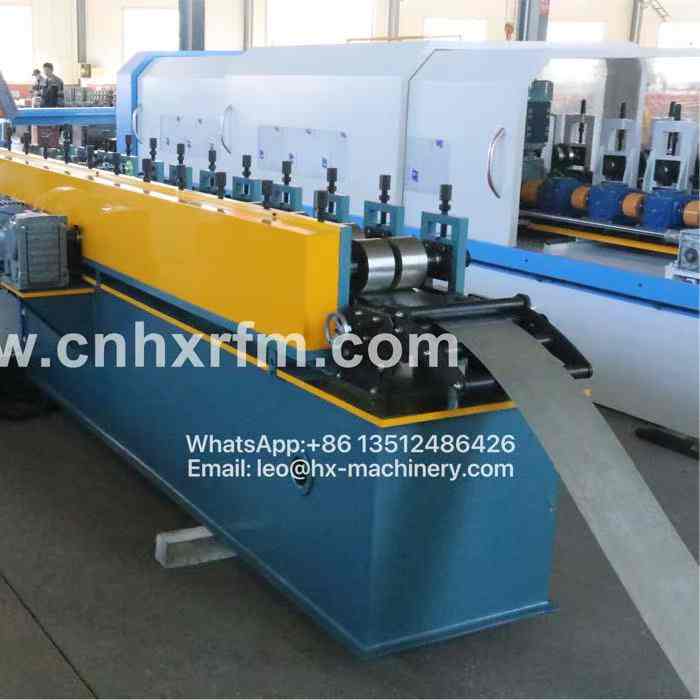

This metal stud machine for sale is set up to handle standard stud profiles, with the capability to adjust for custom dimensions when needed. The forming section delivers consistent web and flange dimensions, the punching unit positions holes accurately, and the cutting system produces clean ends—features that directly affect assembly speed and material utilization. It's a practical choice for shops that handle both repetitive orders and custom projects.
What makes this metal stud machine for sale worth considering is the combination of stable performance and support that accompanies it. The machine is straightforward to operate, with controls that are easy to navigate and maintenance points that are easy to reach. Buyers who have added this machine to their lines often note how quickly it becomes a reliable part of their daily workflow. If you're looking to expand your capacity or replace an older line, the metal stud machine for sale we have available today is worth a closer look. It's ready to go, and our team is ready to help you get it running smoothly.
Machine parameters
| No. |
Metal stud machine for sale |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |

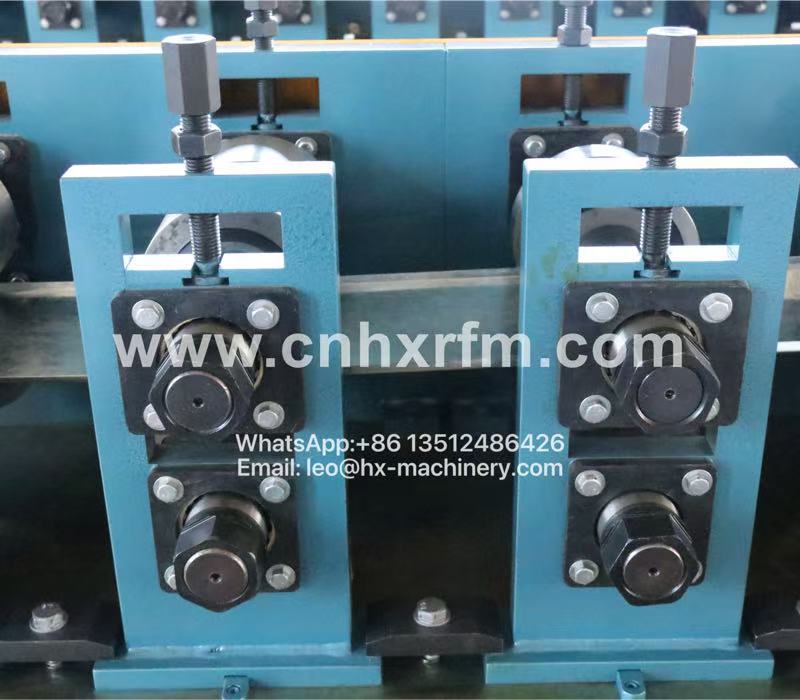

Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

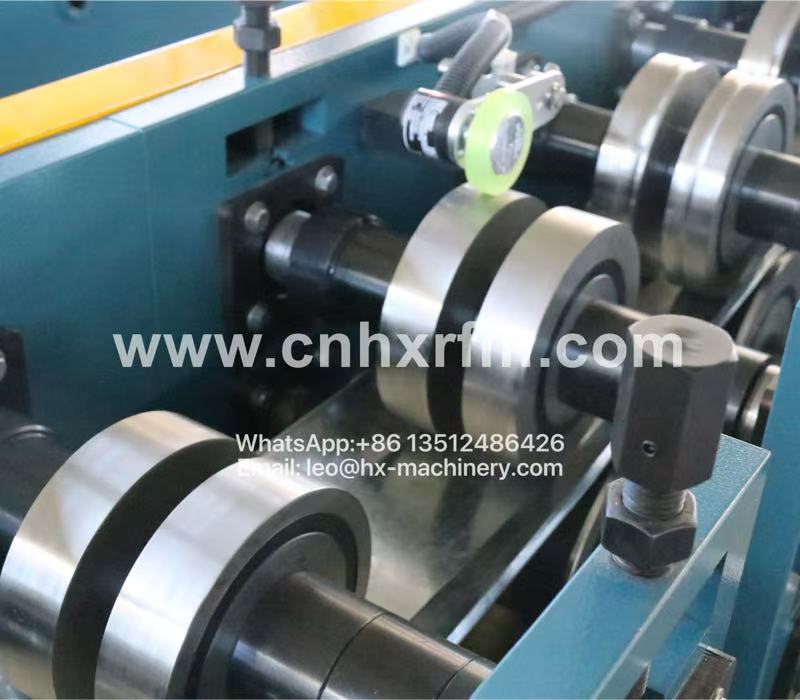

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
