Model: HX-steel stud forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
In the world of light-gauge steel framing, productivity depends on equipment that delivers consistent results without constant adjustment. That’s the thinking behind our steel stud forming machine—built to keep your production line moving with dependable accuracy, shift after shift.

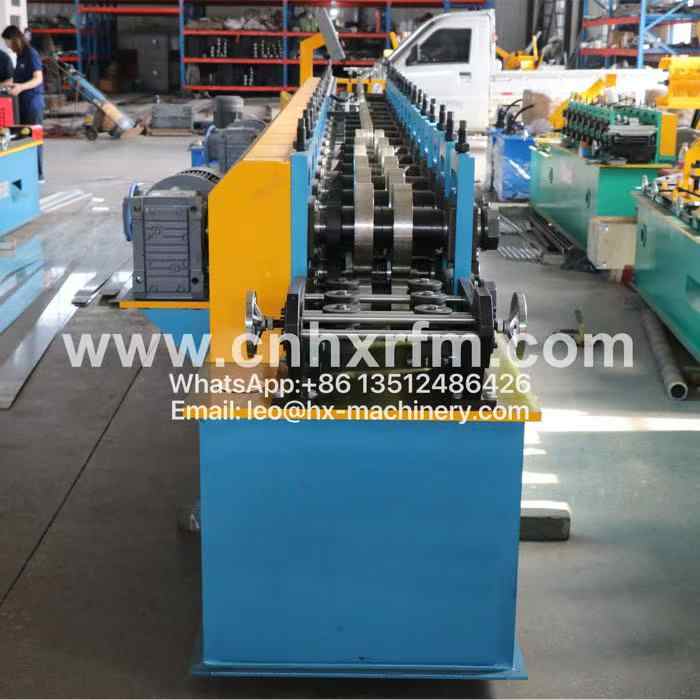

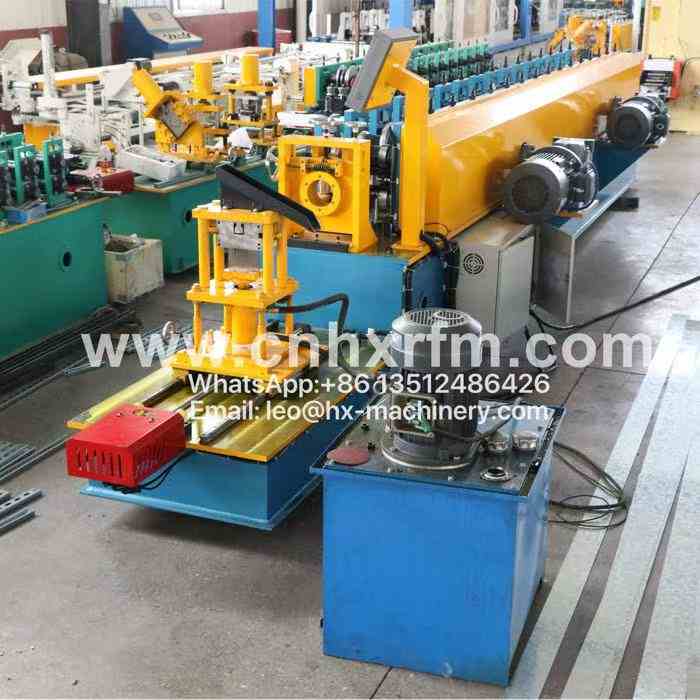

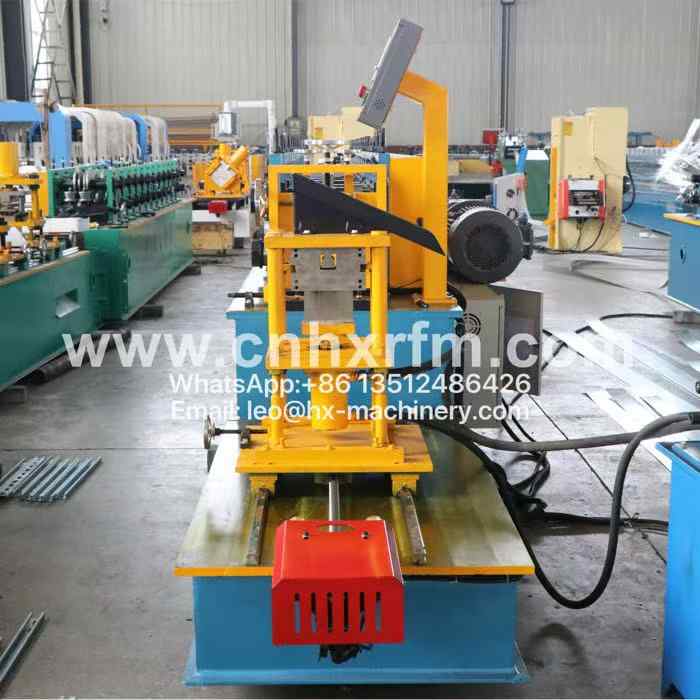

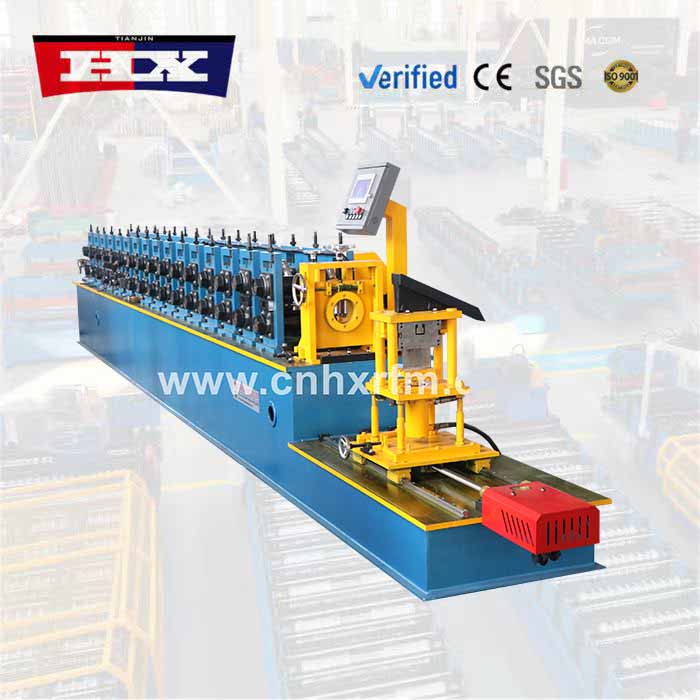

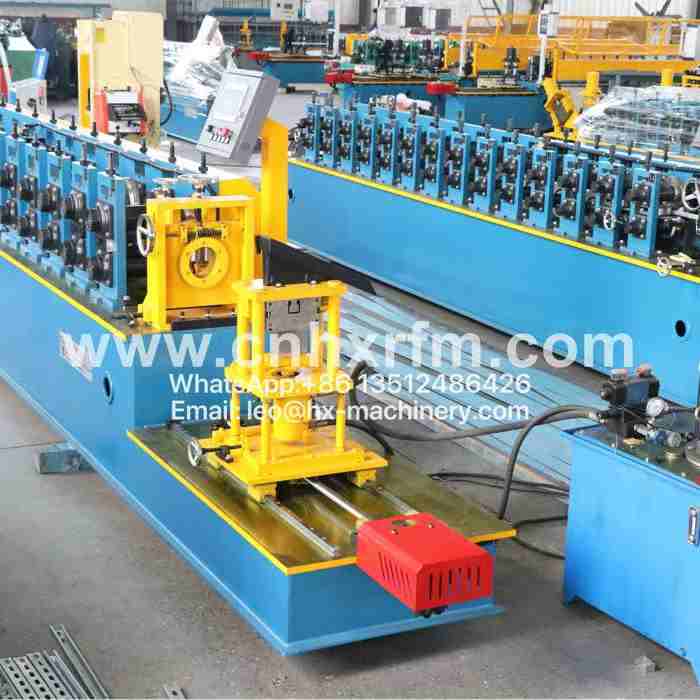

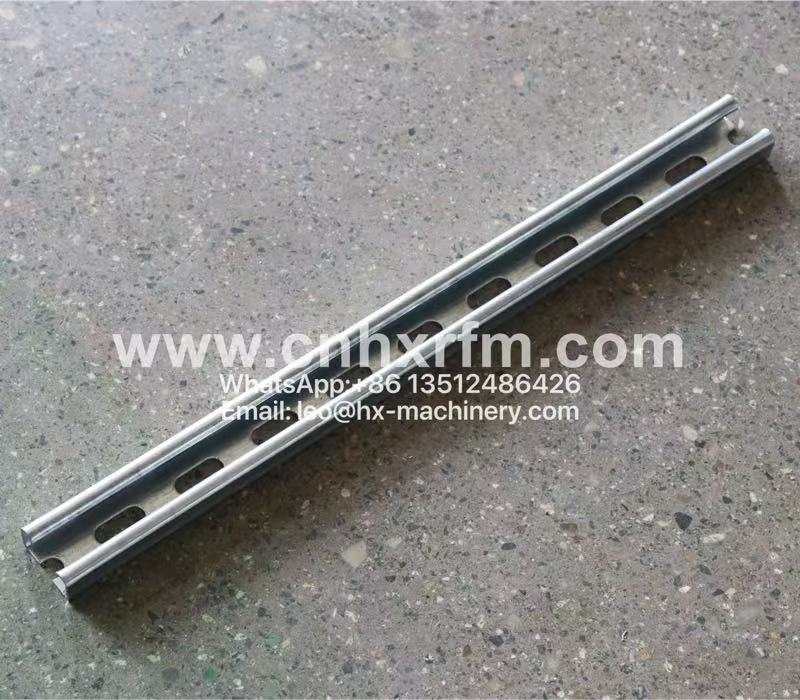

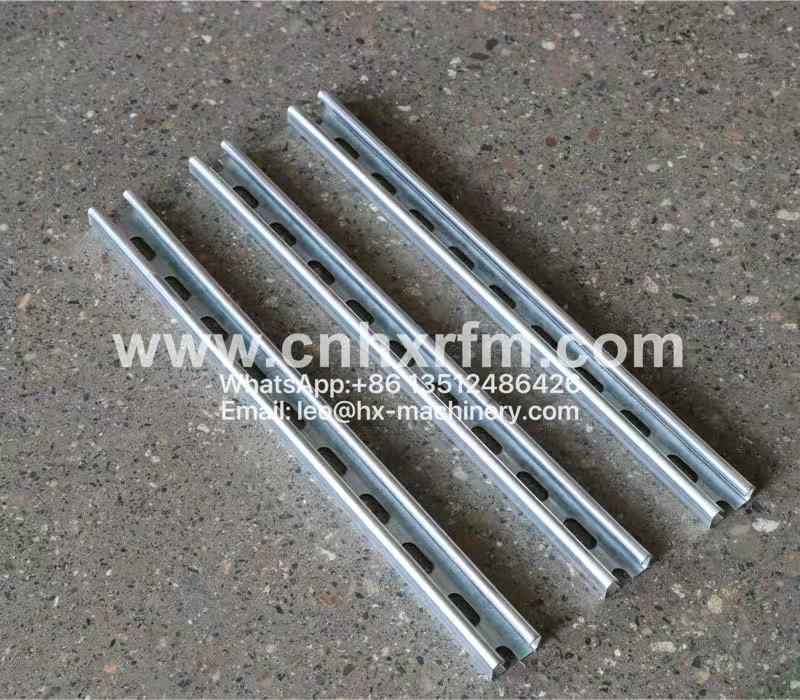

Our steel stud forming machine integrates precision roll forming with synchronized punching and cutting, producing studs that meet tight tolerances for web height, flange width, and hole placement. The system is designed for quick setup changes, allowing you to move between different stud sizes and gauges without lengthy interruptions. Whether you're filling orders for standard drywall studs or custom structural profiles, this steel stud forming machine adapts to your needs while maintaining steady output.
What users value most about our steel stud forming machine is its straightforward, no-fuss design. The controls are easy to navigate, the components are built to last, and routine maintenance is simple enough to be handled in-house. And when you do need support, our team provides clear guidance and fast parts availability. With our steel stud forming machine, you get a practical solution that supports your framing business without overcomplicating your operations. It’s the kind of machine that earns its place on the floor—quietly, reliably, and efficiently.
Machine parameters
| No. |
Steel stud forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

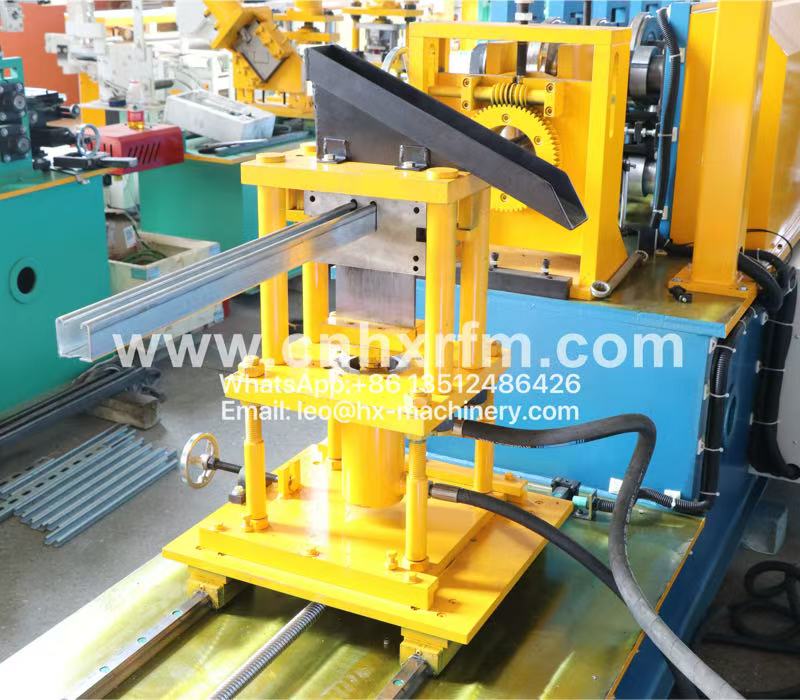

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

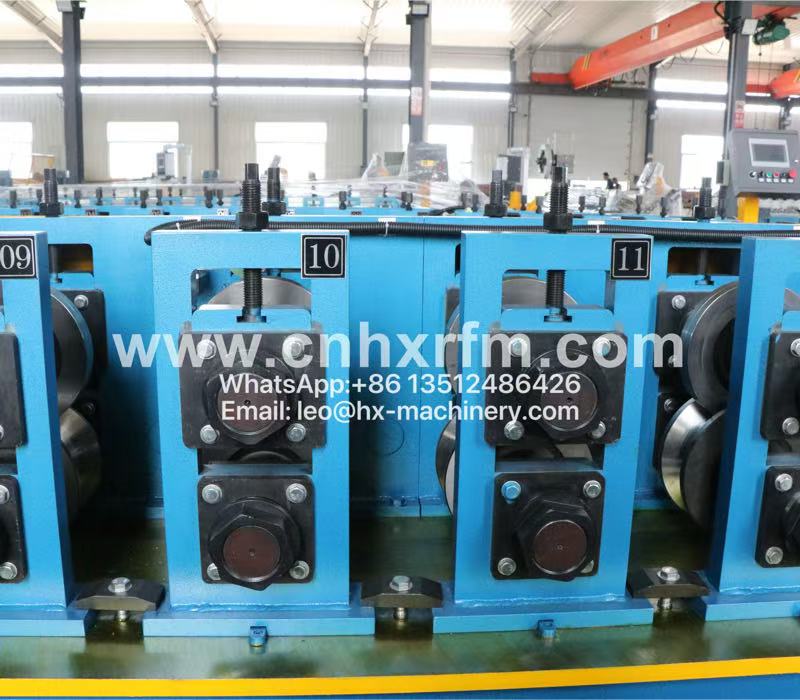

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
