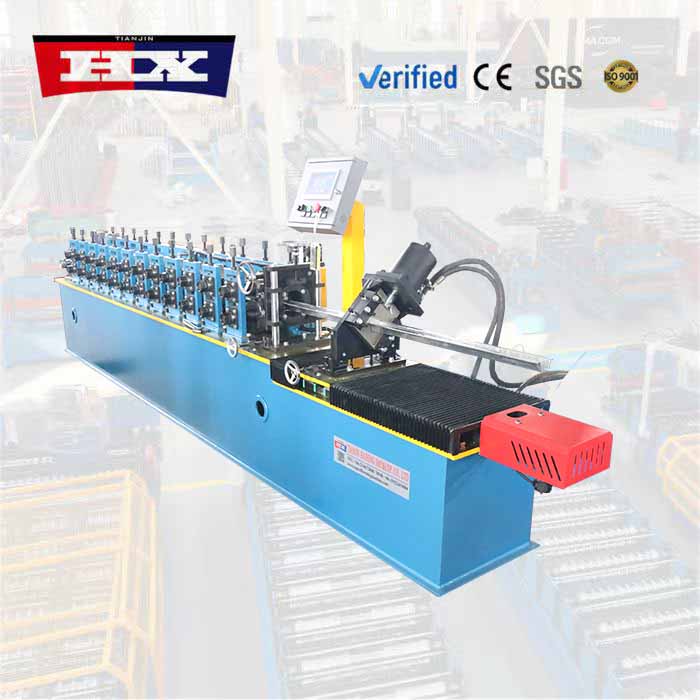

Model: HX-omega roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

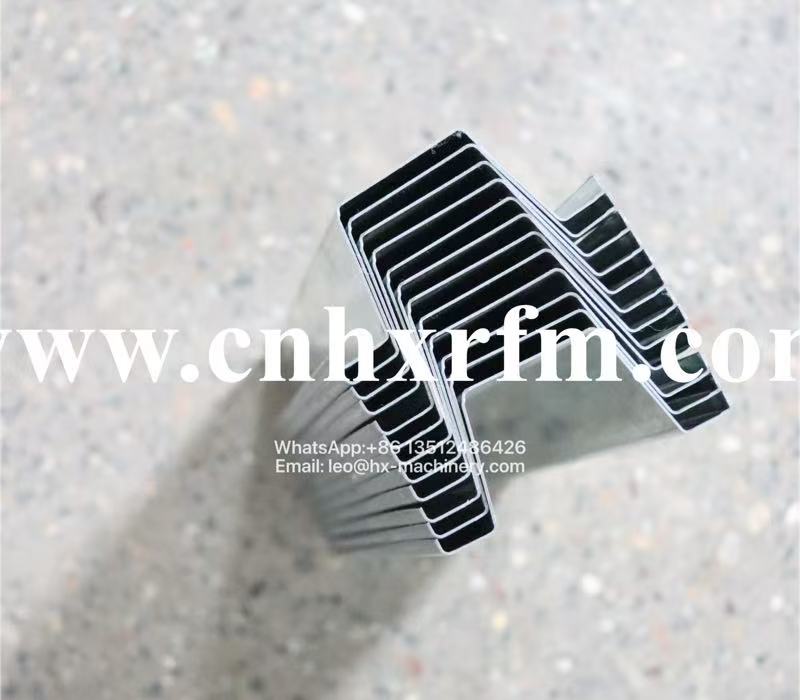

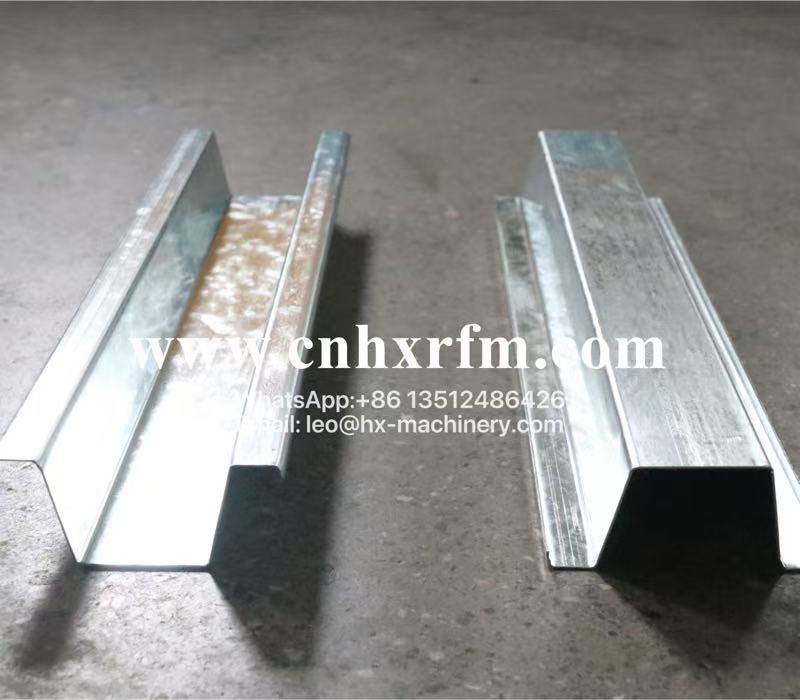

Some profiles stand out because of their shape, and the omega profile is a perfect example—curved, symmetrical, and structurally efficient. But forming it accurately requires a machine that handles the curves without compromising material integrity. That’s exactly what our omega roll forming machine delivers.

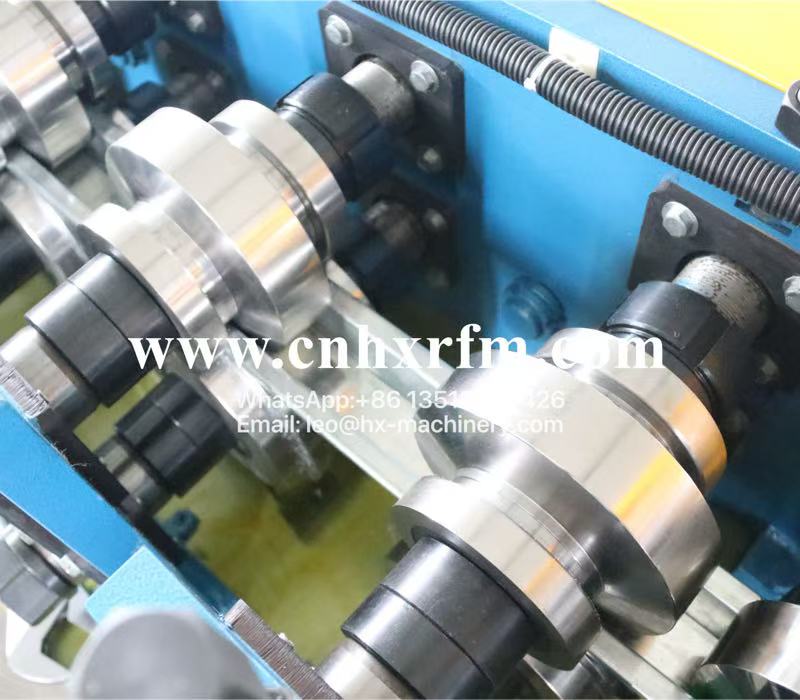

Our omega roll forming machine uses a balanced forming sequence that gradually shapes the profile while minimizing stress on the material. The roller stations are carefully aligned to produce consistent curves and straight legs, and the cutting system ensures clean, precise ends. It handles a range of material thicknesses and widths, with adjustments that allow you to switch between different omega sizes efficiently.

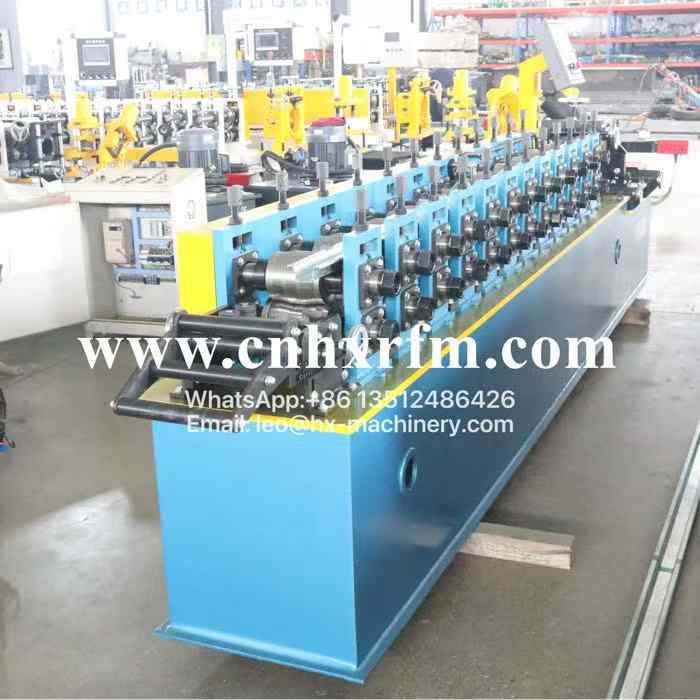

What keeps our omega roll forming machine in demand is its ability to maintain shape accuracy over long runs. The machine is built for stability, with a rigid frame and hardened rollers that resist wear. Operators find it easy to control, and maintenance is straightforward enough to fit into regular shop routines. Backed by our practical support—clear documentation, responsive troubleshooting, and fast parts availability—our omega roll forming machine gives you a reliable way to produce this specialized profile without complications. It’s a machine that turns a complex shape into a consistent product, run after run.
Machine parameters
| No. |
Omega roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
