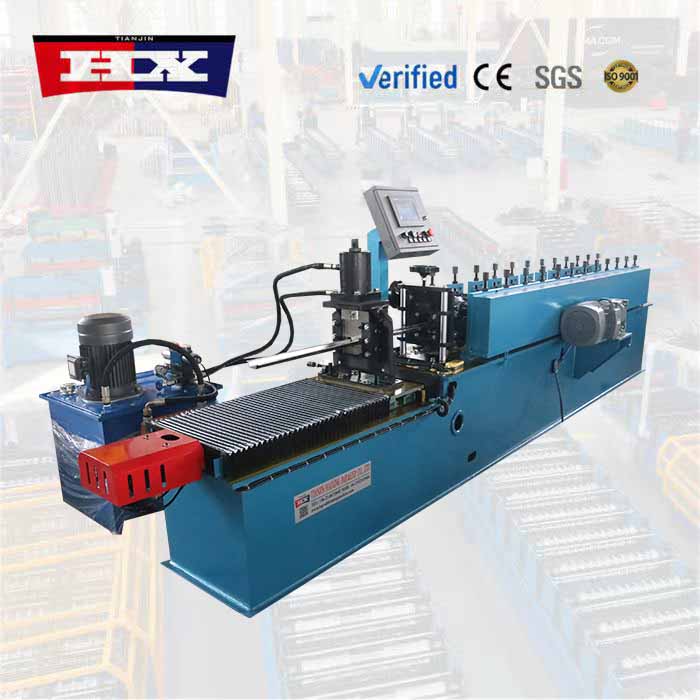

Model: HX-omega machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

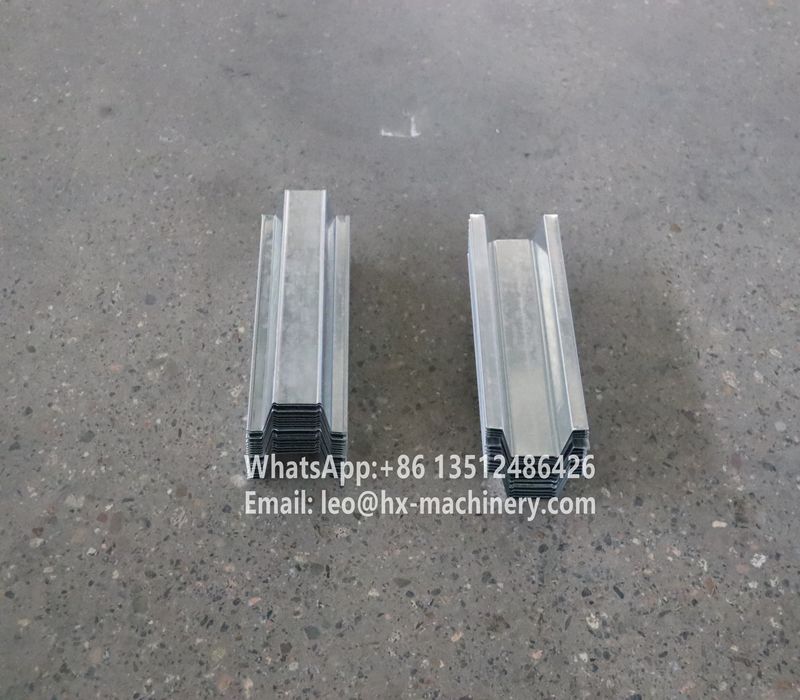

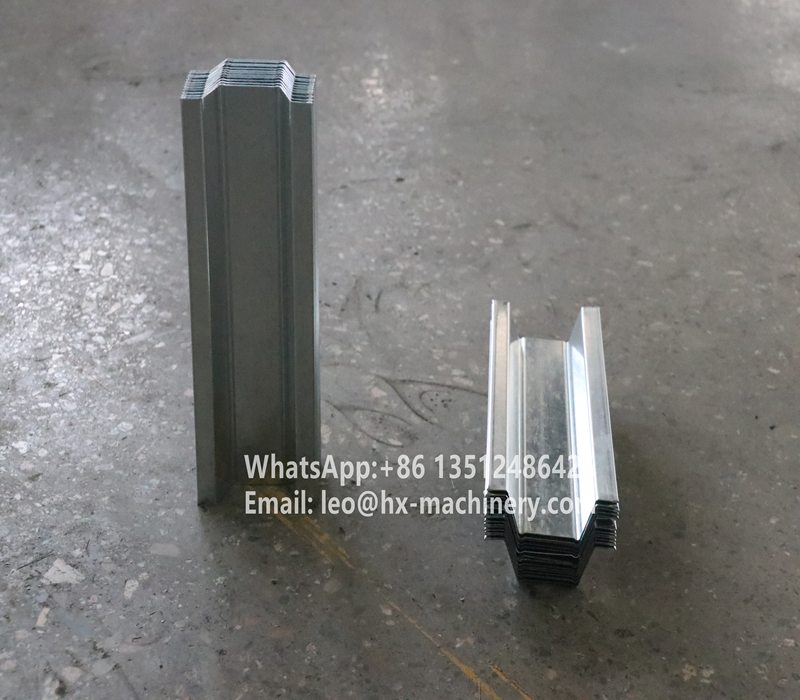

Some profiles are defined by their function, and the omega shape is one of them—used in ceiling systems, structural supports, and even automotive applications. Its curved form provides strength and flexibility, but it also demands a machine that can handle the forming process without compromising accuracy. That’s exactly what our omega machine is designed to do.

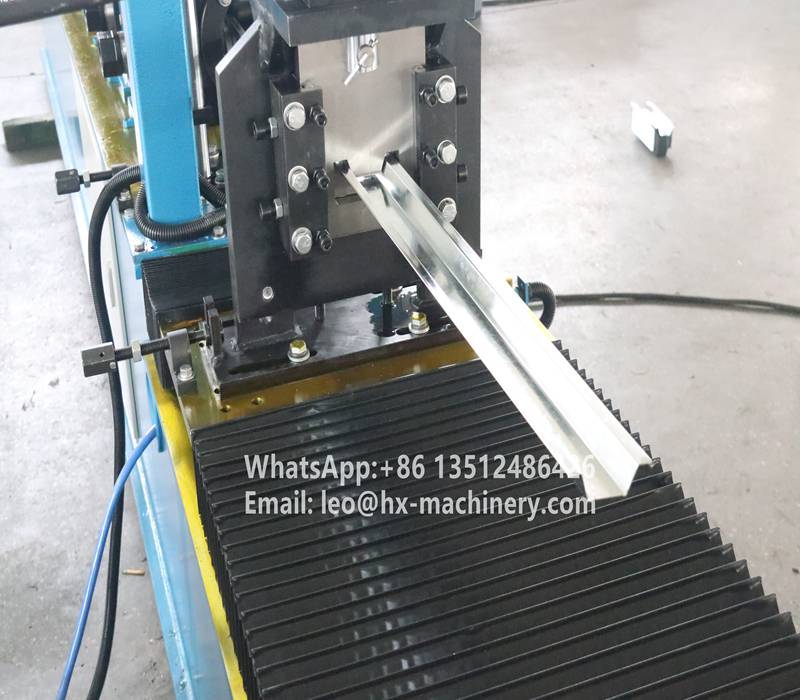

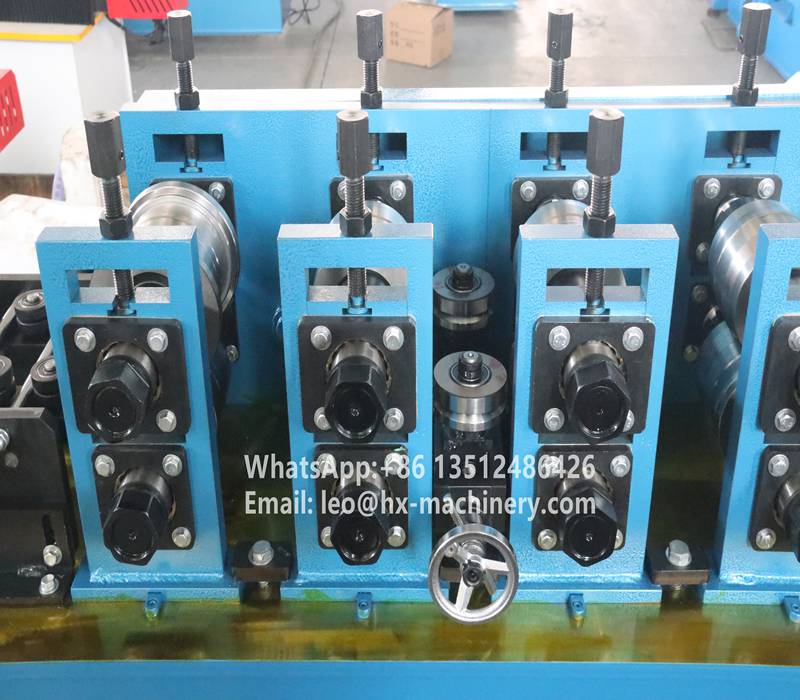

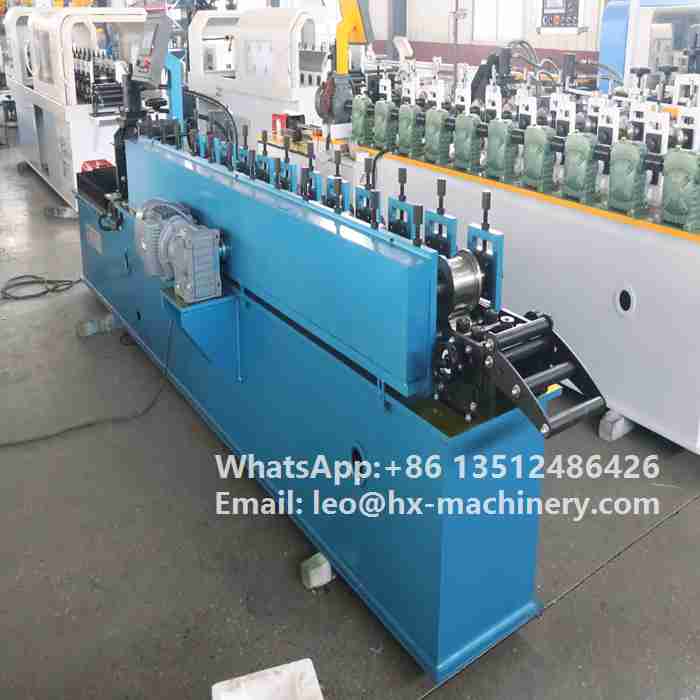

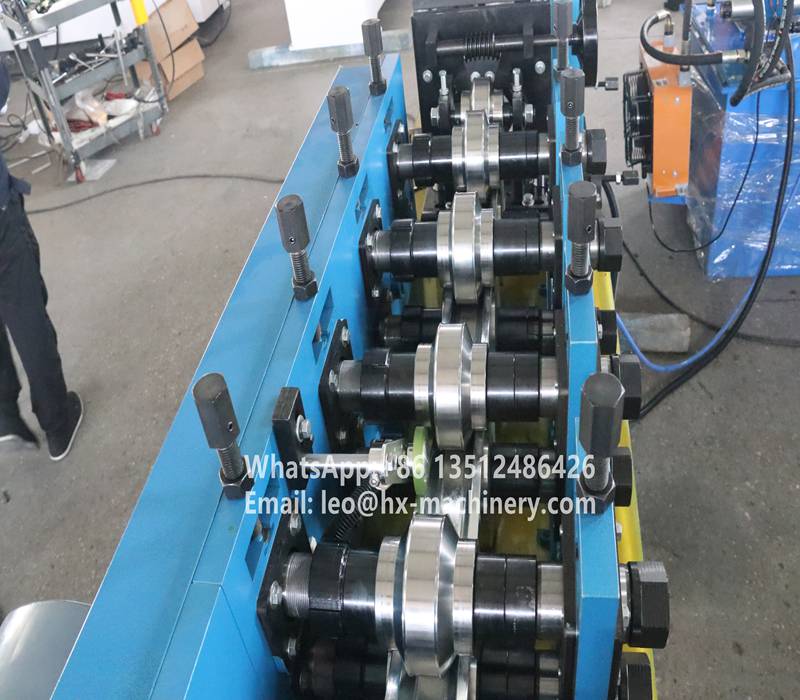

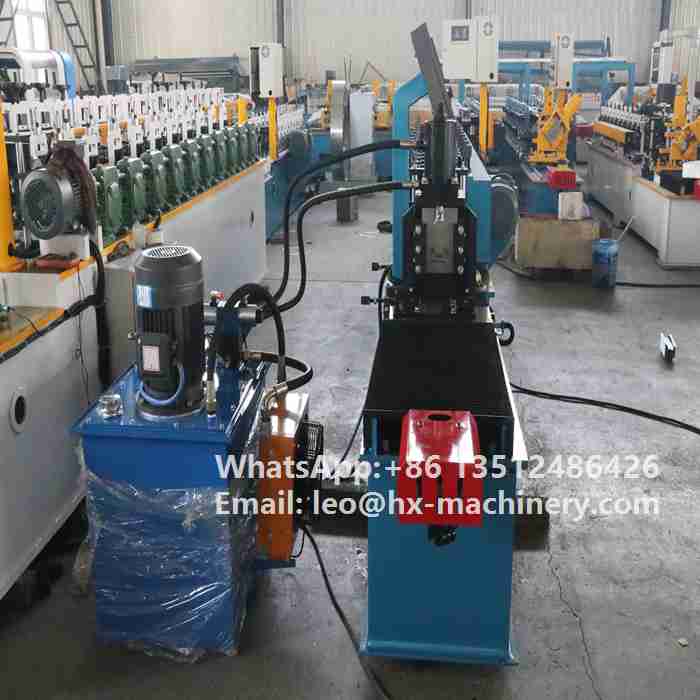

Our omega machine uses a staged forming process that gradually shapes the material into the distinctive omega profile, with consistent curvature and straight leg sections. The roller stations are precisely aligned to avoid material distortion, and the cutting system is synchronized to produce clean, precise ends. It handles a range of material thicknesses, with adjustments that make switching between different omega sizes straightforward and repeatable.
What makes our omega machine a practical choice for production shops is its stability and ease of use. The frame is built to resist deflection, the rollers are hardened for extended life, and the controls are intuitive enough for operators to manage without extensive training. Maintenance is simple, and our support team provides clear guidance and fast parts response when needed. With our omega machine, you get reliable output and consistent quality—whether you're producing profiles for suspended ceilings, structural components, or specialized applications. It’s a machine that turns a complex shape into a routine production task.
Machine parameters
| No. |
Omega machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
