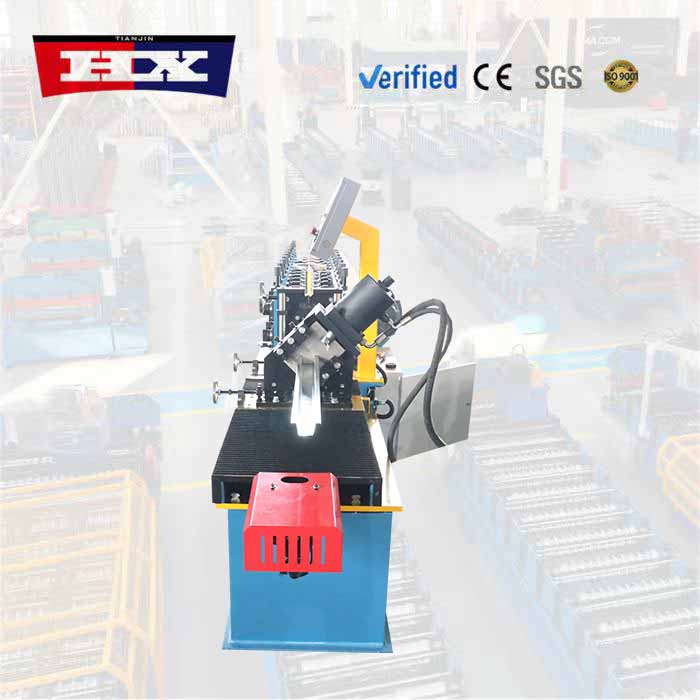

Model: HX-profile omega roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

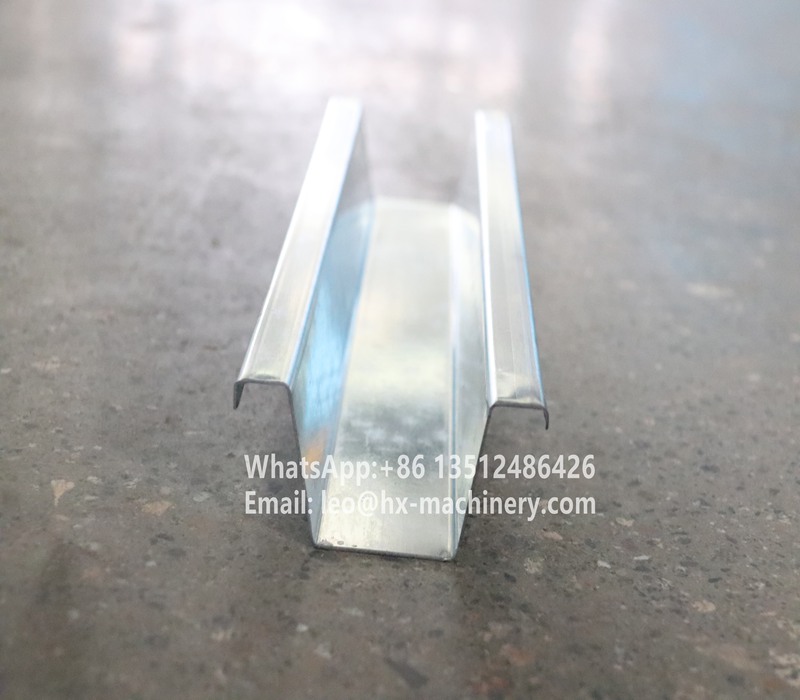

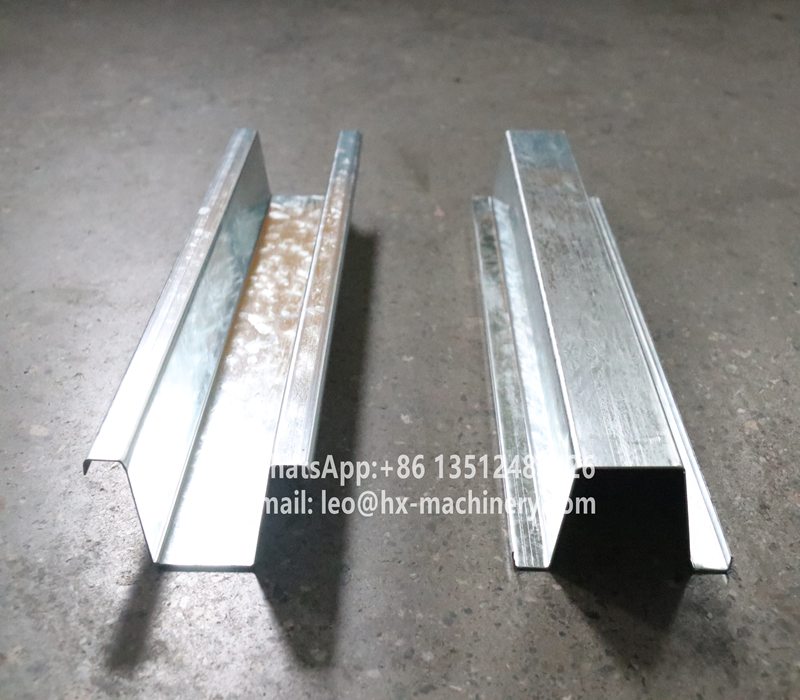

The omega profile stands out because of its curved, symmetrical shape—designed to provide structural support while maintaining flexibility in installation. But producing that shape consistently requires a forming process that handles curves without compromising straightness or material integrity. That’s where our profile omega roll forming solution comes in.

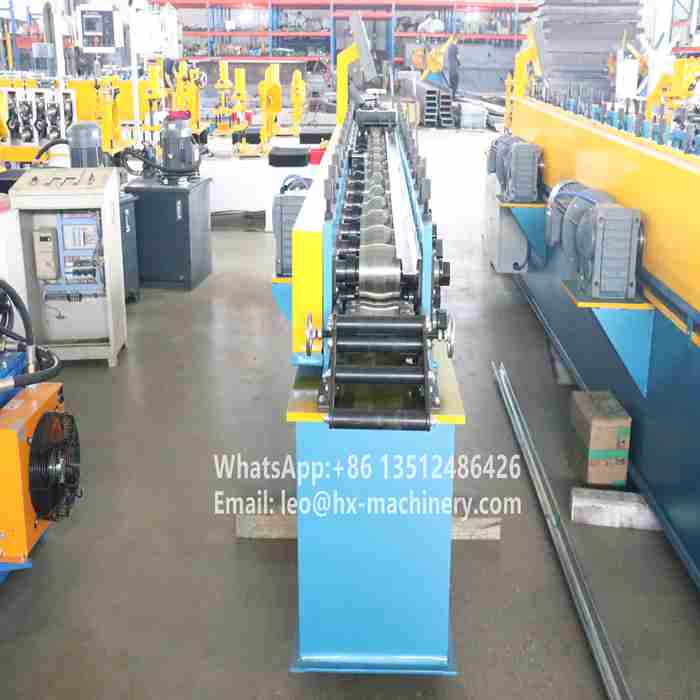

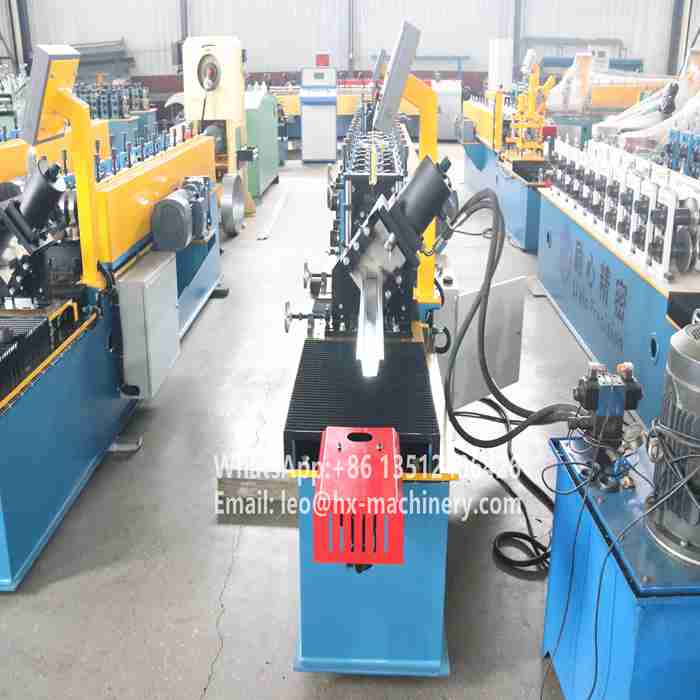

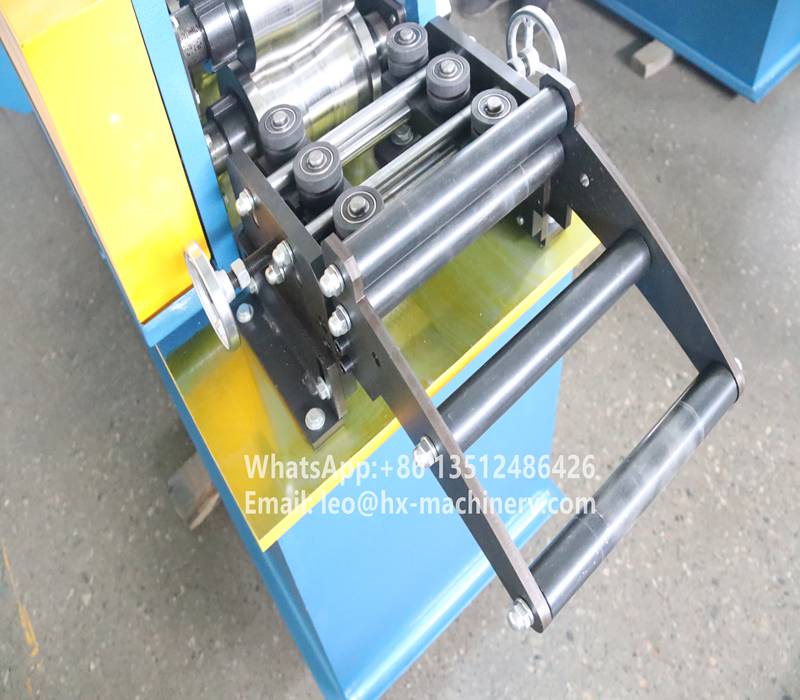

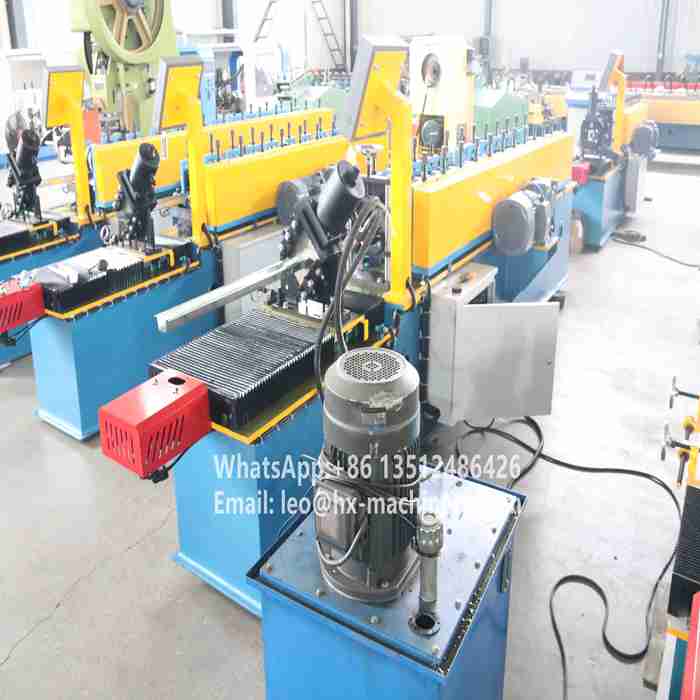

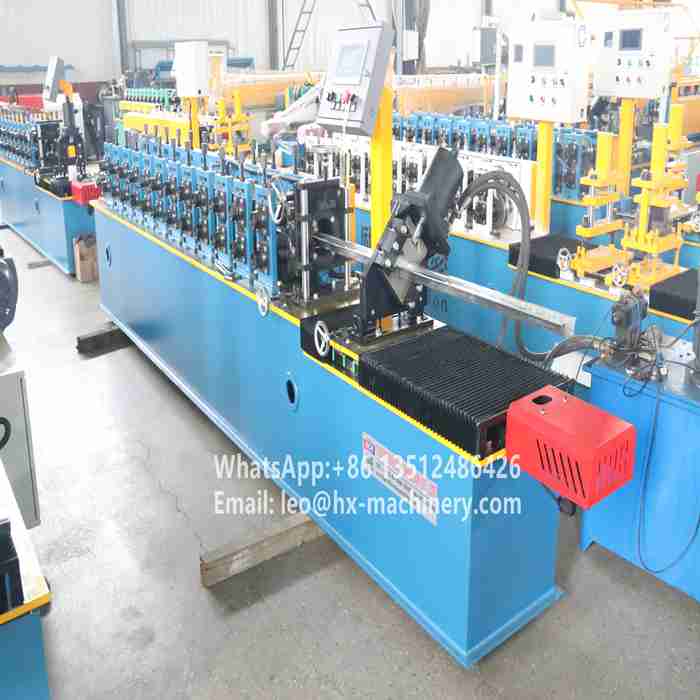

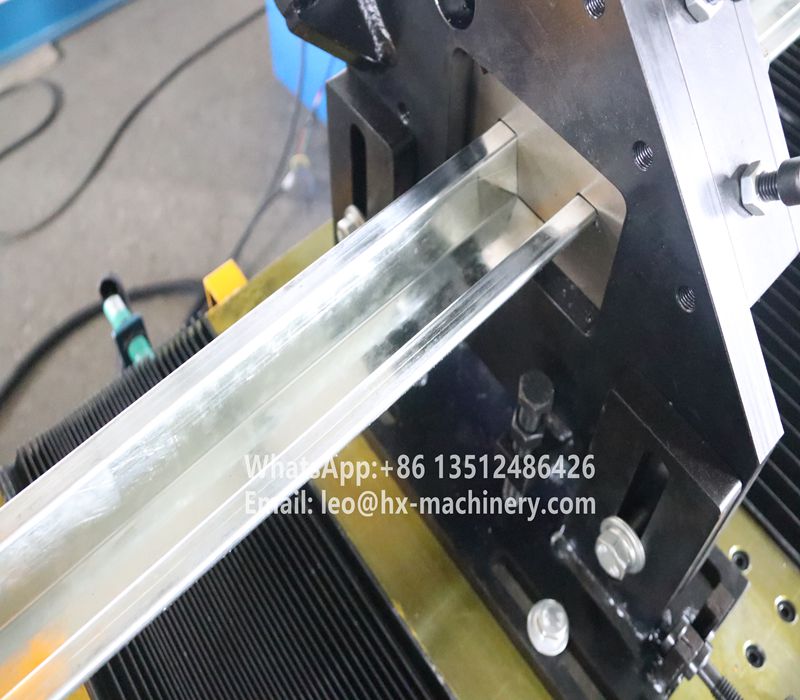

Our profile omega roll forming line uses a progressive sequence of roller stations that gradually guide the material into the final omega shape. Each station is carefully aligned to reduce stress and prevent distortion, resulting in uniform curvature and straight leg sections. The system accommodates various material thicknesses and profile depths, with simple adjustments that make switching between sizes practical and repeatable. An integrated cutting unit delivers clean, accurate ends, and optional punching stations add holes or notches as needed.
What makes our profile omega roll forming system a trusted choice for manufacturers is its stability and simplicity. The frame is built for continuous operation, the rollers are designed for long-term durability, and the controls are straightforward enough for operators to manage without extensive training. Maintenance is practical, and our support team provides clear guidance and fast parts response when needed. With profile omega roll forming from our workshop, you get consistent quality, reduced scrap, and a reliable process that keeps your production moving—whether you're supplying components for ceiling systems, structural framing, or specialized applications. It’s forming you can count on.
Machine parameters
| No. |
Profile omega roll forming |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

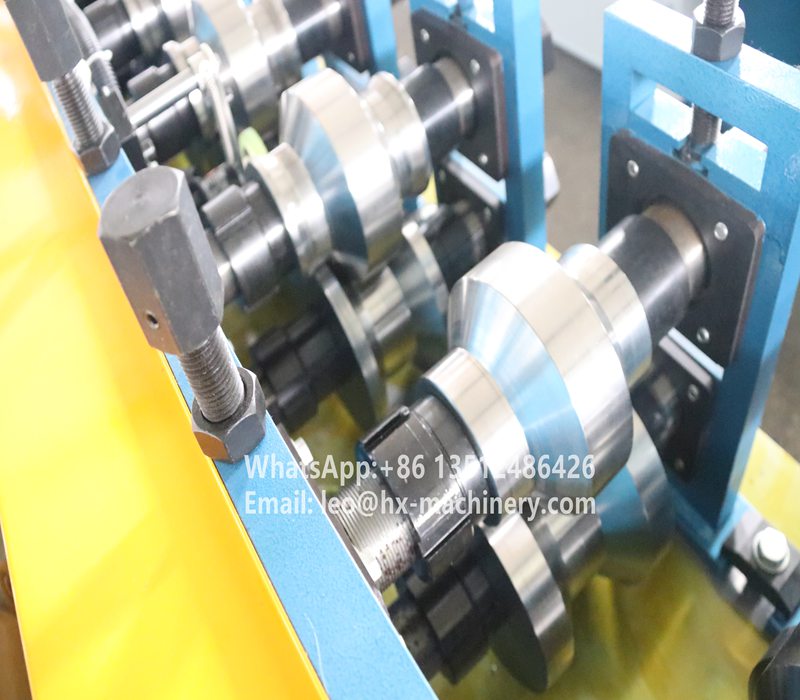

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
