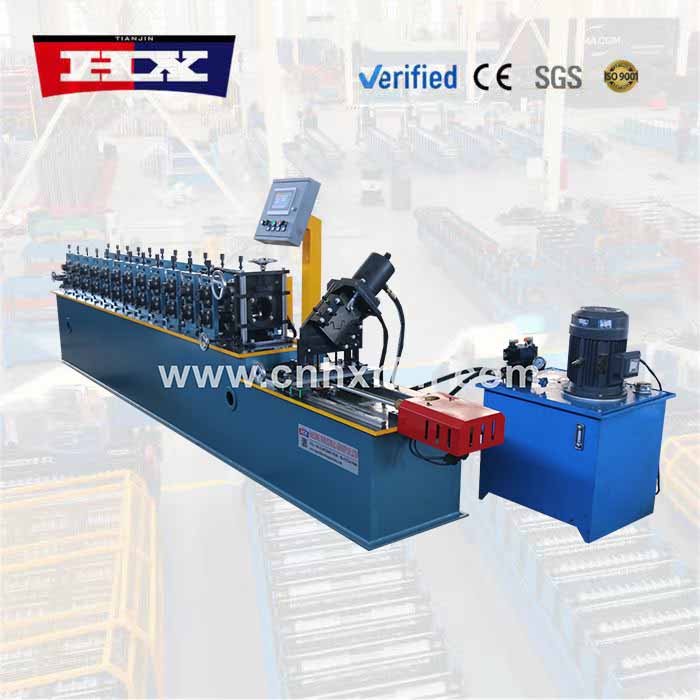

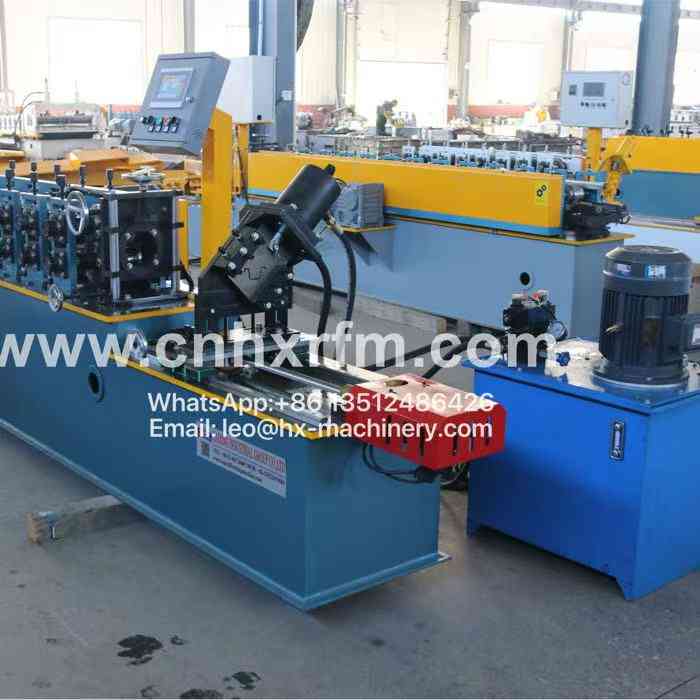

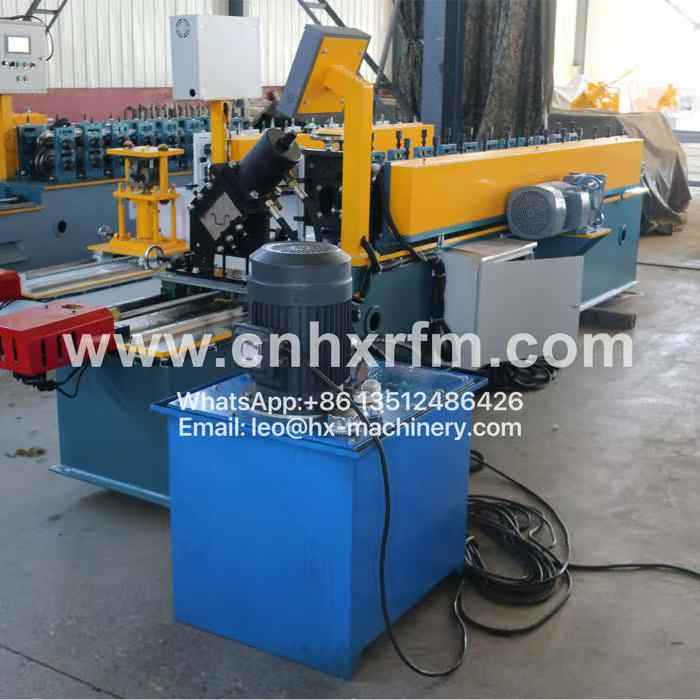

Model: HX-omega roll forming machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

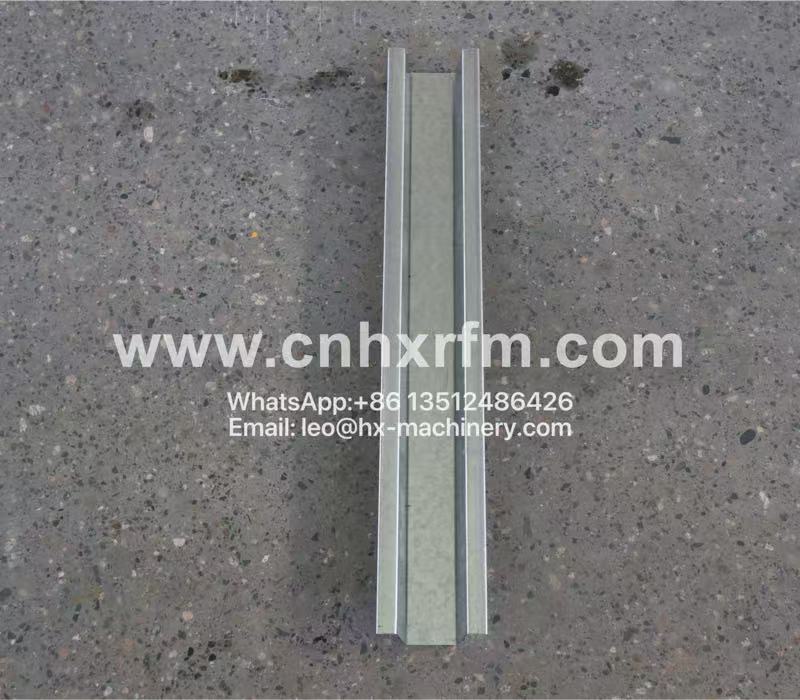

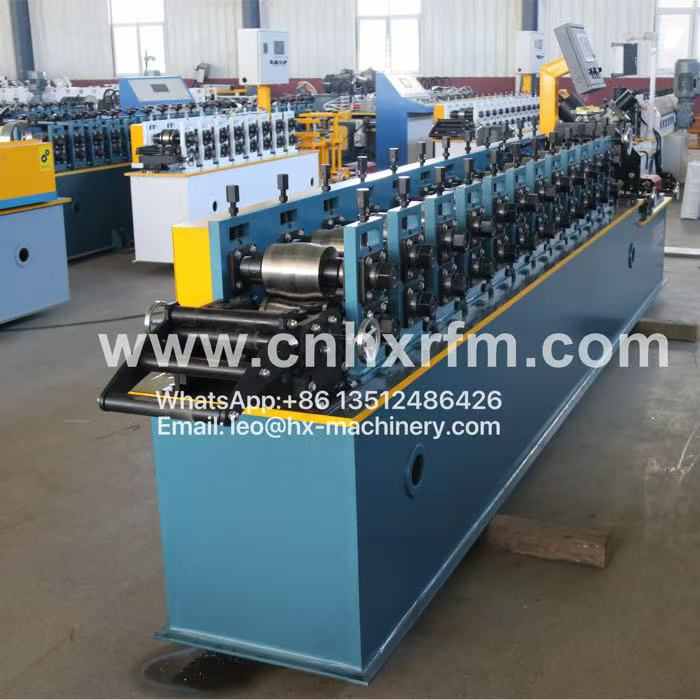

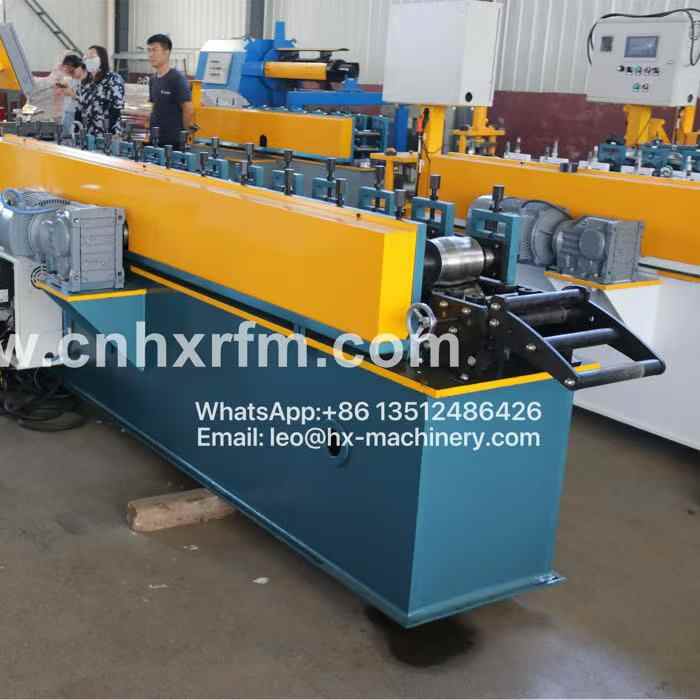

Not every profile is straight. Some have purpose-built curves, like the Omega shape—designed to carry load, manage movement, and fit into complex building systems. That’s exactly what our omega roll forming machine is made for: producing consistent, clean Omega profiles that hold their shape and meet engineering specs, run after run.

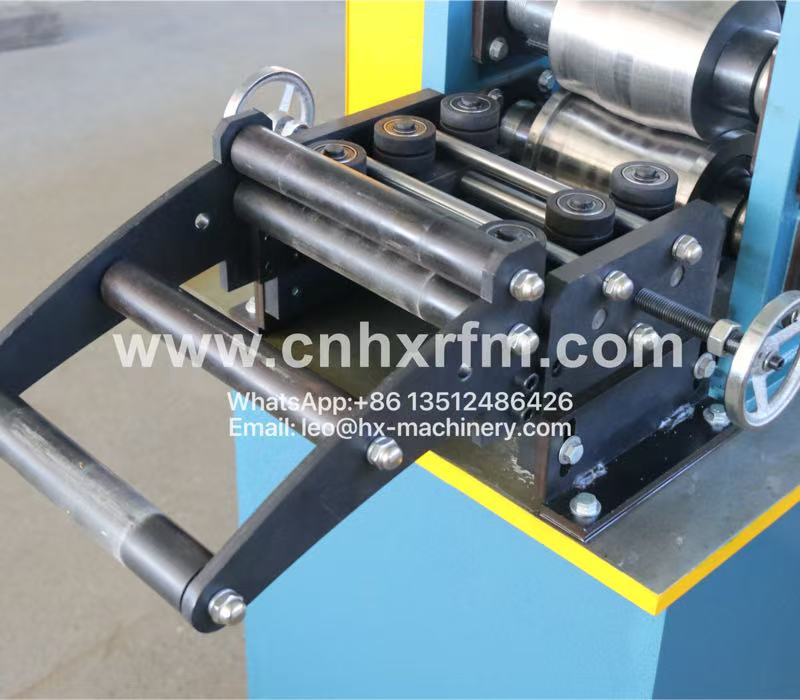

The forming process for Omega profiles demands careful control over material flow, especially around the curves. Our omega roll forming machine uses a progressive forming approach with precisely staged roller stations, so the material is guided gradually into the final shape without stress marks, buckling, or distortion. It handles a variety of material grades and thicknesses, and the integrated cutting and punching system ensures each piece is ready for assembly—whether it’s used in ceiling systems, structural supports, or modular building components.
What sets our omega roll forming machine apart is its ability to deliver consistent geometry while keeping changeovers simple. Profiles can be adjusted without excessive downtime, and the control system stores settings for quick recall. Customers also appreciate the machine’s stable operation and accessible maintenance points, which reduce unscheduled stops. And when you do need assistance, our team responds with practical support, clear guidance, and fast parts availability. That’s the kind of performance our omega roll forming machine brings to every shop floor.
Machine parameters
| No. |
Omega roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

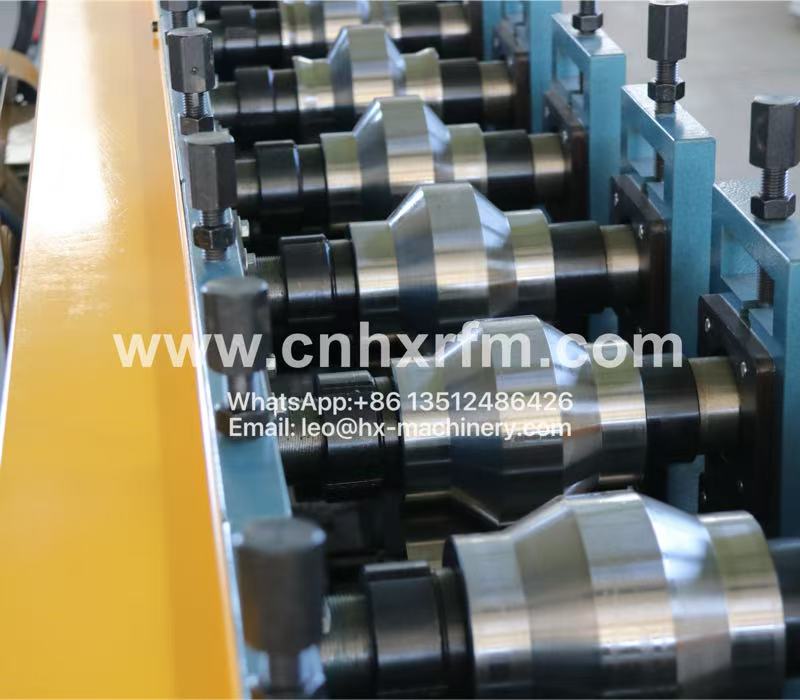

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

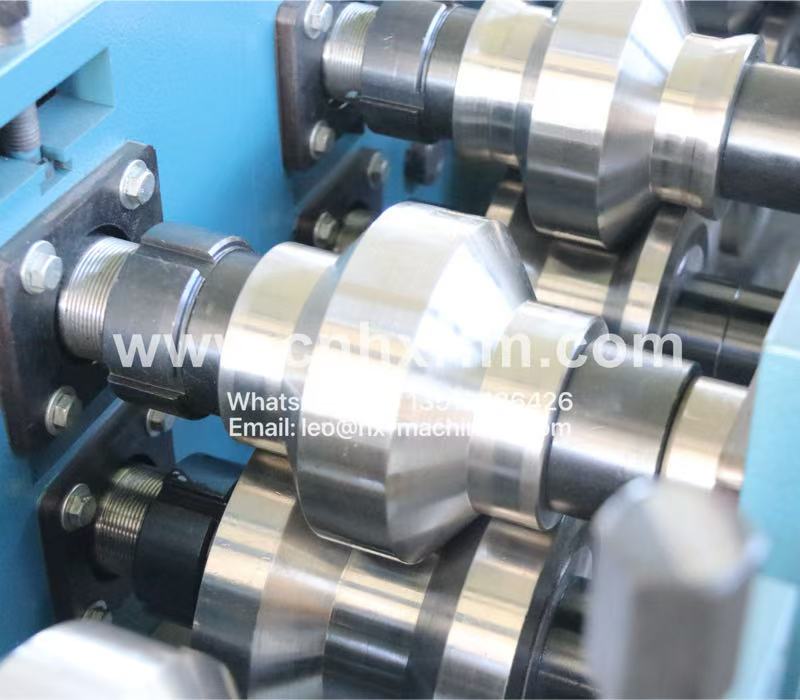

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
