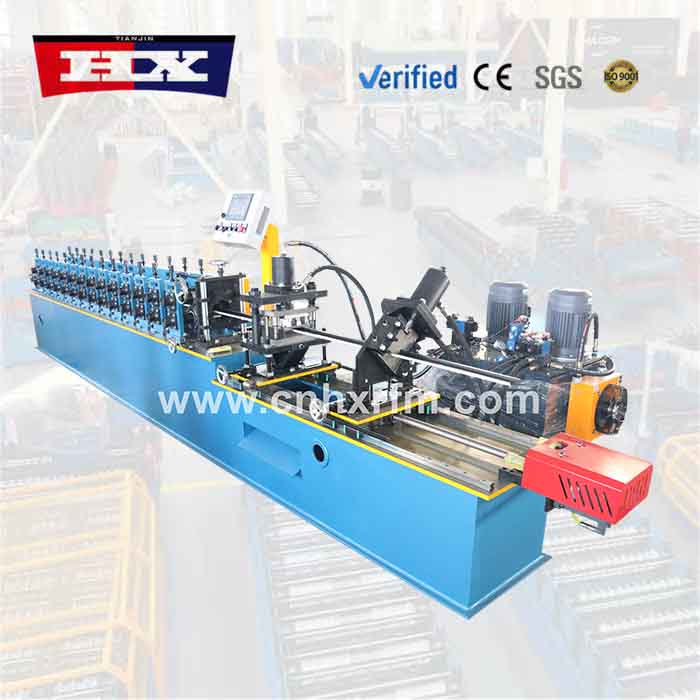

Model: HX-metal furring machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
When it comes to ceiling systems, wall cladding, or exterior insulation finishes, furring channels play a critical role in creating level surfaces and proper ventilation. But forming these profiles accurately—with consistent leg heights, clean edges, and precise hole spacing—requires a machine built for the job. That’s our metal furring machine.

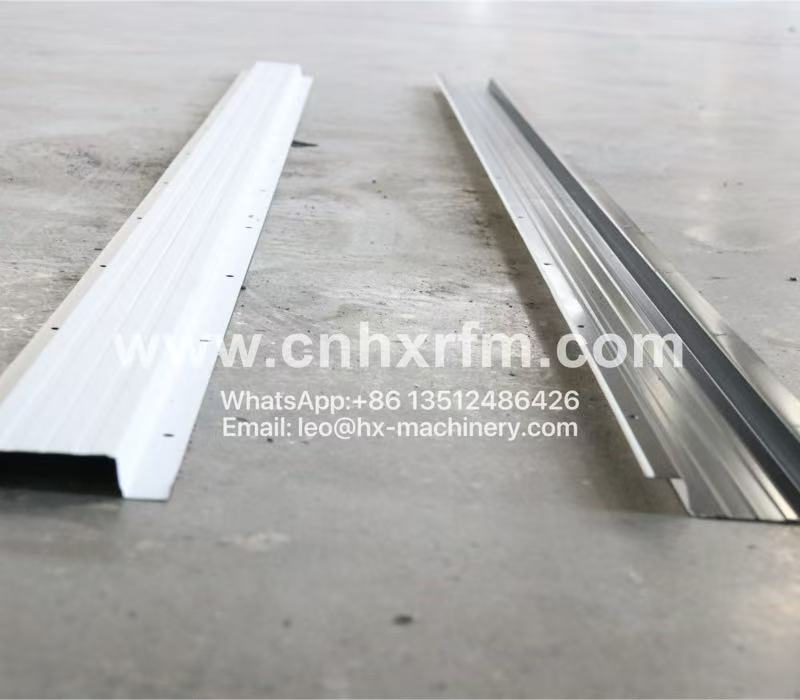

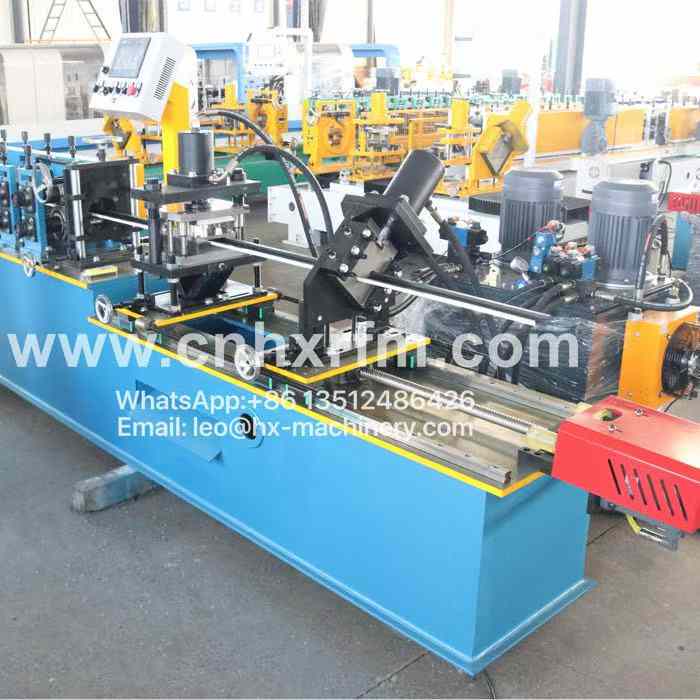

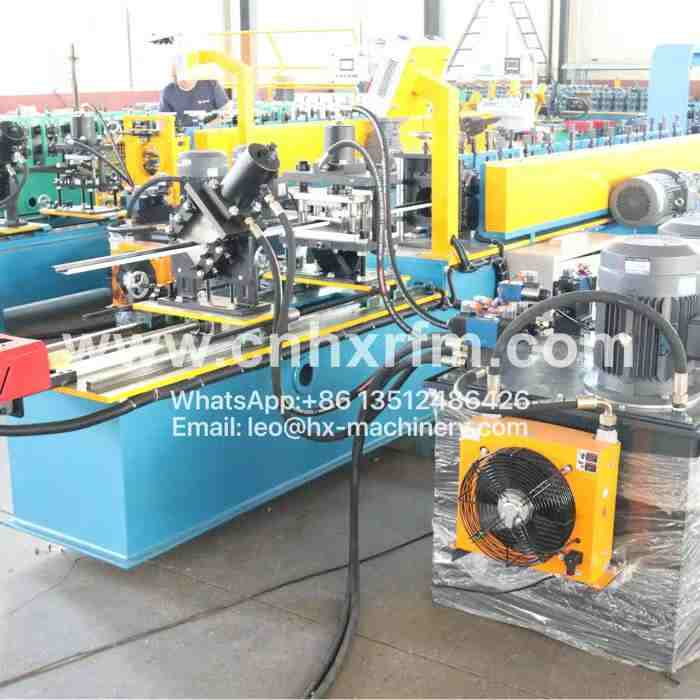

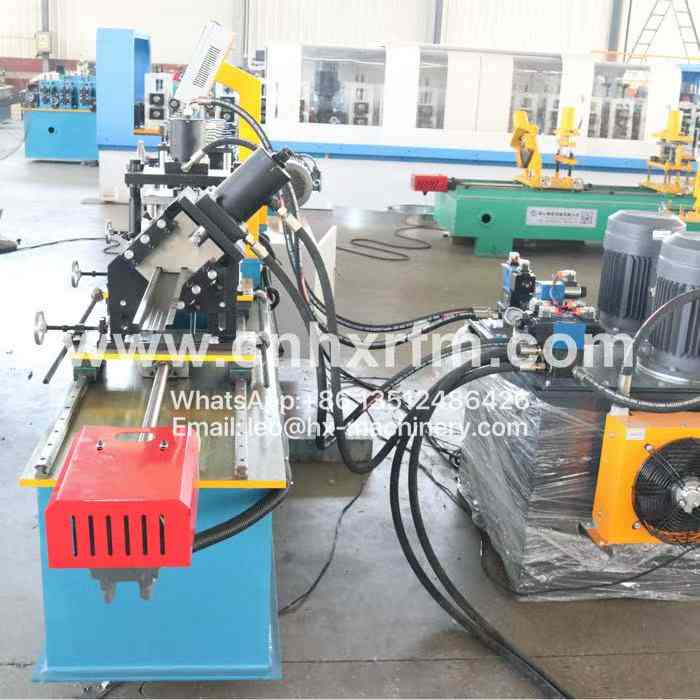

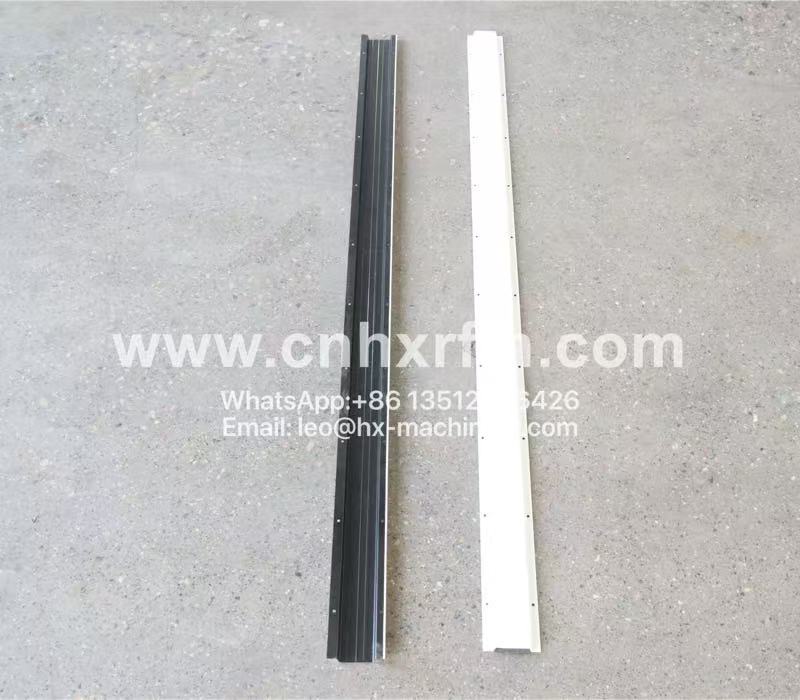

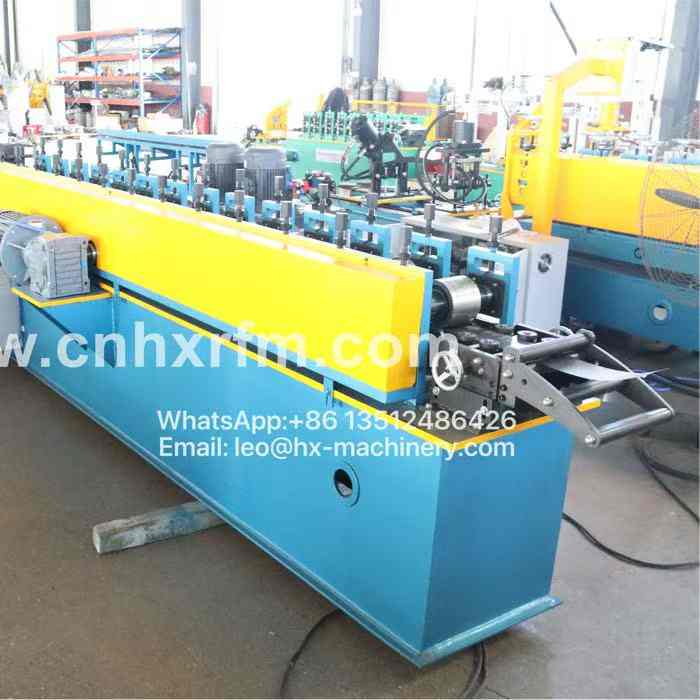

Our metal furring machine is engineered to produce hat-shaped furring channels that meet industry standards for dimensional accuracy. The roll forming sequence is staged to minimize material stress, resulting in straight profiles without twisting or bowing. The machine includes an integrated punching system for pre-punched holes or slots, and the cutting unit delivers clean, square ends. It processes various material thicknesses and gauges, giving you the versatility to handle both commercial and residential projects.
What sets our metal furring machine apart is its straightforward, operator-friendly design. The controls are intuitive, setup changes are quick, and the machine holds its settings consistently. Customers also appreciate the support we provide—clear documentation, responsive troubleshooting, and readily available spare parts. Whether you're producing furring channels for drywall backing, rainscreen systems, or acoustic ceilings, our metal furring machine helps you maintain quality and productivity without unnecessary complications. It's a machine you can trust to keep your production running smoothly, order after order.
Machine parameters
| No. |
Metal furring machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

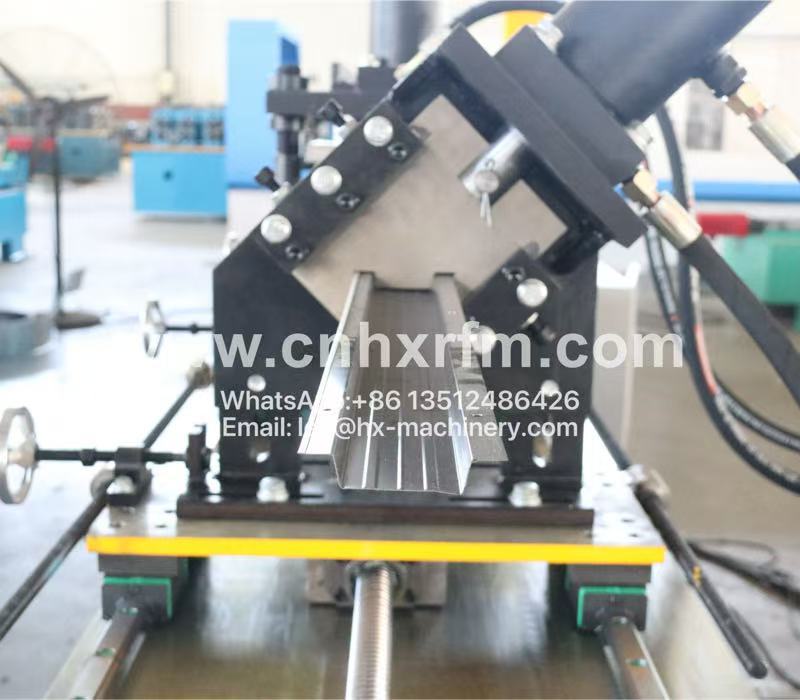

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |

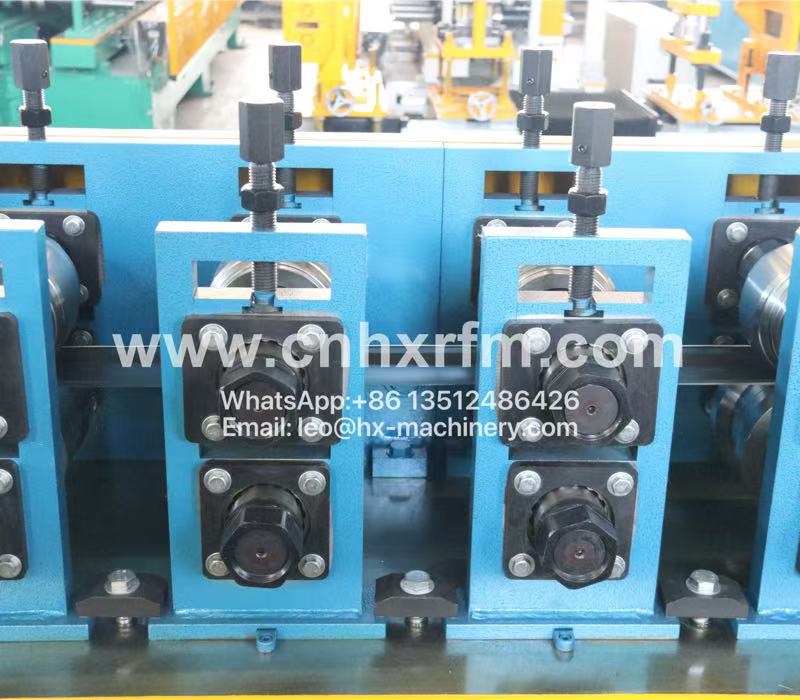

Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

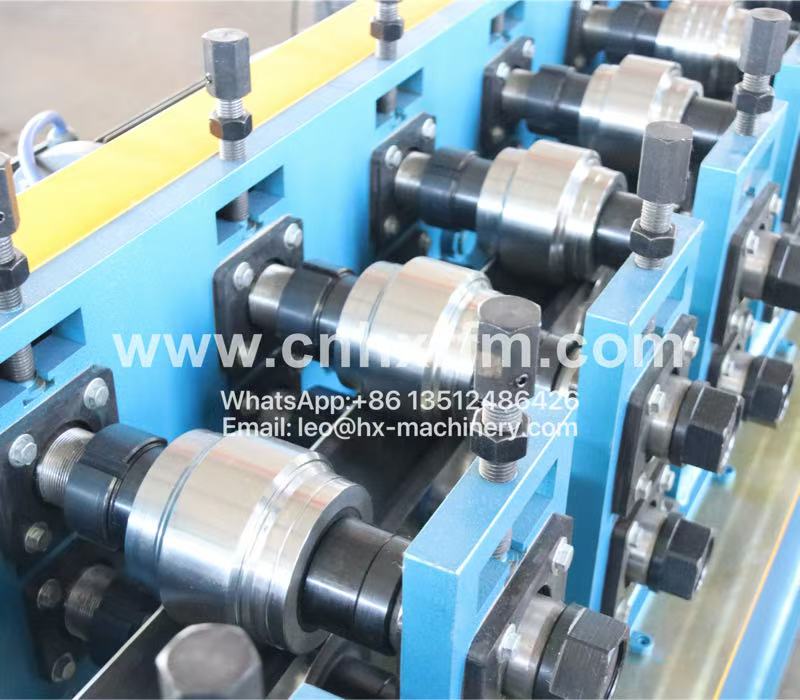

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
