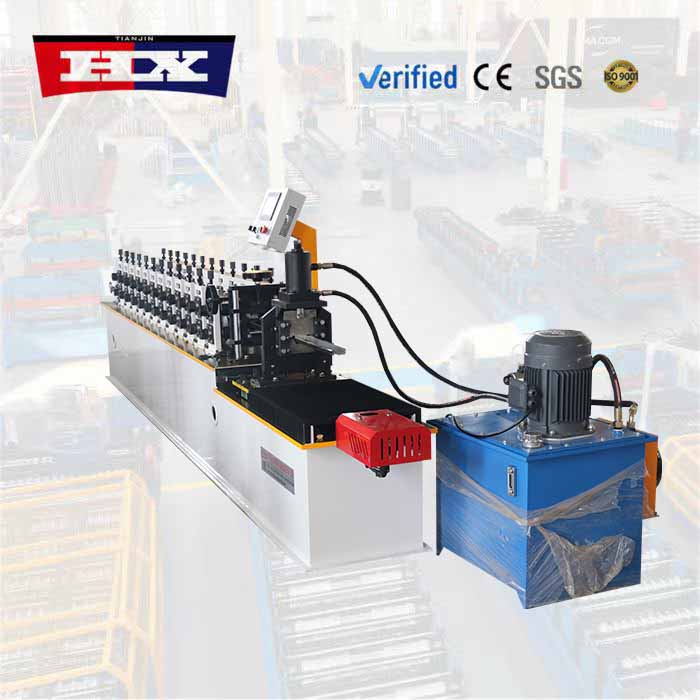

Model: HX-keel omega machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

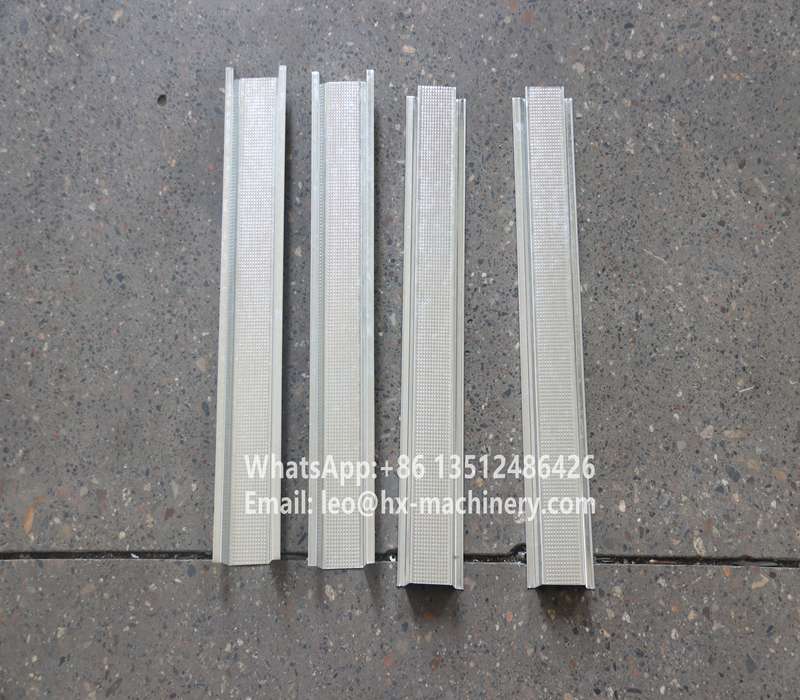

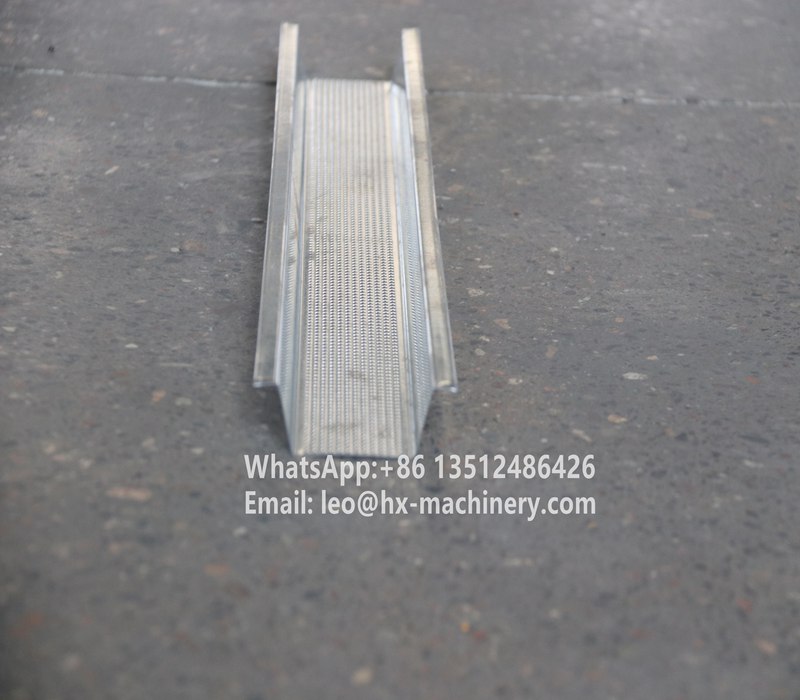

In ceiling and partition systems, the keel profile—particularly the omega-shaped variant—plays a structural role that demands consistent geometry and reliable forming. Our keel omega machine is engineered to produce this profile with the precision required for smooth installation and long-term performance.

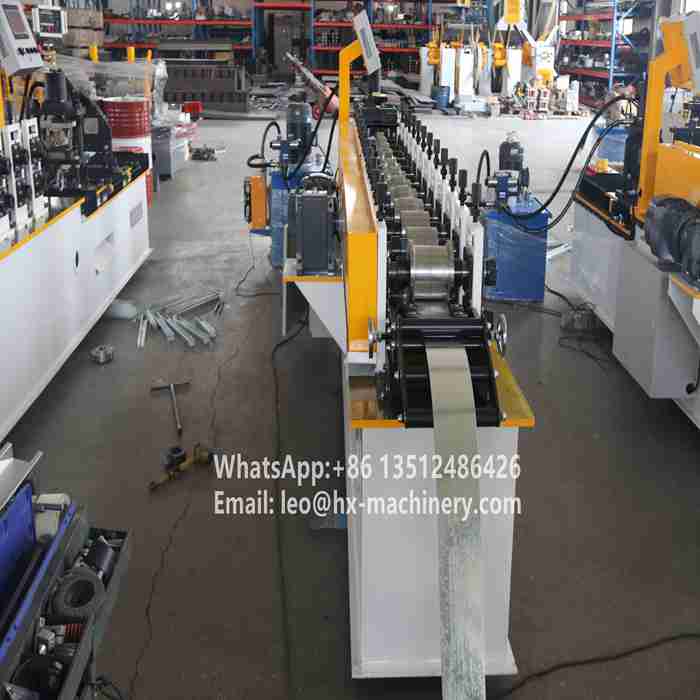

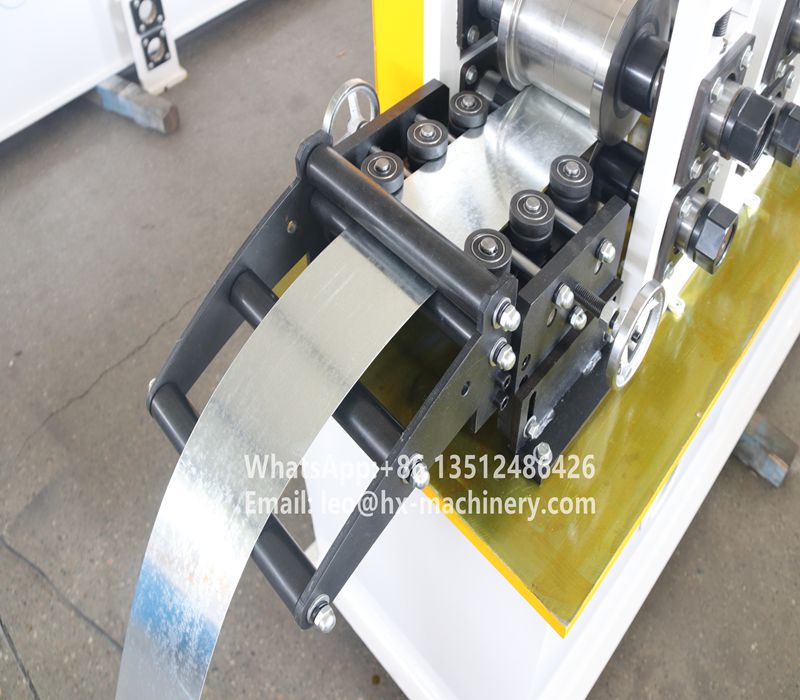

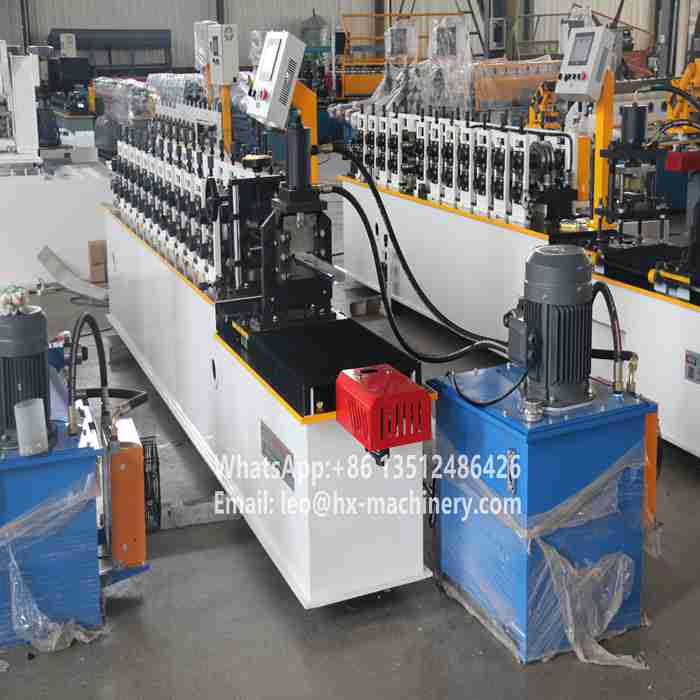

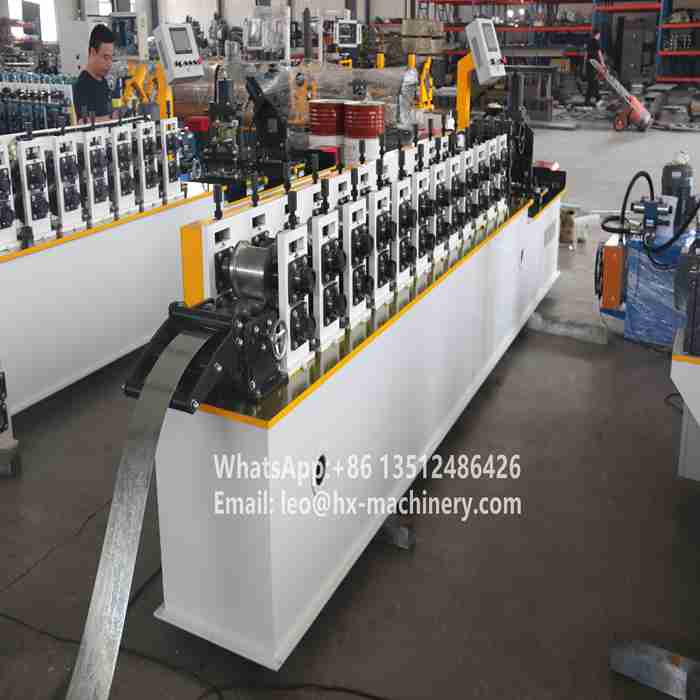

This keel omega machine forms the omega shape through a carefully sequenced roll forming process that maintains uniform curvature and straight leg sections. The machine handles various material thicknesses with adjustments that allow quick changes between different profile sizes. Its integrated cutting system delivers clean, accurate ends, and optional punching units can add holes or notches at specific intervals, matching the requirements of suspended ceiling grids or drywall framing systems.
What sets our keel omega machine apart is its stability over extended production runs. The machine is built on a rigid frame, uses hardened rollers to resist wear, and features straightforward controls that minimize operator training time. Maintenance is simple, and our support team provides practical guidance and fast parts availability when needed. With our keel omega machine, you get consistent output, reduced scrap, and a machine that fits seamlessly into your production workflow—whether you're supplying components for commercial interiors or industrial applications. It’s a reliable tool for a profile that does more than its shape might suggest.
Machine parameters
| No. |
Keel omega machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |

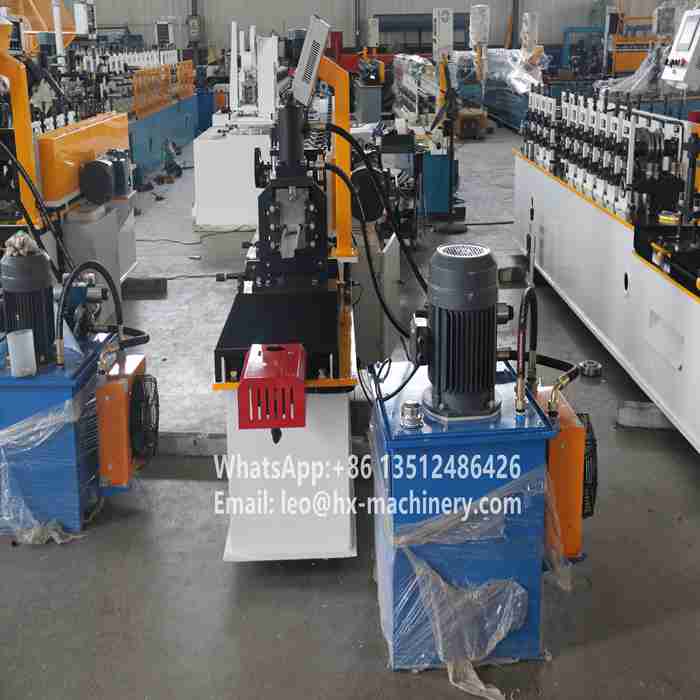

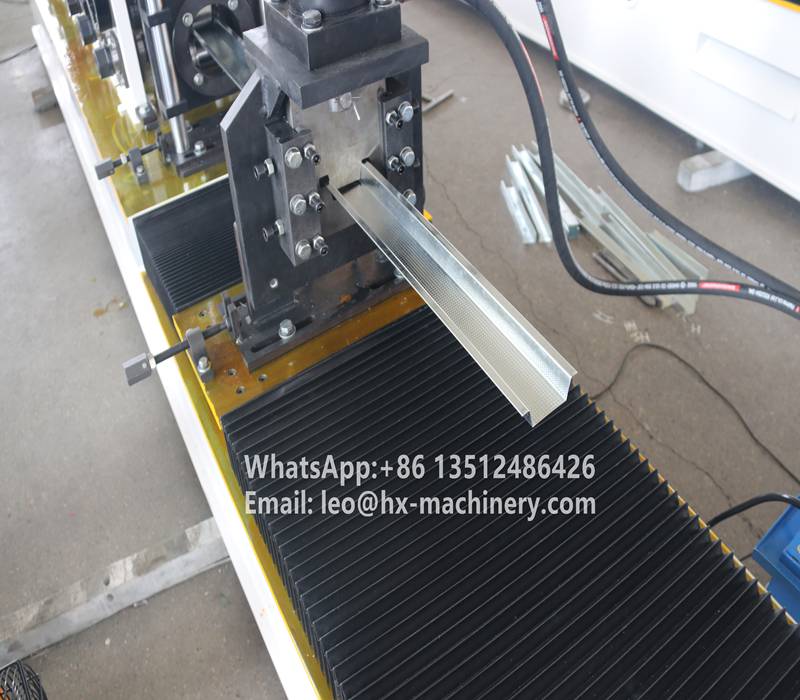

Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |

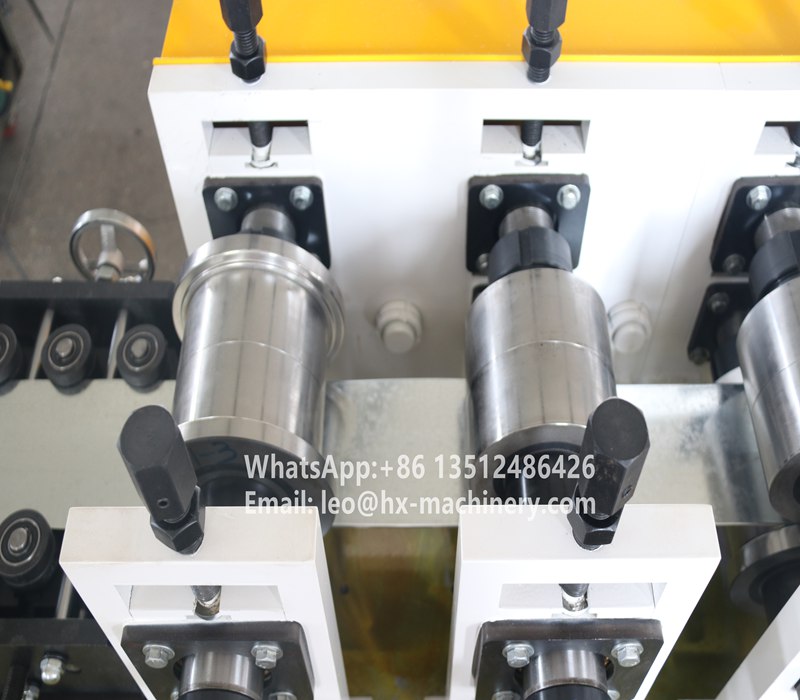

Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
