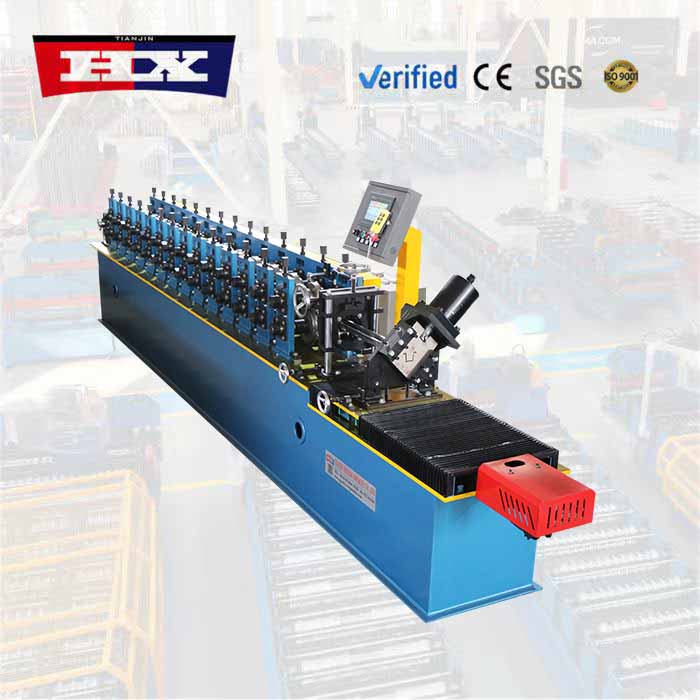

Model: HX-profile omega roll forming
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

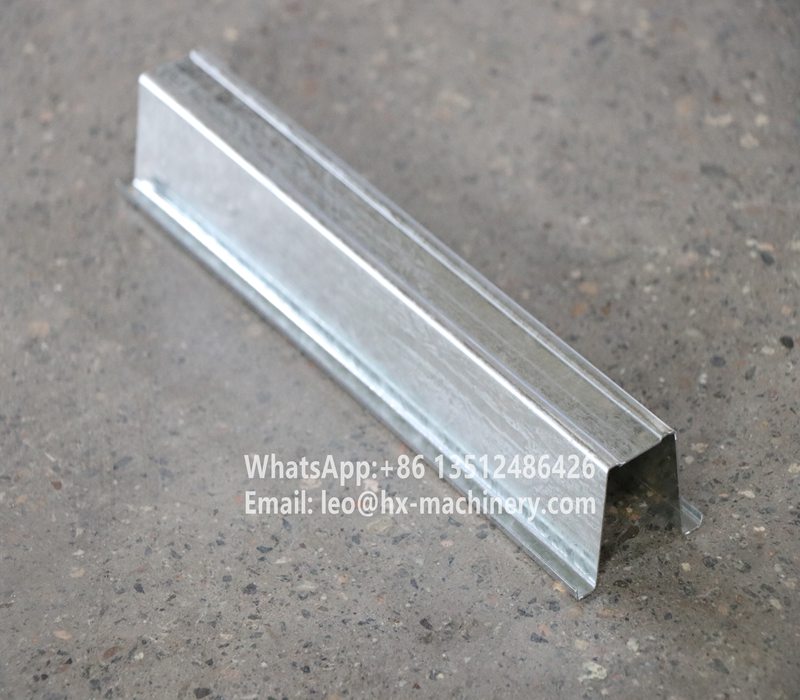

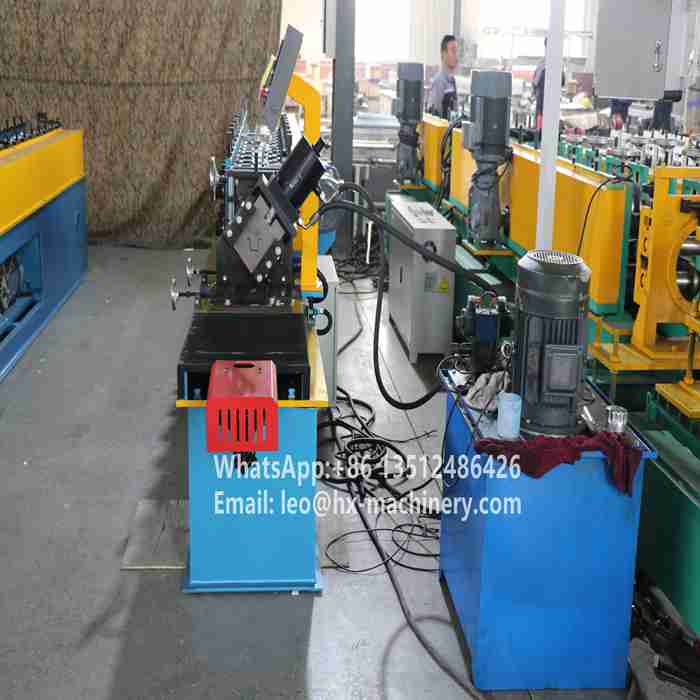

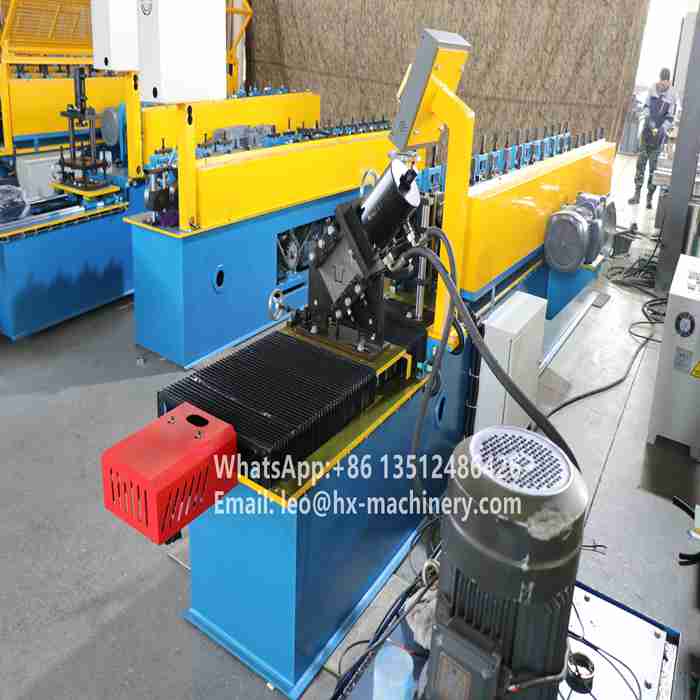

The omega profile is one of those shapes that looks straightforward but requires careful forming to get right. Its curved sections and straight legs need to work together to provide structural support, which means the forming process must be consistent from start to finish. That’s why we built our profile omega roll forming machine with precision and stability as the top priorities.

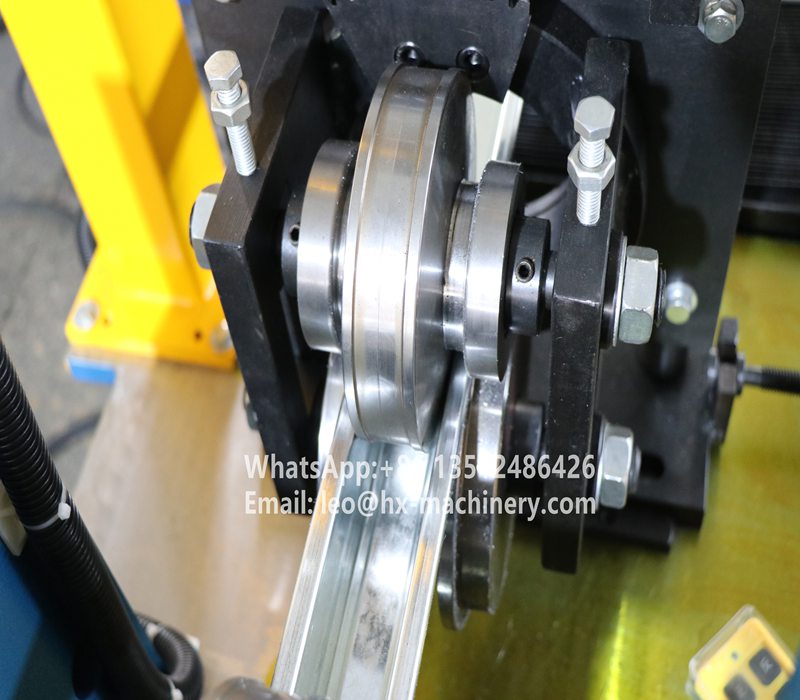

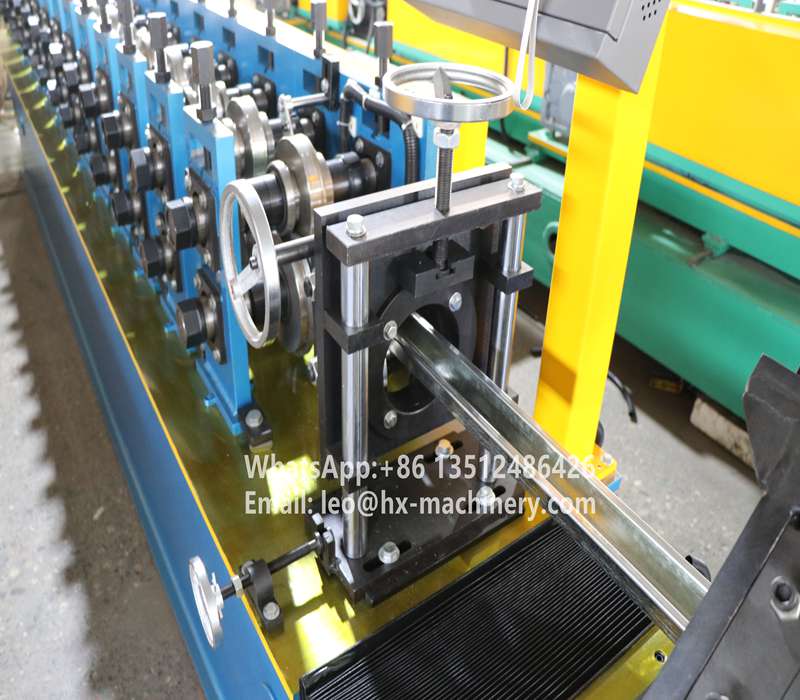

Our profile omega roll forming machine uses a progressive forming sequence that shapes the material gradually, avoiding stress points and distortion. Each roller station is carefully calibrated to contribute to the final shape, and the hydraulic cutting system ensures clean, accurate ends. The machine accommodates various material thicknesses and profile depths, with quick adjustment features that make switching between different omega sizes efficient.
What customers appreciate about our profile omega roll forming machine is its reliable performance over long production runs. The frame is built to handle continuous operation, the rollers are hardened for durability, and the control system is straightforward. Routine maintenance is manageable, and when support is needed, our team provides clear guidance and fast parts availability. With our profile omega roll forming machine, you get consistent quality, reduced waste, and a machine that fits smoothly into your existing production line. It’s a practical solution for producing a profile that plays a key role in modern construction.
Machine parameters
| No. |
Profile omega roll forming machine |
|
| 1 |
Cutting blade |
Cr12MoV, heat‑treated to HRC 58‑60 |
| 2 |
Punching & cutting
|
Hydraulic cutting |
| 3 |
Shaft diameter |
50 mm solid shaft with anti‑back‑up washer, high‑quality 45# forged steel |
| 4 |
Running speed |
0‑50 m/min without punching |
| 5 |
Forming stations |
12 stations |
| 6 |
Roller shaft material |
45# steel |
| 7 |
Forming roller |
Cr12, heat‑treated hardness HRC 58‑60 |
| 8 |
Transmission type |
Gear drive |
| 9 |
Control cabinet |
Domestic components |
| 10 |
Voltage |
380 V, 50 Hz, 3‑phase power supply |
| 11 |
Length tolerance |
±2 mm |
| 12 |
Cutting tolerance |
±1.0 mm |
| 13 |
PLC display languages |
Chinese, English, Spanish |
| 14 |
Hydraulic oil pipe |
2 pcs of 3‑meter pipe |
| 15 |
Precision counting wheel |
2 pcs |
| 16 |
Solenoid valve |
2 pcs(at least 6 extra solenoid valve plug connectors) |
| 17 |
Fuse |
2 pcs |
| 18 |
Bearing |
2 pcs |
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
