Model: HX-coil slitting machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com
Haixing Industrial Group Co., Ltd. understands that slitting operations are the backbone of any steel service center. That's why we engineer every coil slitting machine with a focus on operational stability, ease of maintenance, and long-term cost efficiency—attributes that resonate with plant managers worldwide.

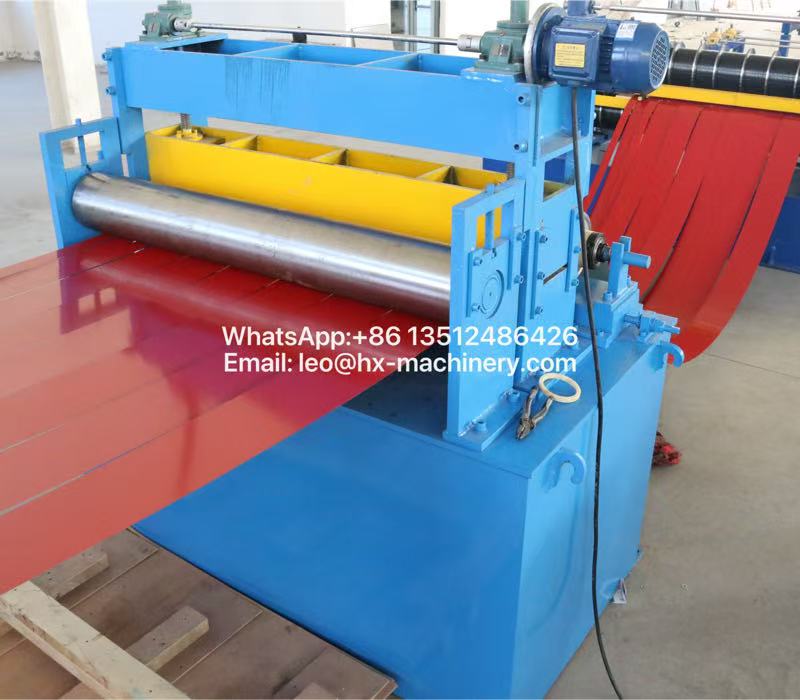

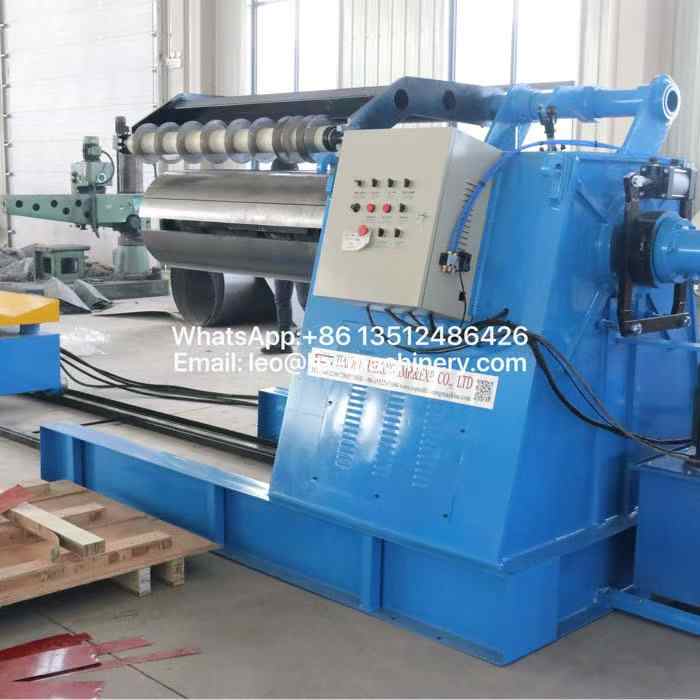

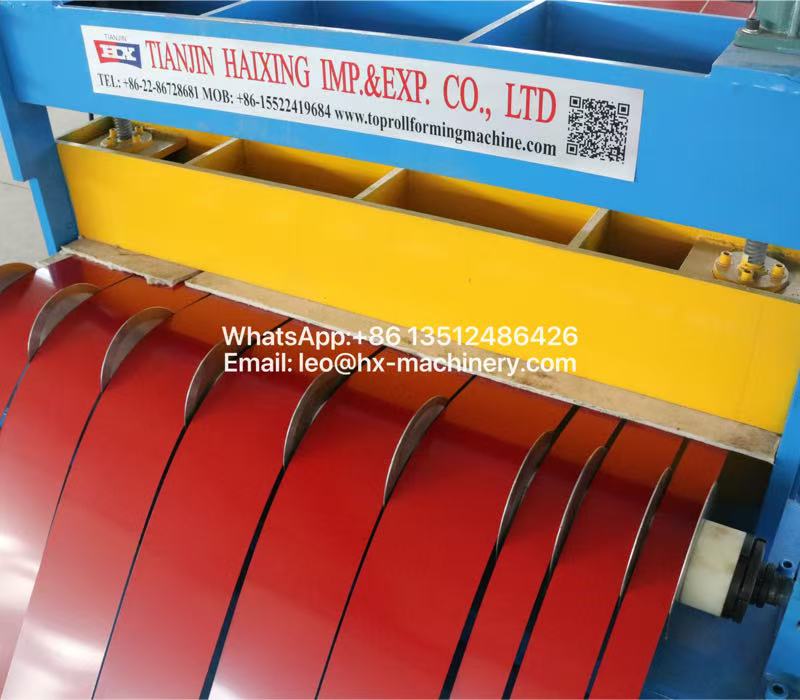

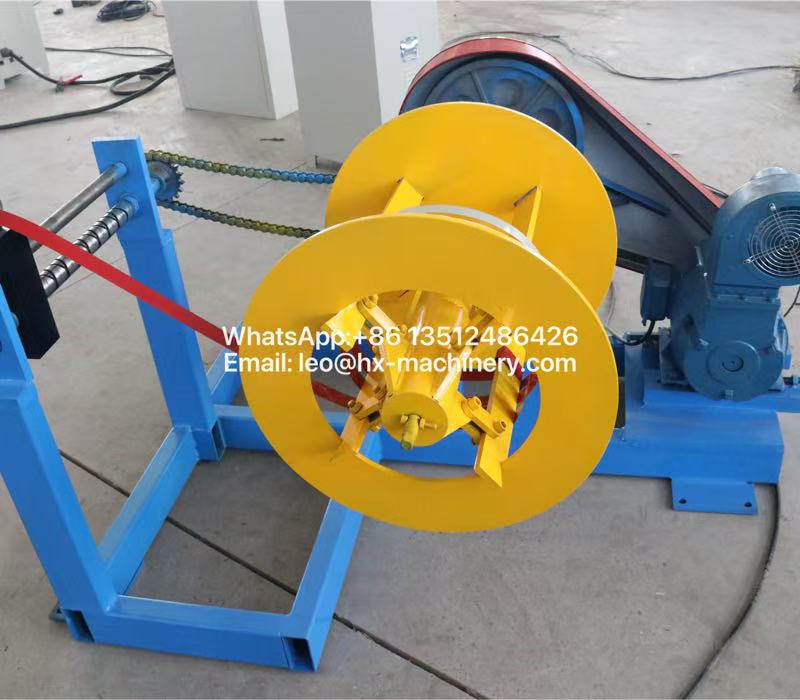

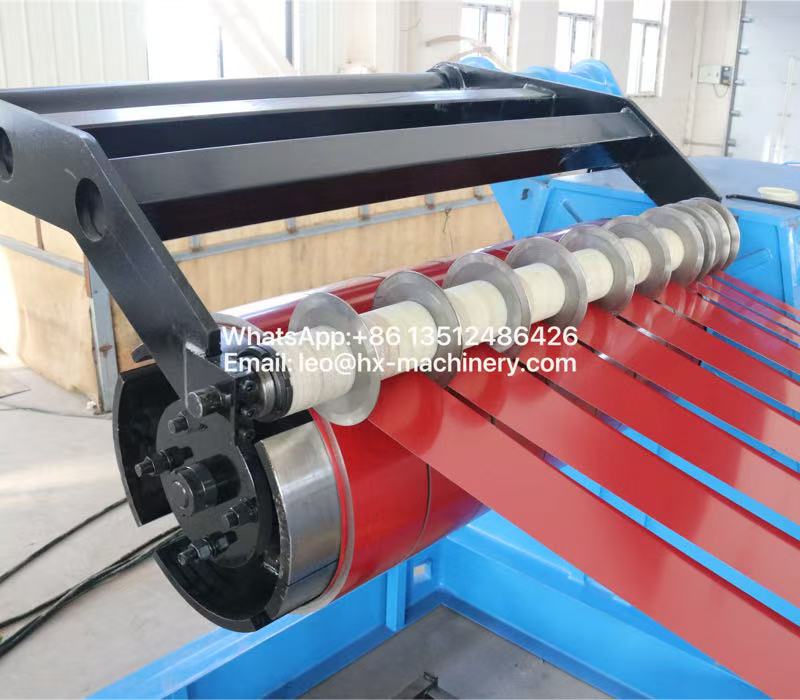

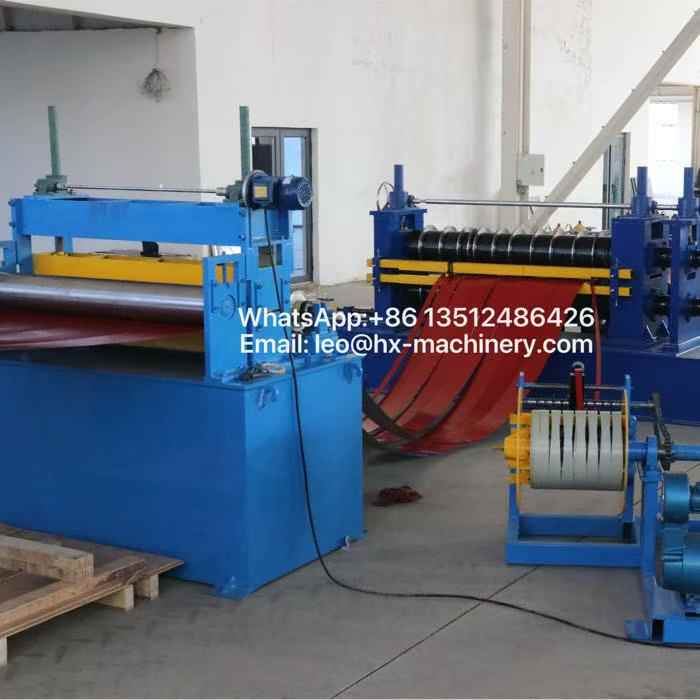

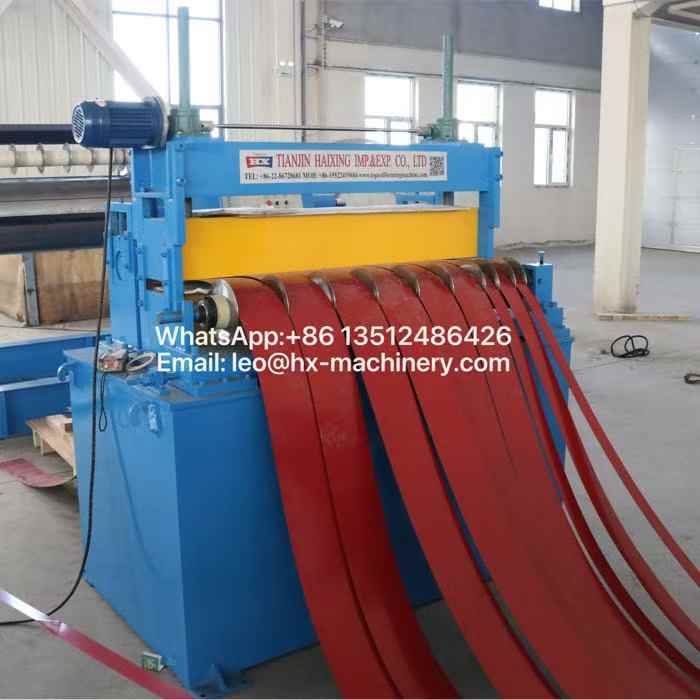

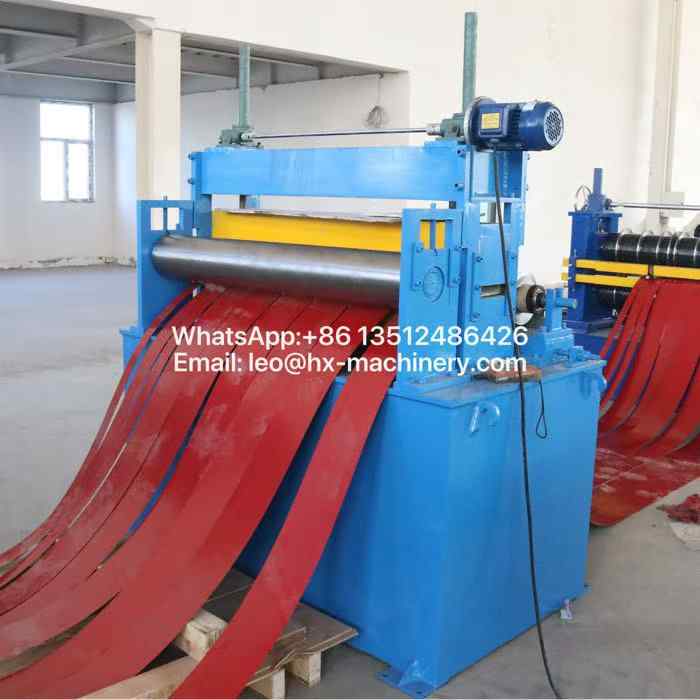

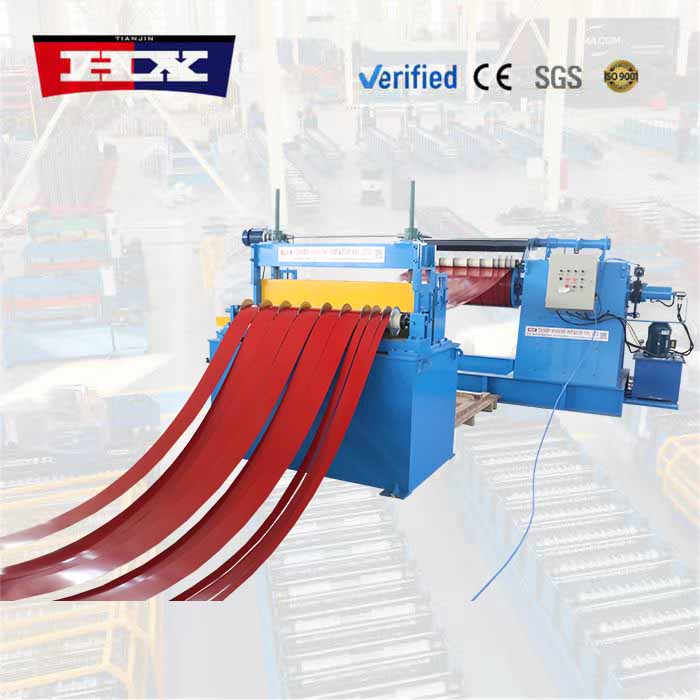

Our coil slitting machine is designed as a fully integrated line, featuring a hydraulic decoiler with expandable mandrels, a rigid four-post slitter housing, and a dual-disc tension rewinder. Customization options are extensive: we adjust blade clearance, loop pit depth, and recoiler torque curves to align with your specific downstream forming or stamping processes.
What makes this coil slitting machine a practical investment is its self-diagnostic system and automatic lubrication, which cut unplanned downtime by nearly 30%. The operator-friendly touchscreen interface allows real-time monitoring of strip tension, speed, and edge quality, while the quick-release arbor design reduces tooling changeovers to under 12 minutes. We back every unit with on-site commissioning, operator training, and a responsive after-sales team, ensuring smooth integration into your existing production workflow.
Machine parameters
| No. |
Coil slitting machine |
|
| 1 |
Expansion range |
470‑530mm、570‑630 mm |
| 2 |
Brake
|
Pneumatic |
| 3 |
Motor |
5.5KW AC motor |
| 4 |
Pinch‑feed roller spec |
Φ250MM |
| 5 |
Plate thickness |
0.5‑3MM |
| 6 |
Motor model |
Y‑series |
| 7 |
Motor power |
15KW，4‑pole |
| 8 |
Reducer |
BWD4 |
| 9 | Effective pinch width |
1750mm |
| 10 |
Reducer model |
ZLY224 |
| 11 |
Slitter shaft diameter |
Φ200mm |
| 12 |
Blade material & hardness |
HRC55‑58 |
| 13 | Blade dimension |
Φ340×200×10 |
| 14 |
Load capacity |
10000KG
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
