Model: HX-material slitting machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

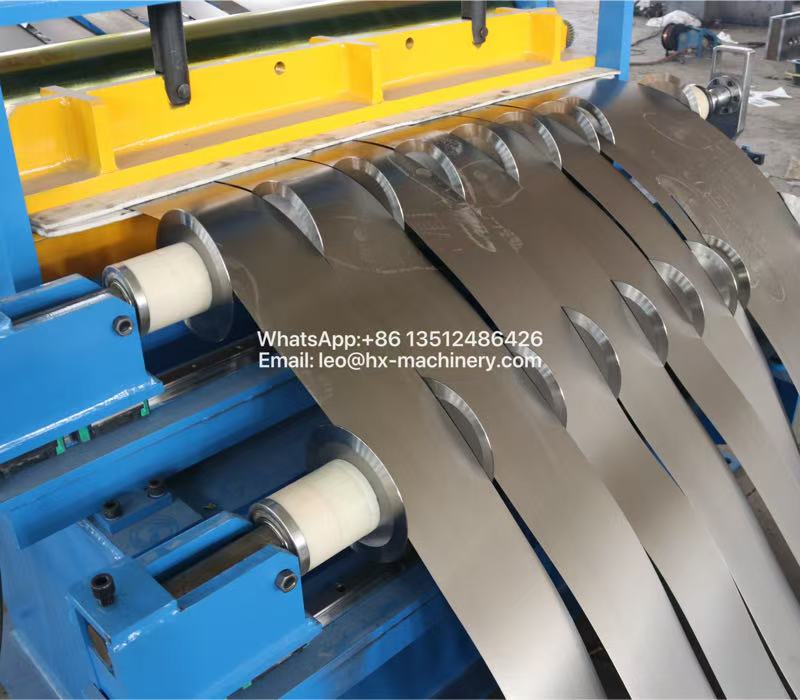

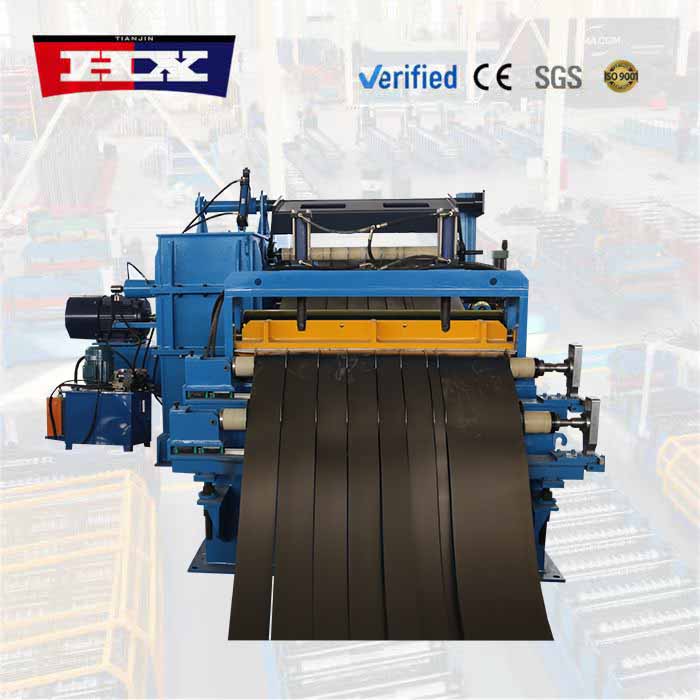

Not all slitting jobs are the same—some involve steel, others aluminum, copper, or even laminated composites. Haixing Industrial Group Co., Ltd. has developed a material slitting machine that rises to this challenge, offering a flexible platform capable of handling a broad spectrum of strip materials without compromising on cut quality or throughput.
Our material slitting machine features a modular frame design that accommodates interchangeable blade sets, adjustable entry guides, and variable-speed drive systems. Customization options include specialized knife materials—such as high-speed steel, cemented carbide, or ceramic-coated blades—along with tailored scrap winding units and recoiler drum configurations to match your specific material characteristics.
A standout feature of this material slitting machine is its adaptive tension control, which automatically compensates for variations in material hardness and thickness, preventing edge wave or strip breakage. The PLC-based system stores up to 60 material-specific recipes, enabling rapid changeovers and consistent repeatability across different production runs. We provide comprehensive installation guidance, remote diagnostic support, and a full inventory of wear parts, ensuring your slitting line remains productive and reliable, regardless of the materials you run.
Machine parameters
| No. |
Material slitting machine |
|
| 1 |
Expansion range |
470‑530mm、570‑630 mm |
| 2 |
Brake
|
Pneumatic |
| 3 |
Motor |
5.5KW AC motor |
| 4 |
Pinch‑feed roller spec |
Φ250MM |
| 5 |
Plate thickness |
0.5‑3MM |
| 6 |
Motor model |
Y‑series |
| 7 |
Motor power |
15KW，4‑pole |
| 8 |
Reducer |
BWD4 |
| 9 | Effective pinch width |
1750mm |
| 10 |
Reducer model |
ZLY224 |
| 11 |
Slitter shaft diameter |
Φ200mm |
| 12 |
Blade material & hardness |
HRC55‑58 |
| 13 | Blade dimension |
Φ340×200×10 |
| 14 |
Load capacity |
10000KG
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.

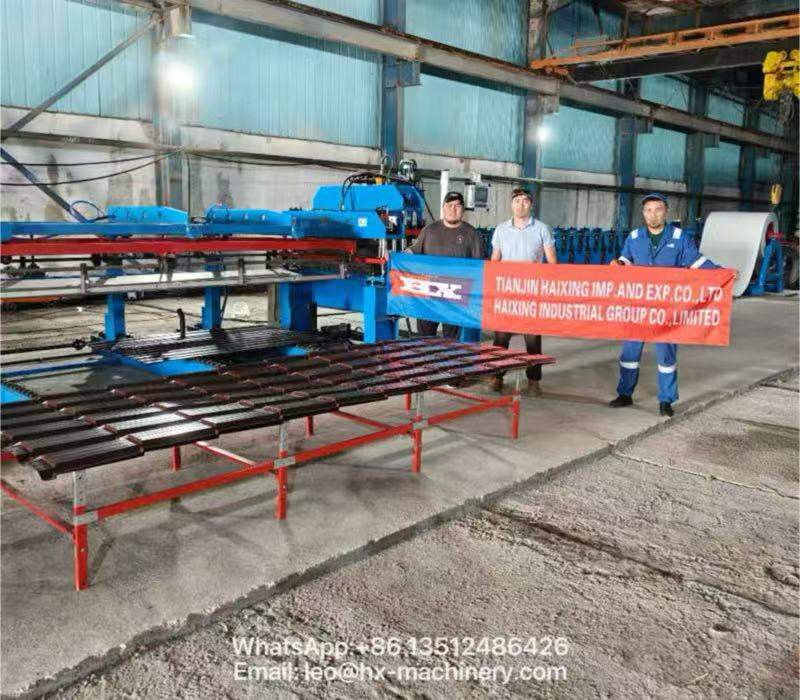

Clients Showing
