Model: HX-slitting machine
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

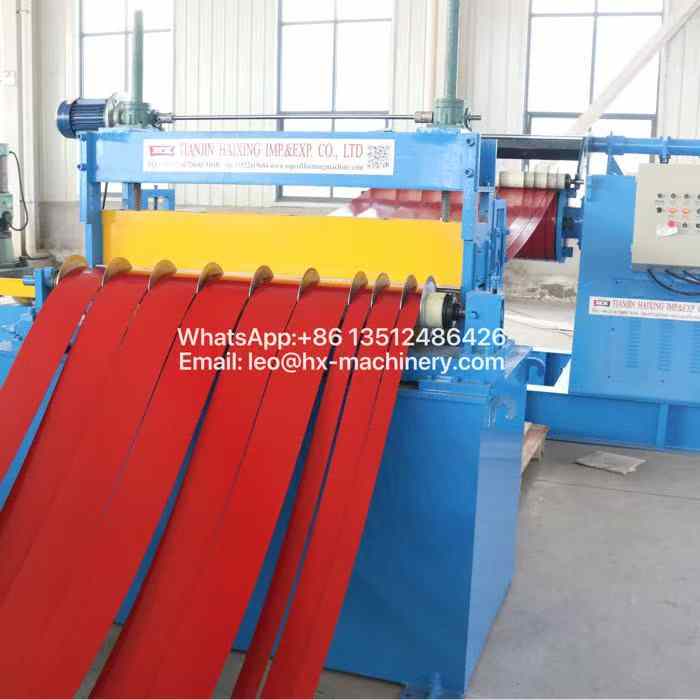

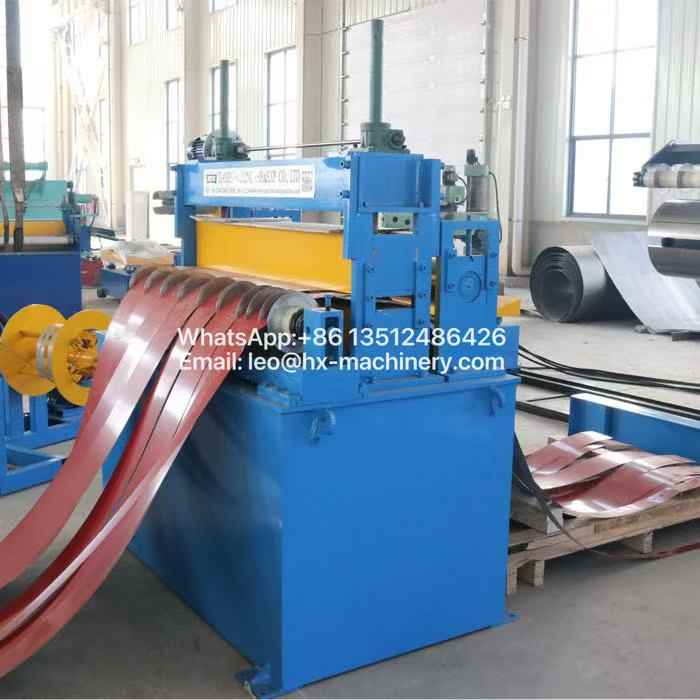

In today's fast-paced production environment, a slitting machine needs to be more than just precise—it has to be practical for the team running it every day. Haixing Industrial Group Co., Ltd. has engineered a slitting machine that prioritizes operator convenience, quick troubleshooting, and straightforward servicing, helping plant managers reduce reliance on specialized technicians.
Our slitting machine features an intuitive touchscreen interface that guides operators through setup, job recall, and real-time diagnostics with clear visual prompts. The cantilevered arbor design allows tooling changes without dismantling the entire housing, while the swing-out entry guide provides easy access for cleaning and blade inspection. Custom options include automatic lubricationsystems, quick-lock knife spacers, and modular scrap conveyors to match your facility layout.

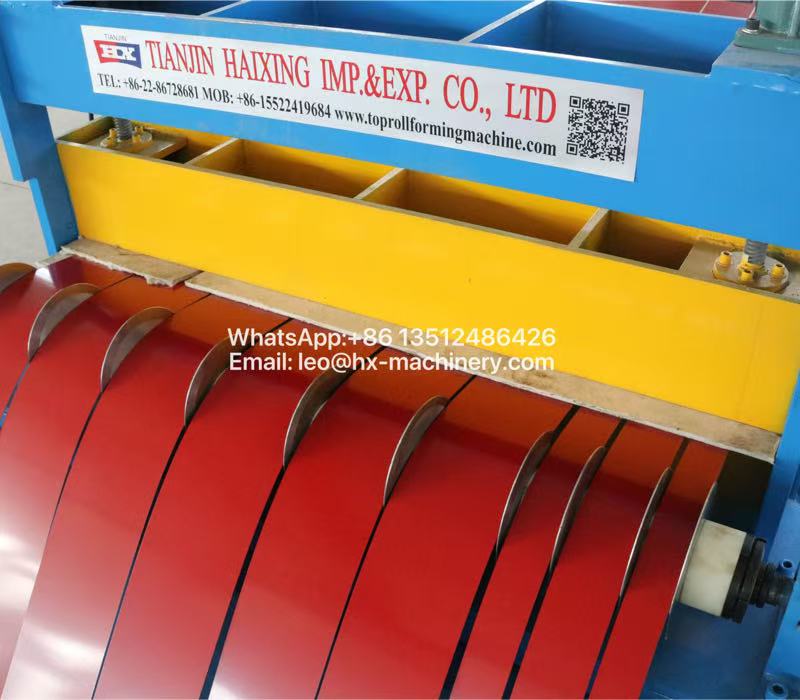

A standout practical benefit of this slitting machine is its self-adjusting knife gap mechanism, which compensates for blade wear over time, reducing the frequency of manual recalibration. The control panel displays maintenance alerts and remaining tool life, enabling predictive servicing that cuts unplanned downtime. We provide comprehensive documentation, remote assistance, and readily stocked consumables to ensure your team can keep production moving with minimal interruption.
Machine parameters
| No. |
Slitting machine |
|
| 1 |
Expansion range |
470‑530mm、570‑630 mm |
| 2 |
Brake
|
Pneumatic |
| 3 |
Motor |
5.5KW AC motor |
| 4 |
Pinch‑feed roller spec |
Φ250MM |
| 5 |
Plate thickness |
0.5‑3MM |
| 6 |
Motor model |
Y‑series |
| 7 |
Motor power |
15KW，4‑pole |
| 8 |
Reducer |
BWD4 |
| 9 | Effective pinch width |
1750mm |
| 10 |
Reducer model |
ZLY224 |
| 11 |
Slitter shaft diameter |
Φ200mm |
| 12 |
Blade material & hardness |
HRC55‑58 |
| 13 | Blade dimension |
Φ340×200×10 |
| 14 |
Load capacity |
10000KG
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
Clients Showing
