Model: HX-sheet metal slitter
Delivery time: 30 to 45 working days
Payment: 30% T/T deposit and 70% balance before shipment
Warranty period: 2 years
Operating voltage: 380V 50Hz three-phase (customizable)
WhatsApp: +86 13512486426
E-mail: leo@hx-machinery.com

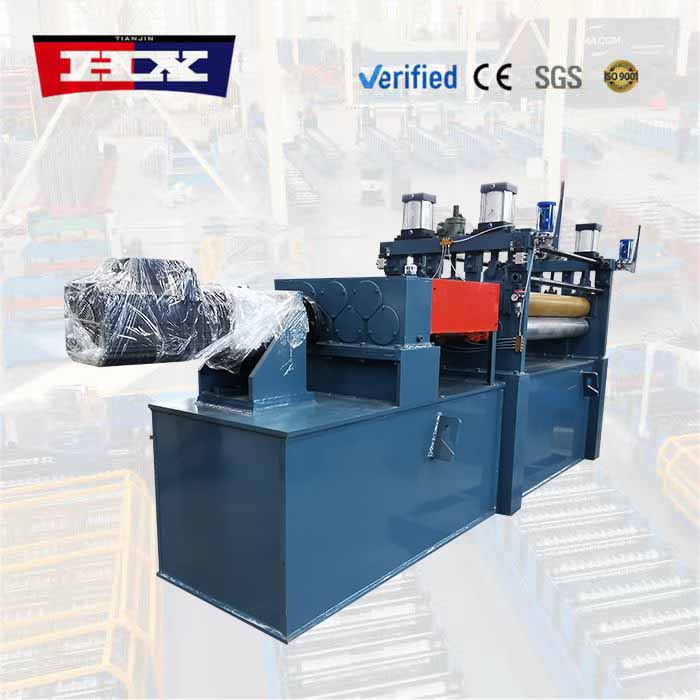

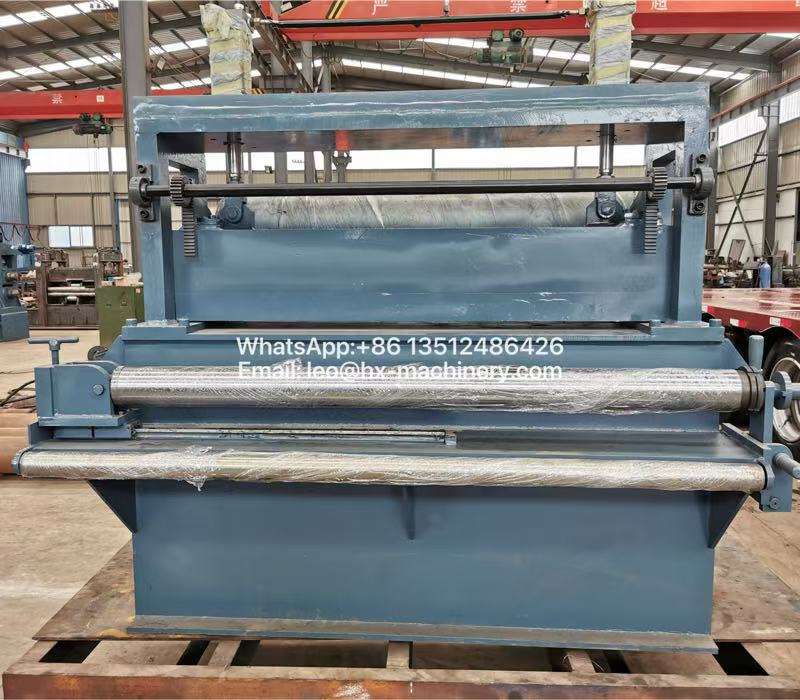

When processing light-gauge steel, aluminum, or coated sheets, edge quality and material utilization directly impact your bottom line. Haixing Industrial Group Co., Ltd. offers a sheet metal slitter specifically engineered for thin-to-medium gauge applications, delivering burr-free strips that feed seamlessly into roll forming, stamping, or welding lines.

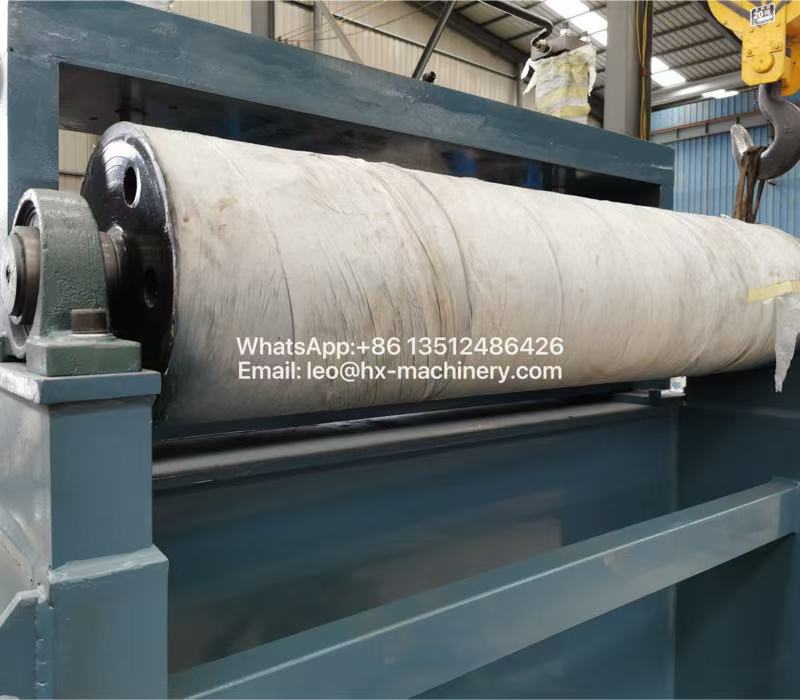

This sheet metal slitter features a cantilevered arbor design that simplifies blade stacking and removal, making size changes fast and tool-friendly. Every sheet metal slitter can be customized with carbide-tipped circular knives for abrasive materials like galvanized or zinc-aluminum coated sheets, as well as rubber-lined pinch rolls that prevent surface marring during high-speed operation.
What gives this sheet metal slitter a clear performance edge is its independent hydraulic back-tension system, which stabilizes strip movement and prevents telescoping on the rewind drum. We back every unit with installation supervision, hands-on operator training, and a warranty that covers both mechanical and electrical components, ensuring your production stays on track from day one.
Machine parameters
| No. |
Sheet metal slitter |
|
| 1 |
Expansion range |
470‑530mm、570‑630 mm |
| 2 |
Brake
|
Pneumatic |
| 3 |
Motor |
5.5KW AC motor |
| 4 |
Pinch‑feed roller spec |
Φ250MM |
| 5 |
Plate thickness |
0.5‑3MM |
| 6 |
Motor model |
Y‑series |
| 7 |
Motor power |
15KW，4‑pole |
| 8 |
Reducer |
BWD4 |
| 9 | Effective pinch width |
1750mm |
| 10 |
Reducer model |
ZLY224 |
| 11 |
Slitter shaft diameter |
Φ200mm |
| 12 |
Blade material & hardness |
HRC55‑58 |
| 13 | Blade dimension |
Φ340×200×10 |
| 14 |
Load capacity |
10000KG
|
Sales Conditions
● Payment terms: 30% deposit, 70% balance after inspection before delivery.
● Production time: Around 30 working days after receiving the 30% deposit.
● Packing method: Naked packing in a 40-foot container, securely fixed with oil rope, control cabinet and all accessories sealed.
● Warranty: 24-month limited warranty. Components and parts are free during the warranty period.
